Plan 95239RW

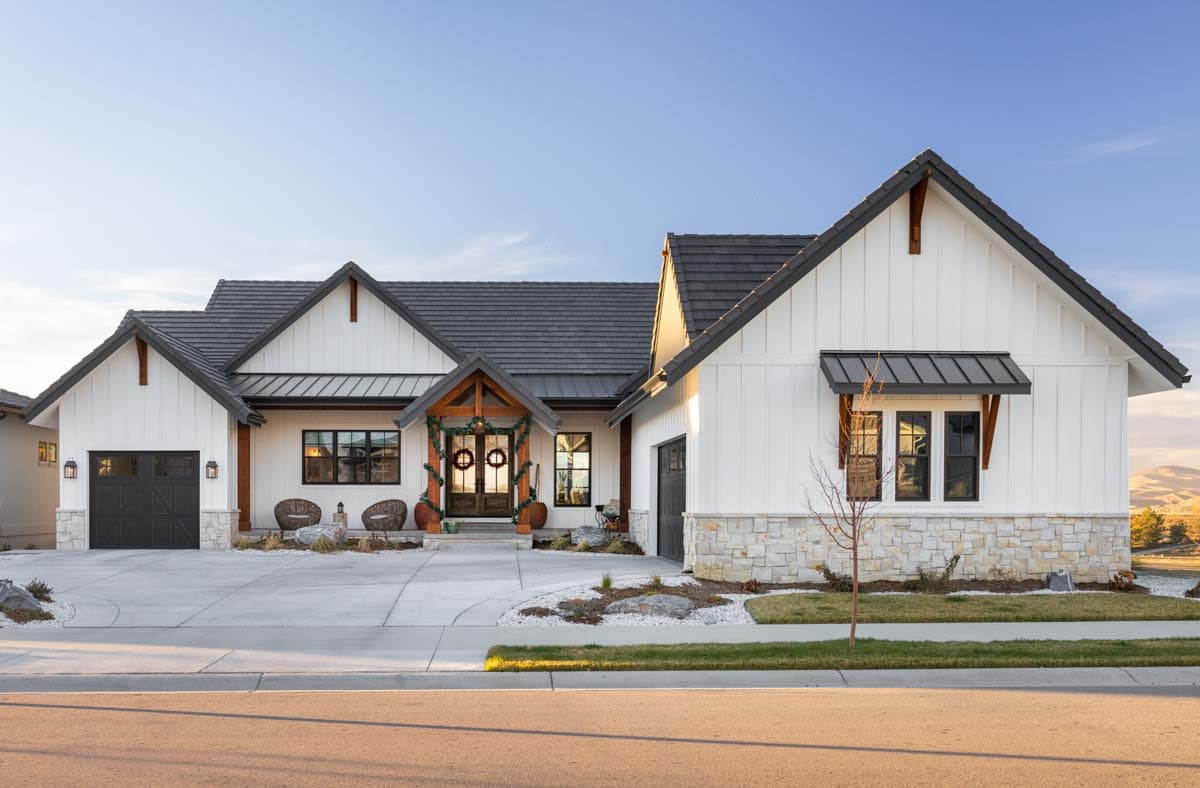

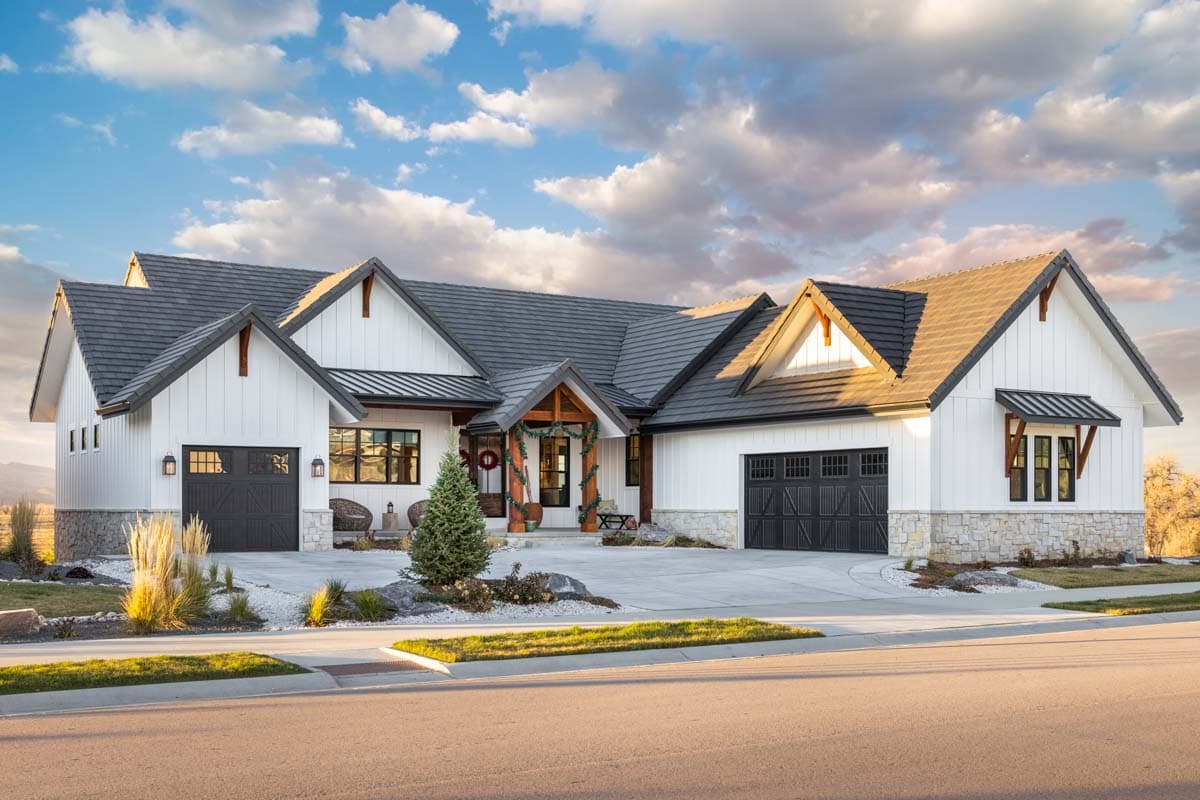

Mountain Craftsman House Plan with Lower Level Expansion - 2848 Sq Ft
Heated S.F.
2,848
Beds
2 - 4
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

Plan 95239RW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 95239RW

1-800-854-7852

1-262-521-4596

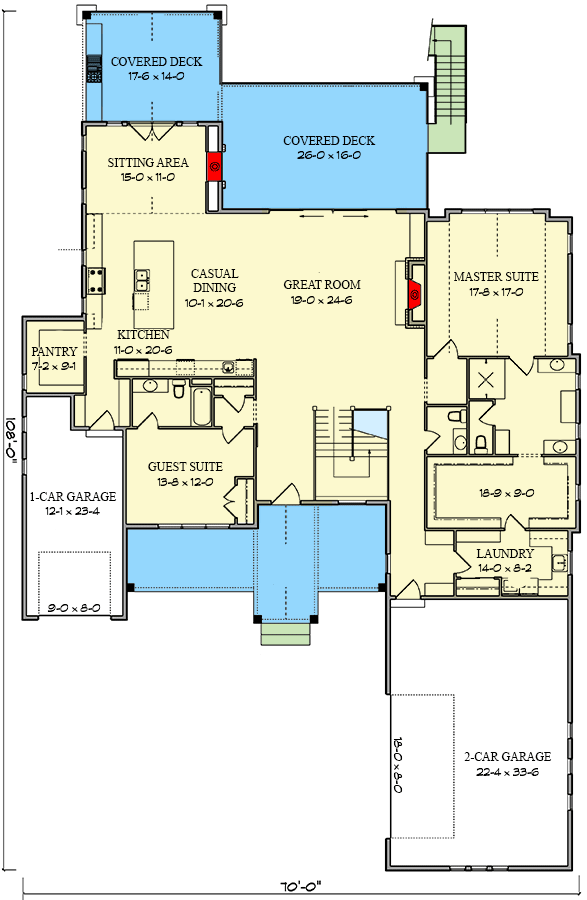

Main Level
floor plan image Main Level

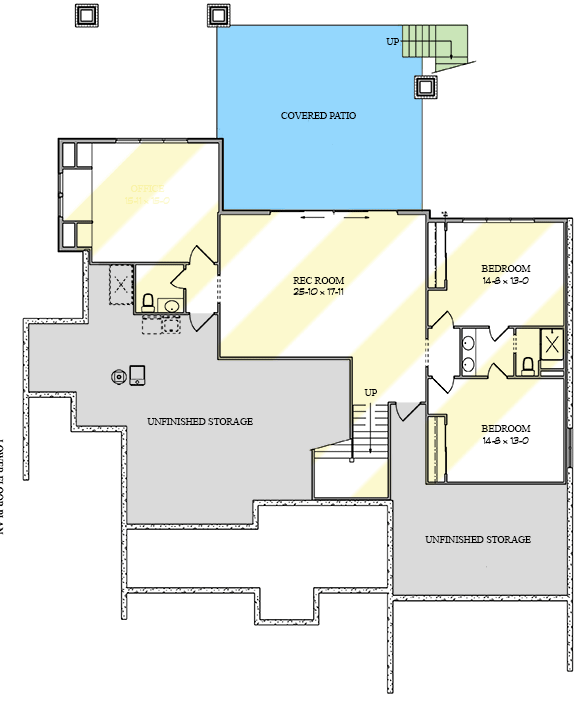

2nd Floor
floor plan image 2nd Floor
Plan Details

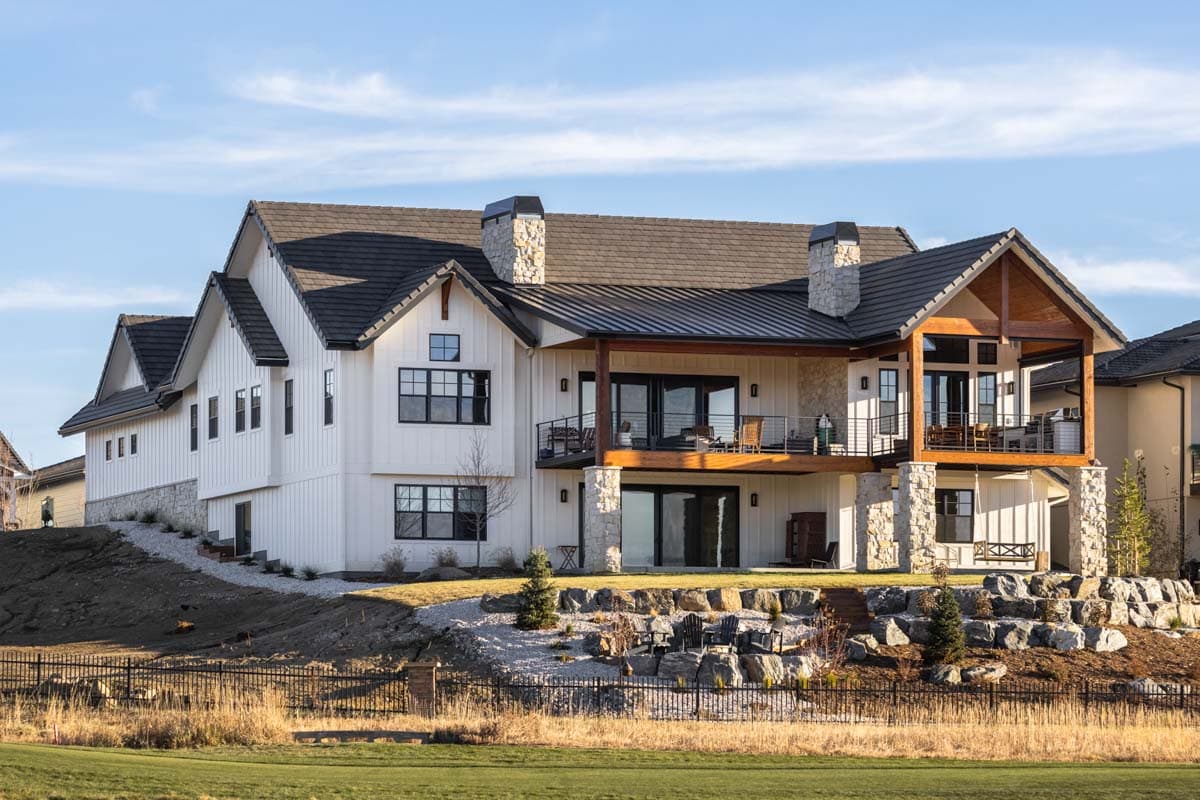

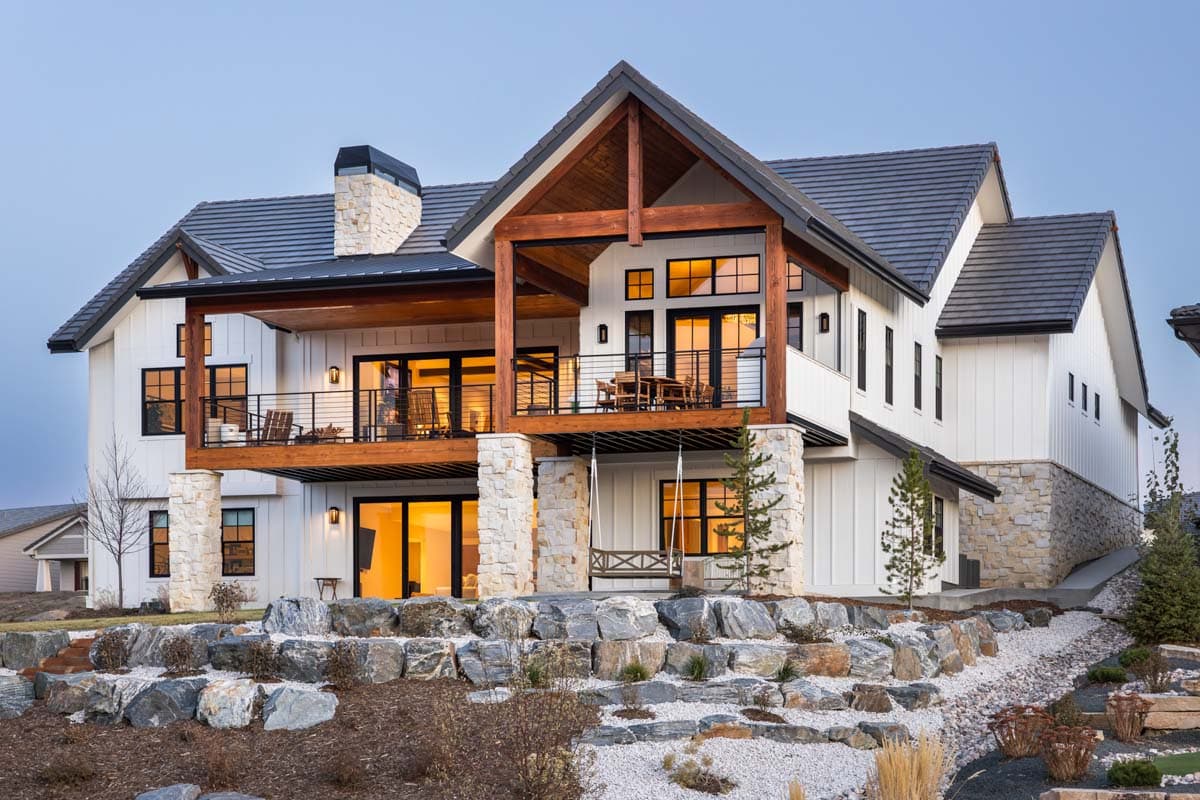

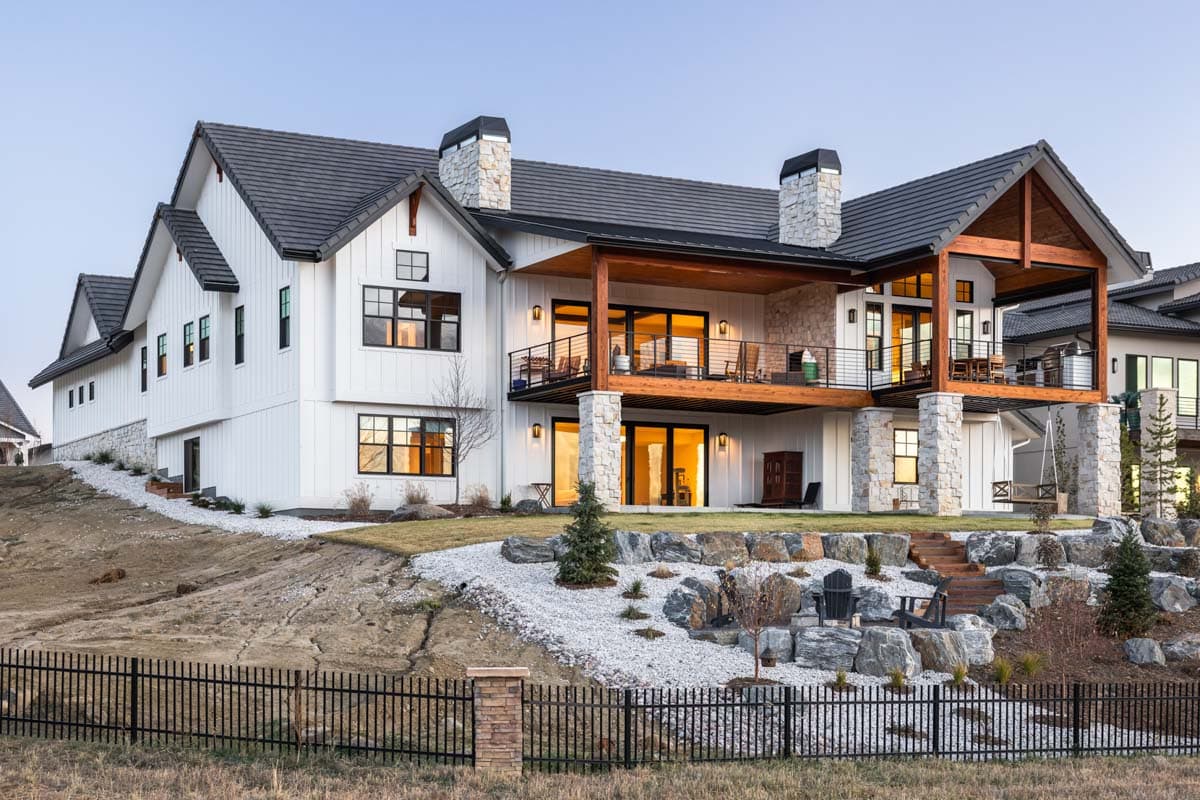

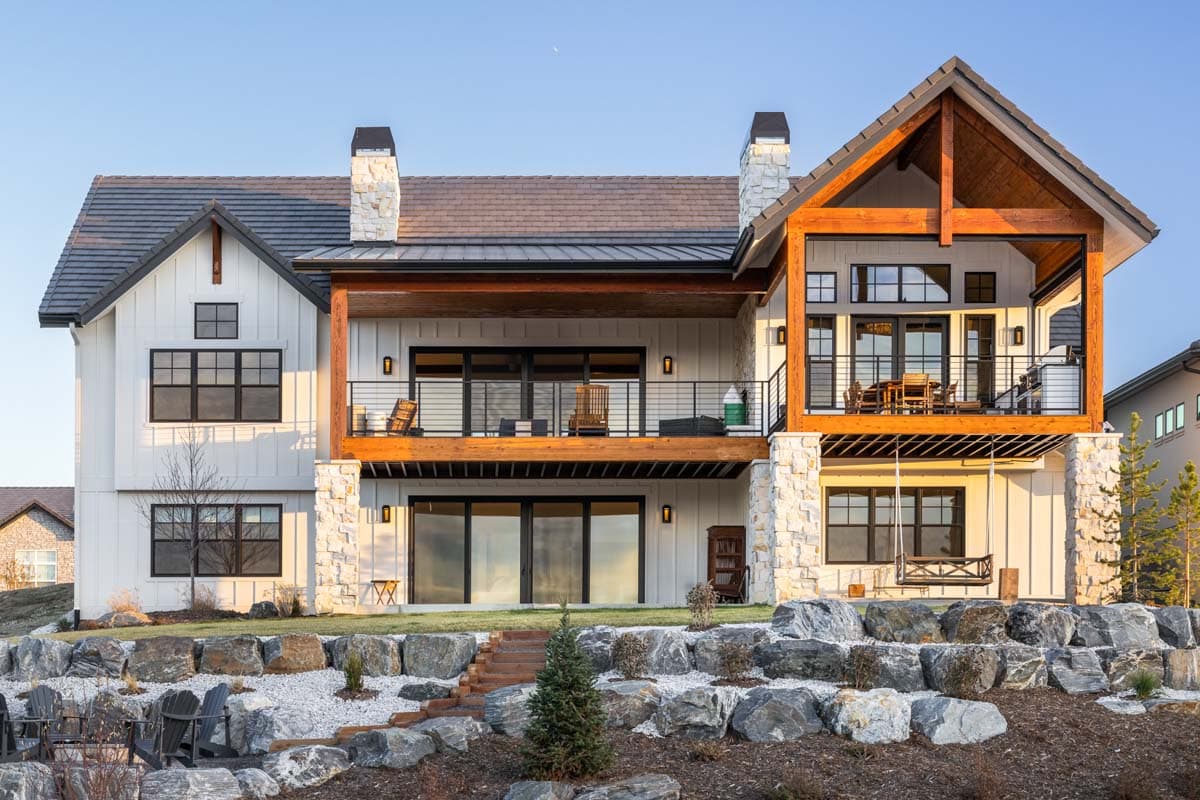

  • This mountain Craftsman house plan gives you 2 bedrooms on the main floor and 2,848 square feet of heated living. The walkout basement gives you 2 more bedrooms and an additional 1,536 square feet of heated living should you decide to finish it.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Page

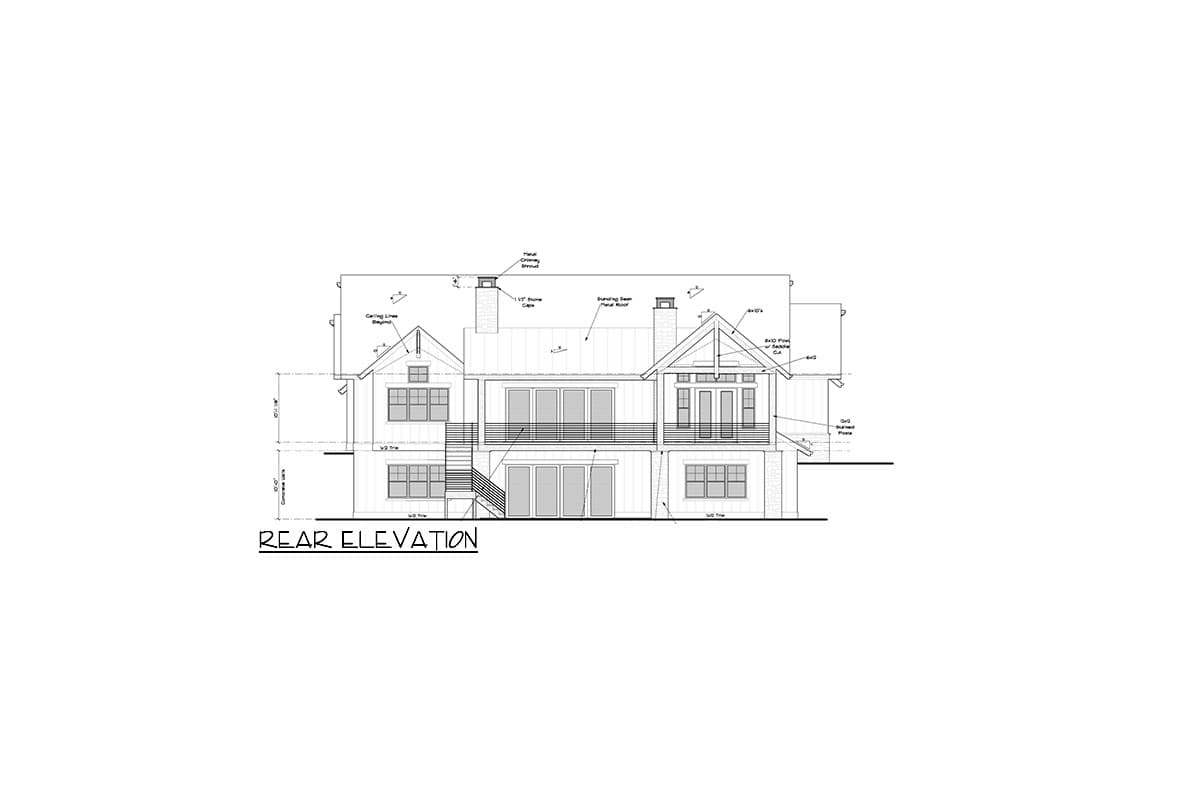

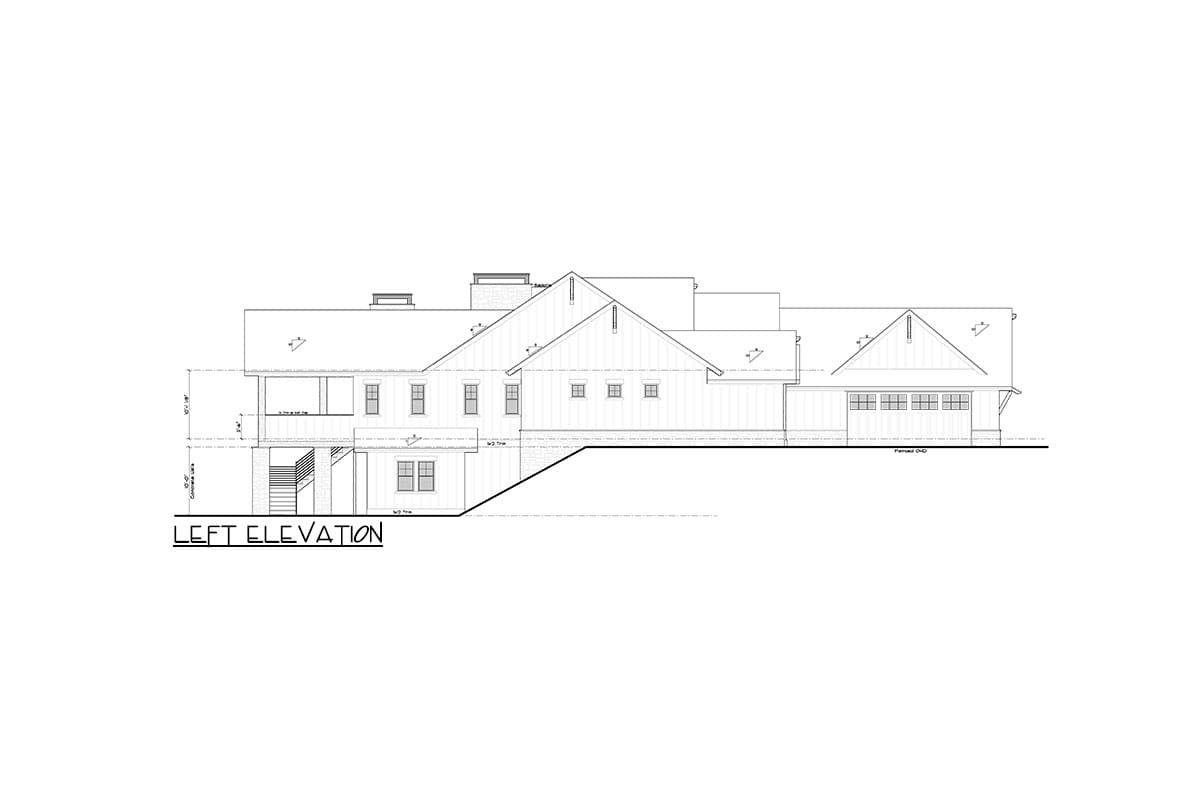

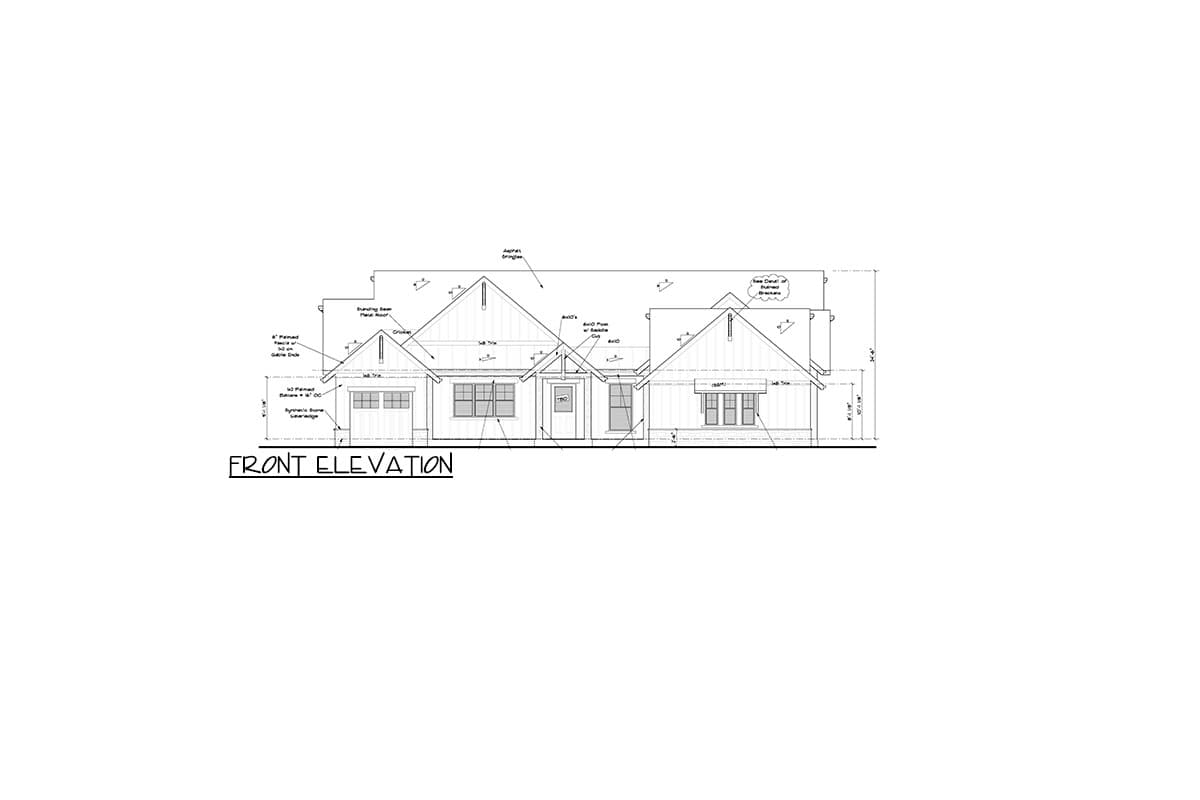

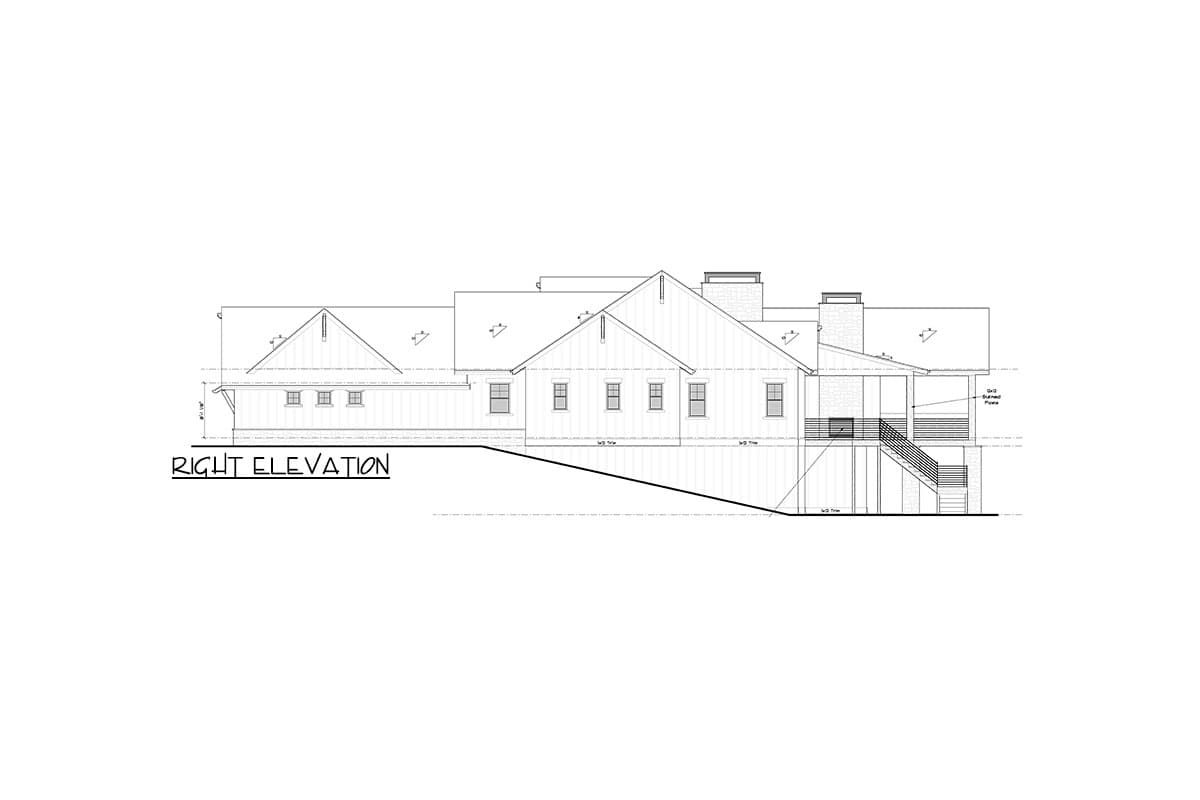

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,848 sq. ft.

1st Floor

2,848 sq. ft.

Basement Unfinished

1,312 sq. ft.

Optional Lower Level

1,536 sq. ft.

Porch, Combined

1,654 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

108' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

1120 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

Mountain

New American

Special Features

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Outdoor Fireplace

Outdoor Kitchen

Plan Collections

Photo Gallery

Sloping Lot
