Plan 520017RKY
Mountain Craftsman House Plan with Outdoor Kitchen - 2471 Sq Ft
Heated S.F.
2,471
Beds
2 - 6
Baths
2.5 - 4.5
Stories
1
Cars
4
Floor Plan

Plan 520017RKY

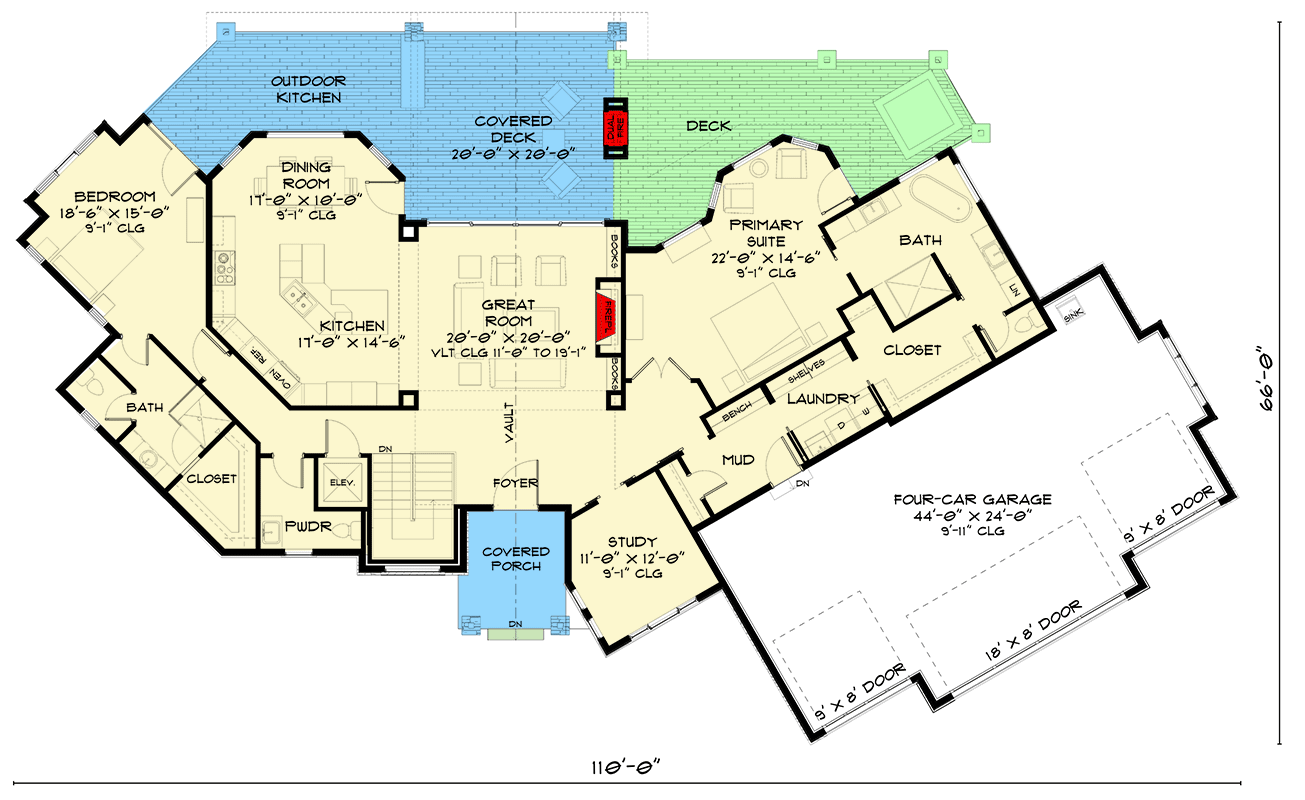

Main Level
slide image 0

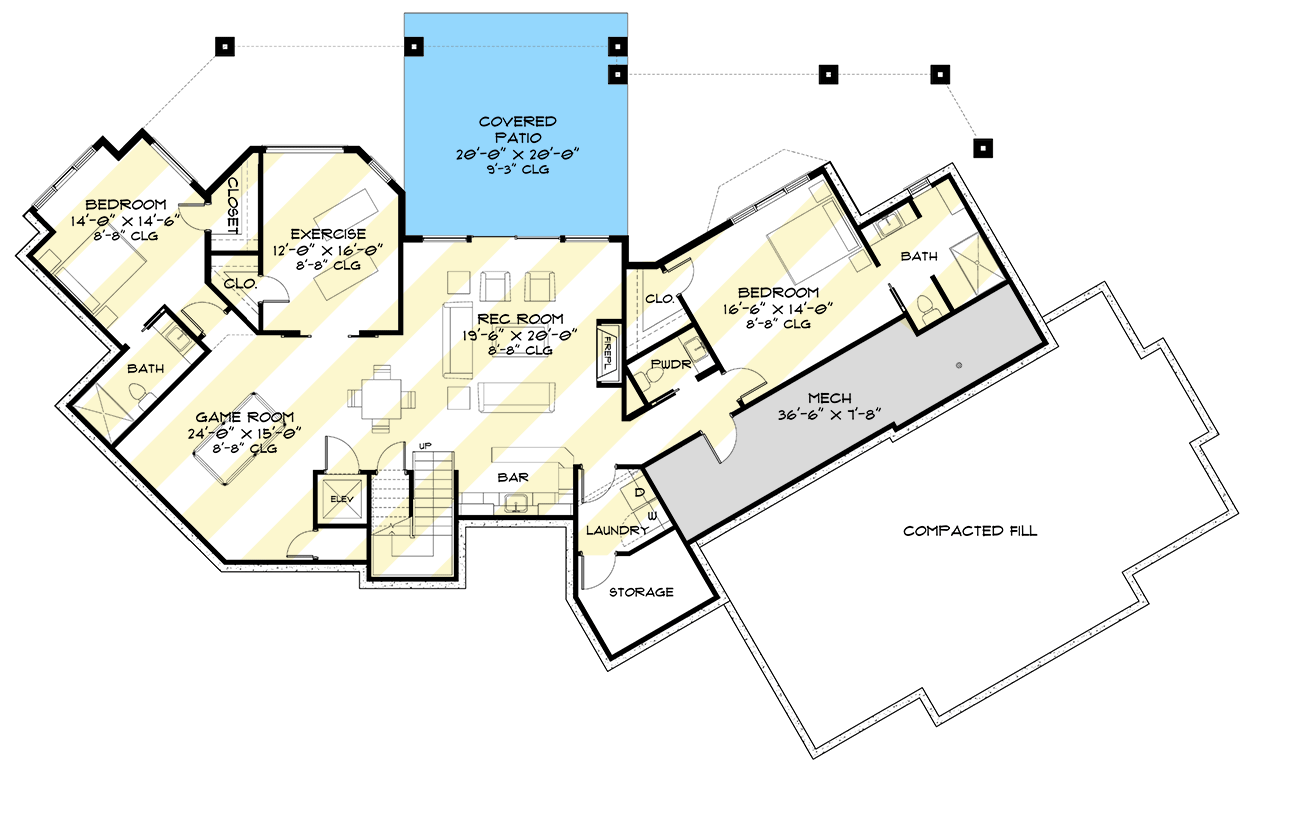

Optional Lower Level
slide image 1

Plan 520017RKY

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This luxury mountain house plan with vaulted timber ceilings gives 2-6 beds, 2.5-4.5+ baths and 2,471  square feet of heated living area.
  • The open floor plan seamlessly connects the kitchen, dining area, and living spaces, perfect for entertaining. A large kitchen island and space for high-end appliances cater to home chefs, while glass doors open to a covered deck with a dual-sided fireplace and outdoor kitchen.
  • The primary suite offers a private retreat with a spa-like bath, walk-in shower, and direct access to a spa deck. The second main-level bedroom features a private bath and walk-in closet. A study, powder room, and oversized four-car garage with a workbench complete the main level.
  • An elevator leads to an optional lower level with a rec room, full bar, game room, exercise studio, second laundry, and two additional bedrooms, each with an ensuite bath and walk-in closet. This level also includes a powder room, ideal for hosting game nights or viewing parties.
What's Included

  • Cover Sheet
  • Specifications
  • Foundation Layout Plan
  • Floor Plans
  • Sections
  • Elevations
  • Roof Ridge Plan
  • Details sheet(s)
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,471 sq. ft.

1st Floor

2,471 sq. ft.

Optional Lower Level

2,448 sq. ft.

Porch, Front

125 sq. ft.

Deck

248 sq. ft.

Covered Patio

375 sq. ft.

Covered Deck

630 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 0"

Depth

66' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

1056 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

11' 10''

Primary Bedroom

9' 0''

Bedroom 2

9' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Architectural Style

Craftsman

Mountain

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Elevator

Flex Room

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Stacked Porches

Two Story Great Room

Wet Bar

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

2,471 sq. ft.

1st Floor

2,471 sq. ft.

Optional Lower Level

2,448 sq. ft.

Porch, Front

125 sq. ft.

Deck

248 sq. ft.

Covered Patio

375 sq. ft.

Covered Deck

630 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, 5, or 6

Full bathrooms

2, 3, or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

110' 0"

Depth

66' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

1056 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

11' 10''

Primary Bedroom

9' 0''

Bedroom 2

9' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Architectural Style

Craftsman

Mountain

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Elevator

Flex Room

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Safe Room

Stacked Porches

Two Story Great Room

Wet Bar

Plan Collections

Luxury
