Name: Plan 350029GH: Mountain Craftsman House Plan with Wraparound Deck - 2520 Sq Ft
SKU: 350029GH
Price: 1058.25 USD
Availability: InStock

Plan 350029GH

Mountain Craftsman House Plan with Wraparound Deck - 2520 Sq Ft

Heated S.F.

2,520

Beds

Baths

3.5

Stories

Floor Plan

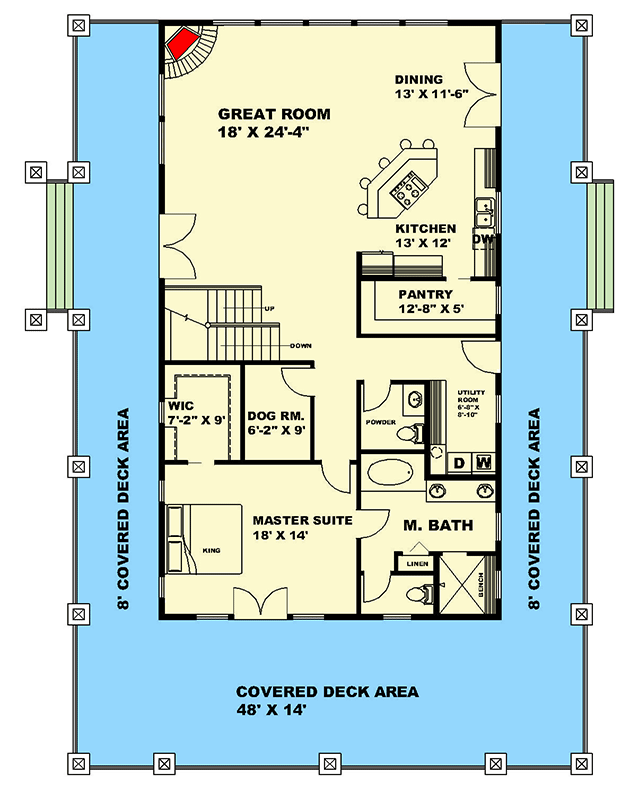

Main Level

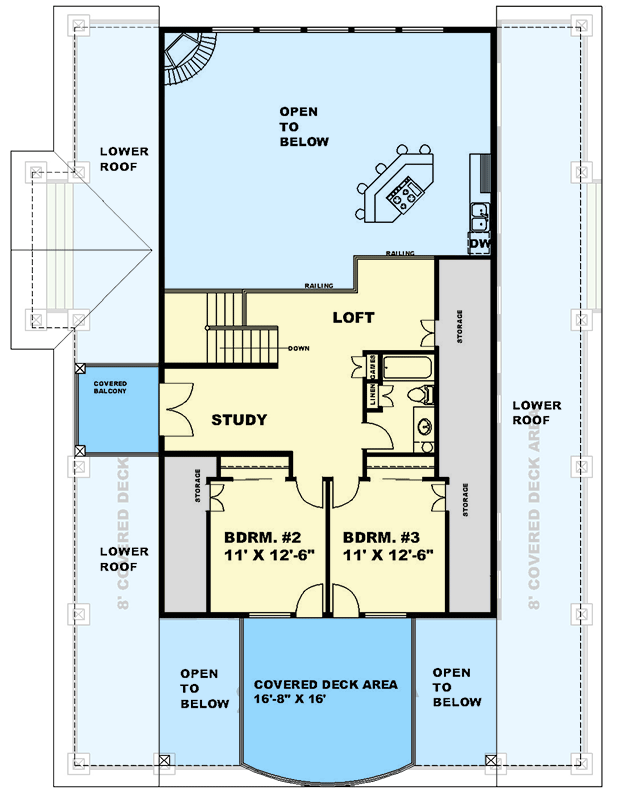

2nd Floor

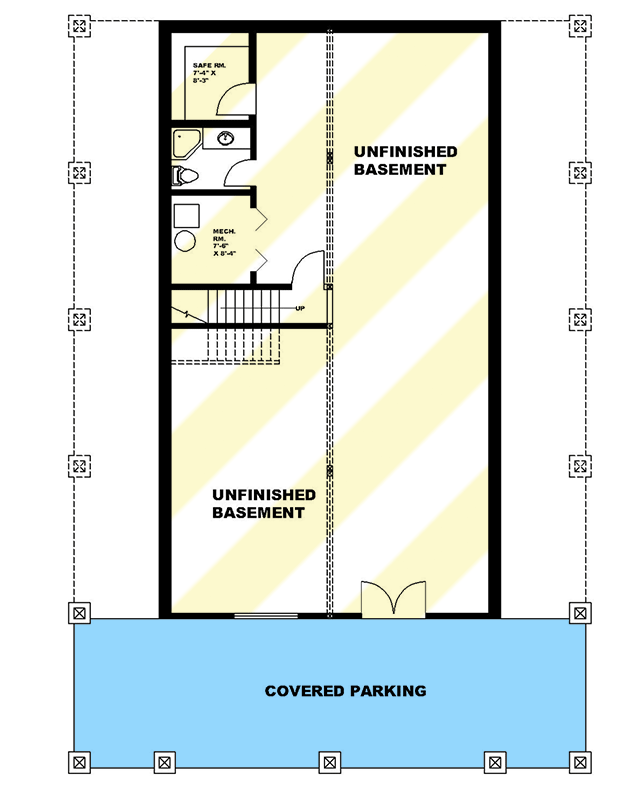

Lower Level

Plan Details

This Mountain Craftsman house plan comes with an enormous wrap-around covered deck that surrounds three sides of the 2,520 square foot home.
The great room, kitchen, and dining room ceilings rise up two-stories making the space feel even larger, and the corner fireplace can be enjoyed while eating or cooking.
In the master suite, natural light infiltrates the walk-in closet and double doors swing out to the covered deck.
An open railing in the second floor loft lets you see down into the great room below, and a study with a covered balcony of its own offers fresh air to clear your head.
The unfinished basement gives you a bathroom, storage (safe) room, and covered parking spaces.
Related Plan: Find a larger version with house plan 35544GH (2,734 sq. ft.).

What's Included

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
