Plan 849023PGE
Mountain Craftsman with Flex Room and Lower Level Expansion - 2638 Sq Ft
Heated S.F.
2,638
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

Plan 849023PGE

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 849023PGE

1-800-854-7852

1-262-521-4596

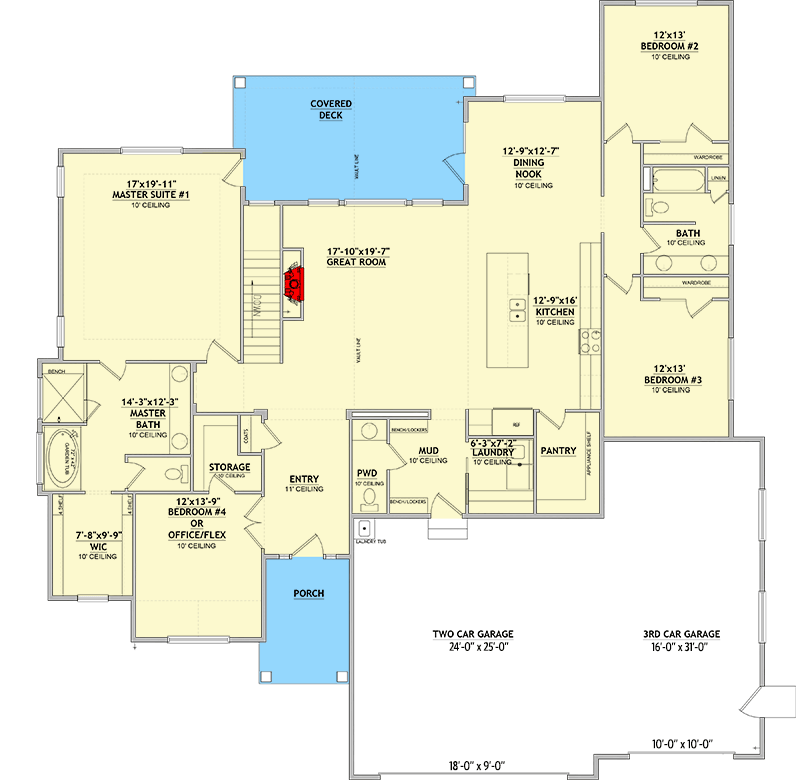

Main Level
floor plan image Main Level

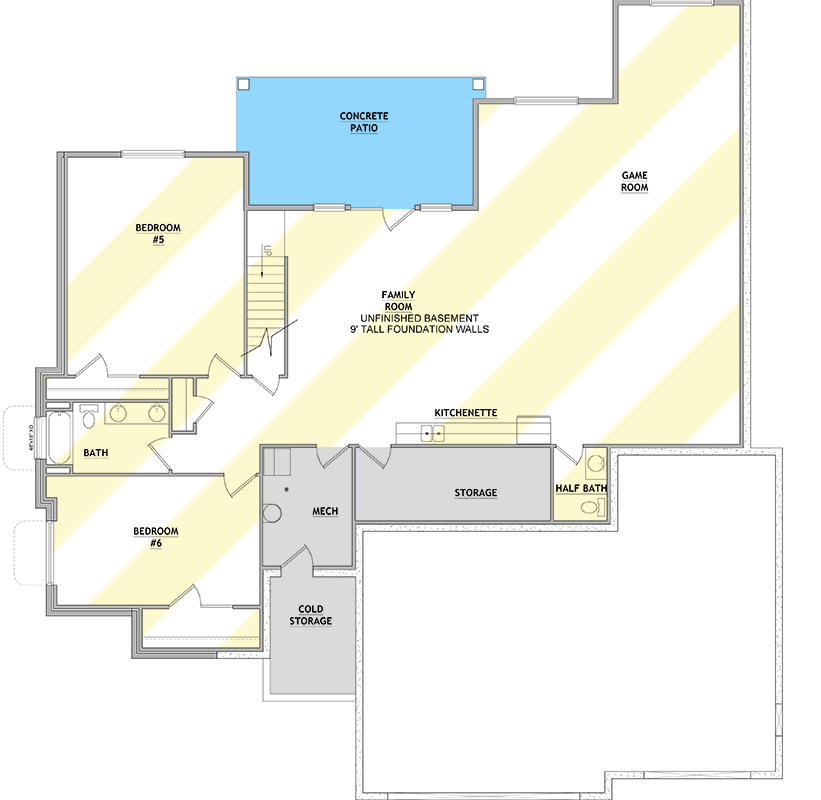

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This one-story mountain Craftsman home plan gives you 3 beds, 2.5 baths and 2,638 square feet of single-level living with lower level expansion giving you 2 more beds with a shared bath and 2,676 square feet of expansion space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,638 sq. ft.

1st Floor

2,638 sq. ft.

Optional Lower Level

2,676 sq. ft.

Porch, Front

104 sq. ft.

Deck

280 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations
