Name: Plan 35582GH: Mountain Craftsman with Handy Laundry Chute - 1794 Sq Ft
SKU: 35582GH
Price: 916.0 USD
Availability: InStock

Plan 35582GH

Mountain Craftsman with Handy Laundry Chute - 1794 Sq Ft

Heated S.F.

1,794

Beds

Baths

Stories

Cars

Floor Plan

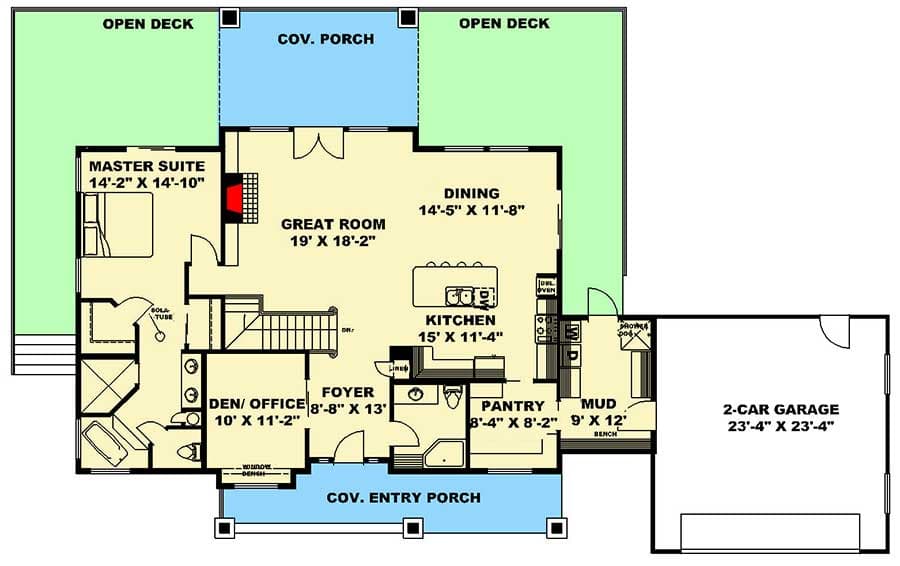

Main Level

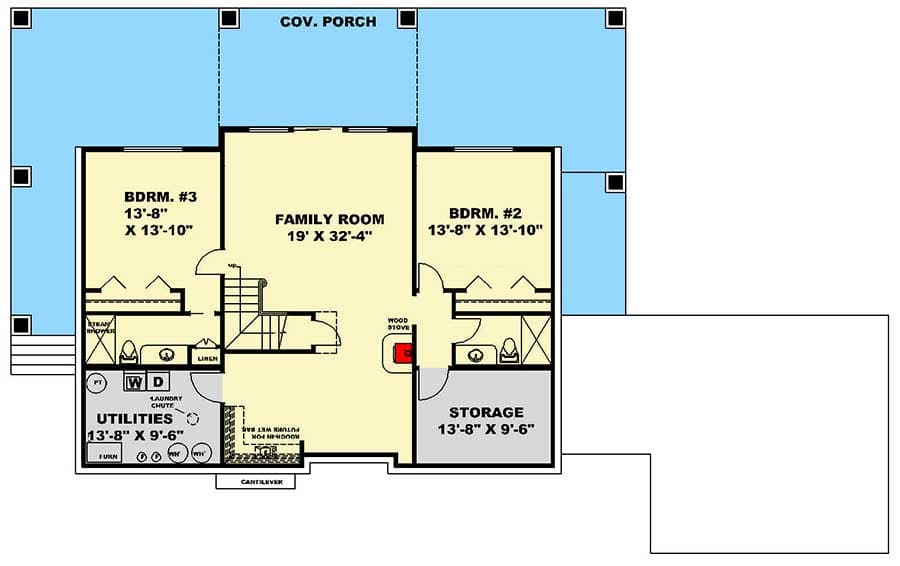

Lower Level

Plan Details

The open gable above the front porch of this mountain Craftsman home plan sets the precedent for the thoughtful and beautiful design. The walk-out basement makes this home ideal for a sloping lot.
Inside, a den (or office) and full bath border the foyer, while the heart of the home can be found towards the rear. The light and airy, shared living spaces are open to one another, creating a comfortable flow for everyday living.
The massive deck and covered porch allow you to take advantage of the surrounding views, as well as entertain on a large scale. The oversized pantry provides ample storage space and connects the mudroom with the kitchen.
Retreat to the main-level, master suite for peace and quiet, and discover an open, 5-fixture bath with a handy laundry chute that escorts your clothes to the lower-level laundry room.
Downstairs, bedrooms 2 and 3 are separated by a spacious family room with a wet bar, and a sliding door grants access to the sizable covered patio.

What's Included

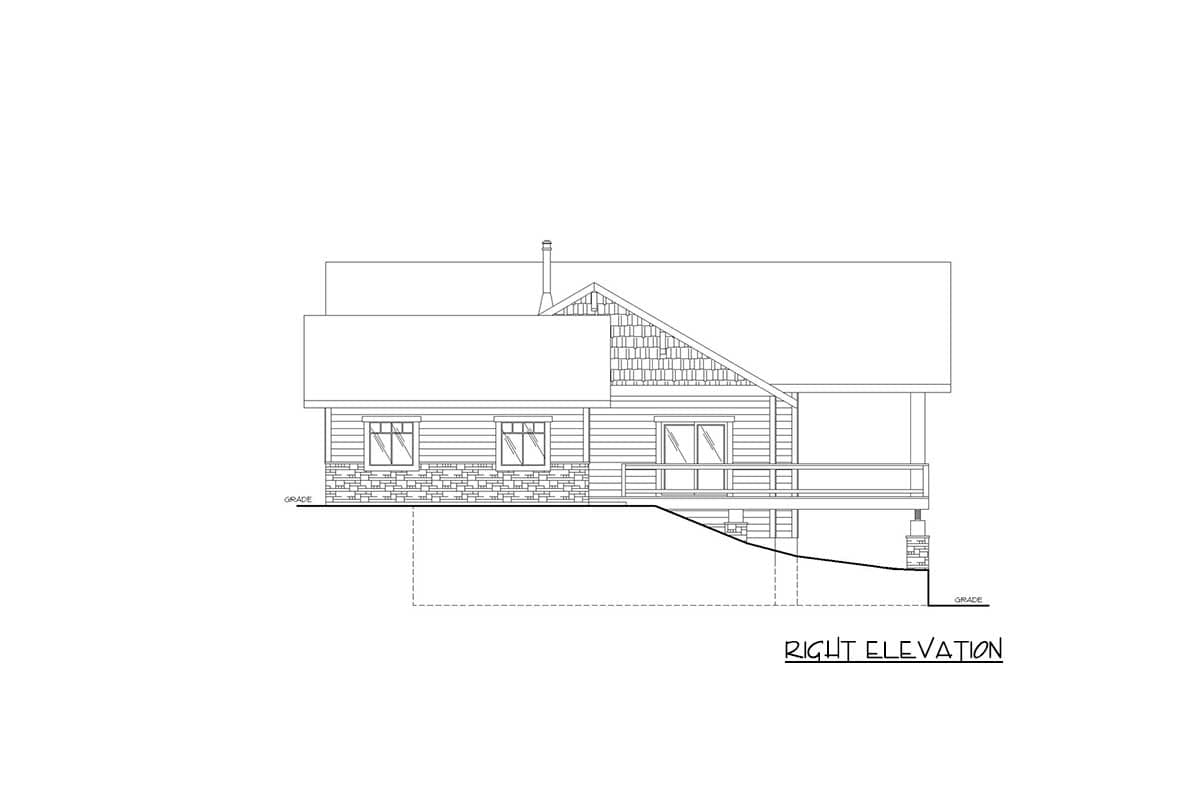

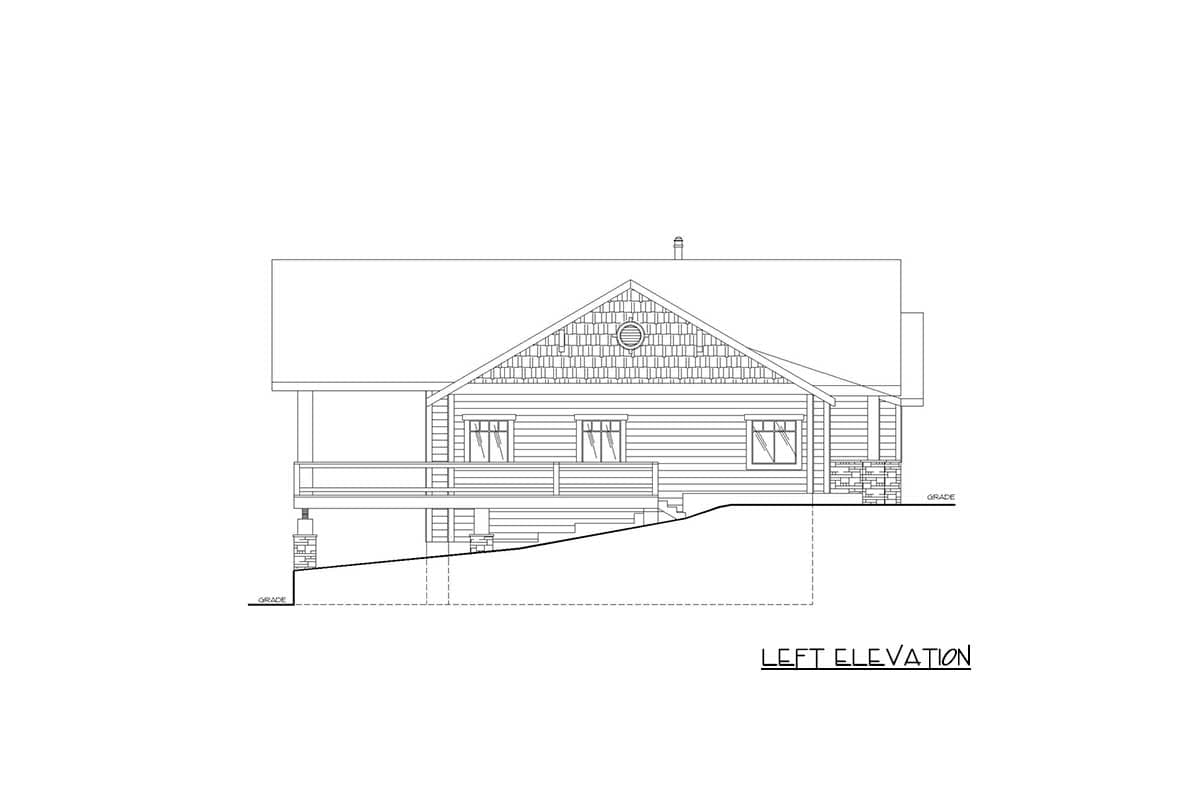

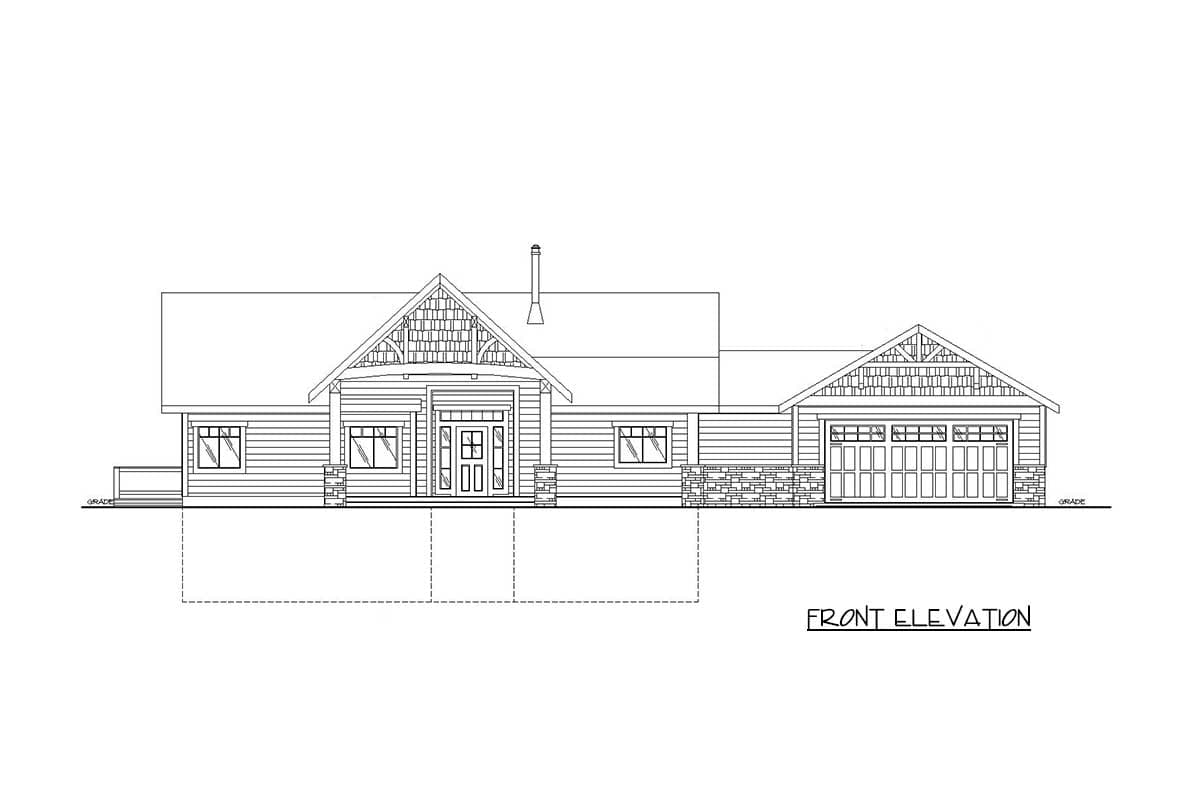

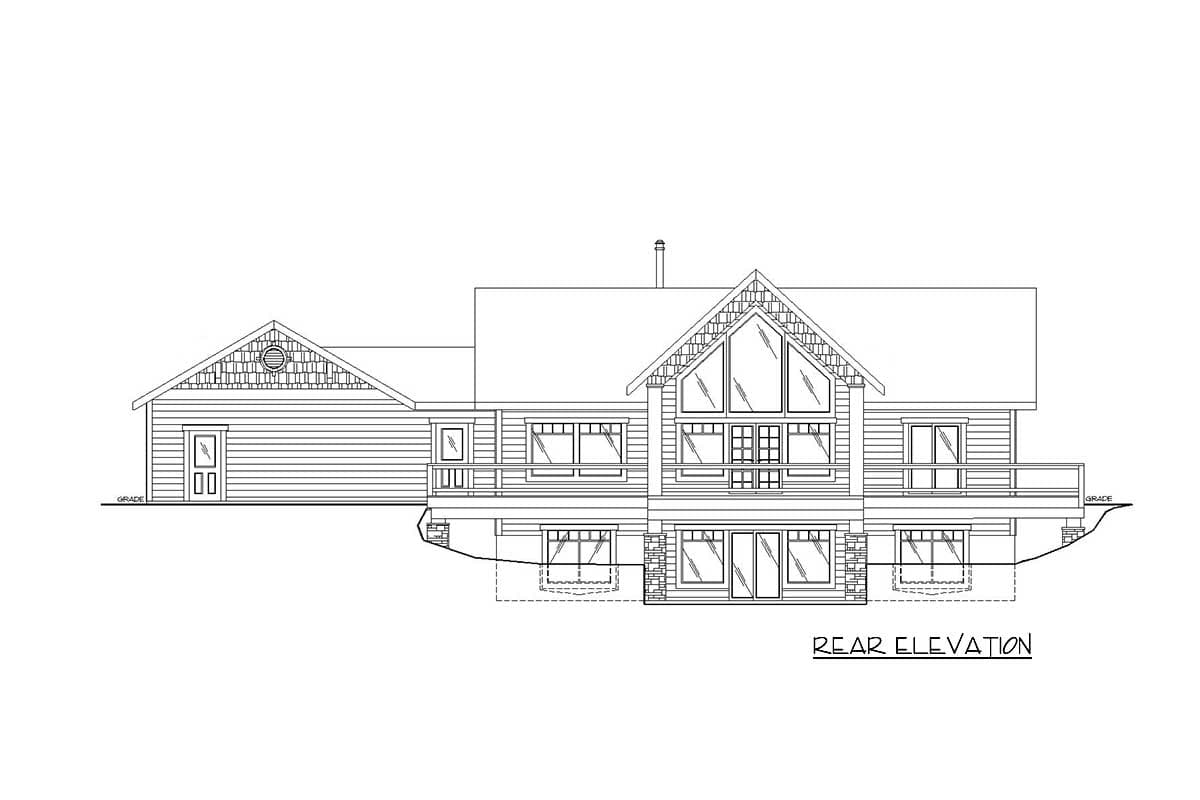

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
