Plan 11597KN

Mountain Estate

Heated S.F.

6,224

Beds

4

Baths

4.5+

Stories

1-2

Cars

3

Floor Plan

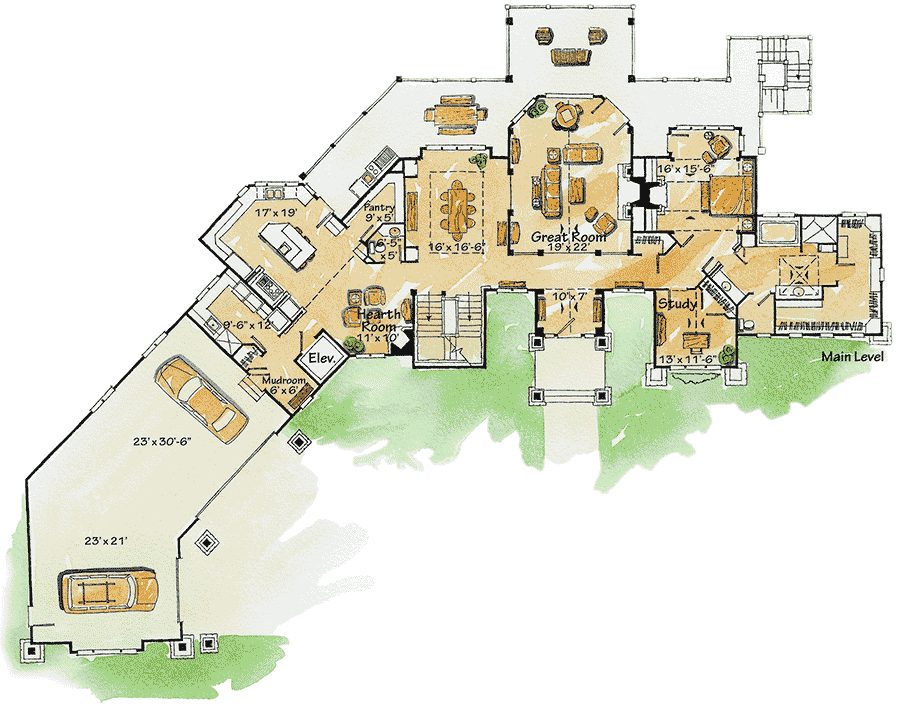

Main Level

floor plan image Main Level

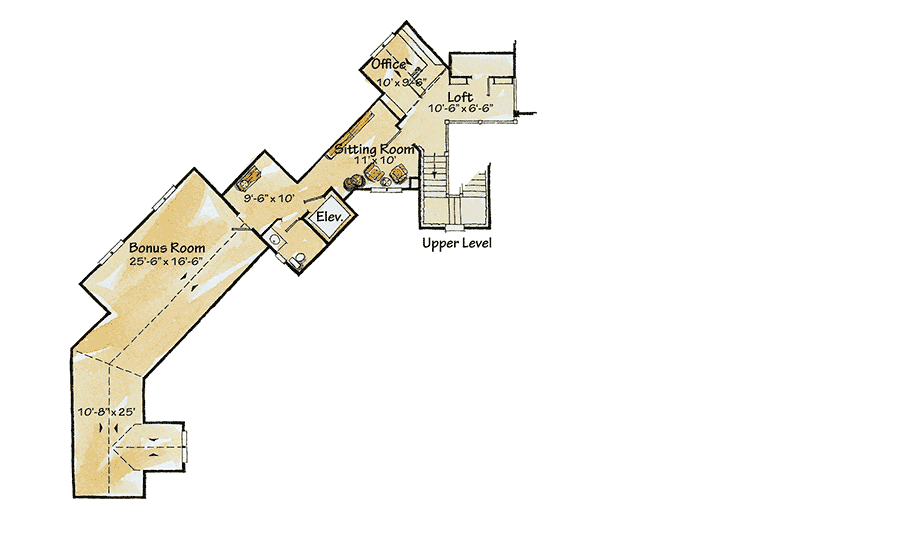

2nd Level

floor plan image 2nd Level

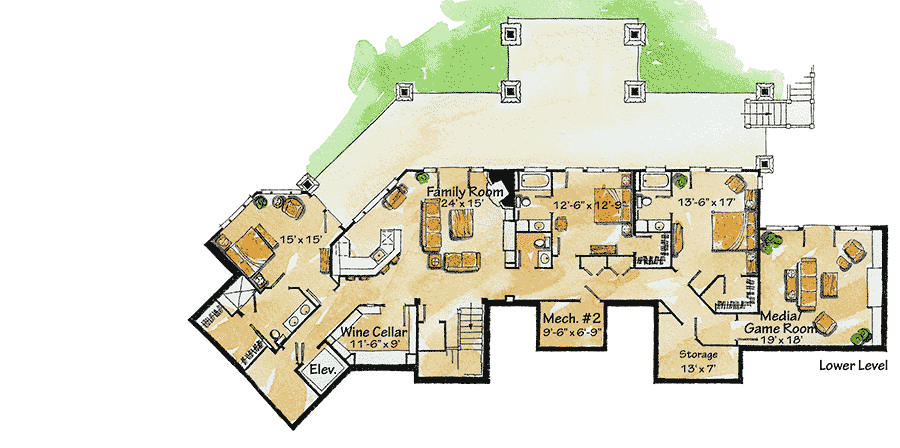

Lower Level

floor plan image Lower Level

Plan Details

MORE PHOTOS: See more photos of this house plan built in Colorado in our Facebook photo album.
Bring all your friends and family to enjoy this sprawling mountain estate accented by stone and shingles.
There are plenty of bedrooms to accommodate all plus a huge second floor bonus space with a separate sitting room that makes for a quiet retreat.
Dramatic vaulted ceilings in the great room draw your eye upward to admire the beams.
The extra large dining room can hold a huge table and has views of the rear covered porch.
Fit for a professional chef, the spacious kitchen opens to the rear porch and lies close by an outdoor kitchen for convenience.
A romantic fireplace in the master bedroom sets the mood for luxury with a sitting area set in a bay.
You will never un out of space in the massive walk-in closet near the deluxe spa bathroom.
Send your guests down to the over-sized family room with wet bar and wine cellar on the lower level.
At night, they will be steps away from the bedrooms, each with its own bath.
A media/theater room has double doors leading to the outdoors.

What's Included

Floor plans at ¼" scale
All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor/roof framing plan at ¼" scale
Building height profiles at ¼" scale
Door and window schedules
General construction notes and building schedules
Exterior finish schedule
Architectural details
Construction details for cabinets, interior built-ins and stairs
Designations for all floor, wall and ceiling surfaces
Details and specifications for all ceiling treatments
All square footage calculations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,224 sq. ft.

Lower Level

2,474 sq. ft.

1st Floor

3,125 sq. ft.

2nd Floor

625 sq. ft.

Bonus

820 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

101' 0"

Depth

141' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1246 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

6,224 sq. ft.

Lower Level

2,474 sq. ft.

1st Floor

3,125 sq. ft.

2nd Floor

625 sq. ft.

Bonus

820 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

101' 0"

Depth

141' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1246 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections

Premium Collection
