Plan 16883WG
Mountain Home Plan with Bonus Room - 2482 Sq Ft
Heated S.F.
2,482
Beds
4
Baths
3.5
Stories
1
Cars
2
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 16883WG comes to life in North Carolina

House Plan 16883WG comes to life in North Carolina

31

Photos

Photos
Floor Plan

Plan 16883WG

Main Level
slide image 0
Bonus
slide image 1
Lower Level
slide image 2

Plan 16883WG

1-800-854-7852

1-262-521-4596

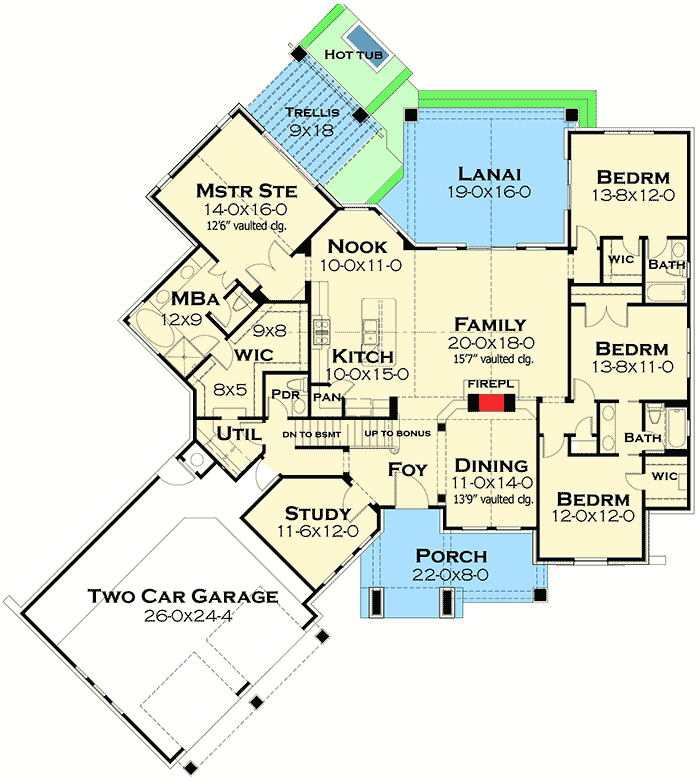

Main Level
floor plan image Main Level

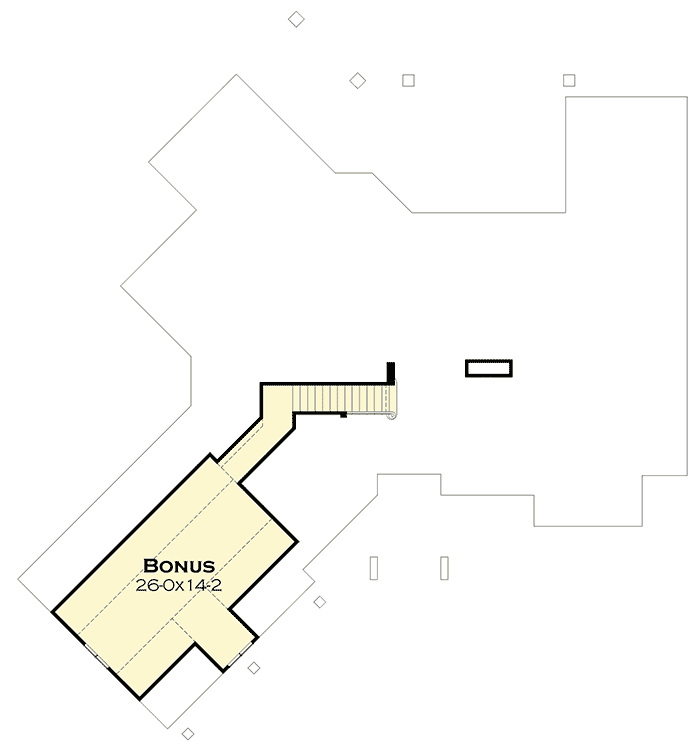

Bonus
floor plan image Bonus

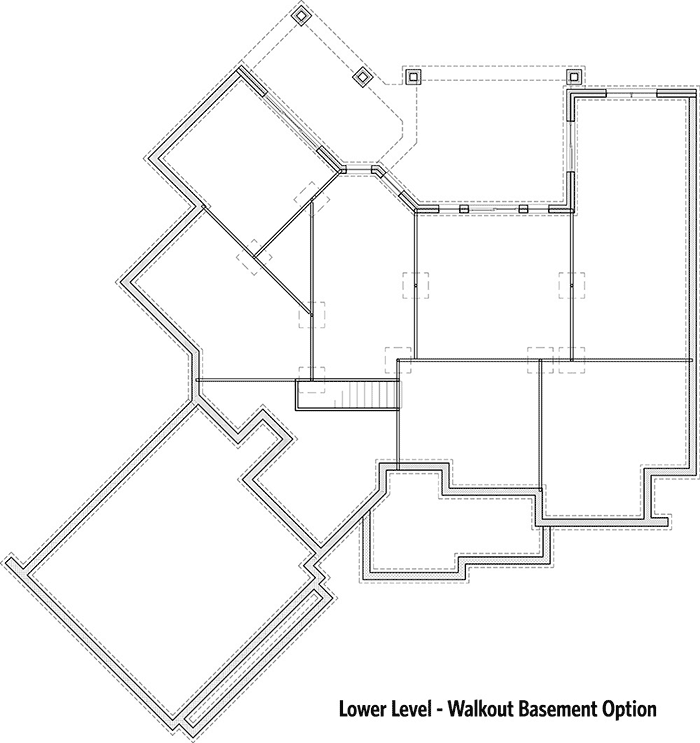

Lower Level
floor plan image Lower Level
Plan Details

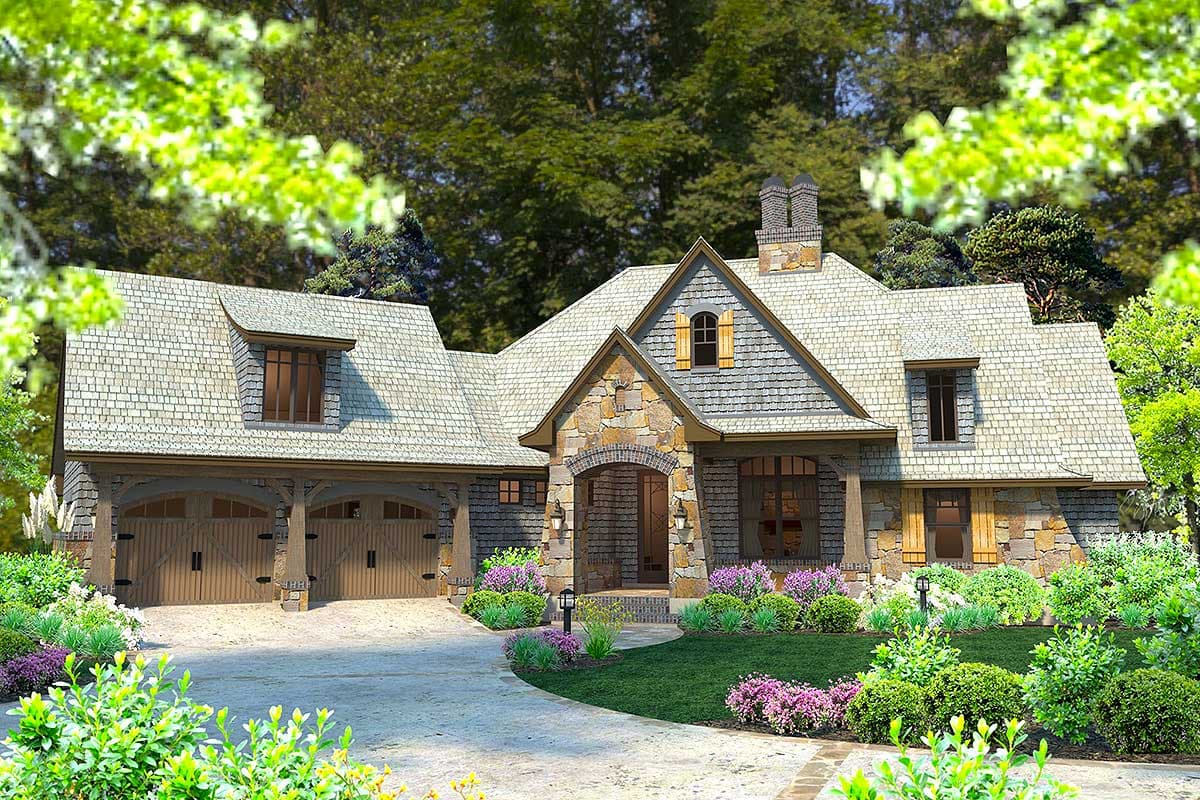

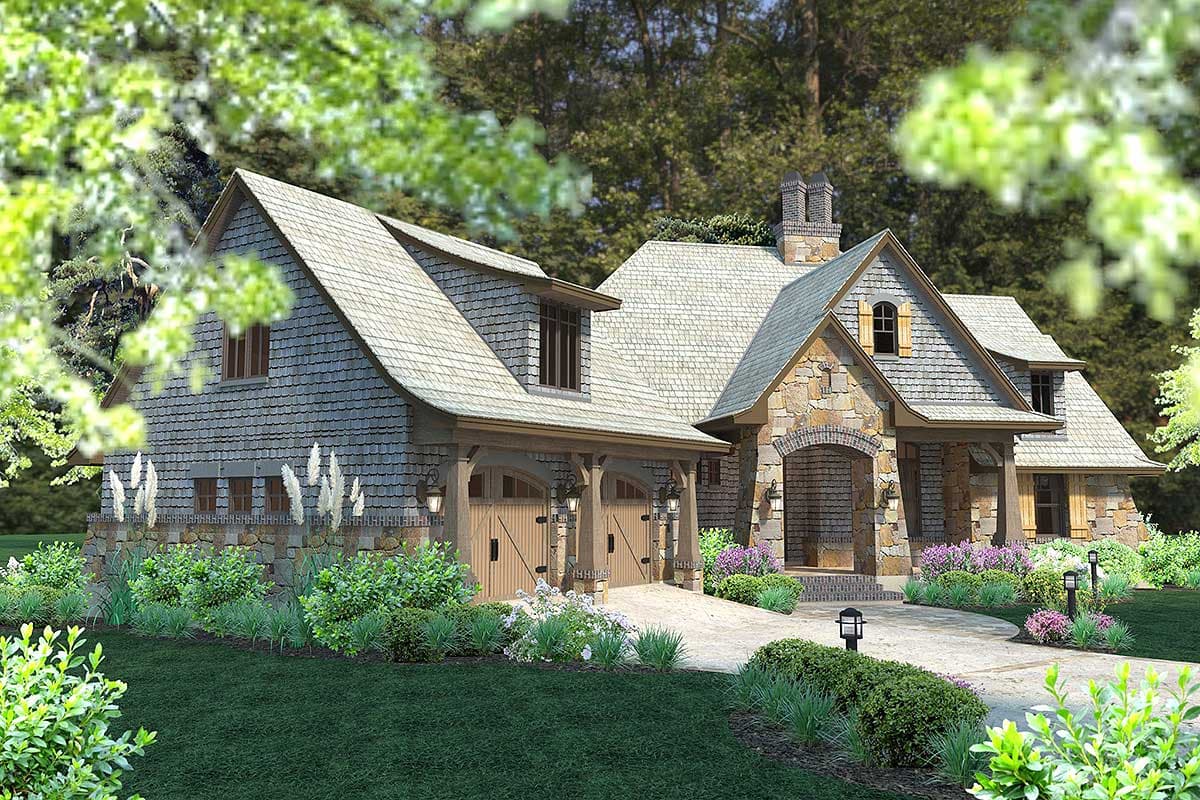

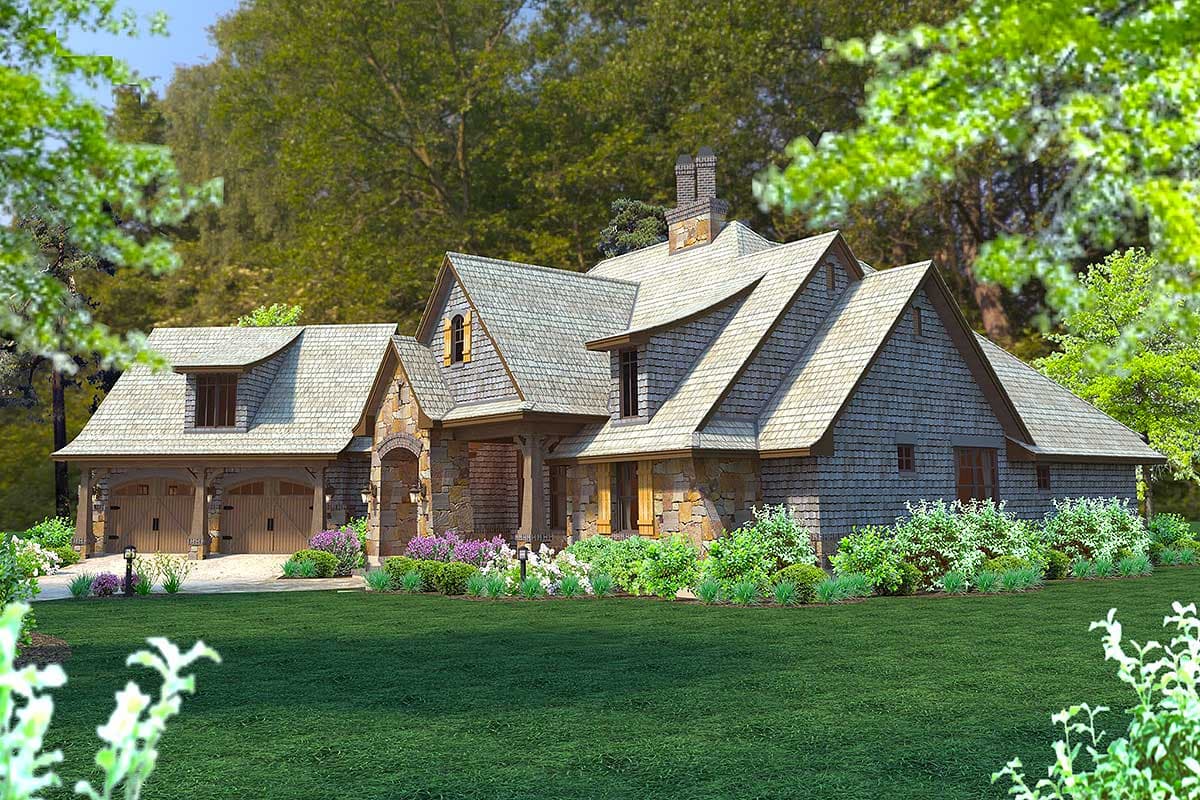

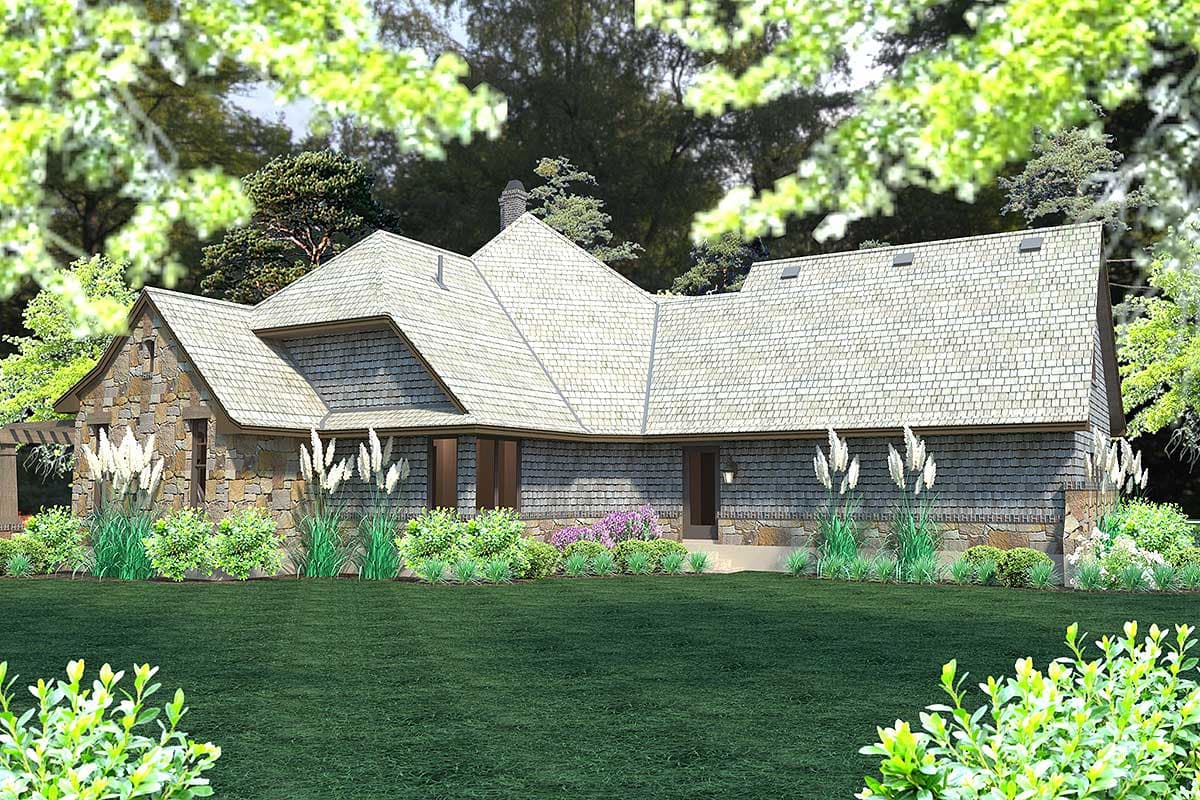

  • Beautifully crafted both inside and out, this Mountain home plan has a second floor bonus space that can be finished at your leisure.
  • Two columns are all that separate the foyer from the vaulted dining room, making it feel even larger.
  • In back, the marvelous open layout unites the kitchen, nook and huge vaulted family room with its two-sided fireplace that warms the dining room as well.
  • Three family bedrooms occupy the right wing of the home giving you lots of room for family and guests.
  • The master suite boasts a vaulted ceiling and sliding glass doors that open to a trellis-covered patio.
  • His and her compartments divide the master walk-in closet into sections.

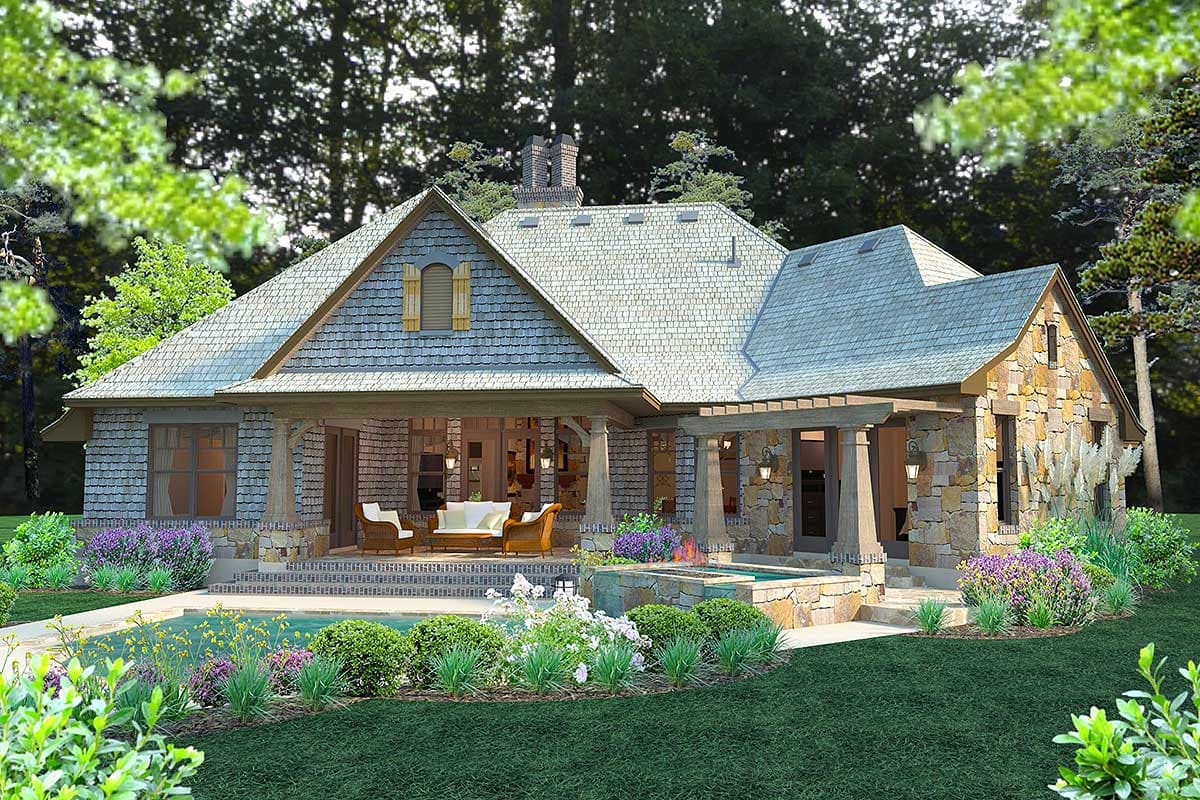

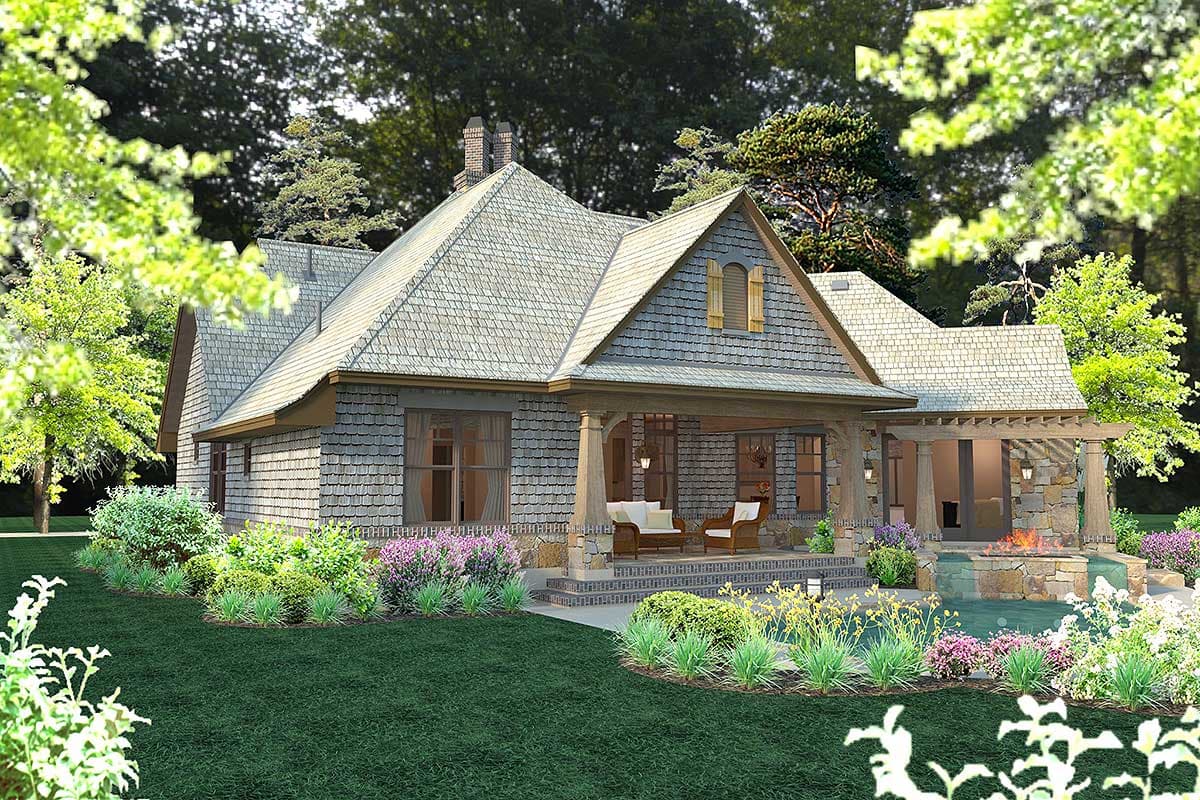

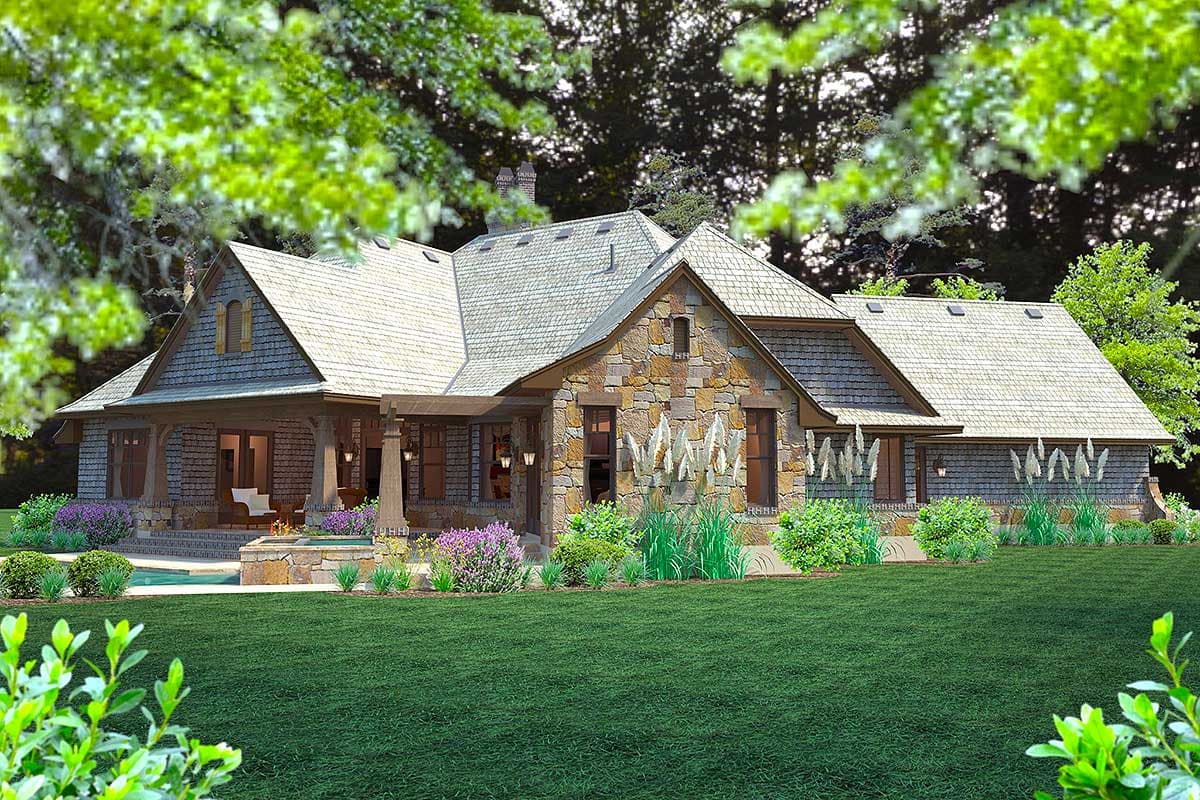

  • The rear covered lanai is a wonderful place to enjoy the fresh air.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

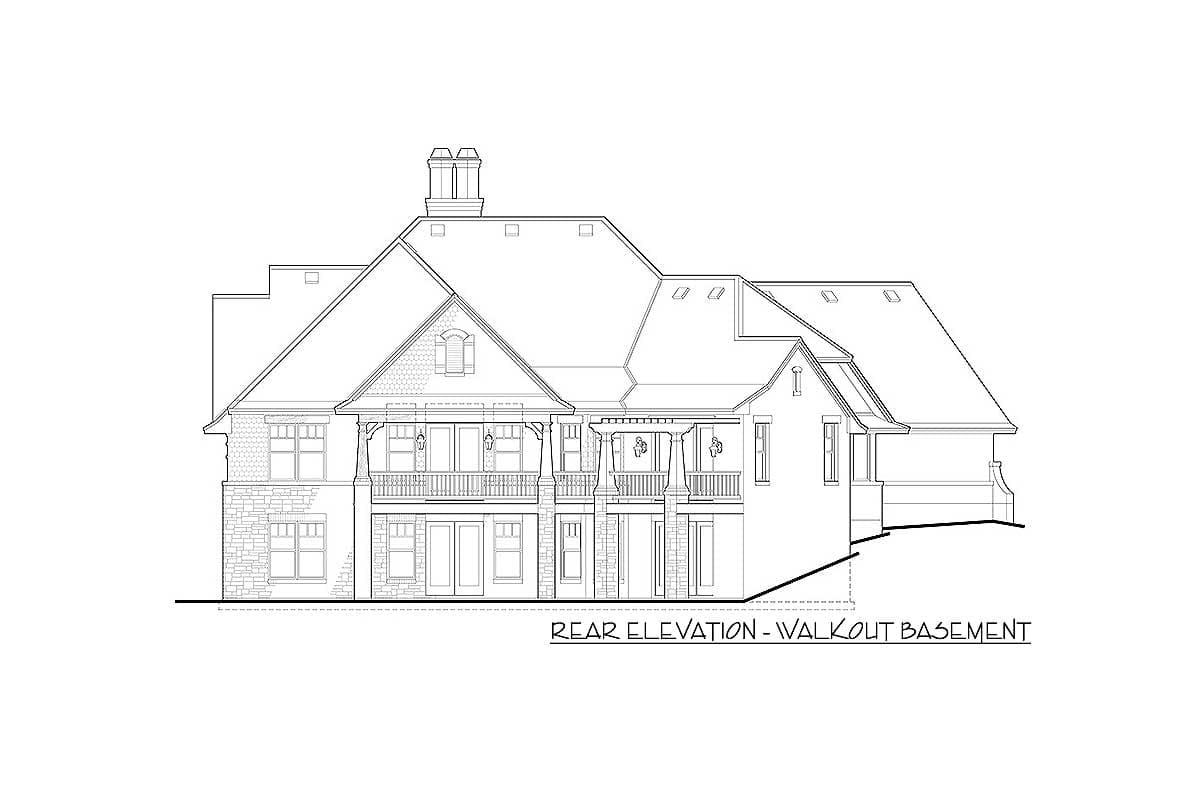

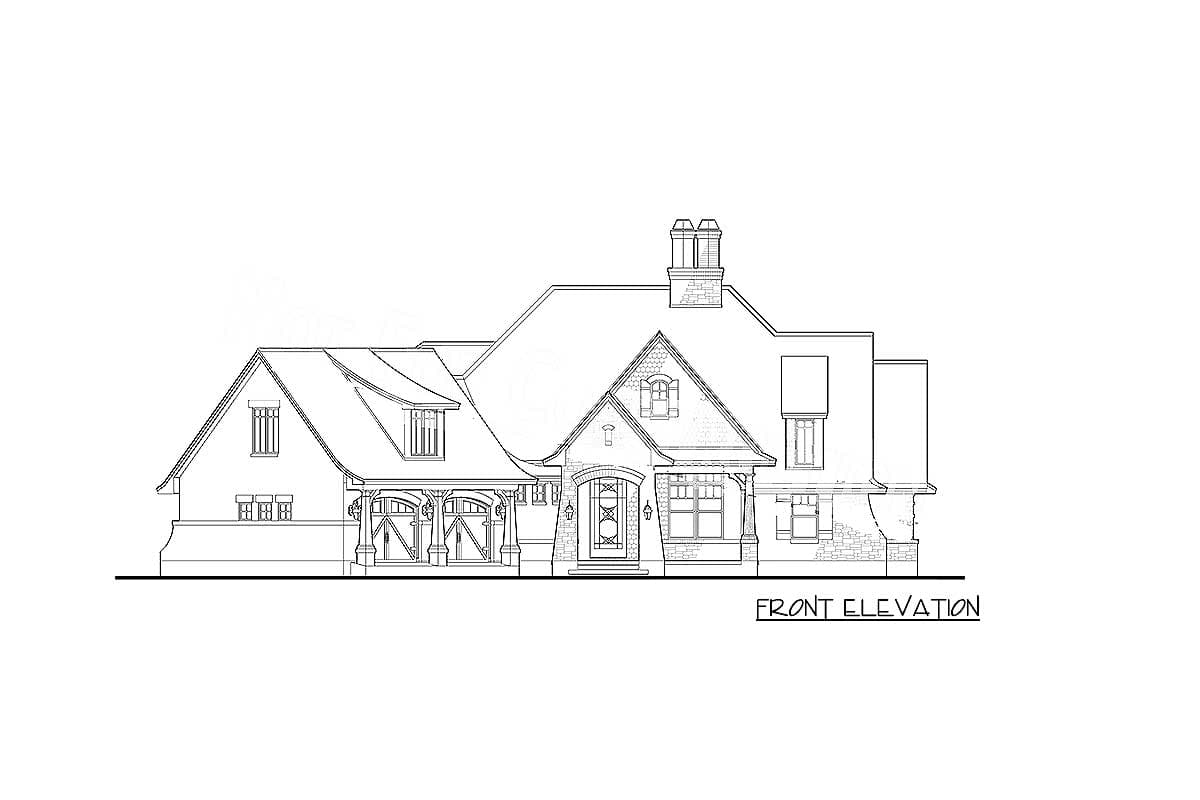

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,482 sq. ft.

1st Floor

2,482 sq. ft.

Bonus

473 sq. ft.

Porch, Combined

197 sq. ft.

Lanai

304 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 6"

Depth

86' 6"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

695 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Lanai

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Craftsman

Plan Collections

Square Footage Breakdown

Total Heated Area

2,482 sq. ft.

1st Floor

2,482 sq. ft.

Bonus

473 sq. ft.

Porch, Combined

197 sq. ft.

Lanai

304 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 6"

Depth

86' 6"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

695 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Lanai

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Stick
