Plan 35070GH
Mountain Home Plan with Octagonal Dining Room
Heated S.F.
2,084
Beds
2
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 35070GH

Main Level
slide image 0
Lower Level
slide image 1

Plan 35070GH

1-800-854-7852

1-262-521-4596

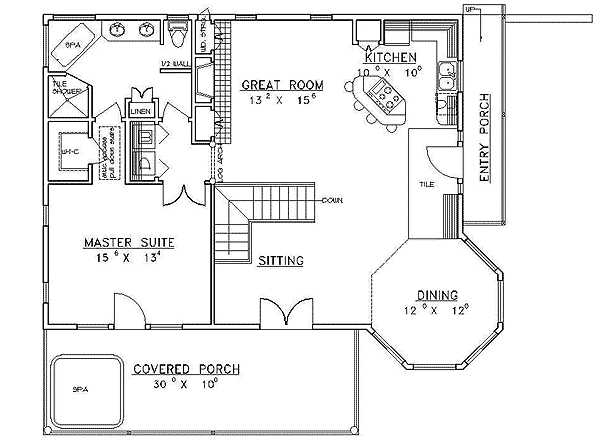

Main Level
floor plan image Main Level

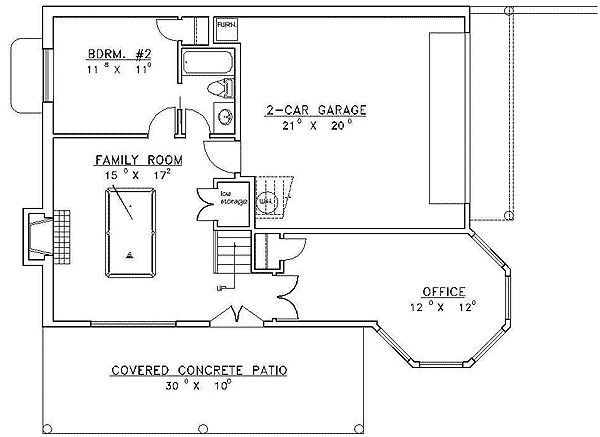

Lower Level
floor plan image Lower Level
Plan Details
  • This 2084 square foot mountain home plan has two beds, two baths and has an octagonal dining room.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 35070GH comes to life in Kentucky

House Plan 35070GH comes to life in Kentucky

7

Photos

What's Included
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,084 sq. ft.

Lower Level

821 sq. ft.

1st Floor

1,263 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 10"

Depth

40' 0"

Max Ridge Height

29' 3"

Garage

Type

Drive Under

Area

442 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Mountain

Northwest

Rustic

Vacation

Special Features

Breakfast Nook

Game/Rec Room

Home Office

Master Suite - 1st Floor

Plan Collections

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,084 sq. ft.

Lower Level

821 sq. ft.

1st Floor

1,263 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 10"

Depth

40' 0"

Max Ridge Height

29' 3"

Garage

Type

Drive Under

Area

442 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Mountain

Northwest

Rustic

Vacation

Special Features

Breakfast Nook

Game/Rec Room

Home Office

Master Suite - 1st Floor

Plan Collections

Metric

Photo Gallery
