Plan 18709CK

Mountain Home Plan with Wrap-Around Outdoor Living Area

Heated S.F.

2,980

Beds

3

Baths

2.5

Stories

2

Cars

2

Floor Plan

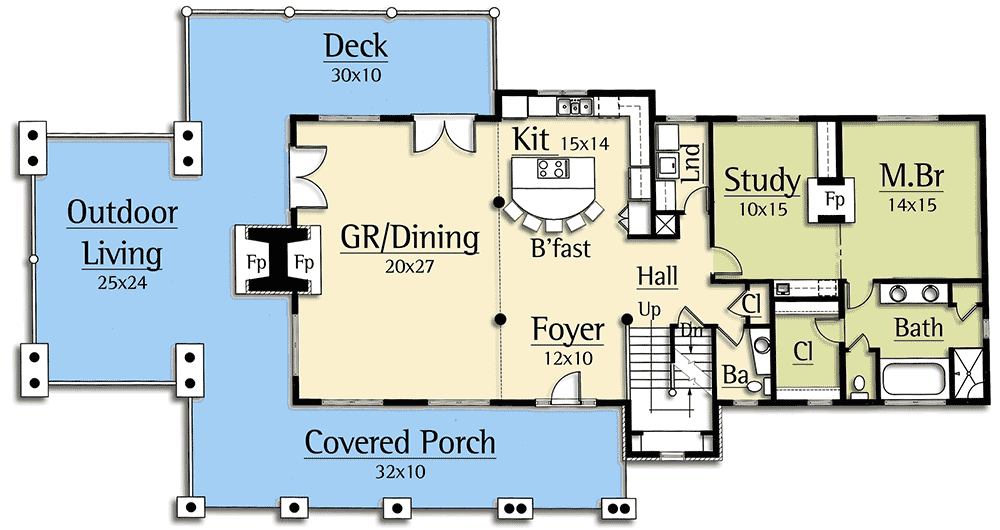

Main Level

floor plan image Main Level

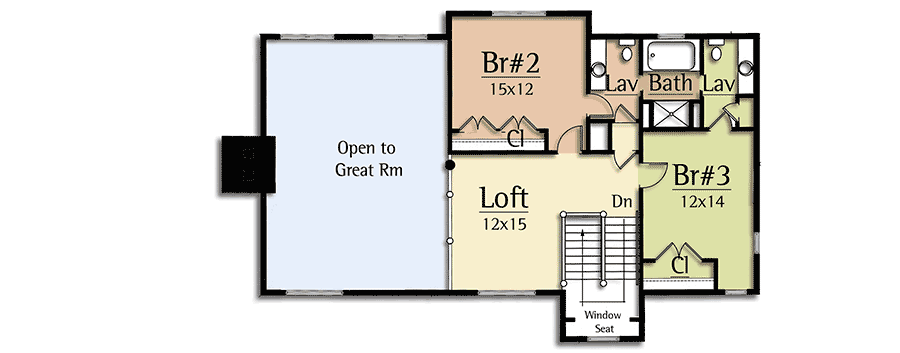

2nd Floor

floor plan image 2nd Floor

Detached Garage

floor plan image Detached Garage

Plan Details

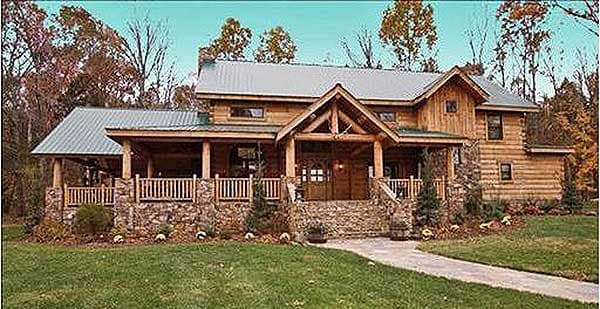

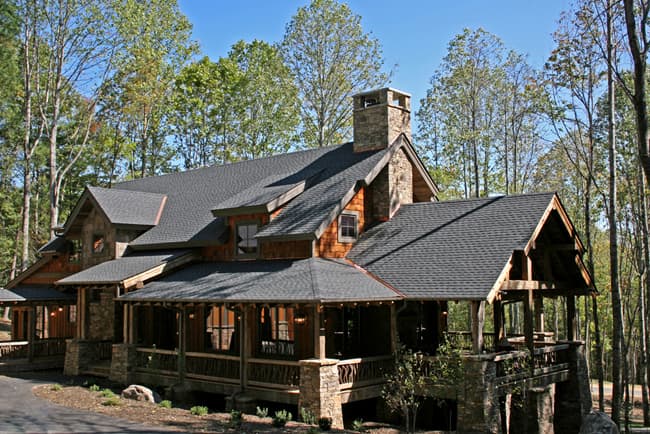

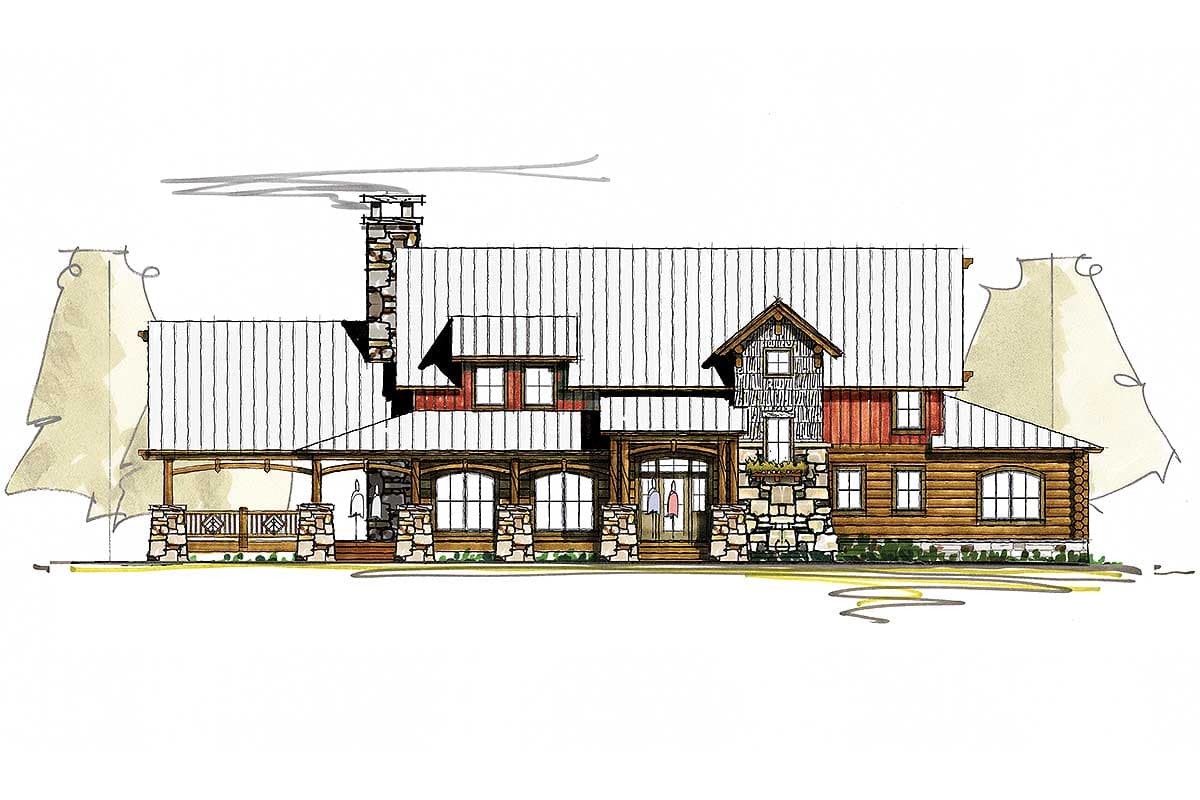

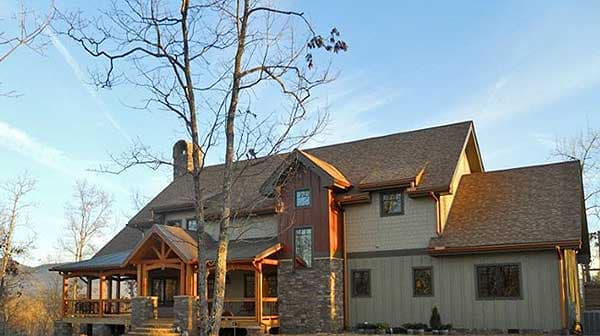

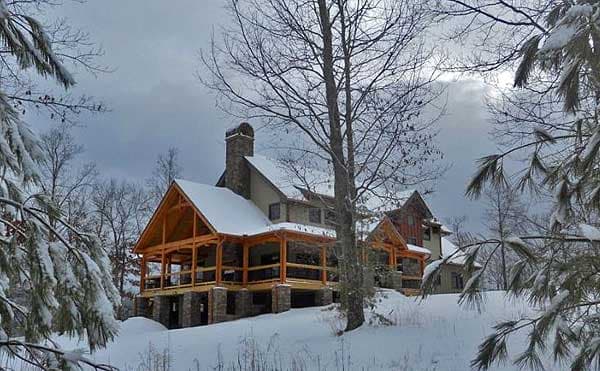

A wonderful wrap-around porch complete with fireplace surrounds the great room/dining area in this rugged Mountain or lake home plan.
An eating bar island in the kitchen is the perfect spot for informal meals on the go.

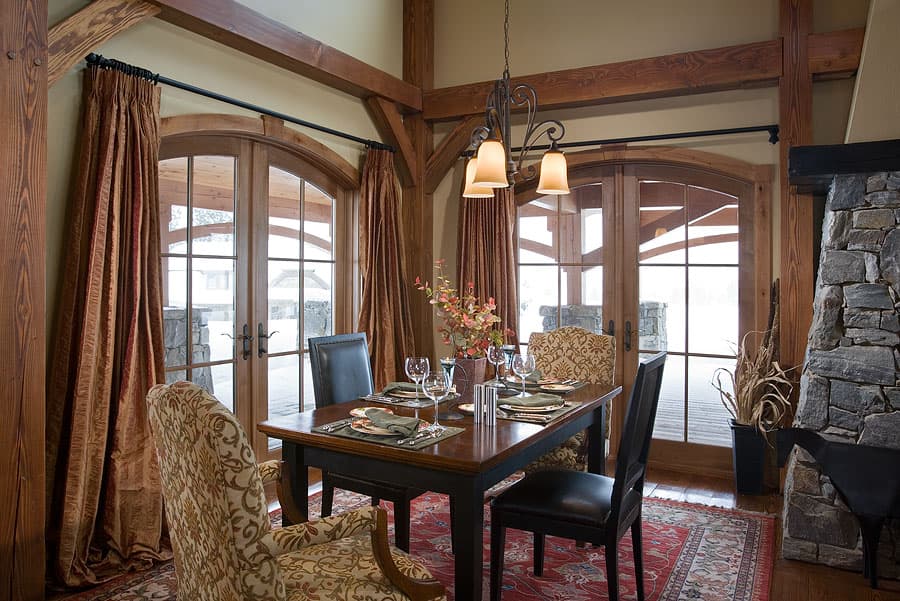

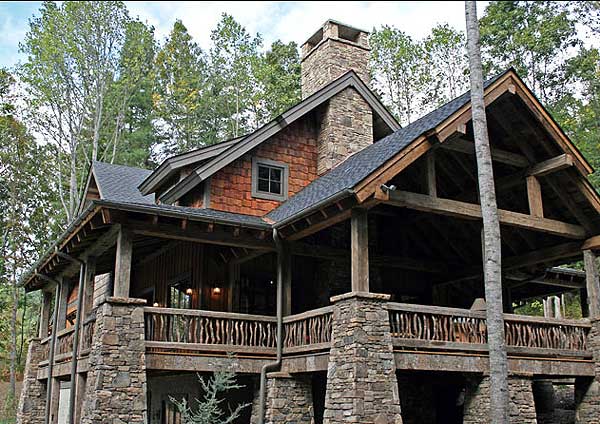

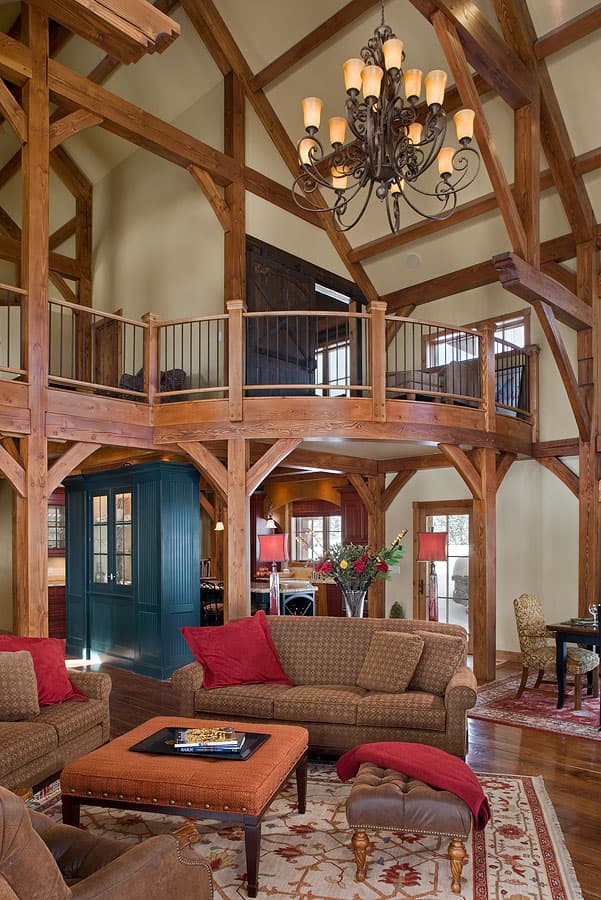

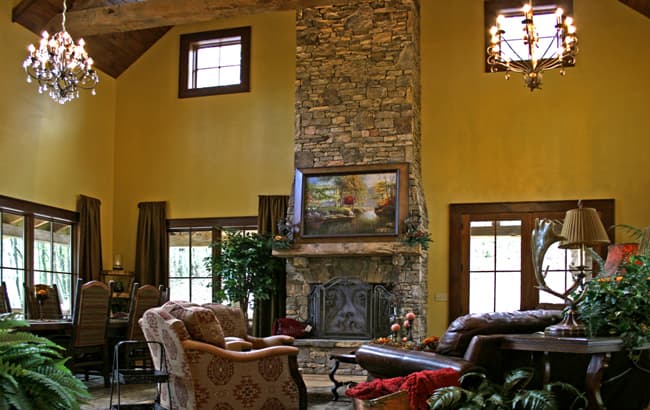

The great room is open to above and has a large fireplace. Windows on all walls help you take in the views while two sets of french doors take you to the outdoors - one to the open deck and the other to the huge covered outdoor living room.
A 2-sided fireplace is shared by the study and the master bedroom. Use one side as your sitting room and the other for sleep.

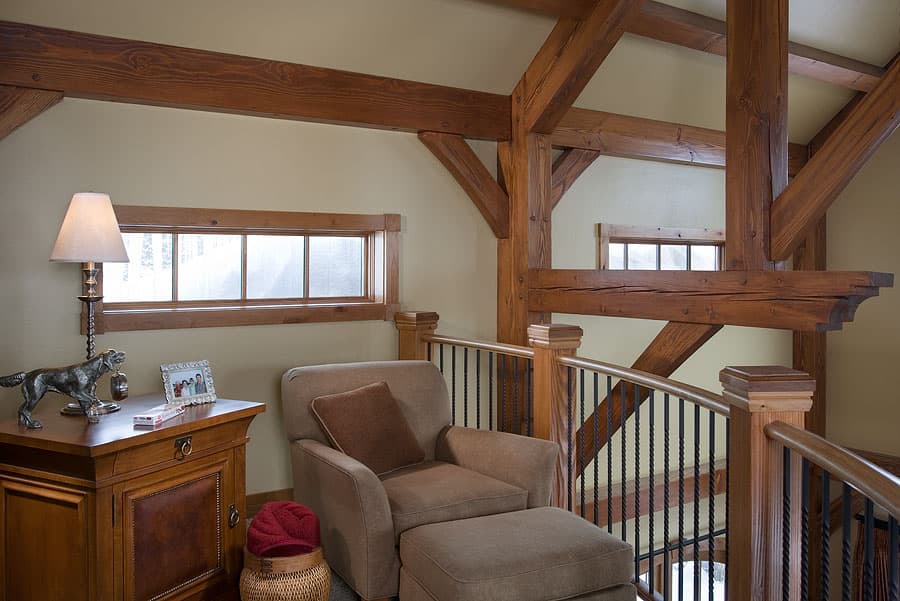

Open to the great room below, the second floor loft is a great hang-out spot. Two bedrooms on this level share a bath and complete the home plan.
Added Bonus: This house plan comes with a detached 2-car garage giving you 624 square feet of room for your cars and/or storage.
Related Plan: See an alternate version with the outdoor sitting area removed with house plan 18802CK

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule

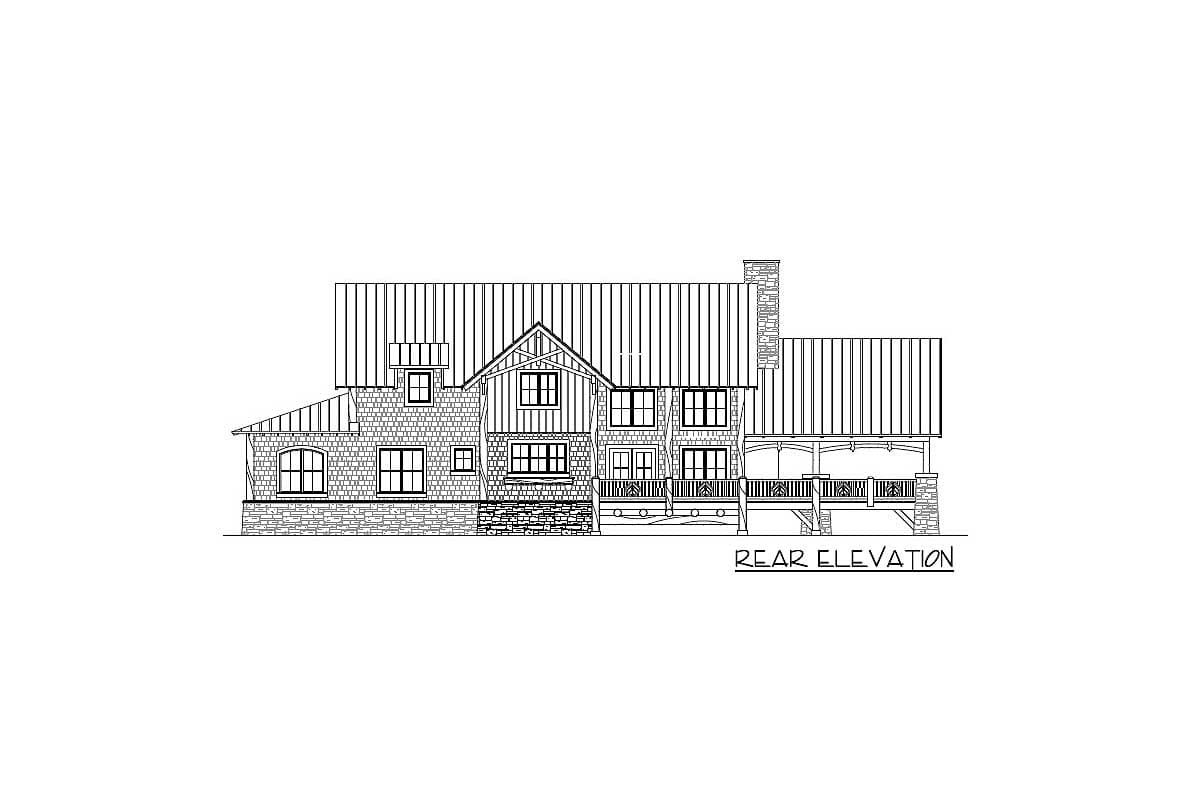

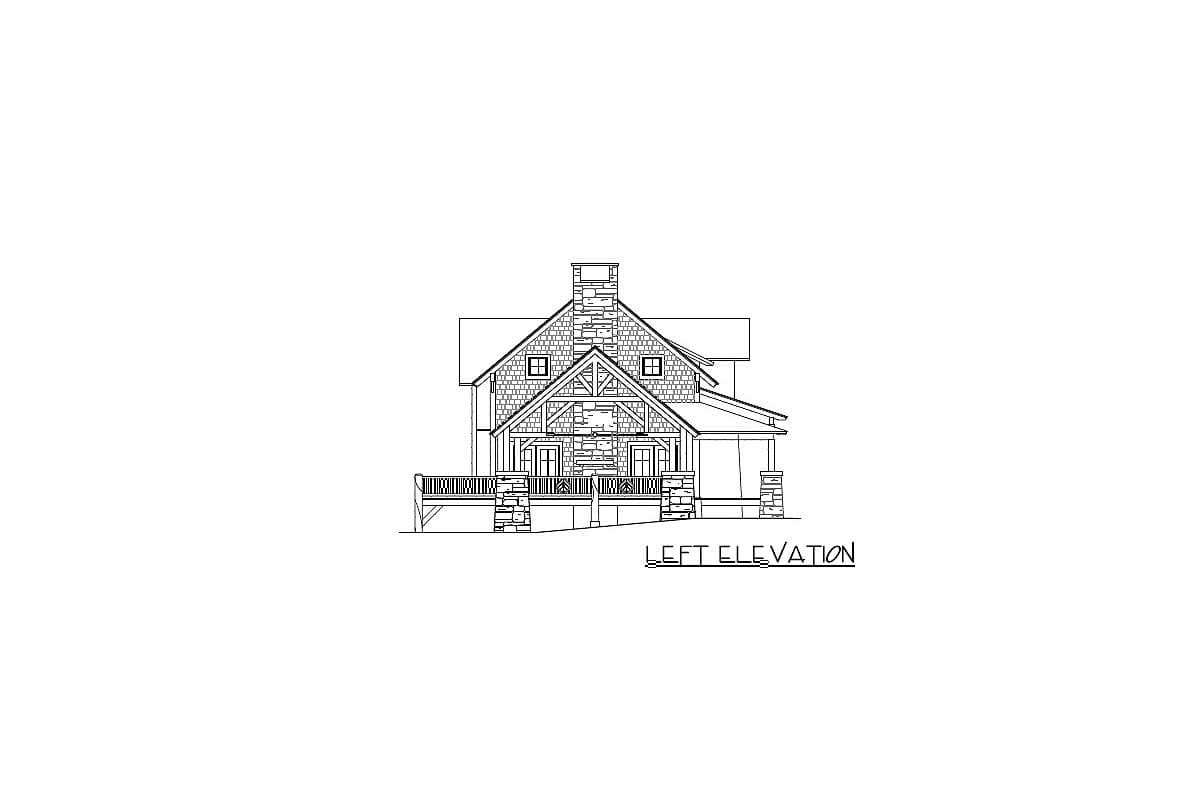

Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,980 sq. ft.

1st Floor

1,980 sq. ft.

2nd Floor

1,000 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 0"

Depth

42' 0"

Max Ridge Height

30' 0"

Garage

Type

Detached

Area

624 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Two Story Great Room

Wrap Around Porch

Plan Collections

Lake House Plans

Premium Collection
