Mountain House Plan with Great Views - 2281 Sq Ft - 35259GH

Plan 35259GH

Mountain House Plan with Great Views - 2281 Sq Ft

Heated S.F.

2,281

Beds

Baths

2.5

Stories

Floor Plan

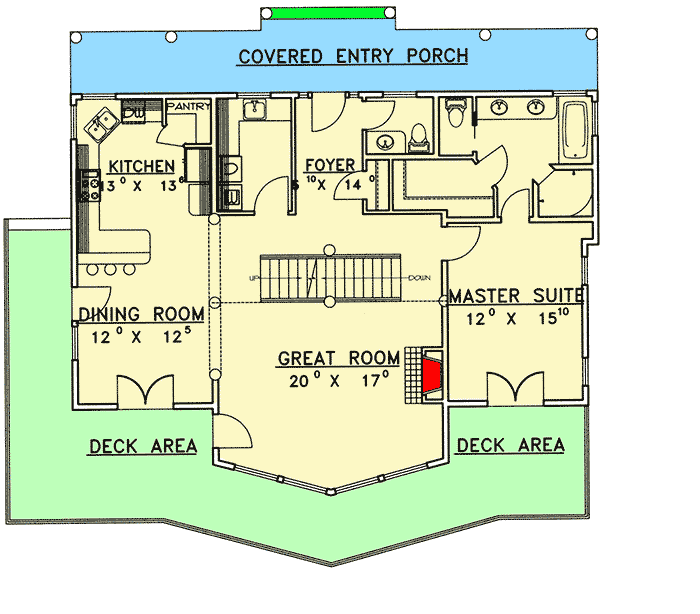

Main Level

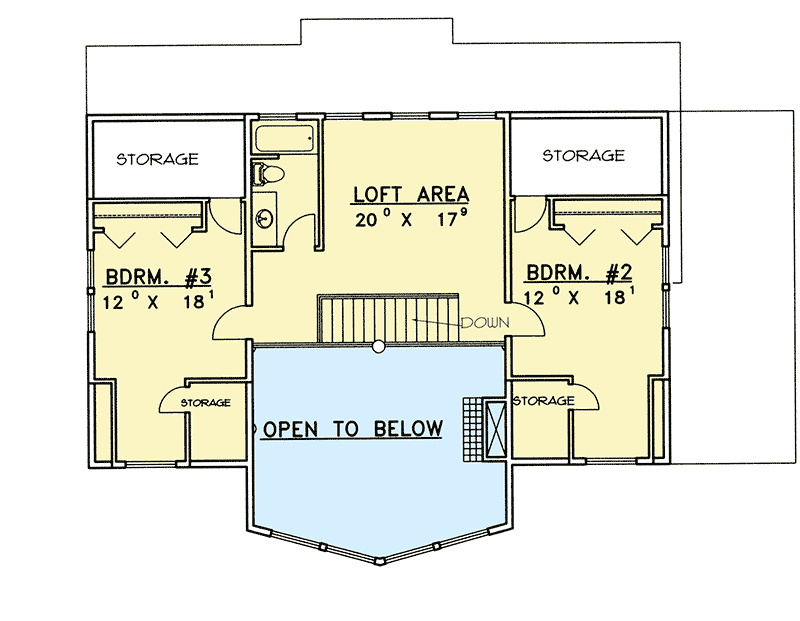

2nd Floor

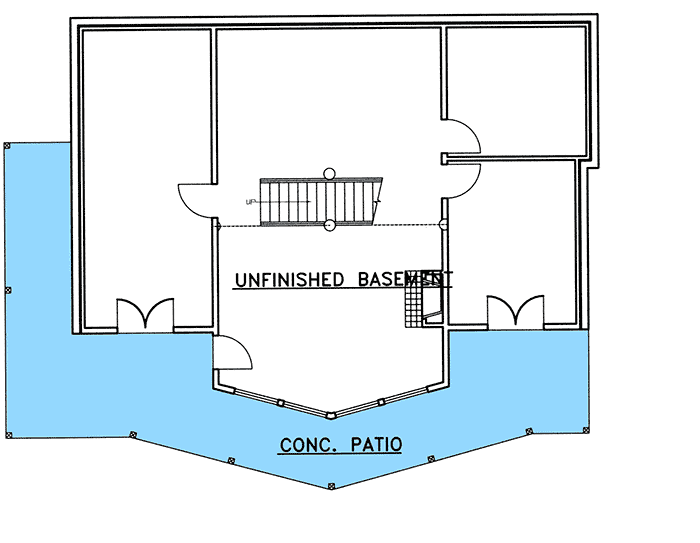

Lower Level

Plan Details

This open-concept house plan, perfect for a sloping lot, imparts an air of spaciousness. A loft and volume ceilings, in addition to a multitude of windows, highlight the sense of openness in this house plan.

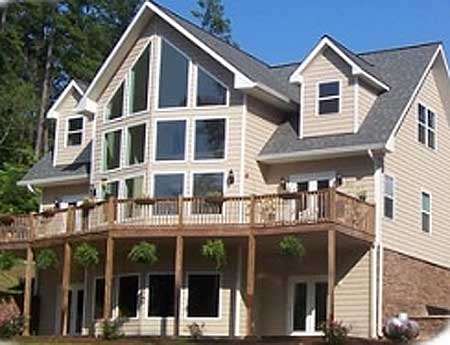

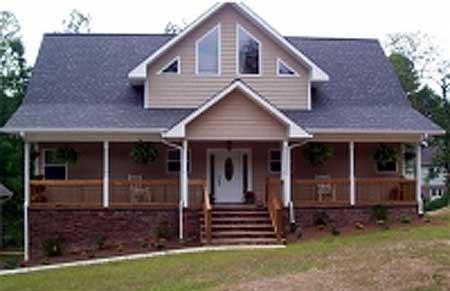

The covered front porch extends functional spaces to the outside, as does the rear deck.
The chef will enjoy the walk-in pantry and corner windows. The peninsula bar creates an efficient space for dining and socializing.
Conveniently located on the main floor, the ' bedroom has a deep walk-in closet. The luxurious ' bath features a private commode, a two-head shower with a built-in bench, jacuzzi tub and his-and-her sinks.

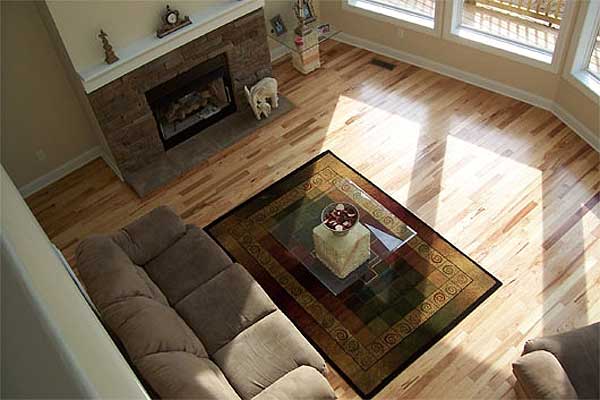

A loft overlooking the great room, two bedrooms and a shared bath plus storage round out the second floor. The loft ceiling vaults to 9'6" with 6'2" knee walls maximizing use of the space on this floor.
Related Plans: Get an version with an attached two-car garage with house plan 35312GH. Get a two-car drive-under garage with house plan 35313GH.

What's Included

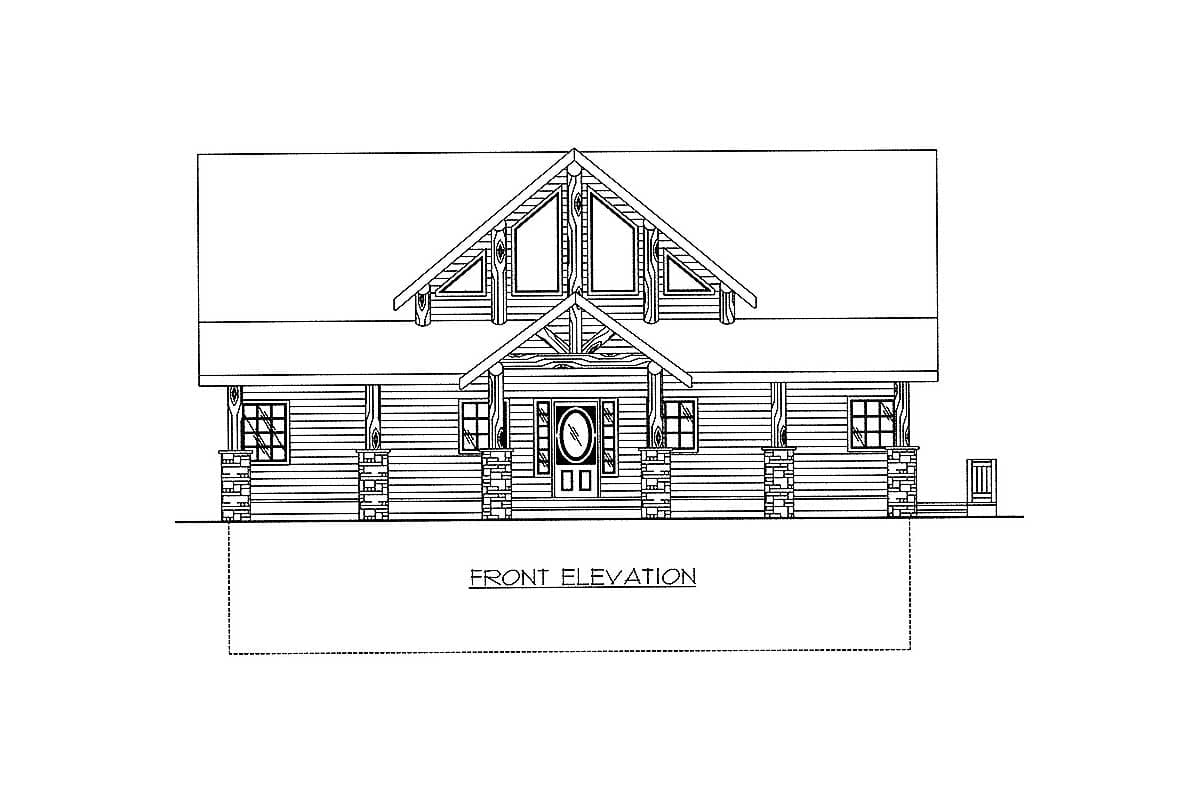

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
