Plan 680214VR
Mountain House Plan with Large Deck and Lower Level Expansion - 1770 Sq Ft
Heated S.F.
1,770
Beds
3 - 4
Baths
2 - 3
Stories
2
Floor Plan

Plan 680214VR

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 680214VR

1-800-854-7852

1-262-521-4596

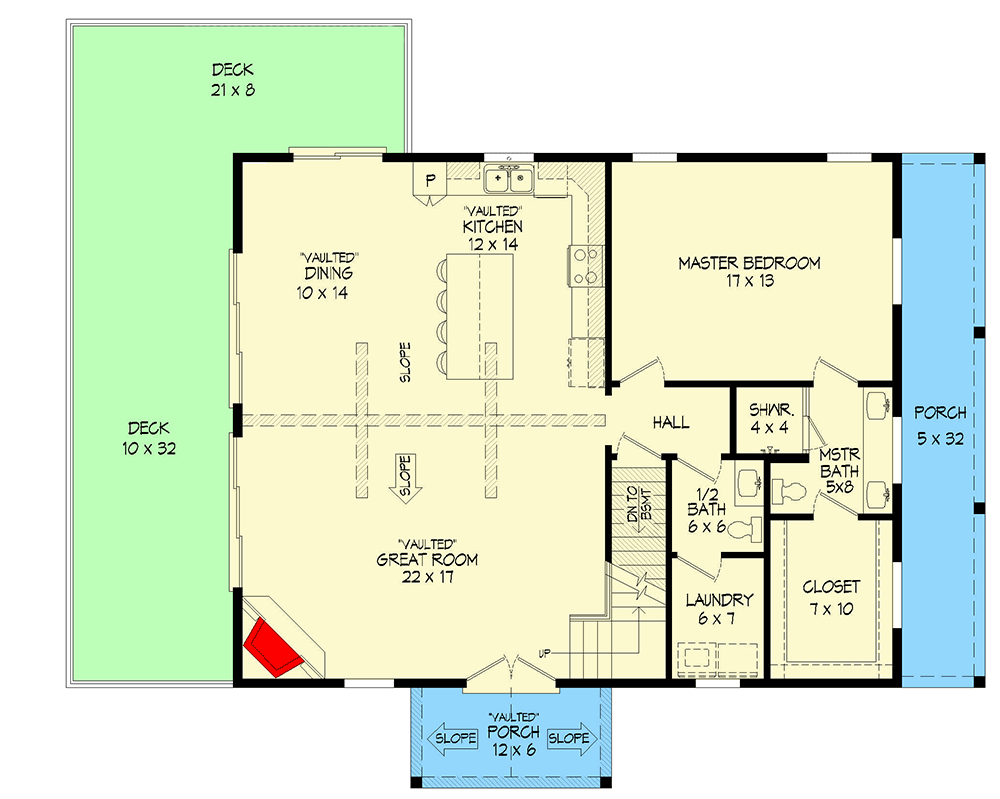

Main Level
floor plan image Main Level

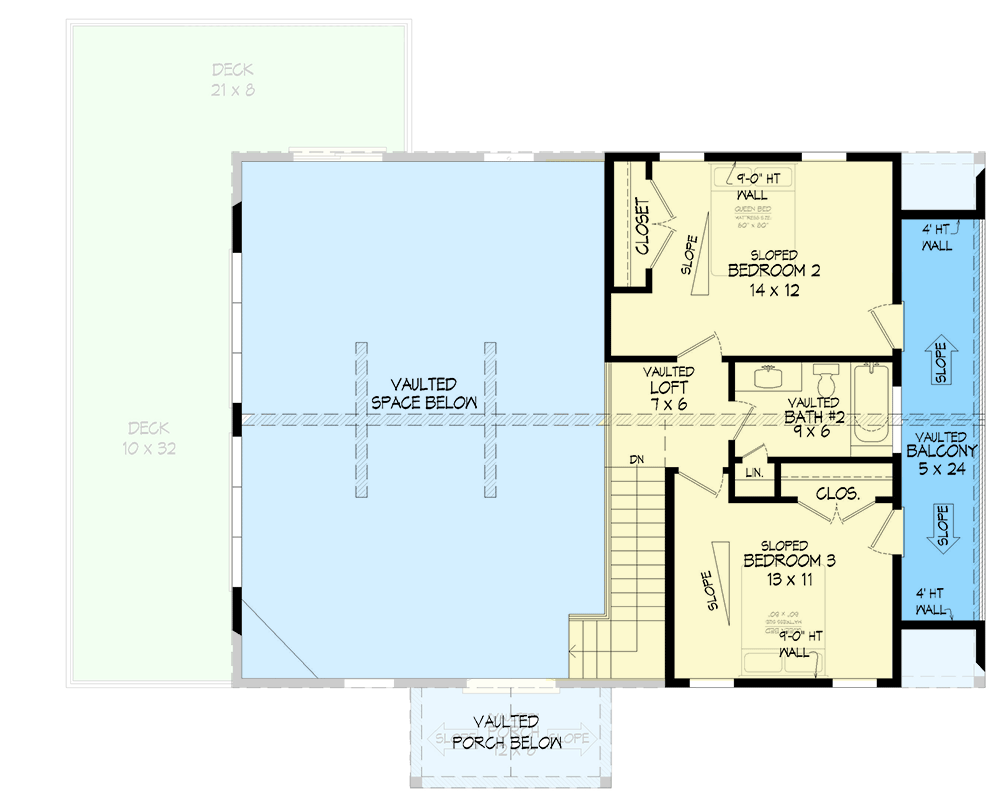

2nd Floor
floor plan image 2nd Floor

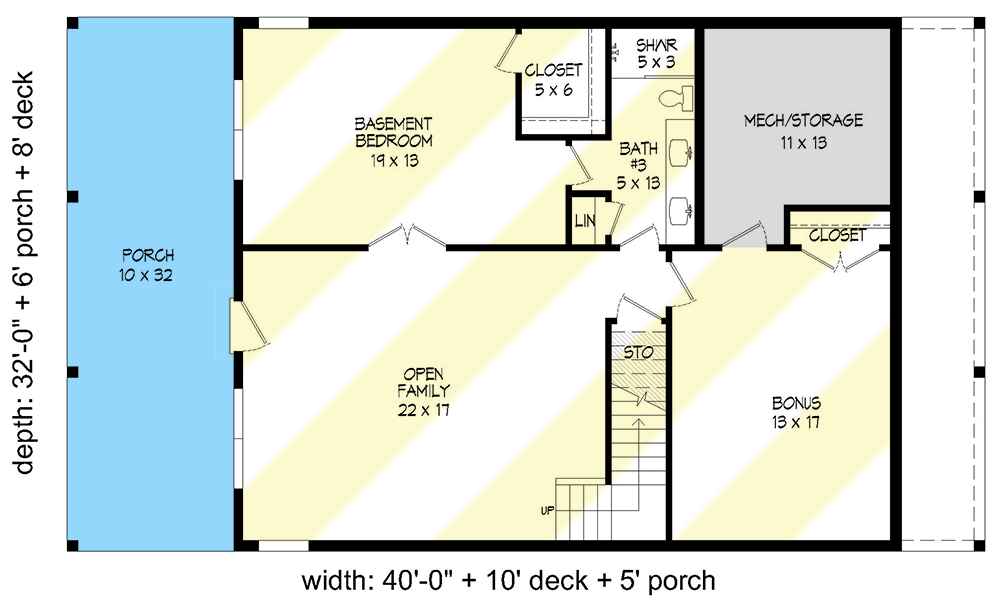

Optional Lower Level
floor plan image Optional Lower Level
Plan Details

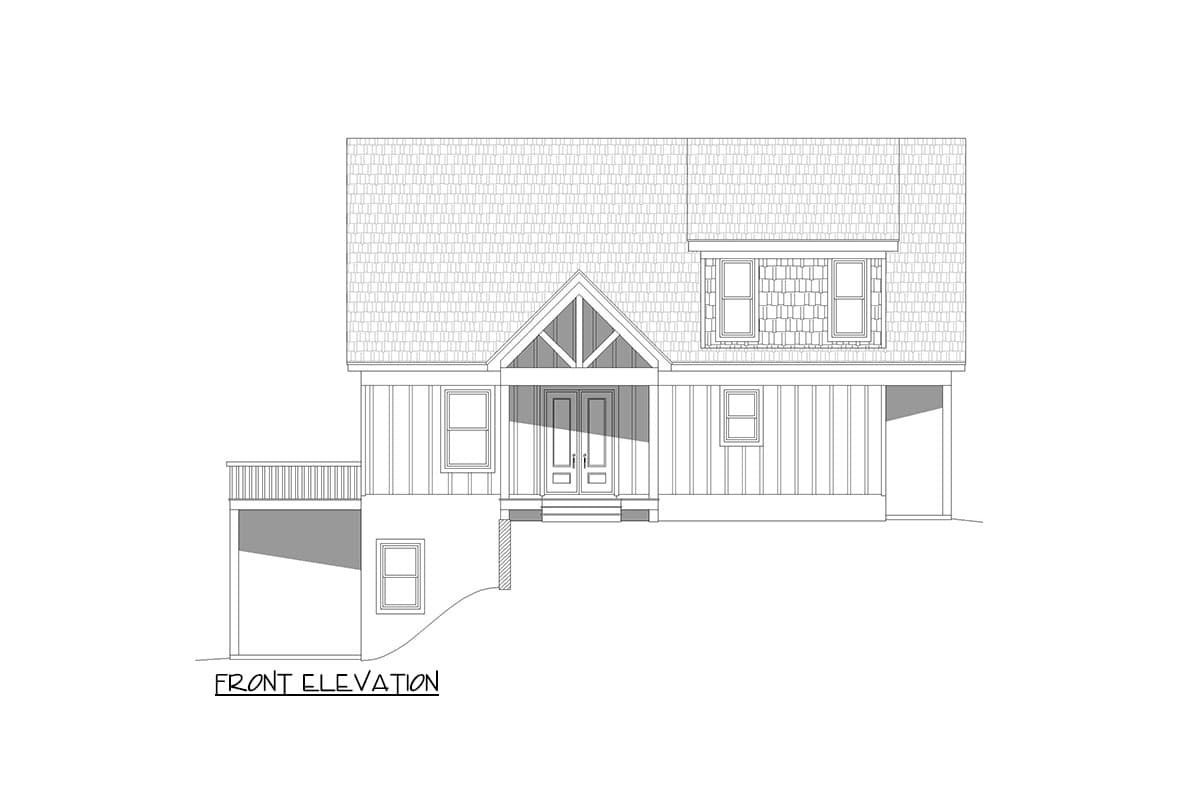

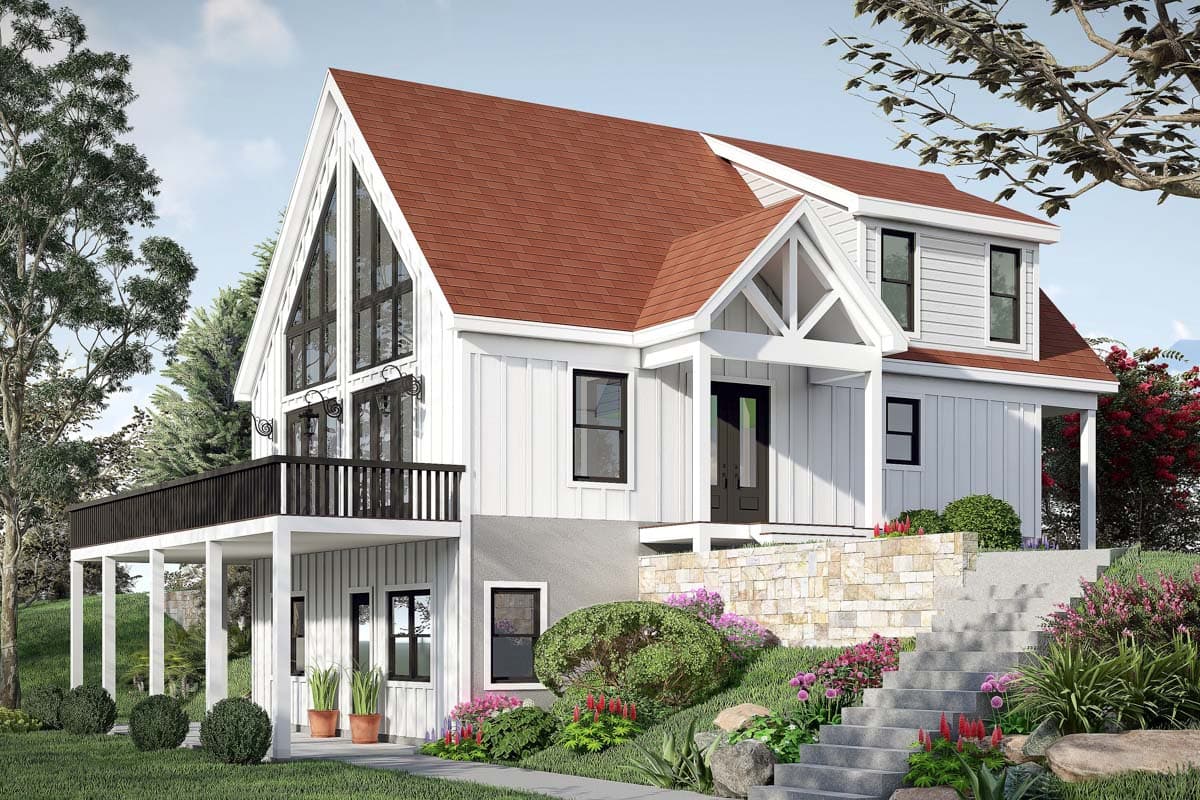

  • A timber-frame truss lends character to the front porch of this two-story, mountain house plan, complete with a wrap-around porch to enjoy the available views.

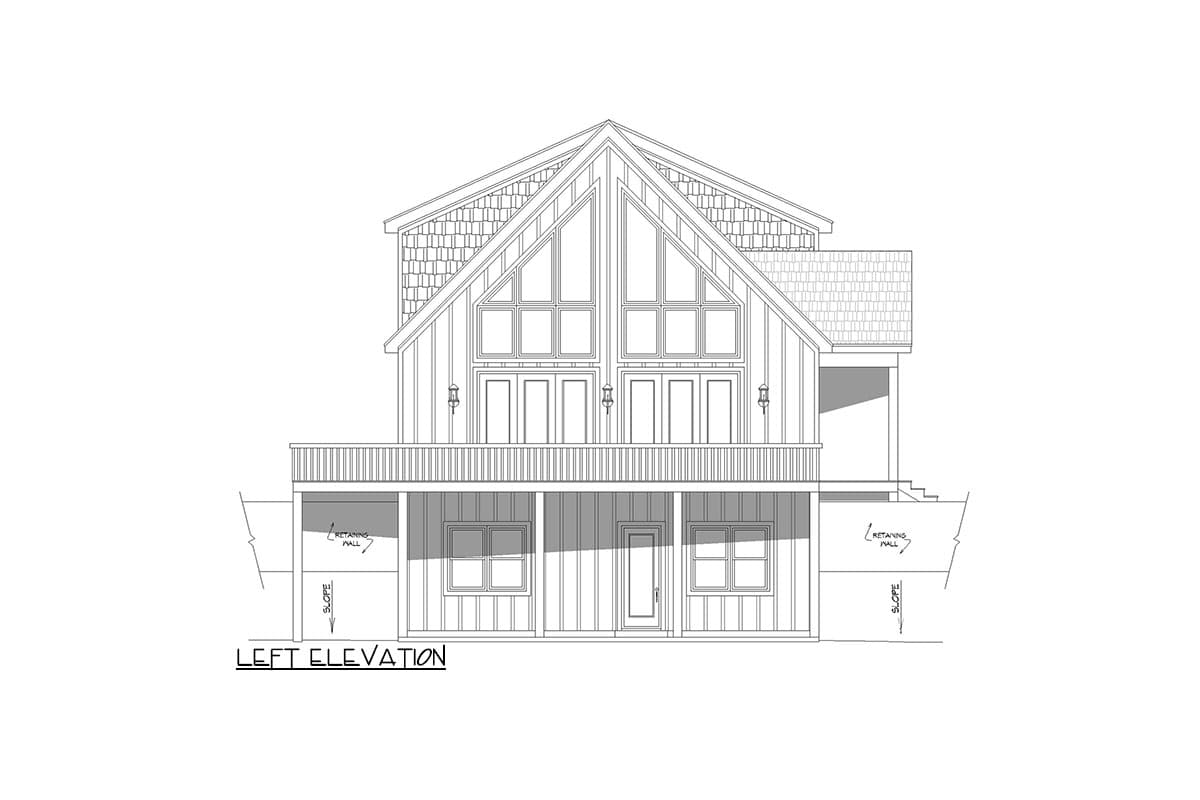

  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows. The adjoining eat-in kitchen includes a multi-purpose island and easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet.
  • A loft at the top of the stairs overlooks the great room below and two bedrooms share a bath. The ceilings go from 9' to 15'9"
  • Expansion opportunities in the lower level include a fourth bedroom and an open family room plus a bonus room. Mechanicals and storage complete the home.
  • Related Plans: Get alternate versions with house plan 68747VR and 680093VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,770 sq. ft.

1st Floor

1,280 sq. ft.

2nd Floor

490 sq. ft.

Optional Lower Level

1,135 sq. ft.

Balcony / Veranda

125 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

46' 0"

Max Ridge Height

26' 10"

Ceiling Heights

Lower Level

10'

First Floor

9'

Second Floor

15' 9"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Lake House

Mountain

Vacation

Special Features

Bonus Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
