Plan 6702MG
Mountain House Plan with Large Private Upstairs Loft Above Detached 2-Car Garage - 1551 Sq Ft
Heated S.F.
1,551
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 6702MG

First Floor
slide image 0

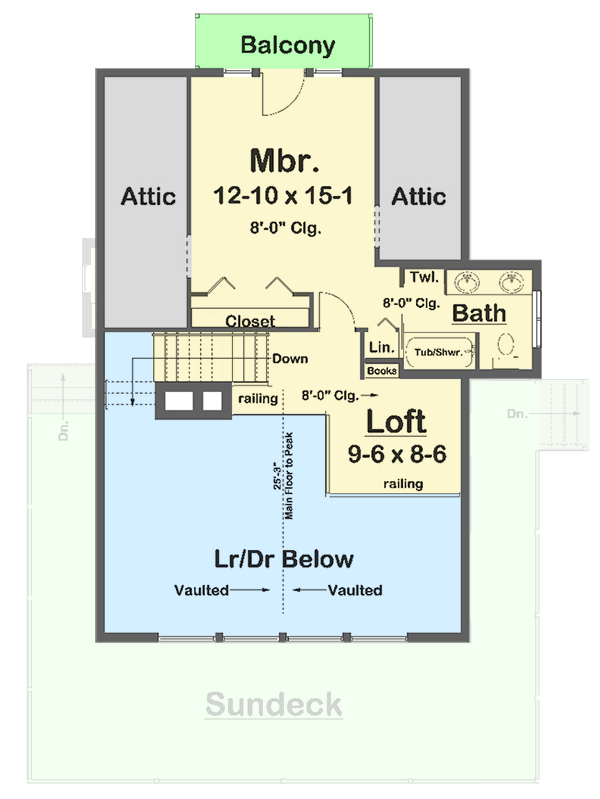

Second Floor
slide image 1

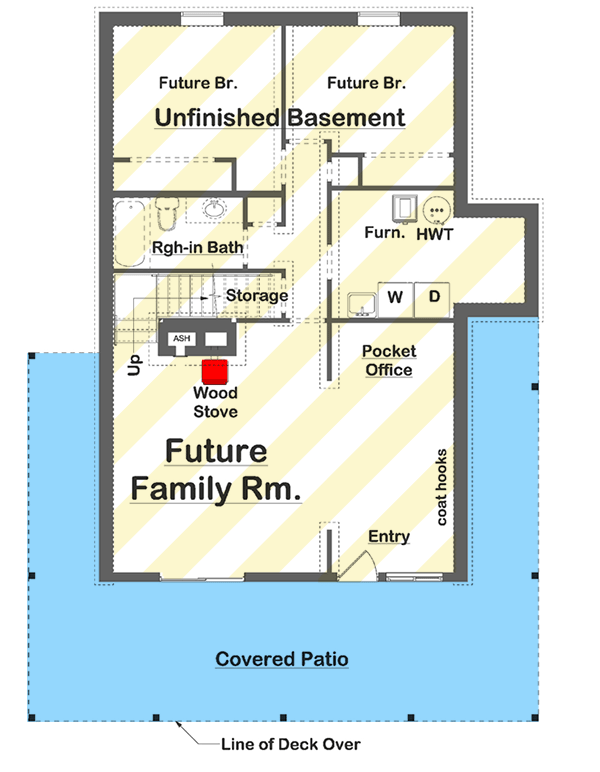

Lower Level
slide image 2
Detached Garage - Main Floor
slide image 3
Detached Garage - 2nd Floor
slide image 4

Plan 6702MG

1-800-854-7852

1-262-521-4596

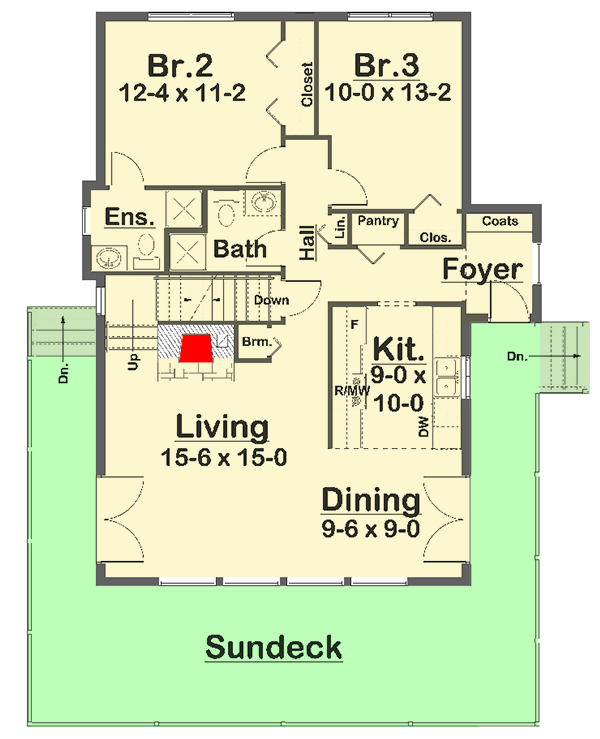

First Floor
floor plan image First Floor
Second Floor
floor plan image Second Floor
Lower Level
floor plan image Lower Level

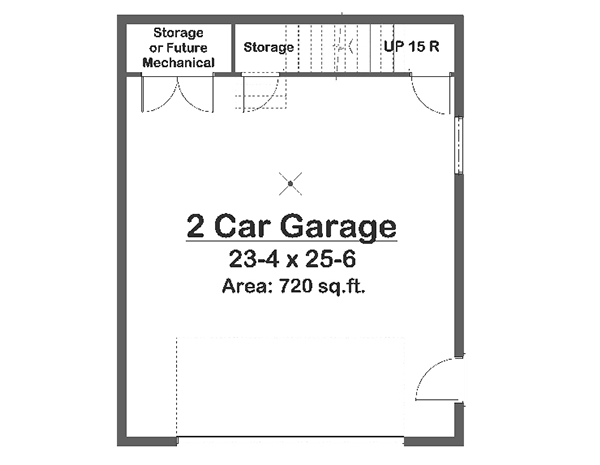

Detached Garage - Main Floor
floor plan image Detached Garage - Main Floor

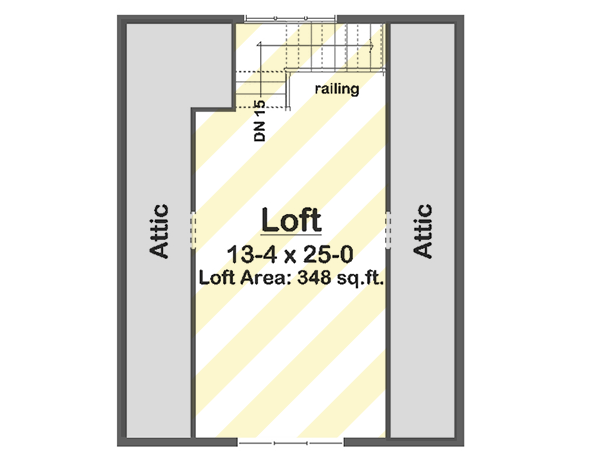

Detached Garage - 2nd Floor
floor plan image Detached Garage - 2nd Floor
Plan Details
  • In this design you have a choice for the master suite location--it could be on the main floor as shown or you might choose to move it to the private upstairs loft.
  • A porch shelters the front door leading to a roomy foyer with handy coat closet.
  • The central fireplace could be finished in stone to maintain a woodsy atmosphere.
  • An optionally finished lower level offers additional living space.
  • This plan includes a detached 2-car garage with loft space above.
What's Included
  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

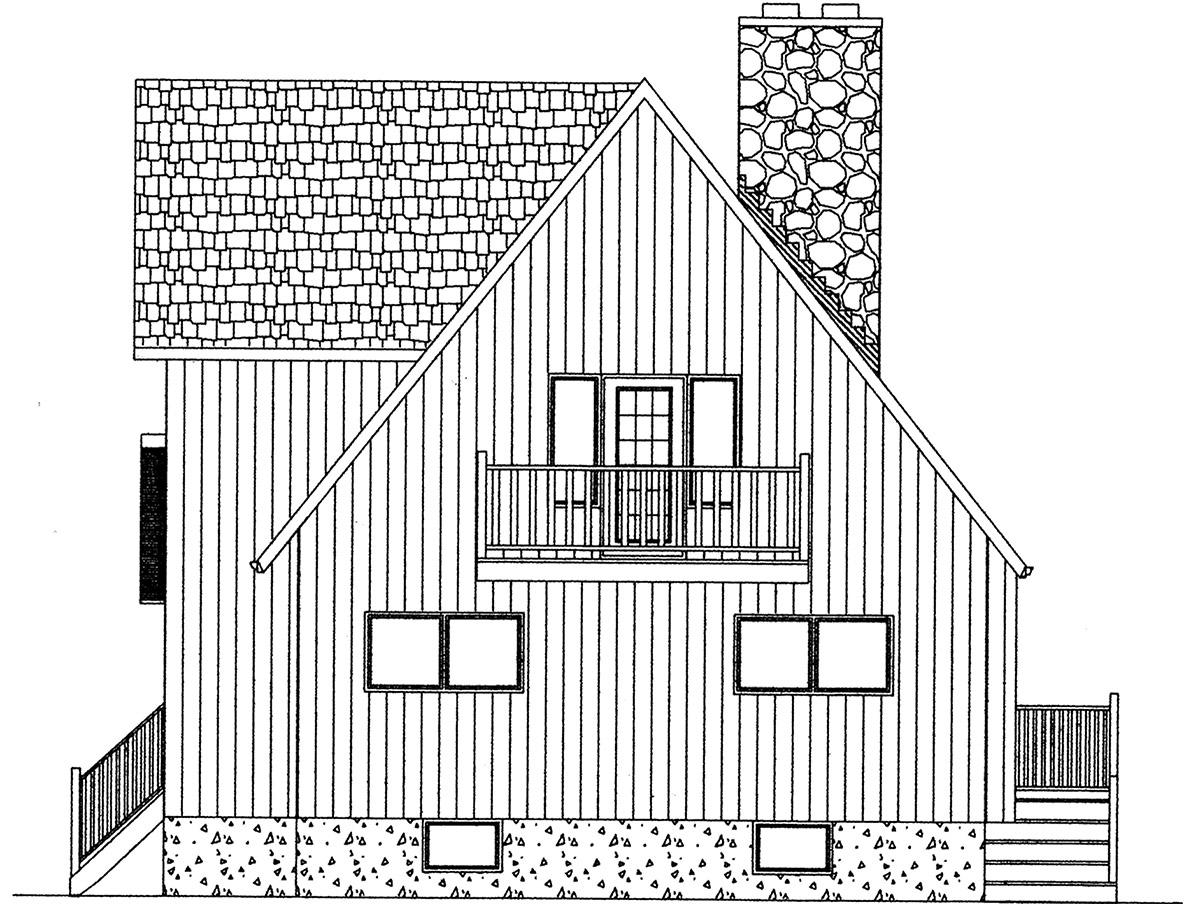

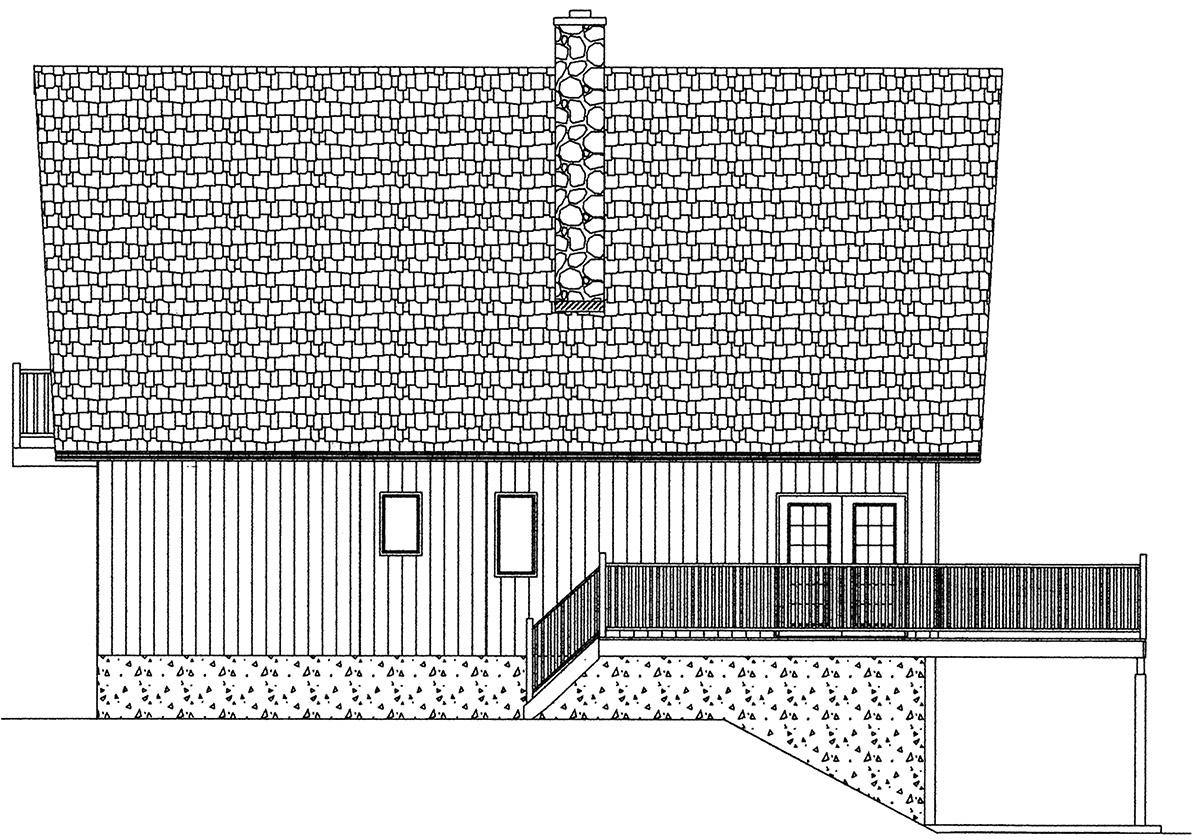

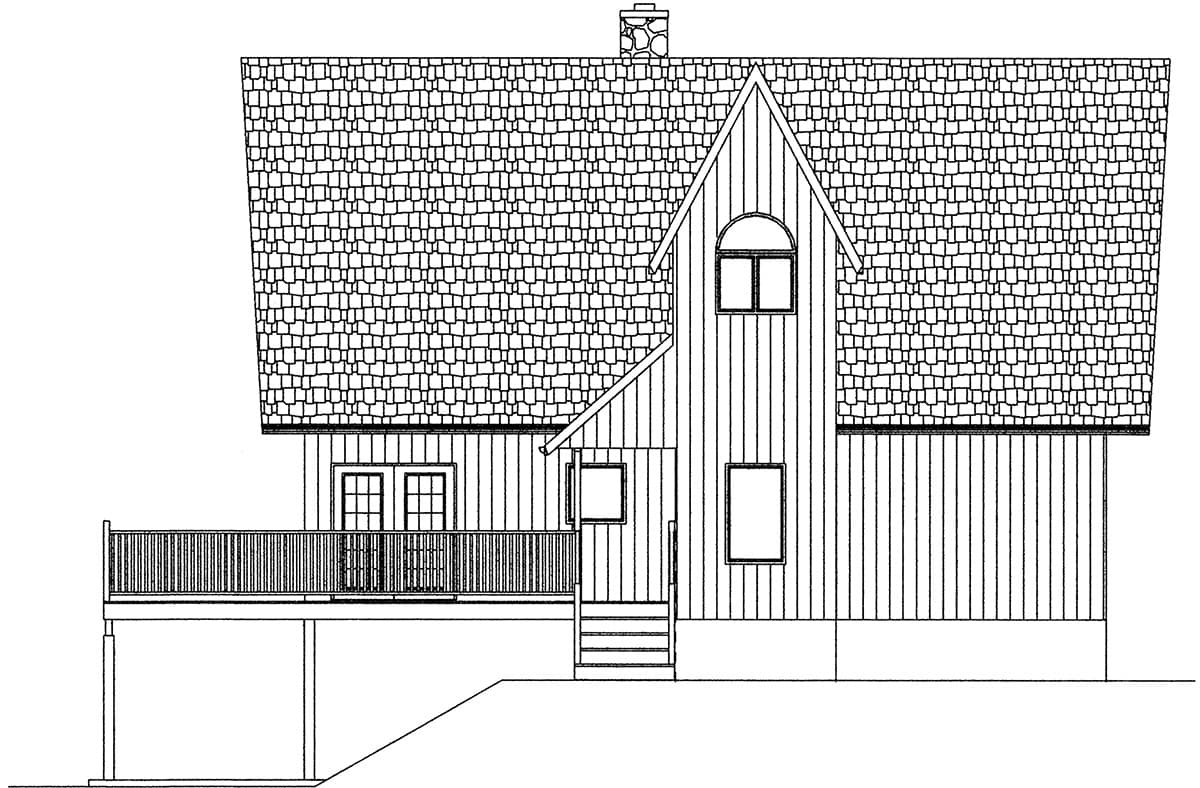

  • Elevations
  • Cross section
  • Wall details, etc.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,551 sq. ft.

1st Floor

1,089 sq. ft.

2nd Floor

462 sq. ft.

Basement Unfinished

1,086 sq. ft.

Deck

510 sq. ft.

Balcony / Veranda

25 sq. ft.

Attic

121 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 0"

Max Ridge Height

29' 0"

Garage

Type

Detached

Area

720 sq. ft.

Count

2 Cars

Entry Location

Side, Front, Rear

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

13.5 on 12

Framing Type

Stick

Architectural Style

Cabin

Mountain

Vacation

Special Features

Laundry - Lower Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans
