Plan 18813CK

Mountain Lodge with Lower Level

Heated S.F.

5,046

Beds

4

Baths

4.5

Stories

2

Cars

2

Floor Plan

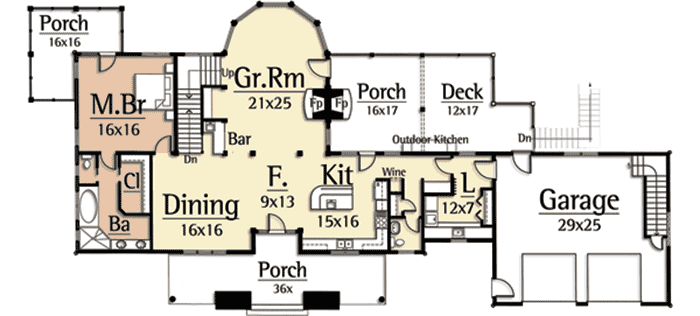

Main Level

floor plan image Main Level

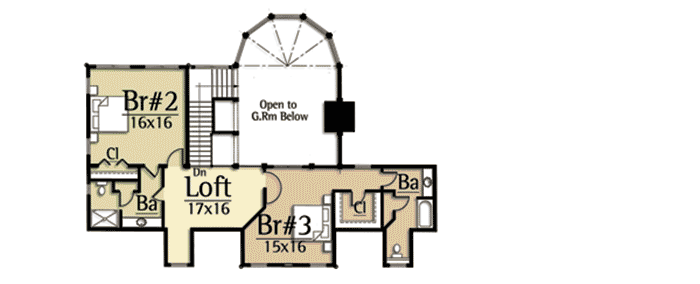

Second Level

floor plan image Second Level

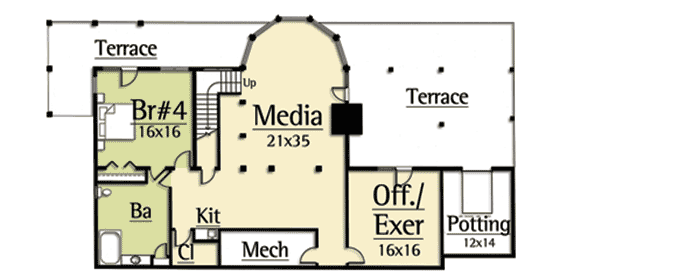

Lower Level

floor plan image Lower Level

Plan Details

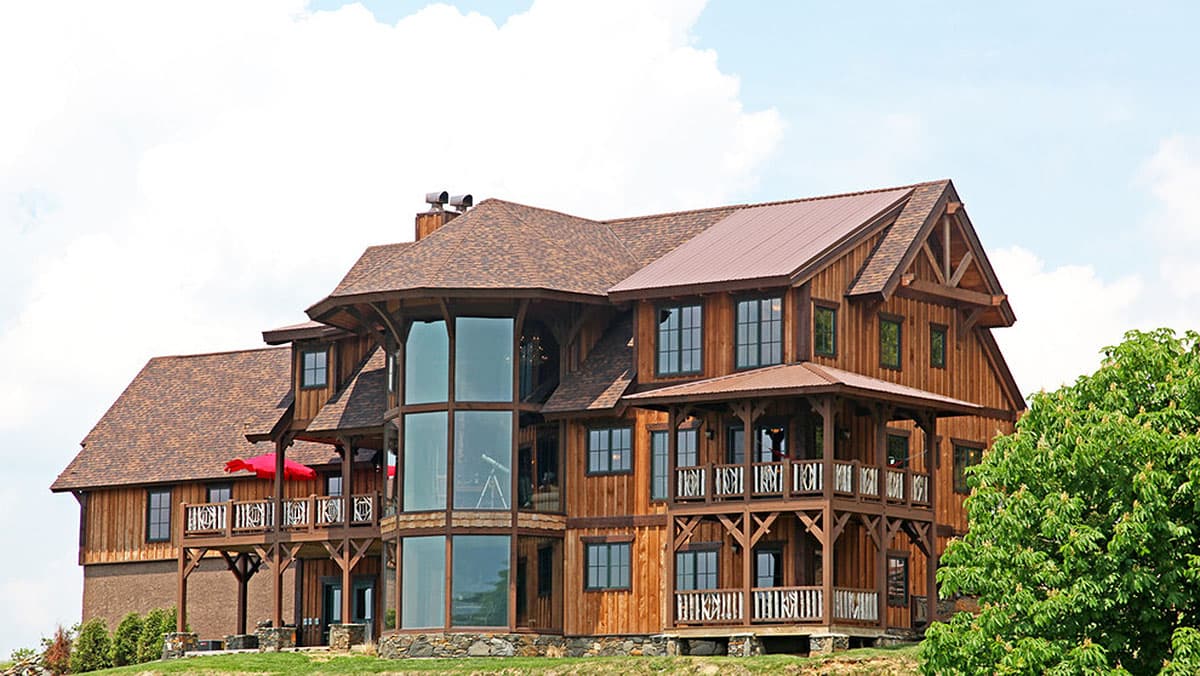

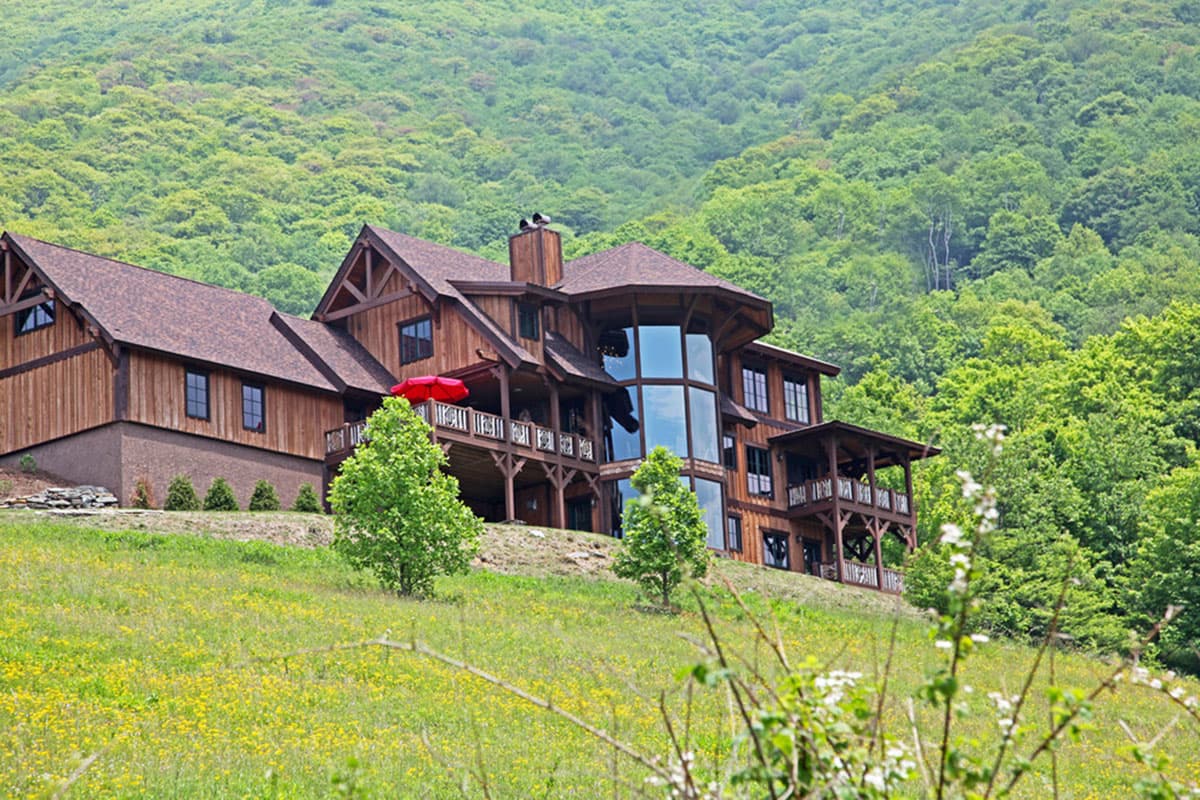

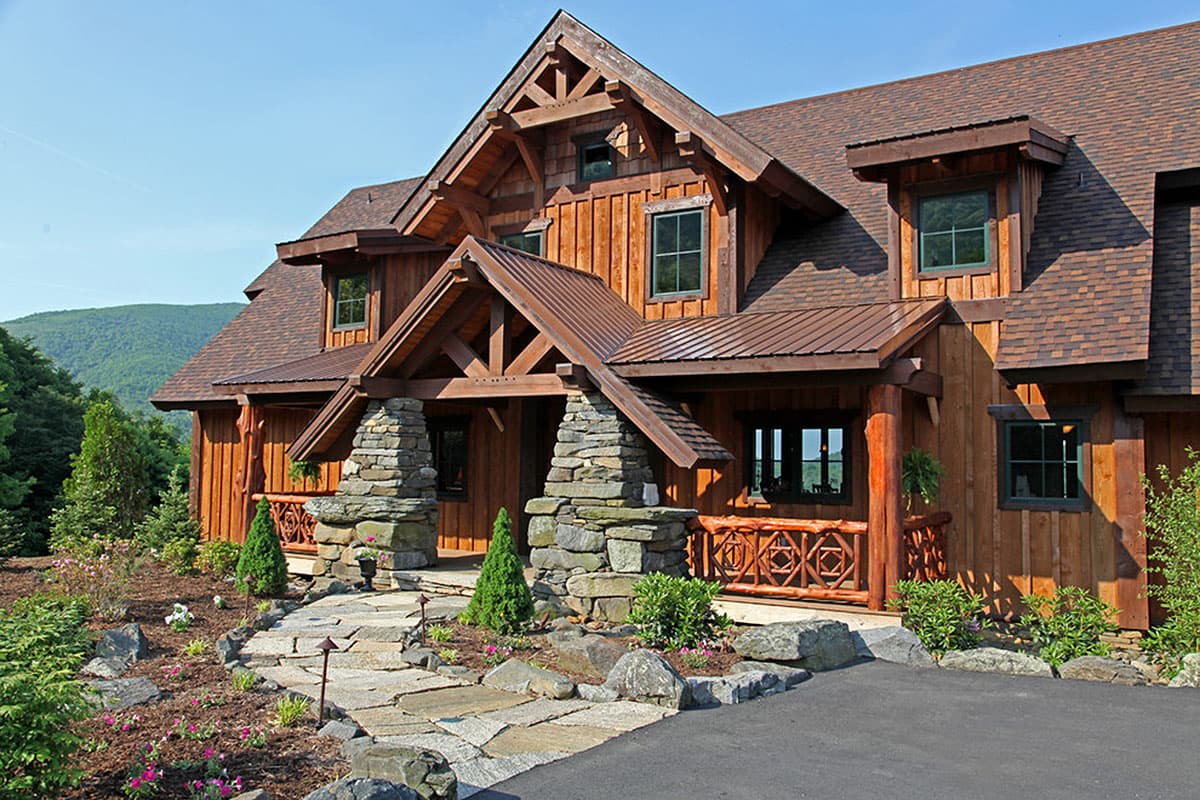

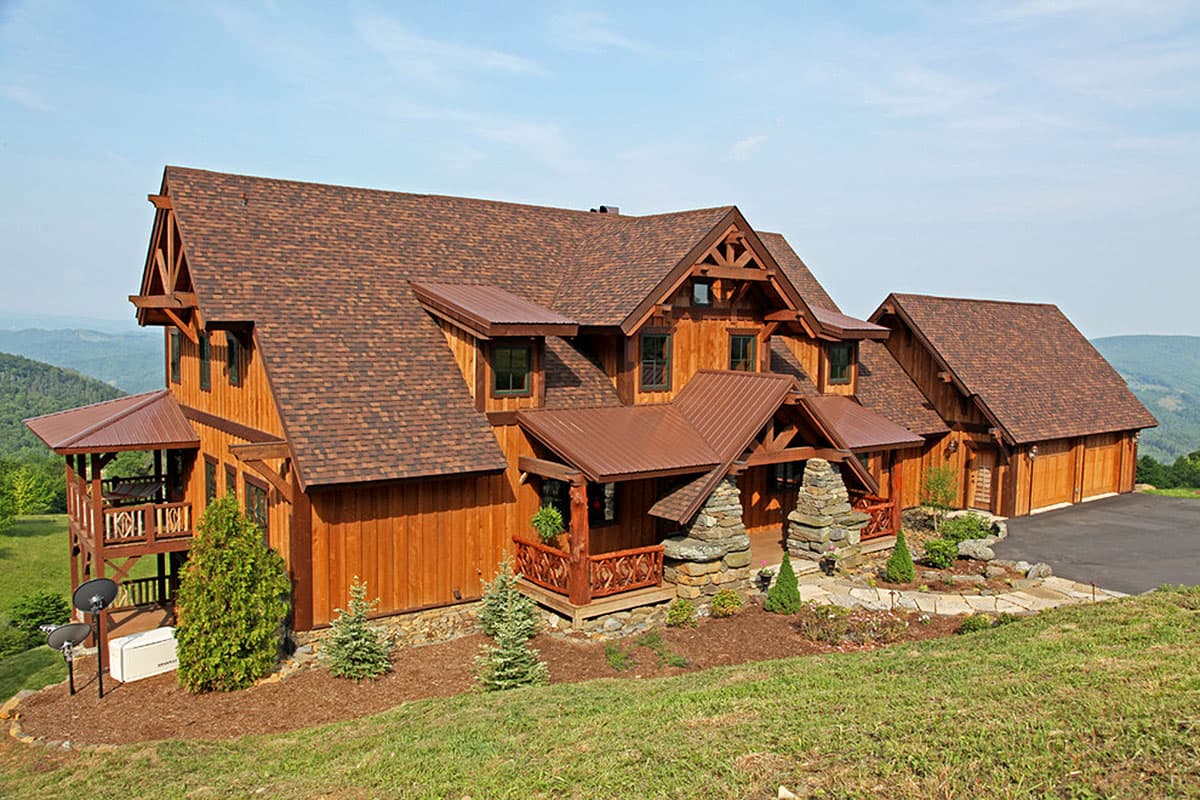

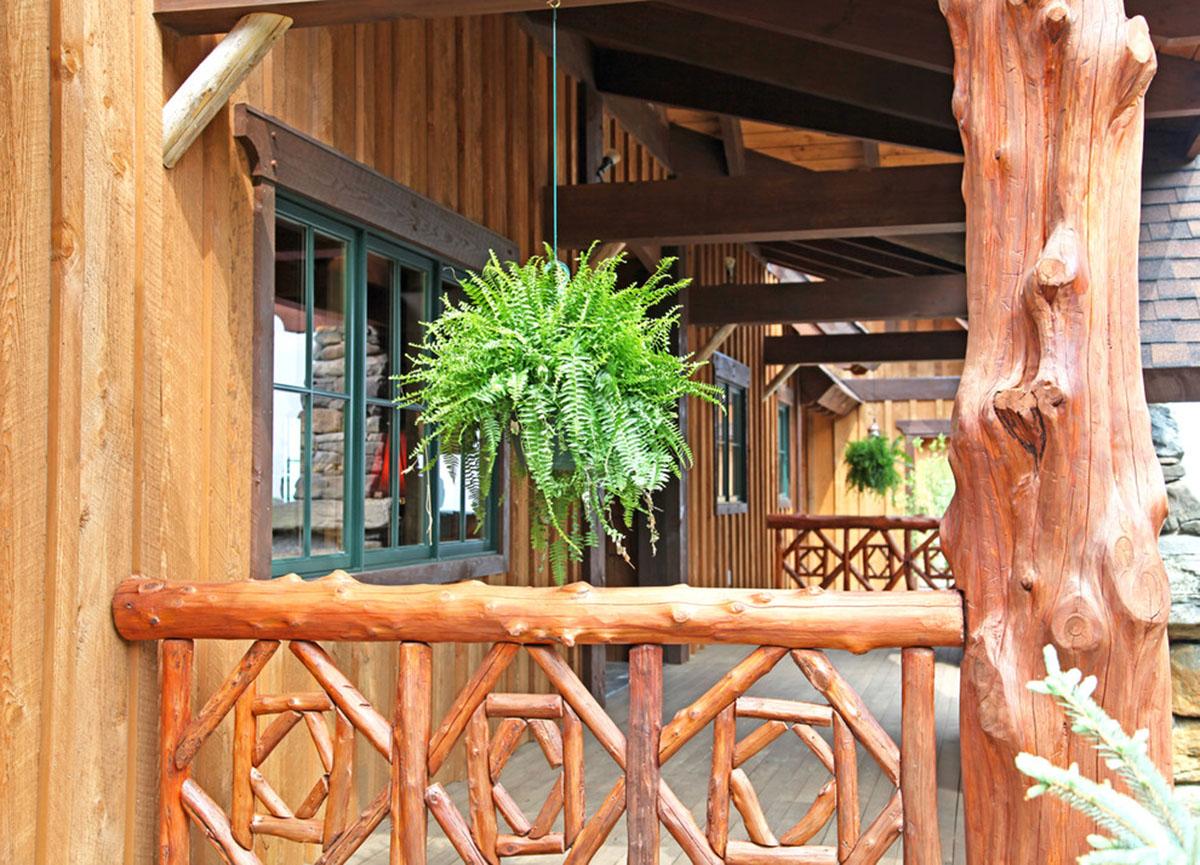

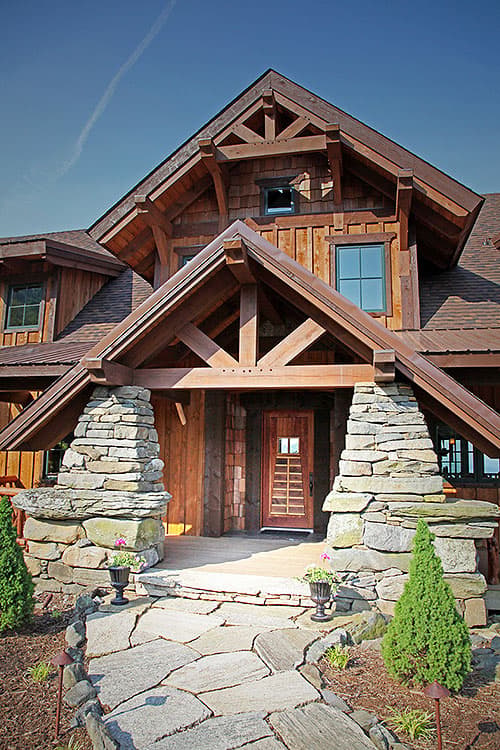

Inside and out, this luxury Mountain home plan has a rustic look and wonderful amenities.

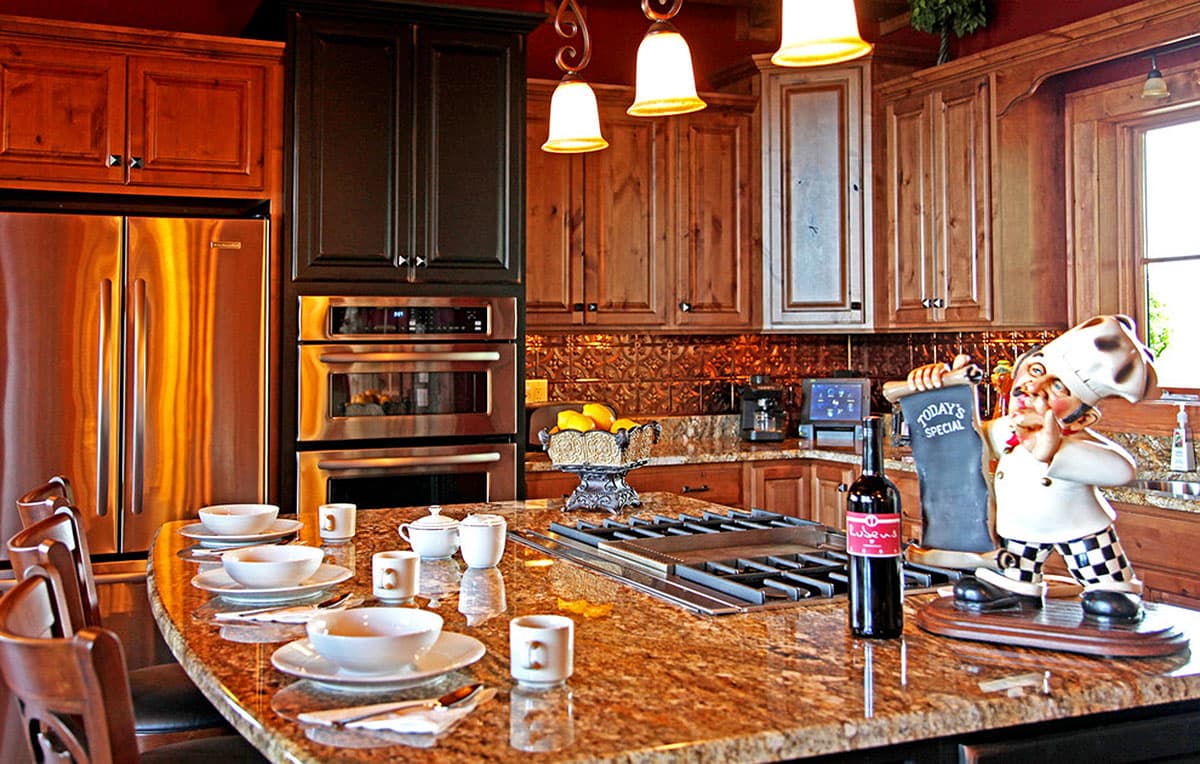

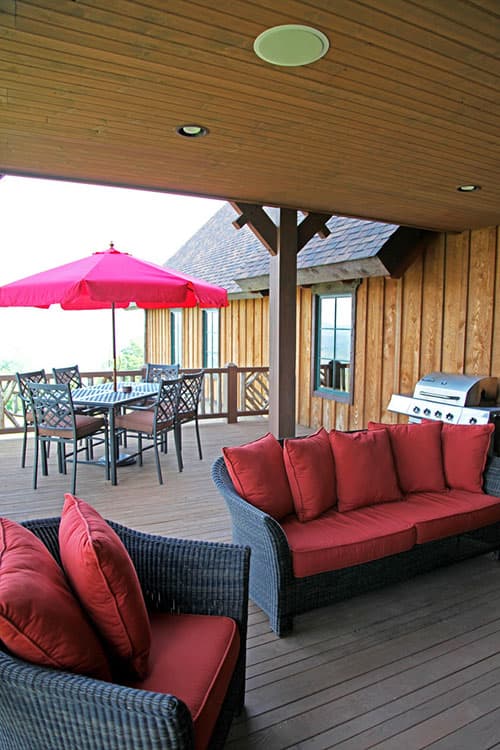

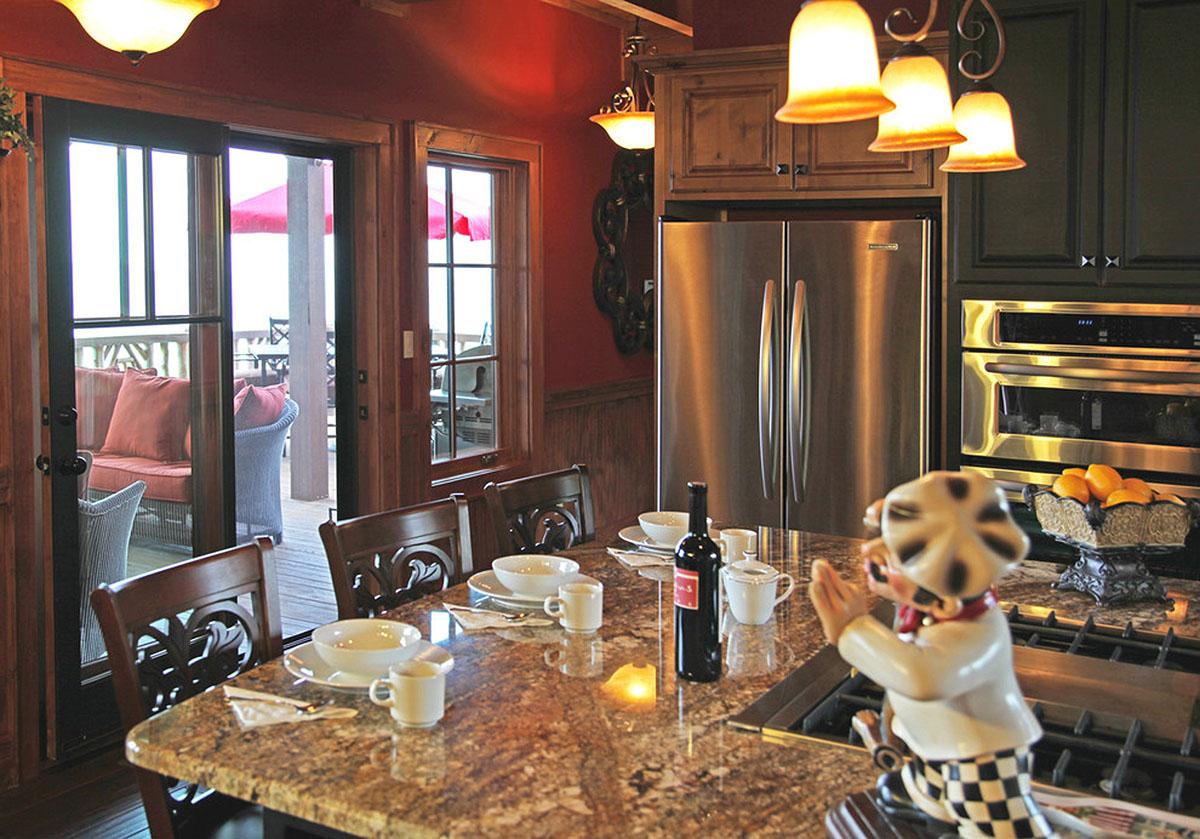

Plush details include a wet bar, outdoor kitchen, wine storage and a delightful open floor plan that maximizes the views.

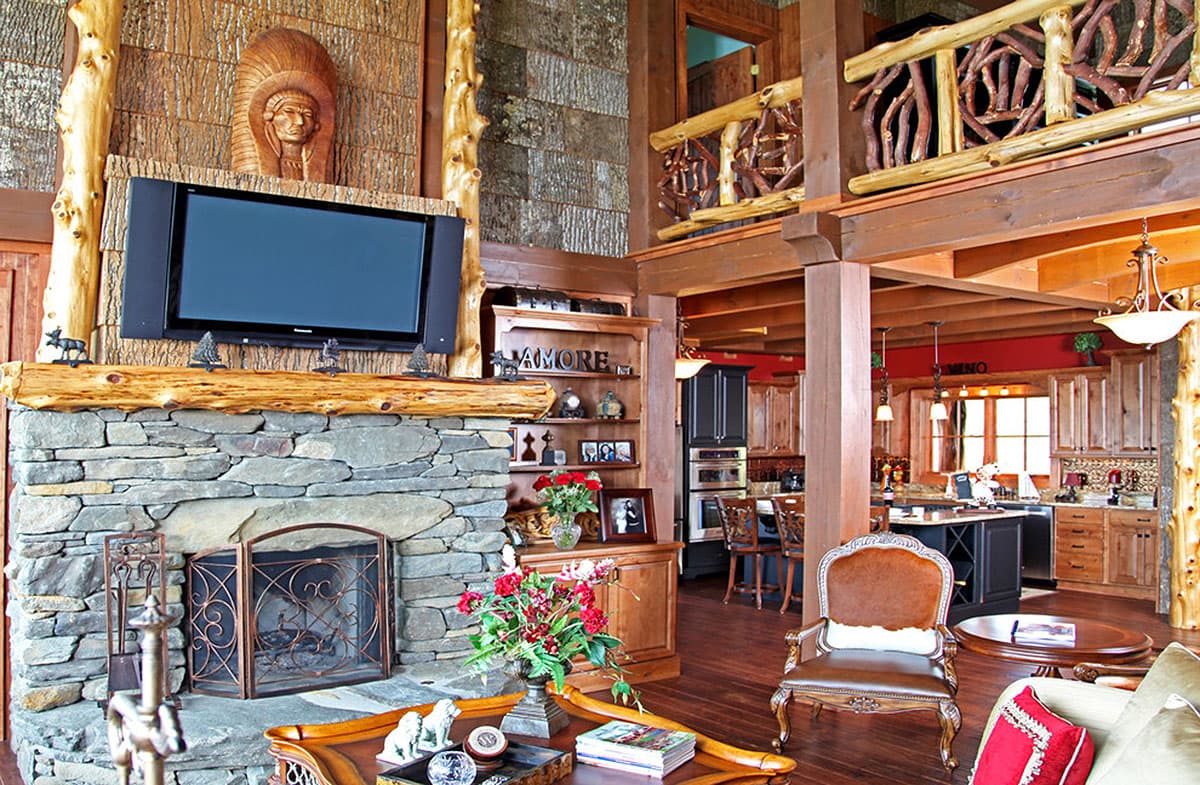

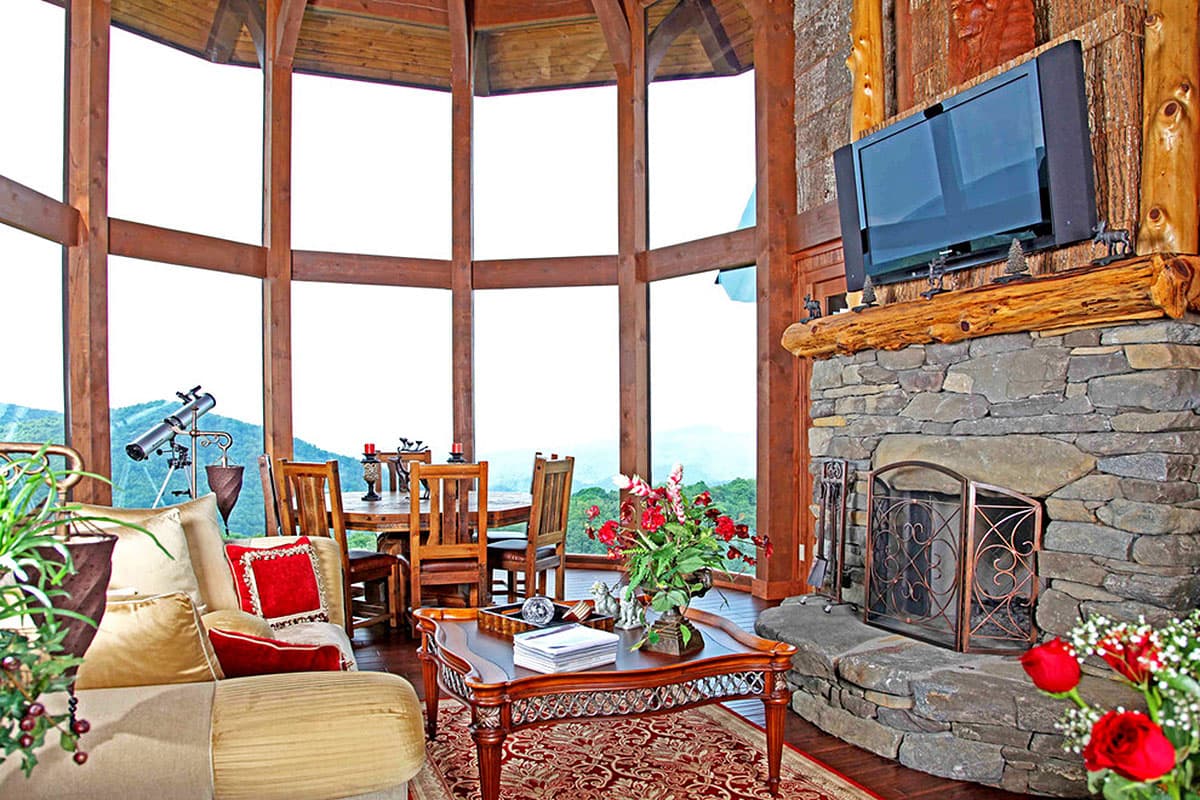

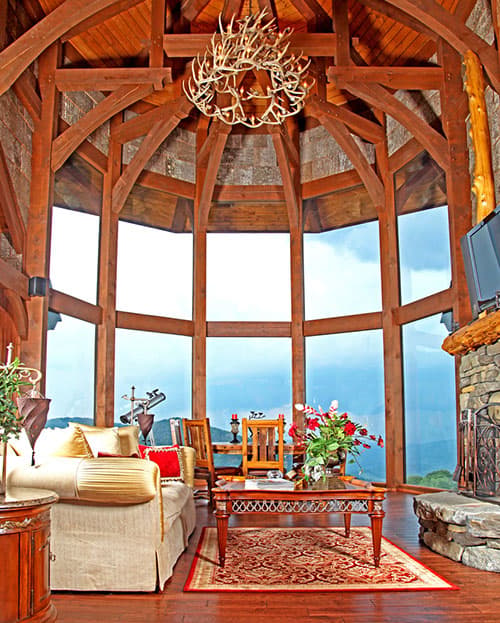

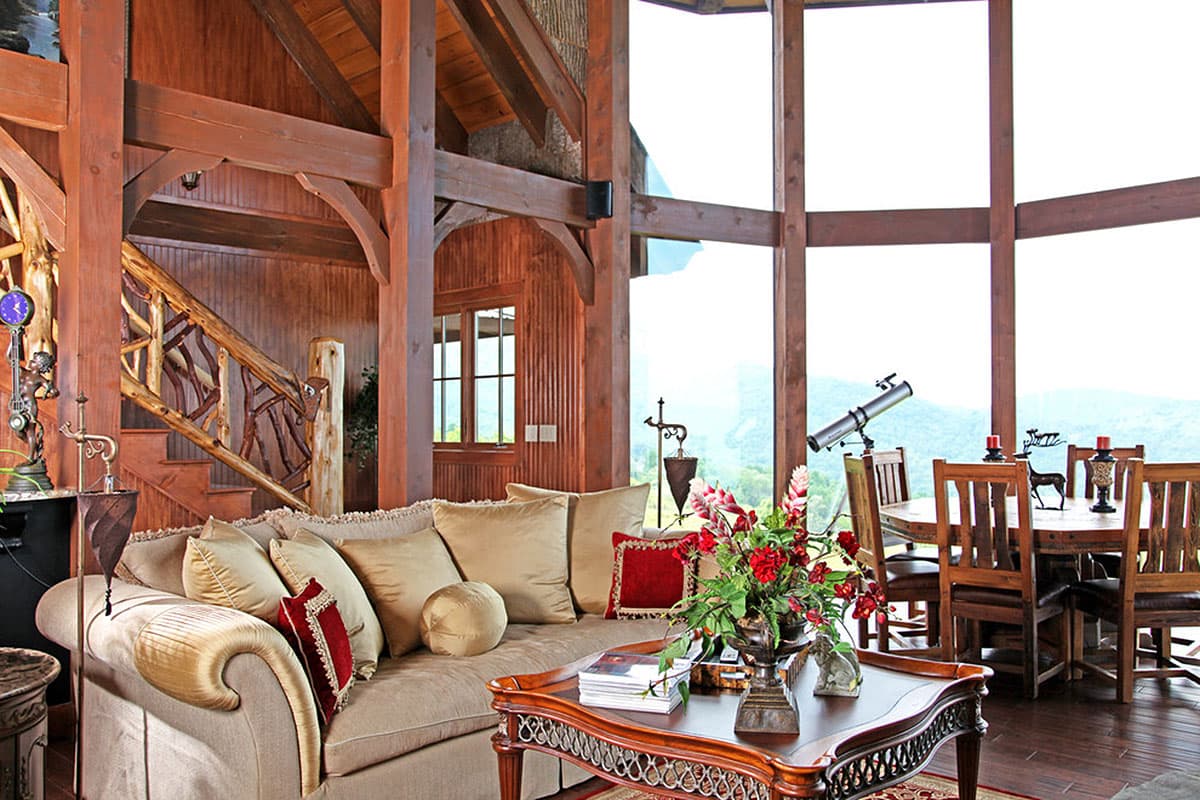

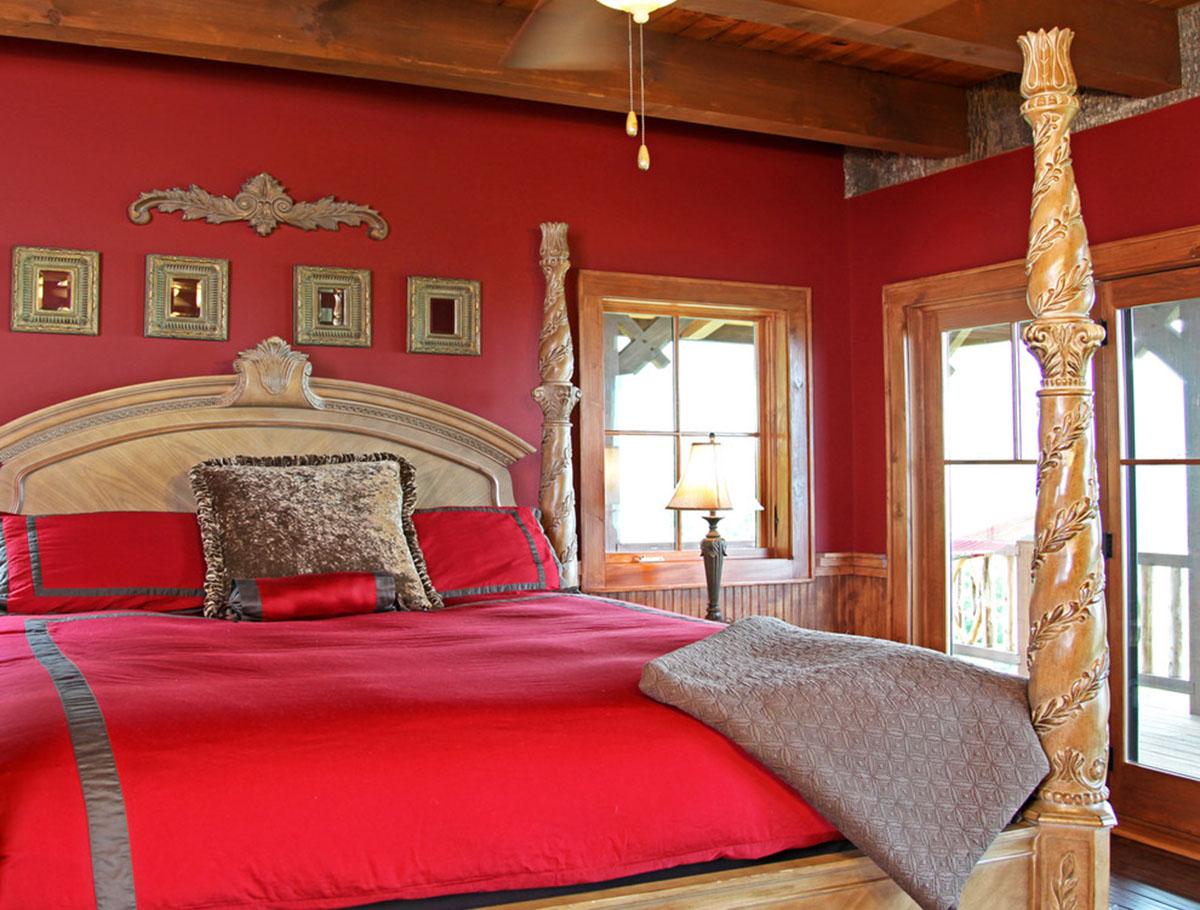

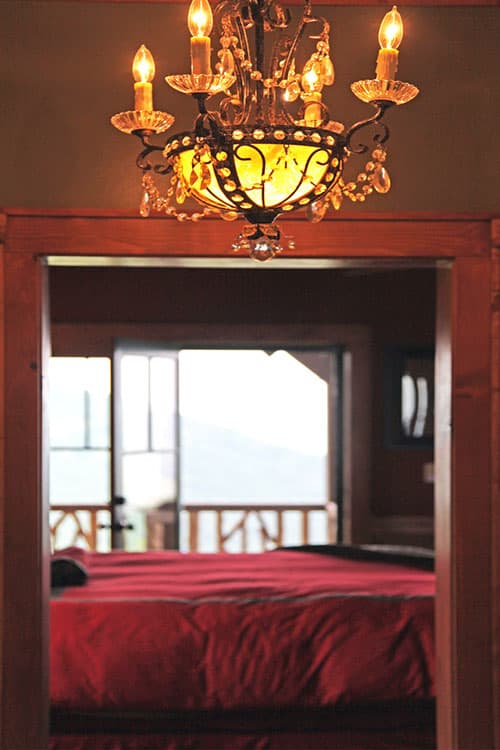

Five huge windows brighten the spacious great room with its warming fireplace.The first floor master suite has its own private porch and a large walk-in closet.

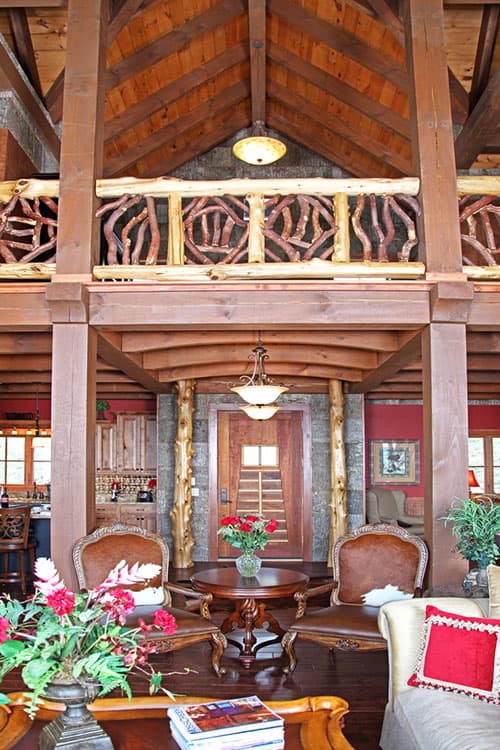

Each of the two bedrooms on the upper floor has its own bath and the nearby loft space overlooks the great room below.

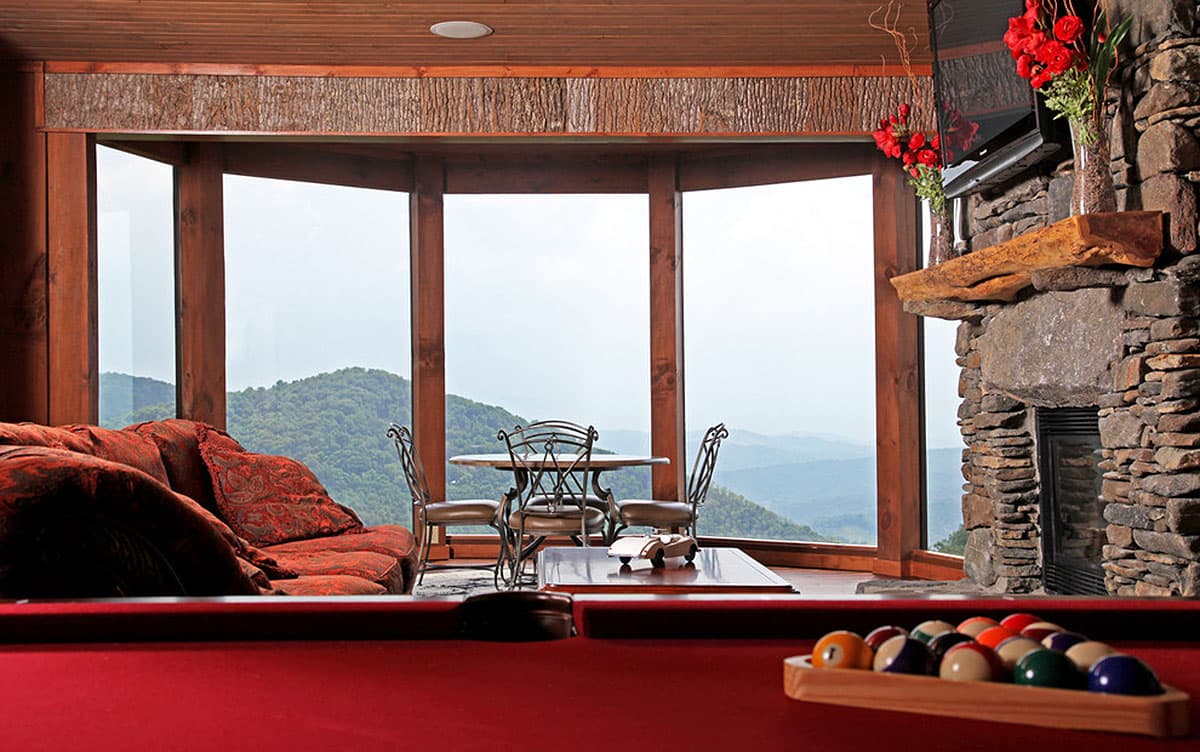

The lower level gives you a fourth bedroom perfect for a guest suite, a mini-kitchen, huge media room and office or exercise space all of which open to the expansive terrace.
Related Plan: Save money and don't build the lower level out with house plan 18744CK.

What's Included

Foundation
Framing
Floor plan
Roof
Special sections
Details page
Electrical plan
Door and window schedule
Elevations with details
Cross sections as needed

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,046 sq. ft.

Lower Level

1,846 sq. ft.

1st Floor

2,014 sq. ft.

2nd Floor

1,186 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

109' 0"

Depth

52' 0"

Garage

Type

Attached

Area

725 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Master Suite - 1st Floor

Outdoor Kitchen

Plan Collections

Premium Collection
