Plan 9536RW
Mountain Majesty
Heated S.F.
8,673
Beds
3
Baths
3.5+
Stories
2
Cars
6
Floor Plan

Plan 9536RW

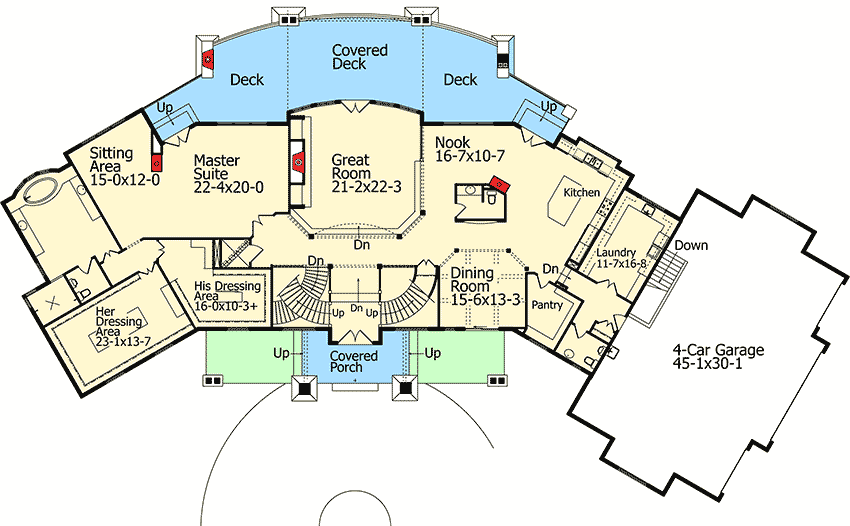

Main Level
slide image 0
2nd Floor
slide image 1

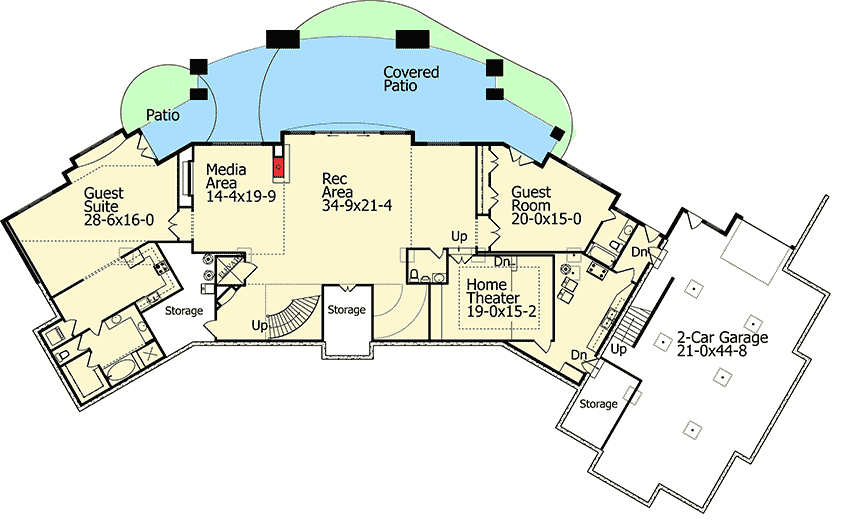

Lower Level
slide image 2

Plan 9536RW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

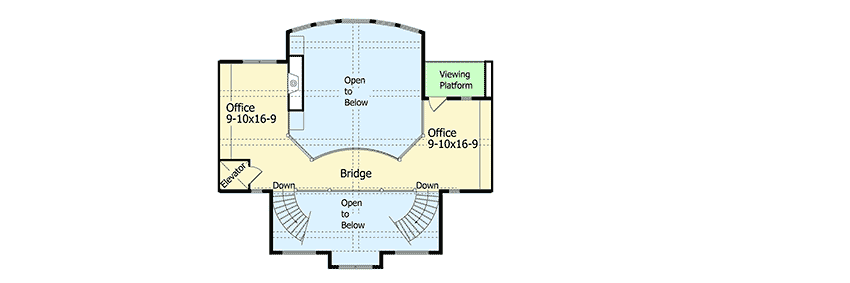

2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details

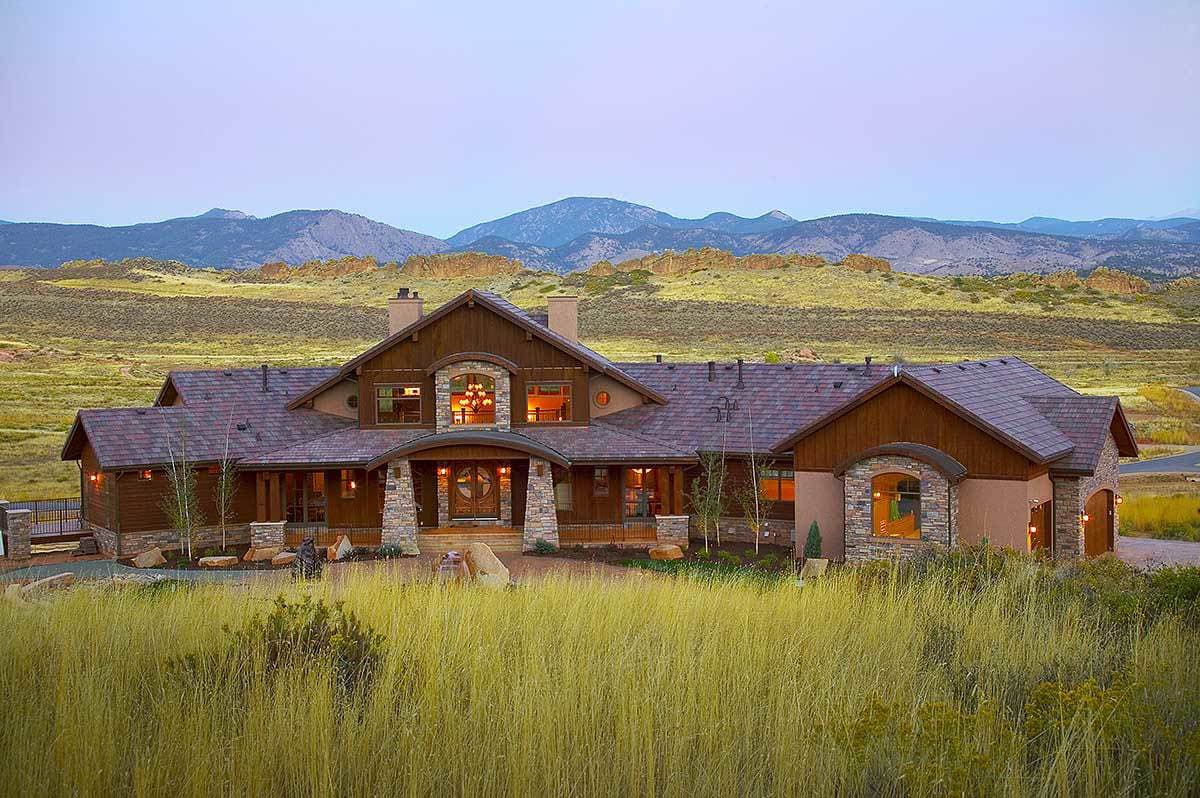

  • Luxurious details pamper the owners of this spectacular luxury home plan designed with large spaces in every room of the home and for your lot with majestic views.

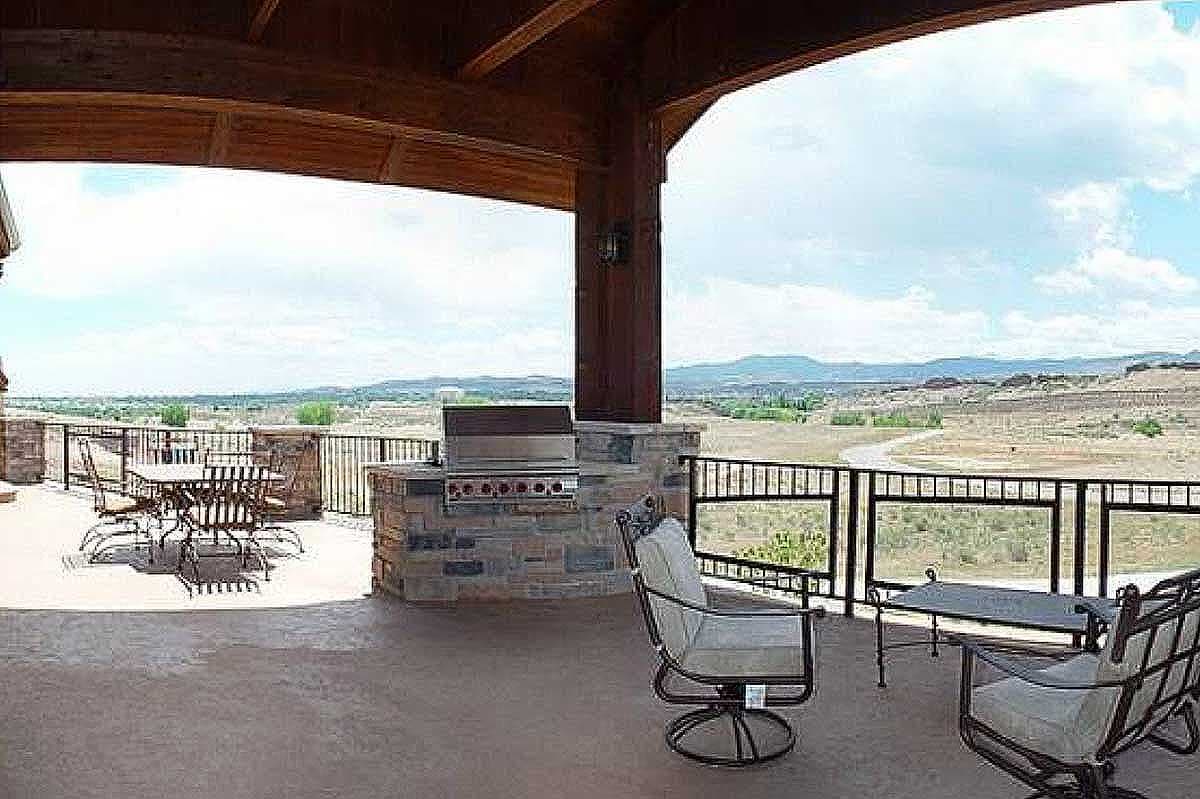

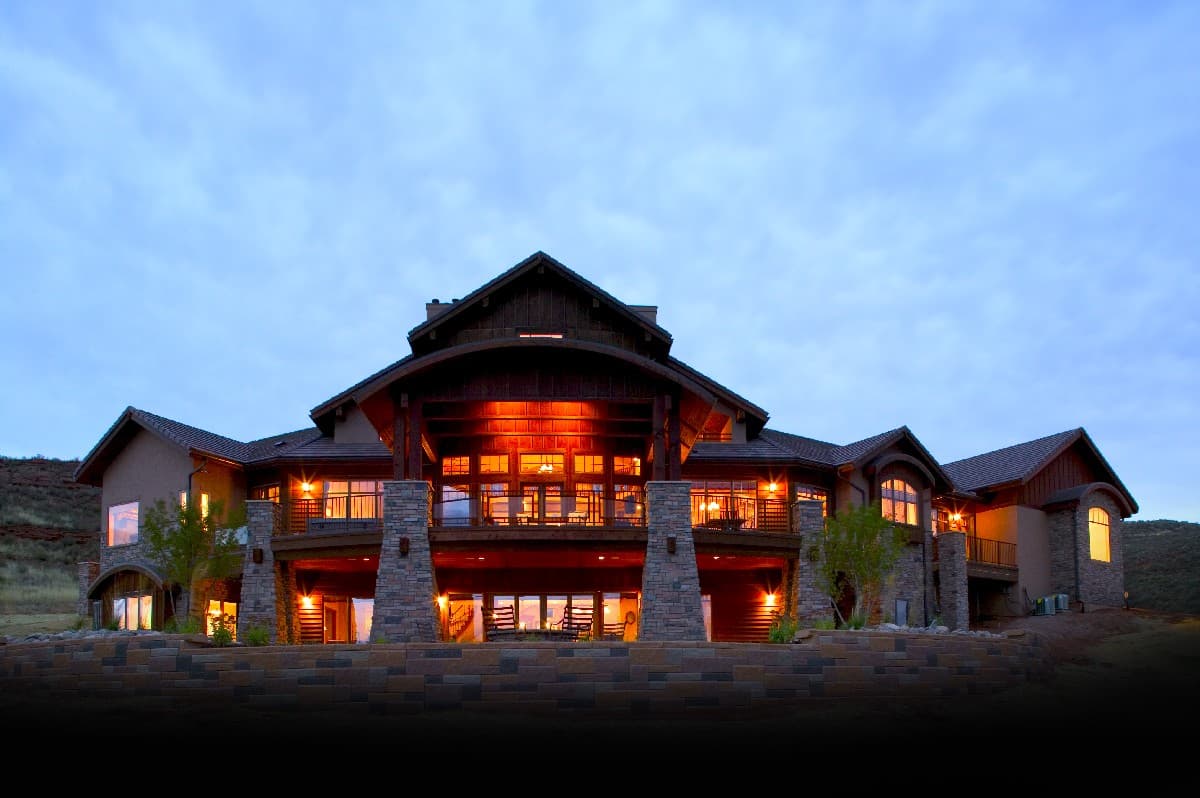

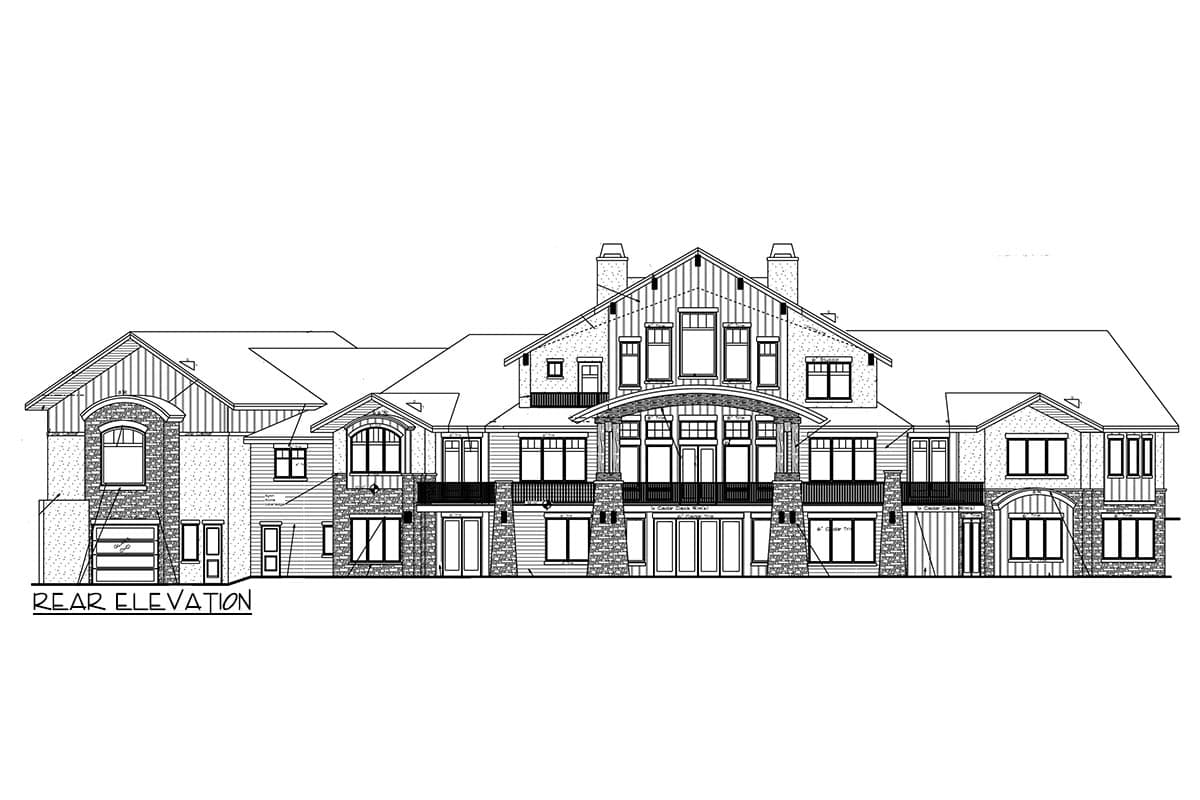

  • The rear gives you panoramic views from the curved deck with a dramatic barrel roof above and a spacious covered patio below.

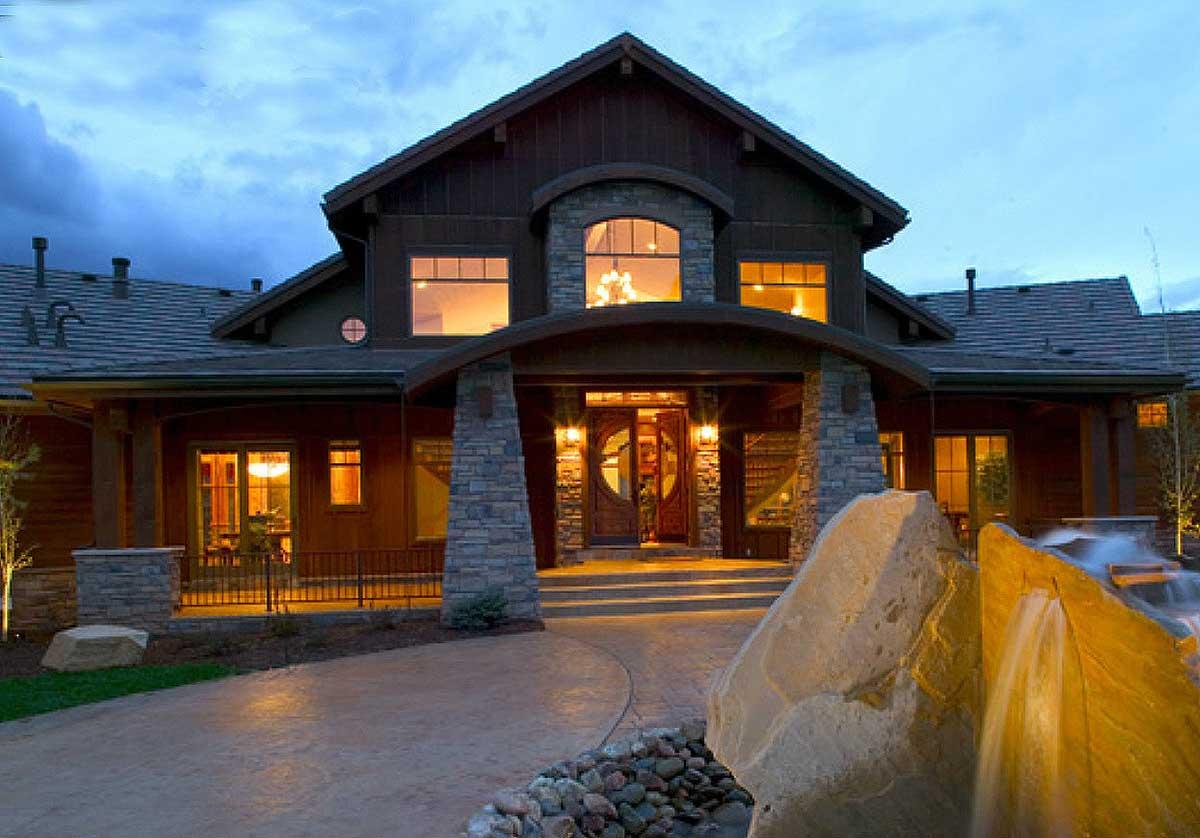

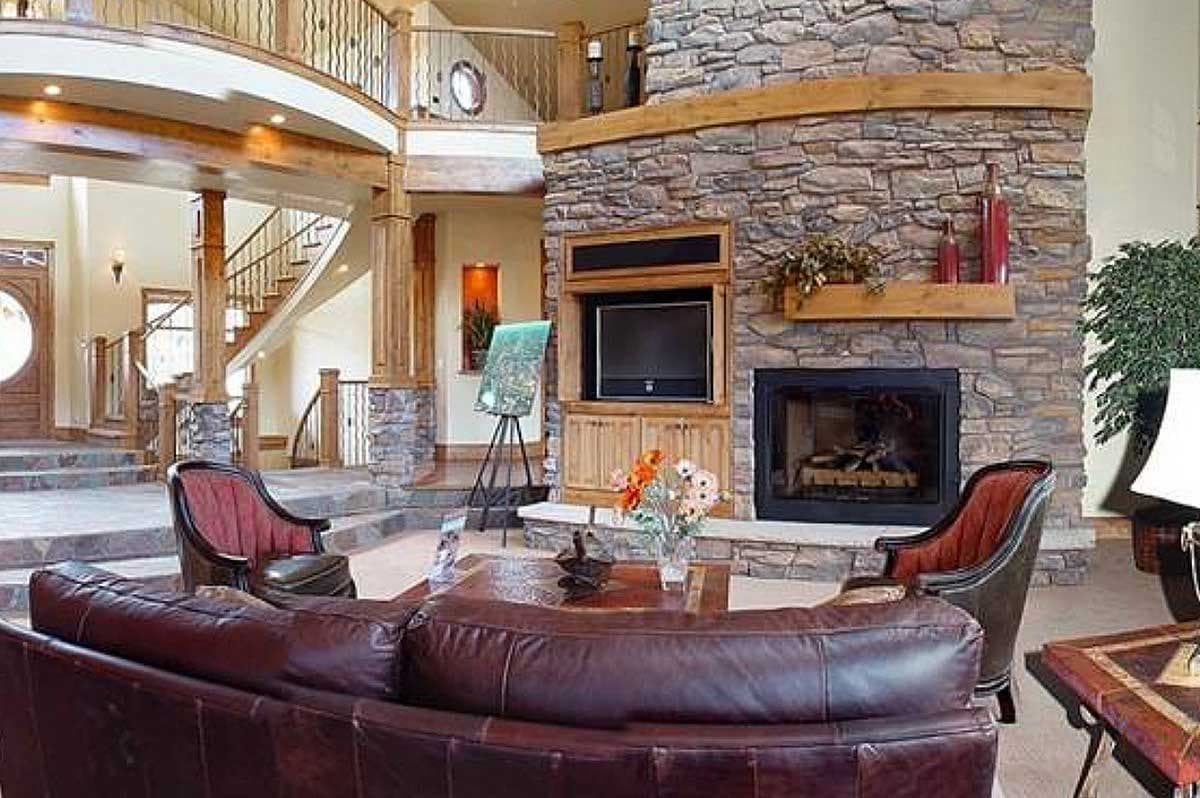

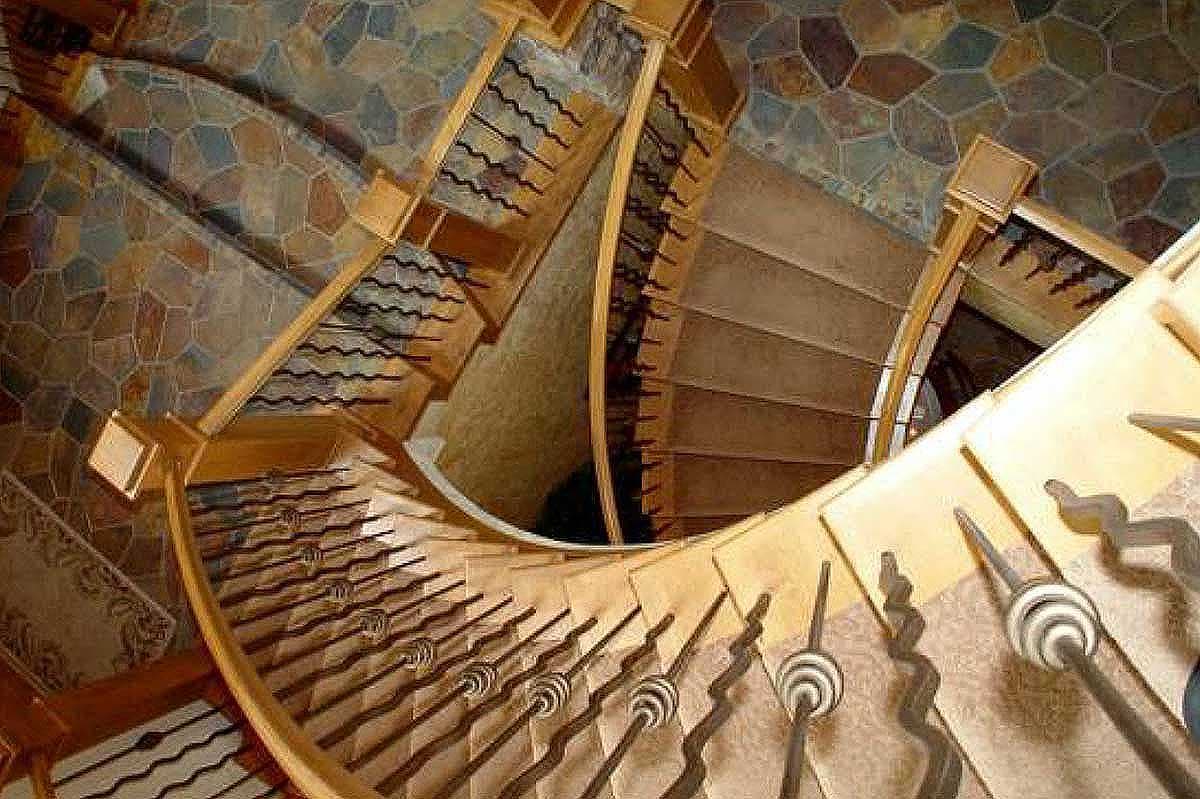

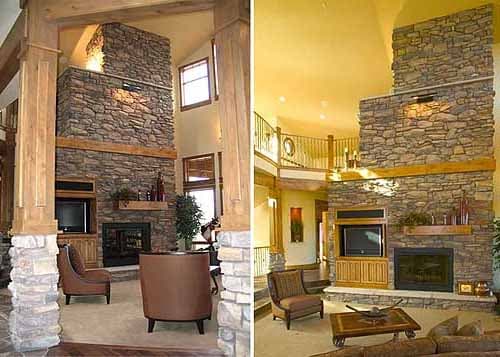

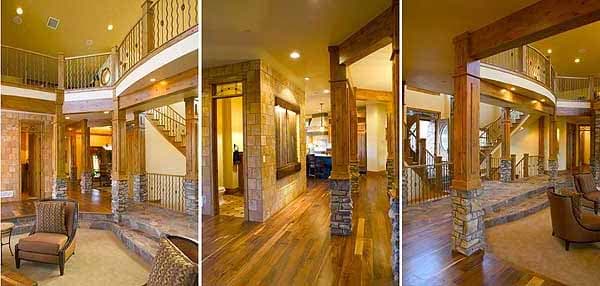

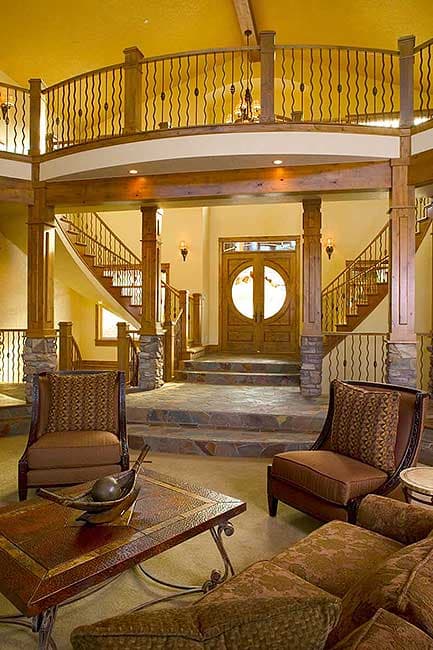

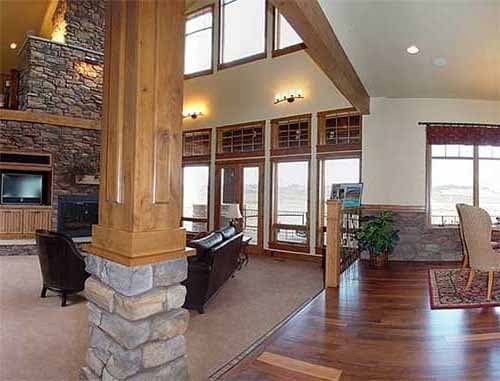

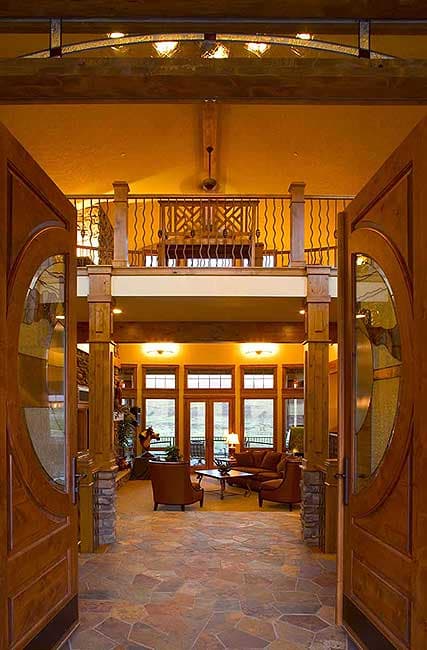

  • Entering the home you'll be taken by the dramatic two-story foyer and sweeping dual stair leading to the bridge above. Ahead,columns frame the great room which features a two-story fireplace and sweeping views through the curved wall of glass.

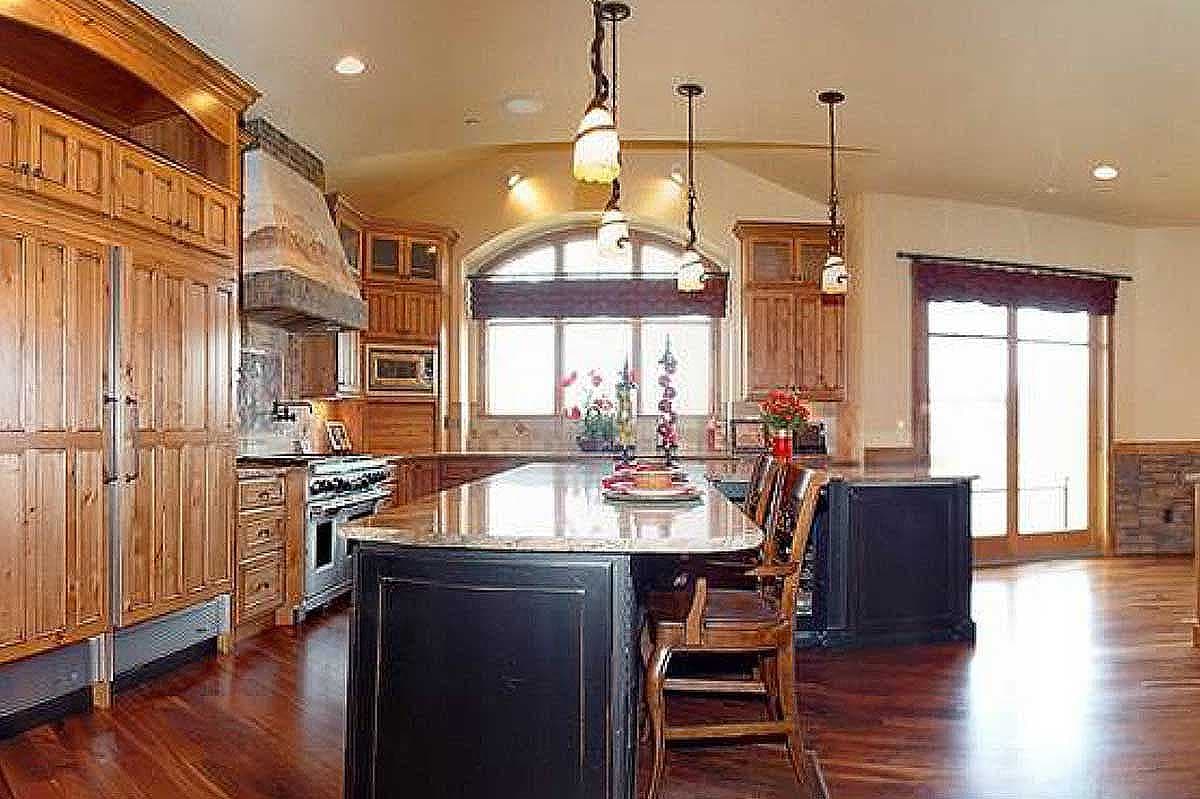

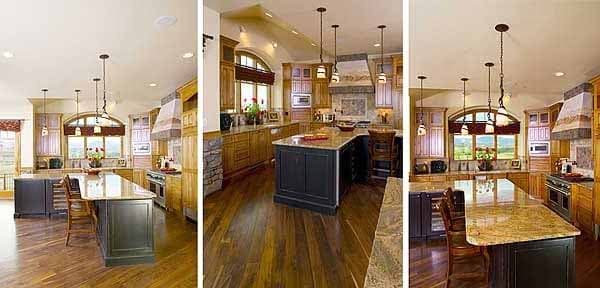

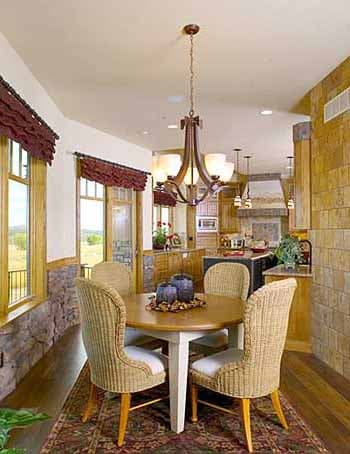

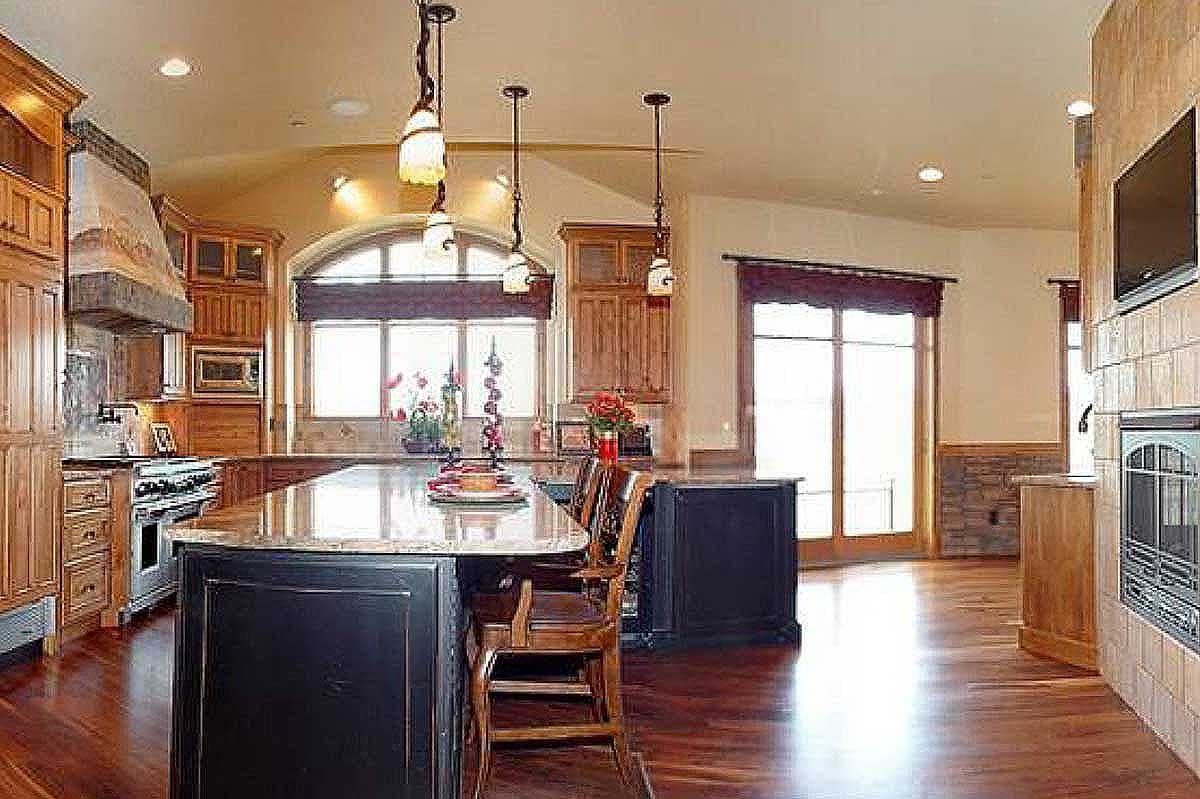

  • The kitchen and breakfast nook are open to the great room and are bathed in light and have breathtaking views. The kitchen features a center island, breakfast bar and walk-in pantry.

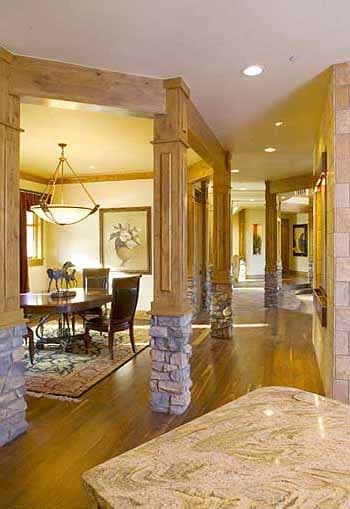

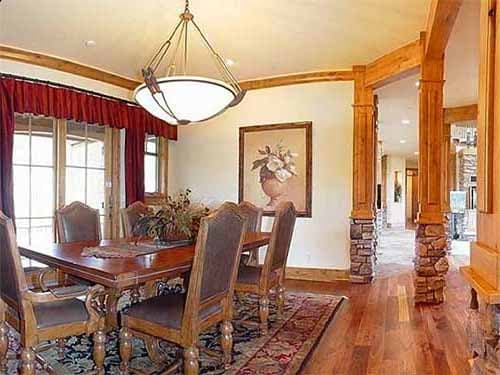

  • Take your meals to the decks or to your formal dining room framed by columns. Nearby you'll find a large laundry room a four-car garage.

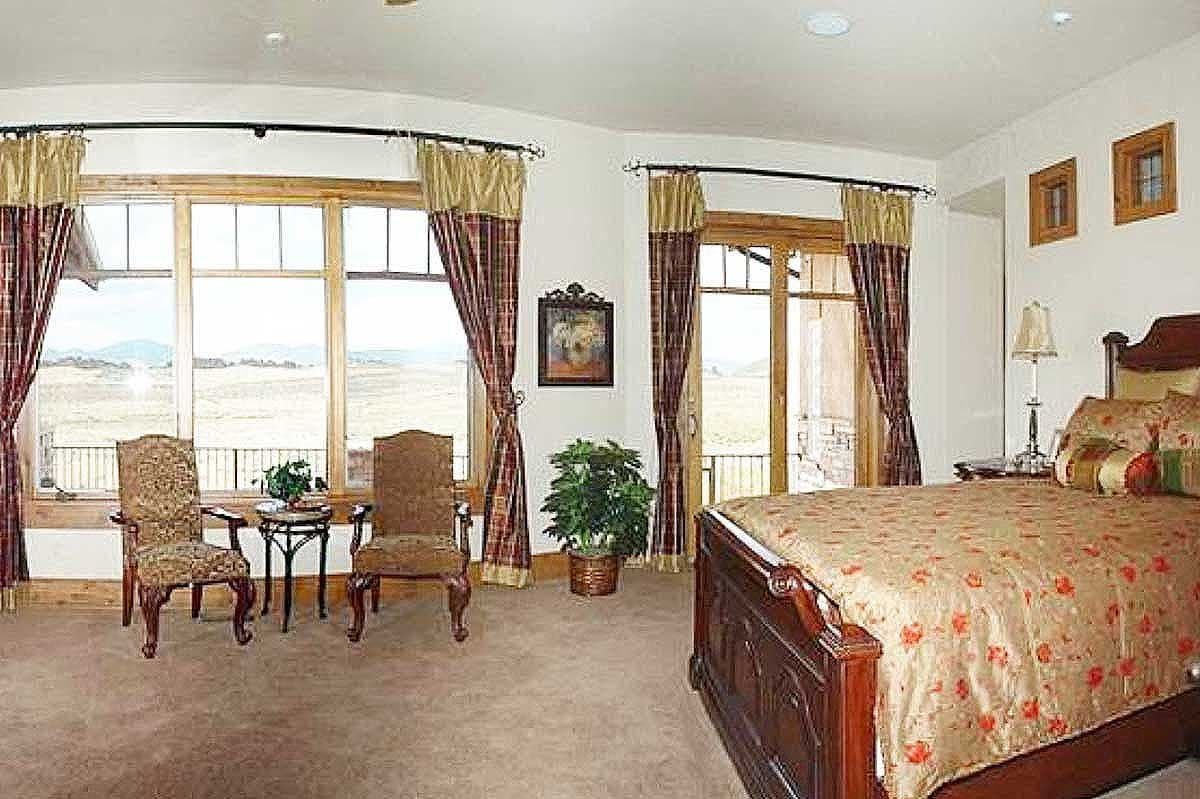

  • Across the home the master suite is the ultimate retreat. His-and-her walk-ins, a sitting area and deck access are all nice touches.
  • Upstairs, take in views below from the bridge. His-and-her office spaces - one with a viewing platform, complete this level which is also accessible by elevator.

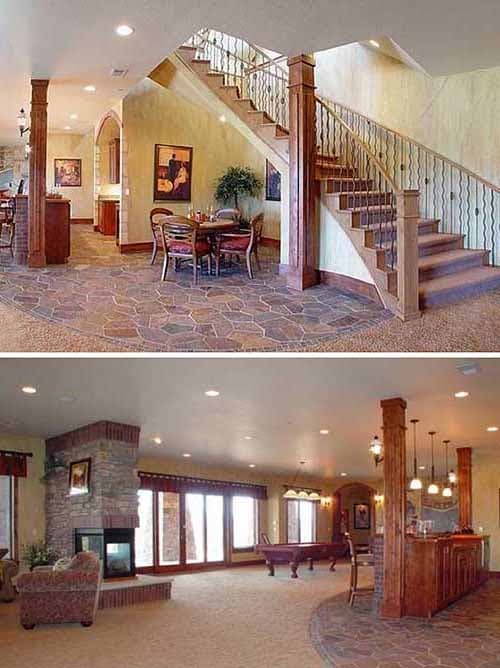

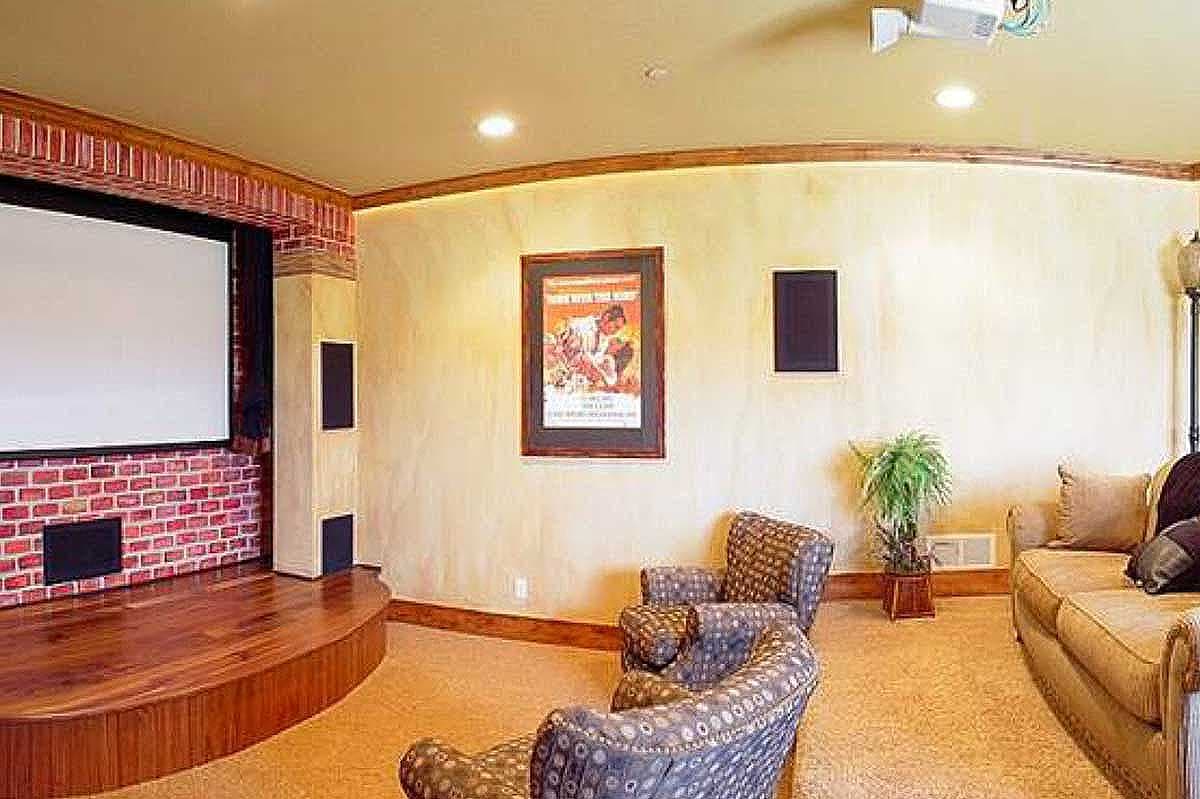

  • The lower level is loaded with a rec room, theater, two guest suites plus storage and a 2-car drive-under garage.
  • Related Plans: For an alternate version with finished lower level see house plan 9500RW (in reverse orientation). Don't need the lower level? Save money with house plan 9531RW. Downsize with house plan 95009RW (6,325 sq. ft.).
What's Included

  • Cover Page

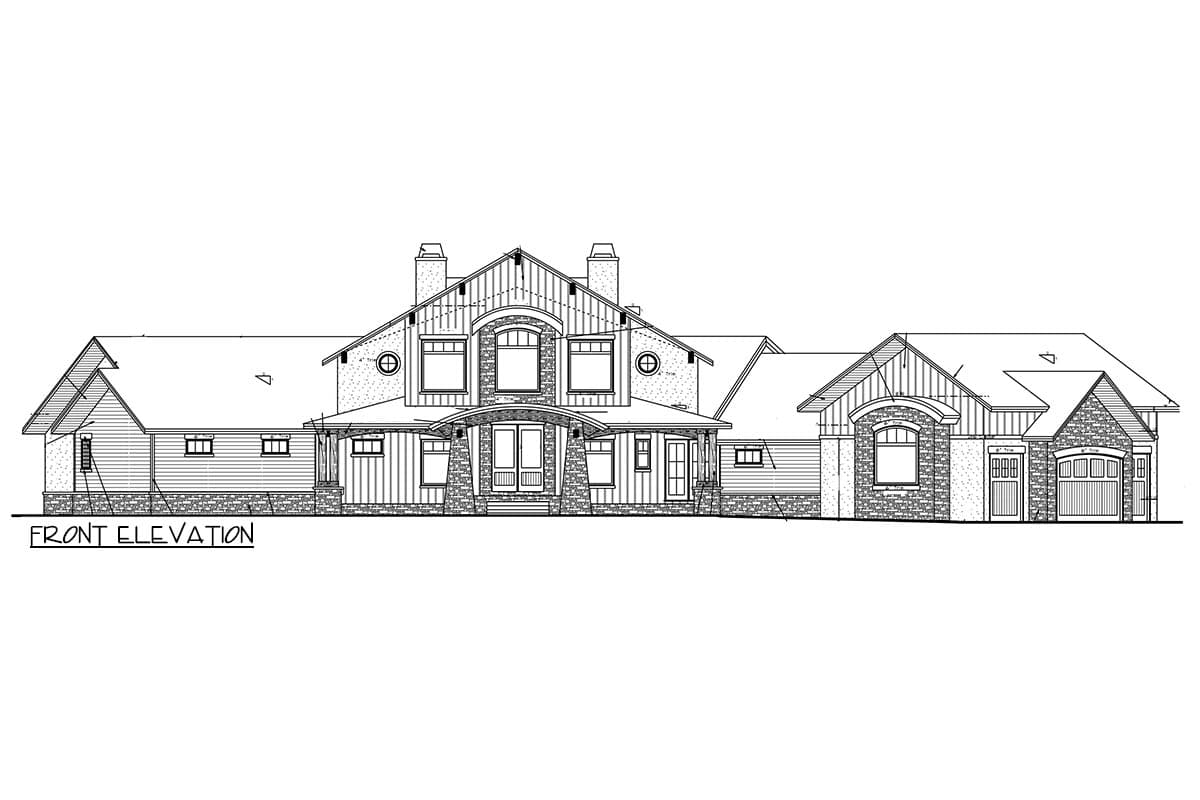

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

8,673 sq. ft.

Lower Level

3,820 sq. ft.

1st Floor

4,204 sq. ft.

2nd Floor

649 sq. ft.

Porch, Combined

2,569 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

150' 4"

Depth

87' 9"

Max Ridge Height

35' 6"

Garage

Type

Attached, Drive Under

Area

2897 sq. ft.

Count

6 Cars

Entry Location

Side, Rear

Ceiling Heights

Lower Level

12'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Rustic

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Elevator

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Multiple Stairs

Outdoor Fireplace

Two Story Great Room

Plan Collections

Luxury

Photo Gallery

Premium Collection
