Plan 849024PGE
Mountain Ranch with 3 Beds and Lower Level Expansion - 2336 Sq Ft
Heated S.F.
2,336
Beds
3
Baths
2.5
Stories
1
Cars
3
Floor Plan

Plan 849024PGE

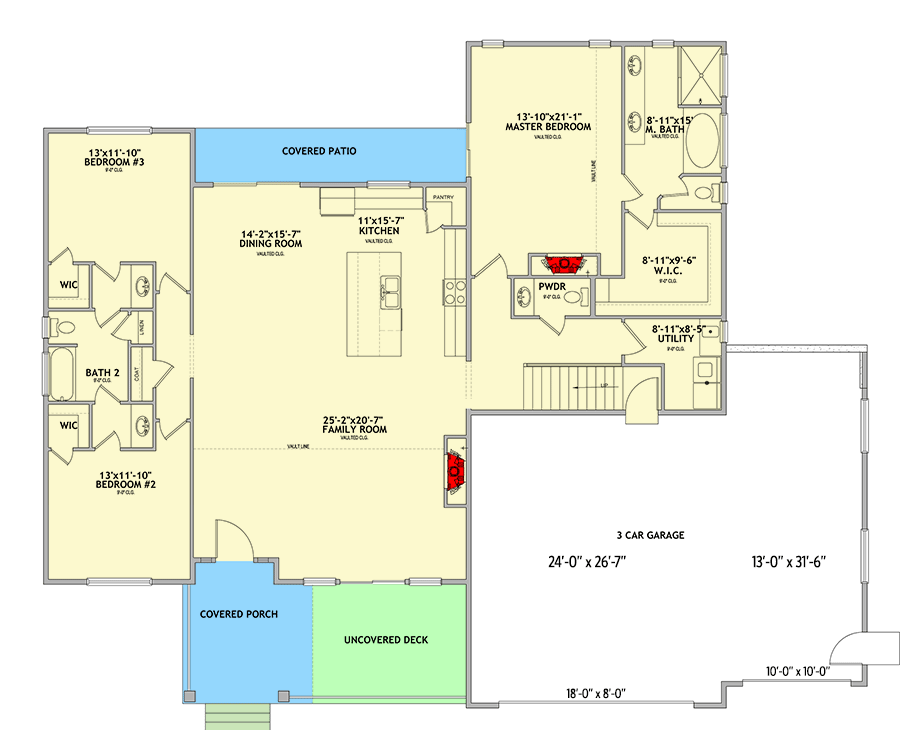

Main Level
slide image 0
Optional Lower Level
slide image 1

Plan 849024PGE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • This mountain ranch house plan gives you 3 beds, 2.5 baths and 2,336 square feet of heated living space with lower level expansion possibilities.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,336 sq. ft.

1st Floor

2,336 sq. ft.

Optional Lower Level

2,328 sq. ft.

Porch, Front

286 sq. ft.

Porch, Rear

125 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

61' 6"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

1006 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Owner's Bedroom

Vaulted

0' 0''

Master Bath

Vaulted

0' 0''

Master WIC

Flat

0' 0''

Kitchen

Vaulted

0' 0''

Dining Room

Vaulted

0' 0''

Great Room

Vaulted

0' 0''

Bedroom 2

Flat

0' 0''

Bedroom 3

Flat

0' 0''

Garage

0' 0''

RV Garage

0' 0''

Garage Door Dimensions

0' 0''

Garage Door Dimensions

0' 0''

Laundry Room

Flat

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

Ranch

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor
