Plan 35238GH
Mountain Ranch with 3 Clustered Bedrooms and Soaring Ceilings
Heated S.F.
1,571
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 35238GH

Main Level
slide image 0

Plan 35238GH

1-800-854-7852

1-262-521-4596

Main Level

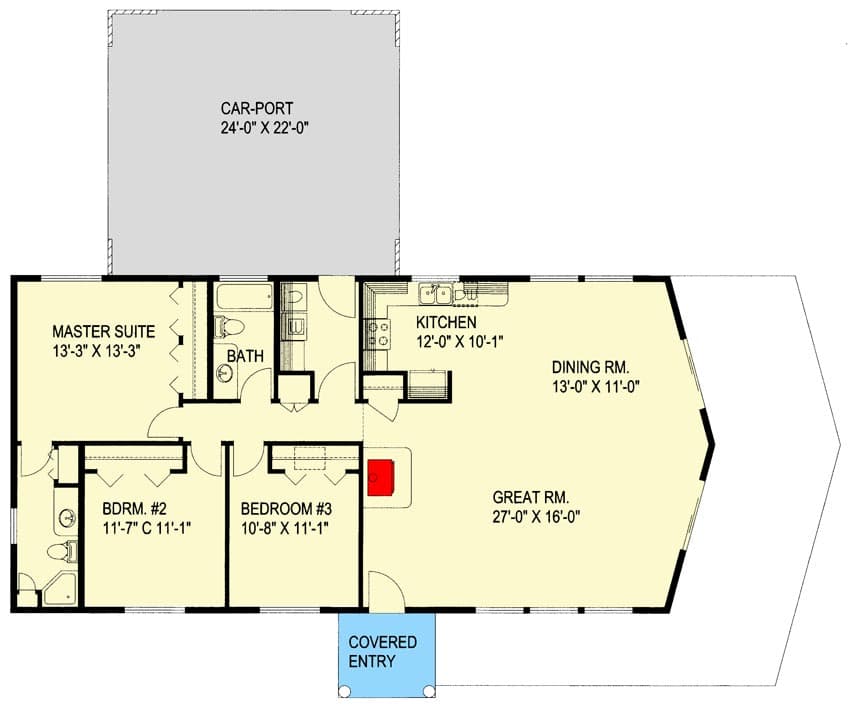

floor plan image Main Level
Plan Details
  • This one-level mountain ranch house plan has a deck that wraps around the front-right corner and is accessible from both the great room and dining room (both of those rooms have soaring ceilings and lots of windows overlooking the deck).
  • Three bedrooms are clustered together, leaving half of the plan open for entertaining.
  • A carport is located in back giving you protection for your vehicles.
What's Included
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,571 sq. ft.

1st Floor

1,571 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

50' 0"

Max Ridge Height

16' 9"

Garage

Type

Carport

Area

528 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Metric

Square Footage Breakdown

Total Heated Area

1,571 sq. ft.

1st Floor

1,571 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

50' 0"

Max Ridge Height

16' 9"

Garage

Type

Carport

Area

528 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Vacation

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Metric
