Plan 59963ND

Mountain Ranch with Spectacular Rear Views - 5144 Sq Ft

Heated S.F.

5,144

Beds

4

Baths

4.5

Stories

2

Cars

3

Floor Plan

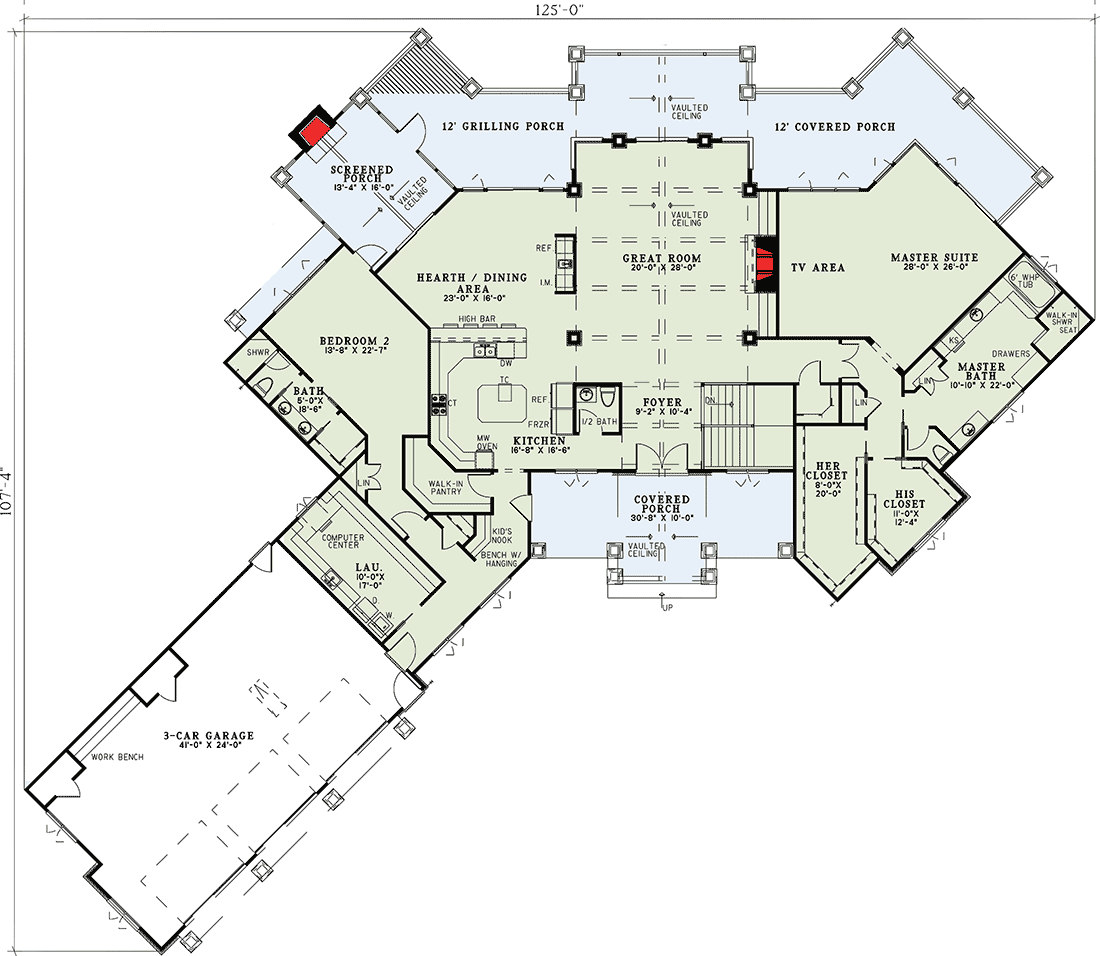

Main Level

floor plan image Main Level

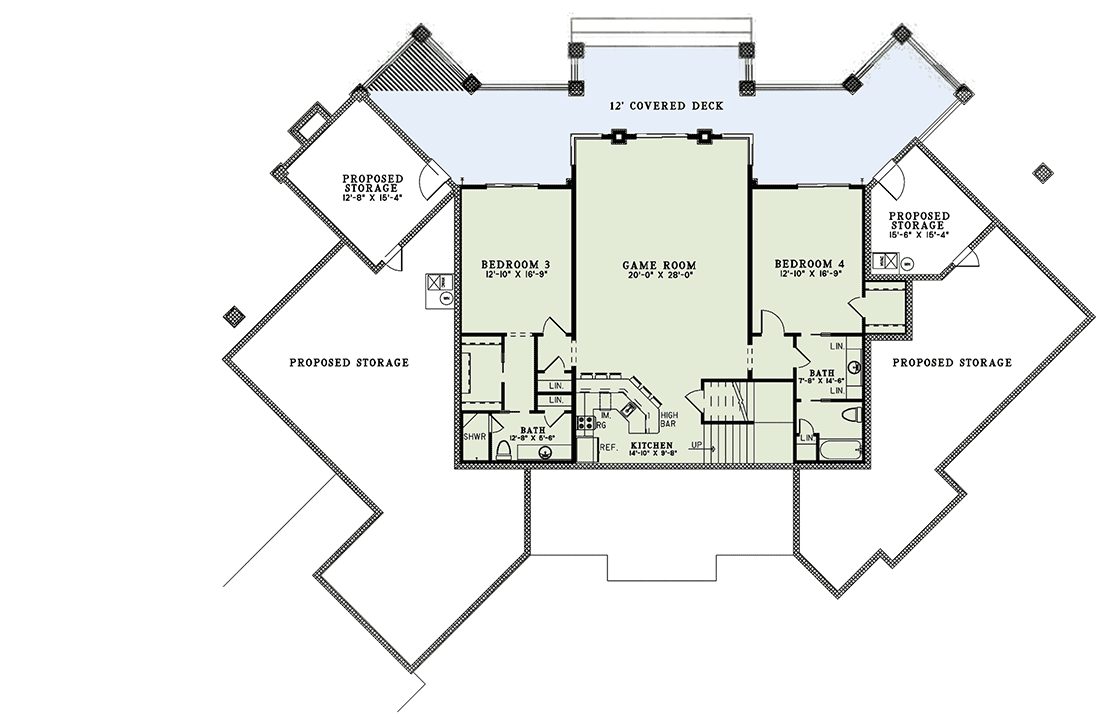

Lower Level

floor plan image Lower Level

Plan Details

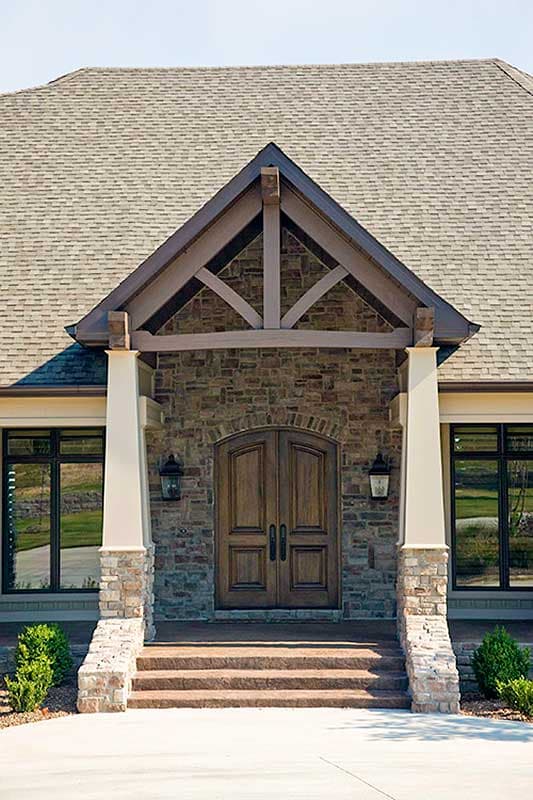

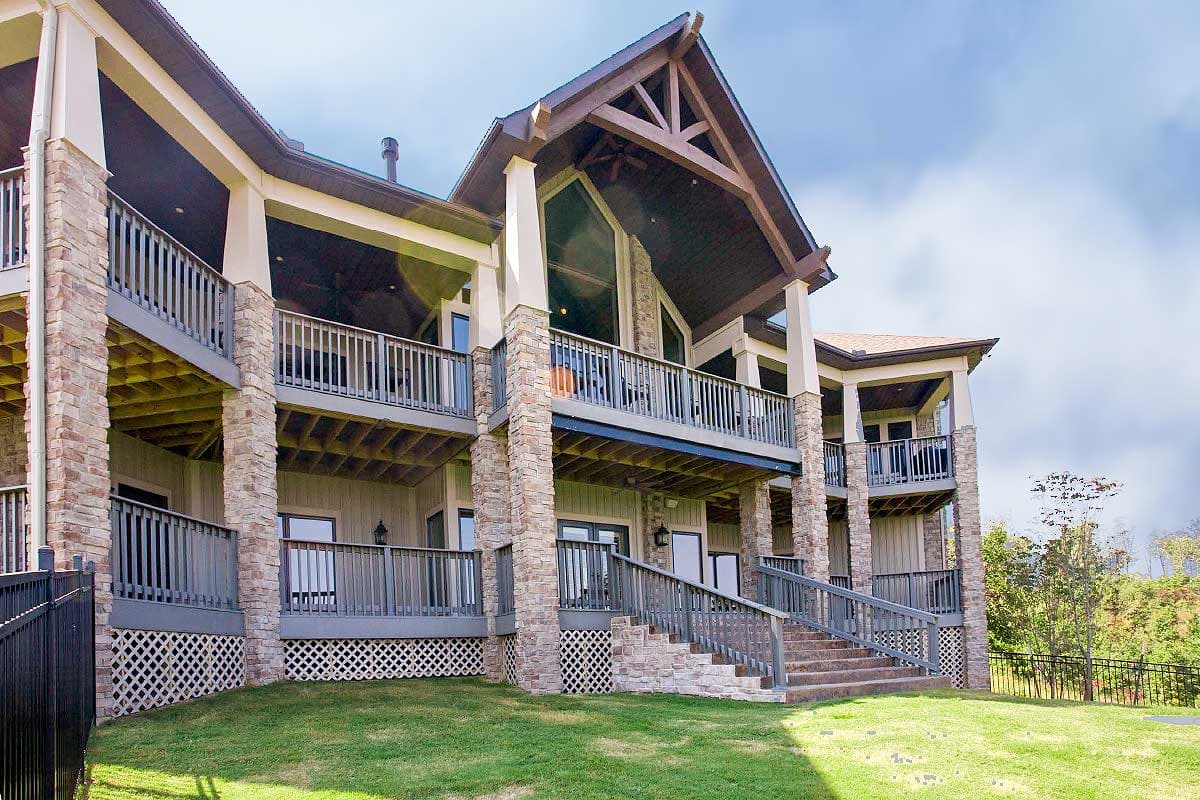

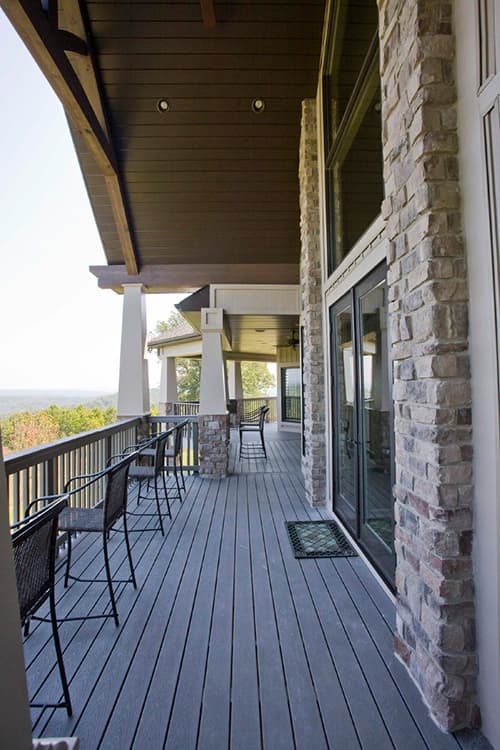

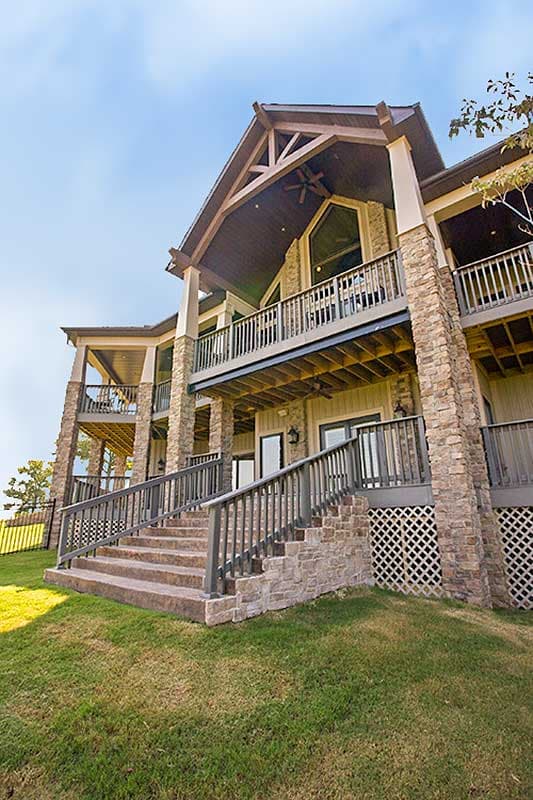

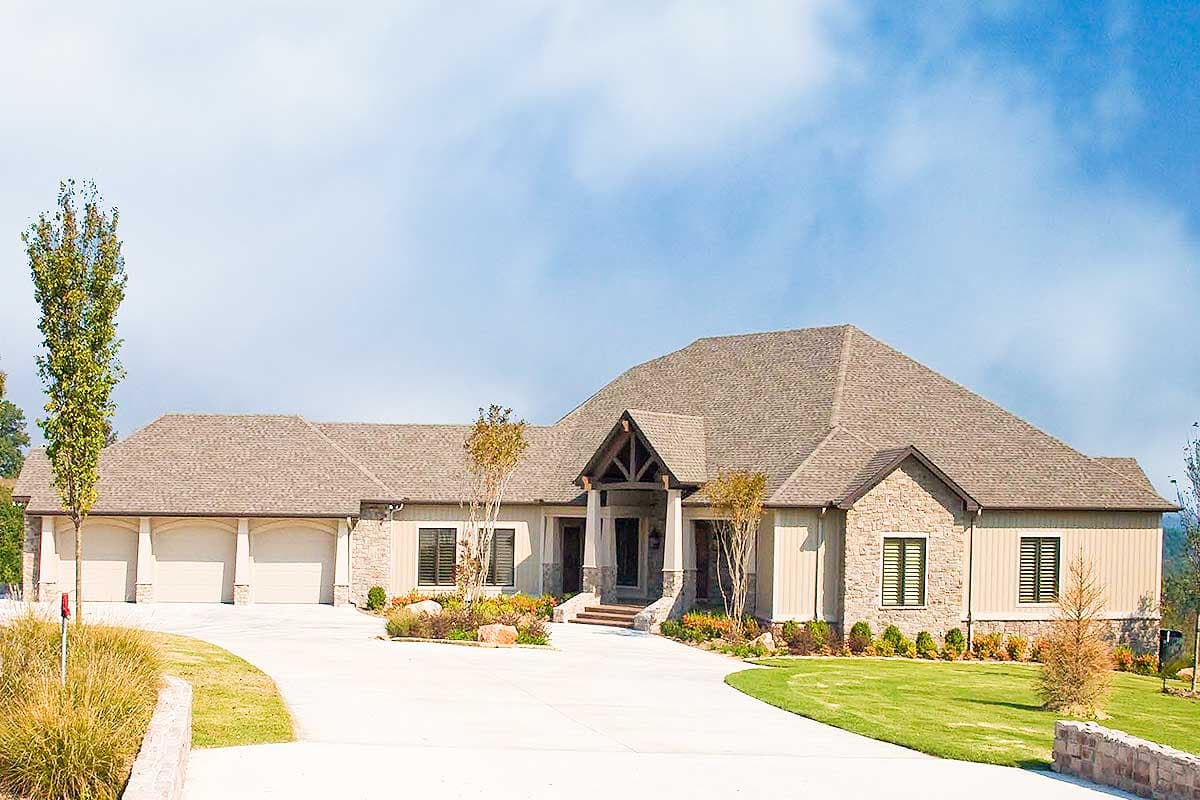

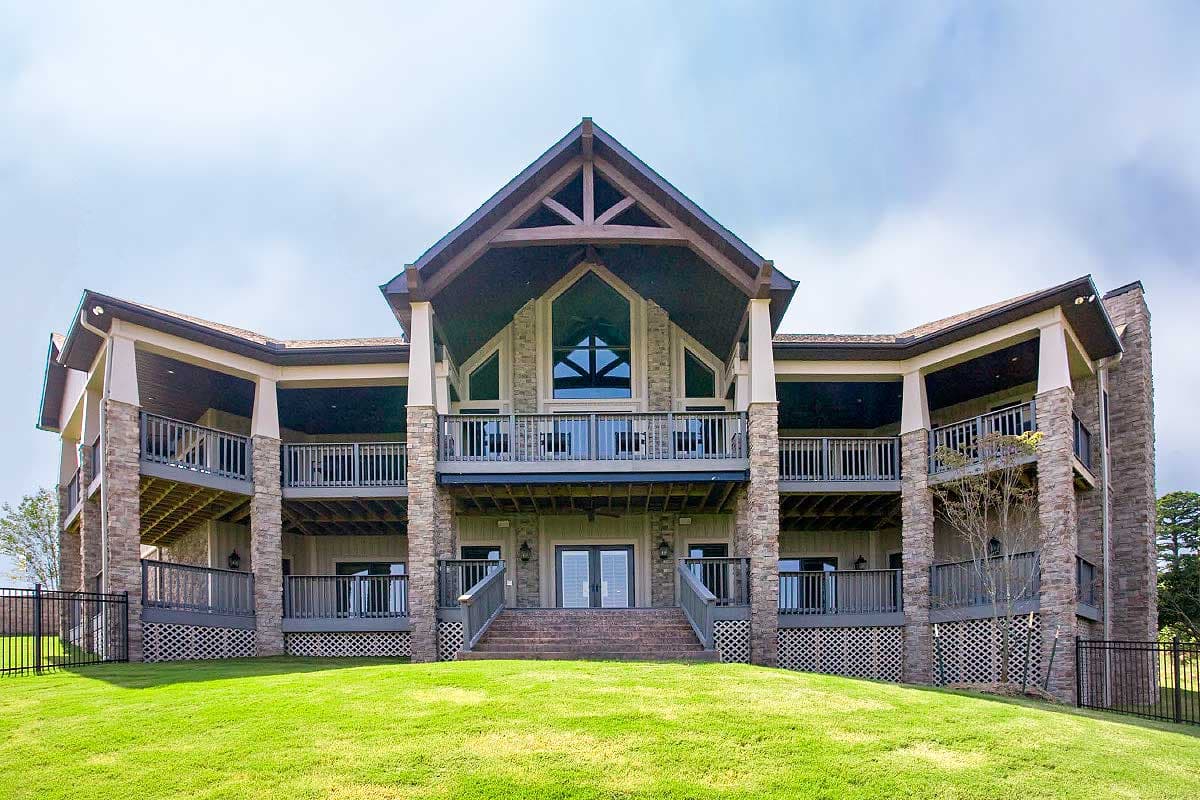

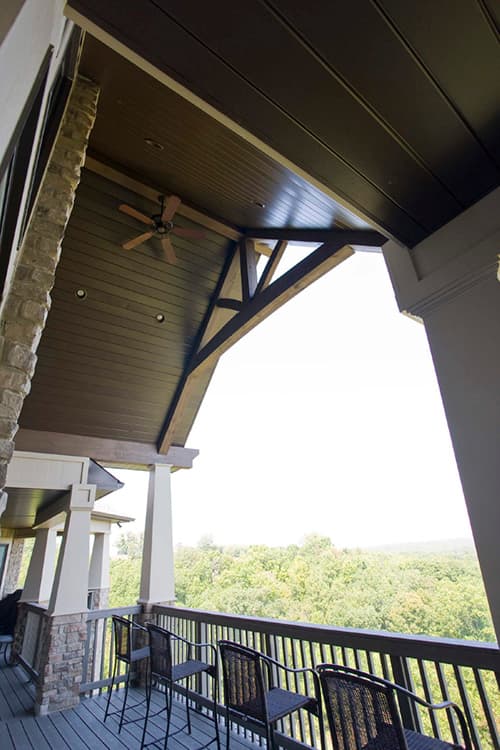

Enjoy the spectacular view from the entire rear of this mountain ranch home plan with four bedrooms. Rustic columns and cedar trusses are used on the front and rear porches adding the perfect natural element for any setting.

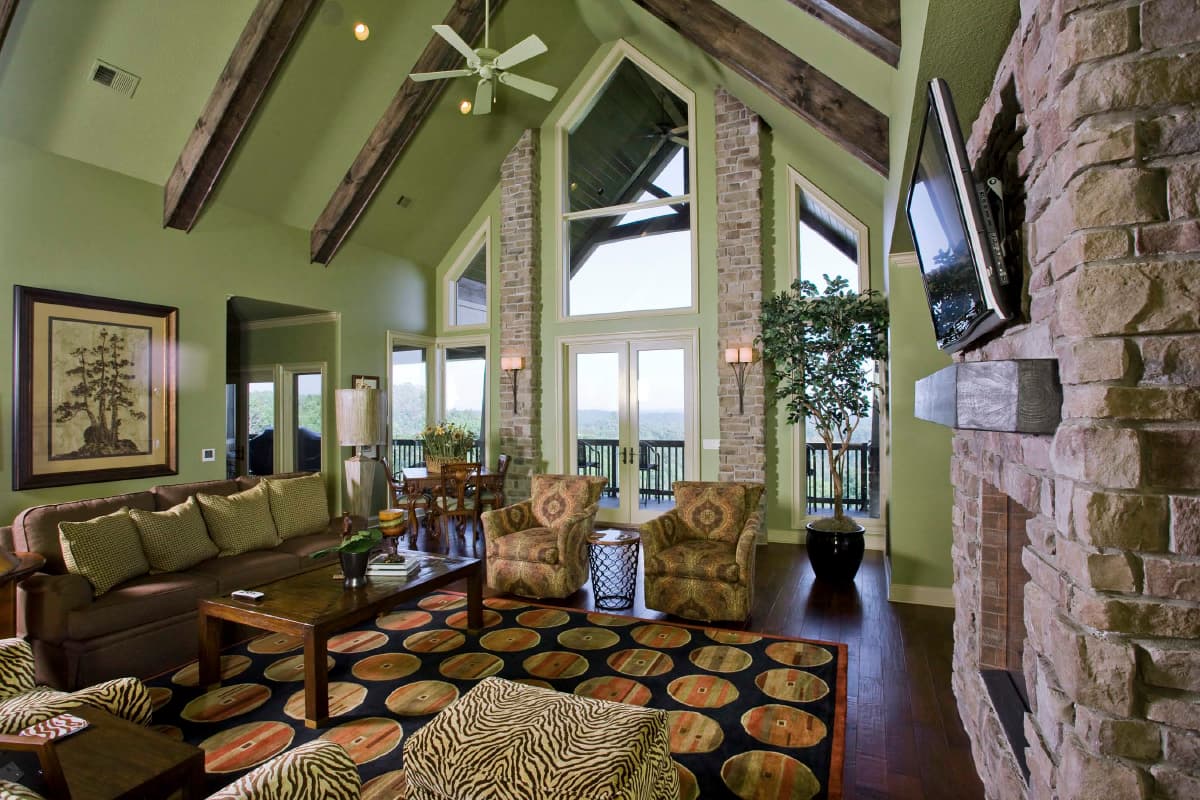

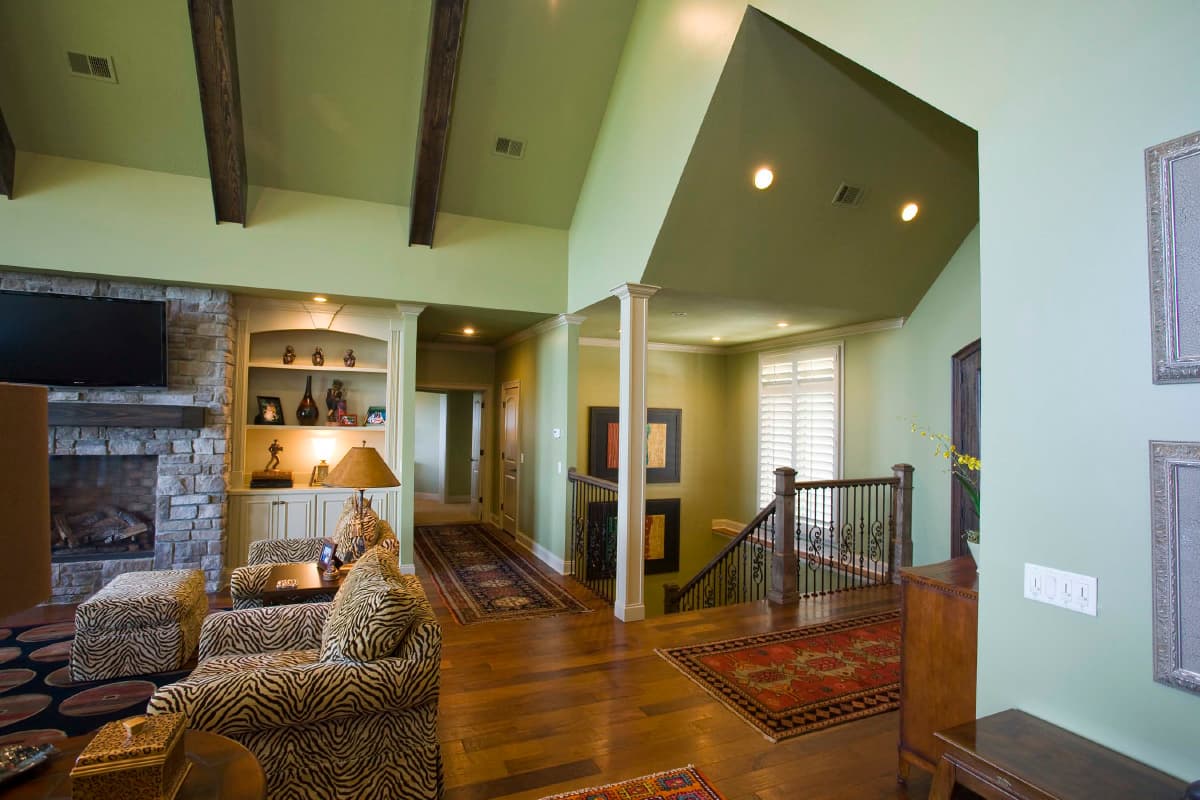

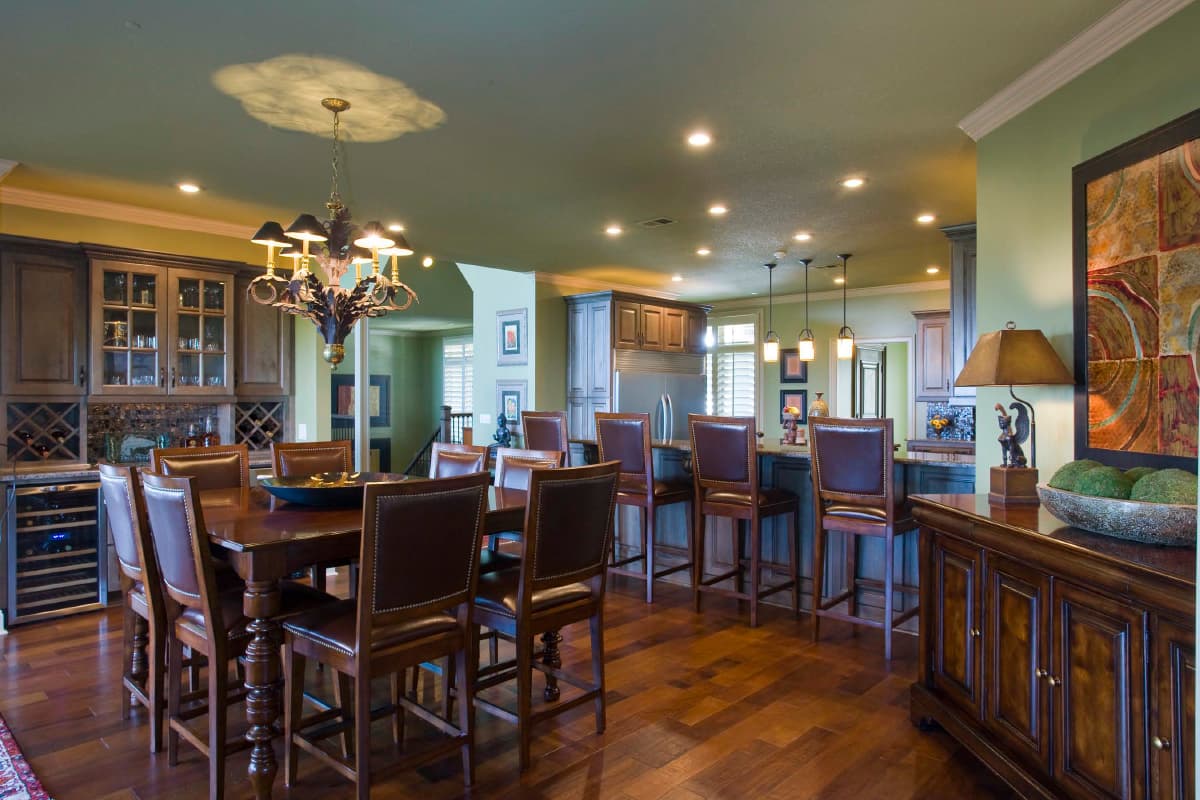

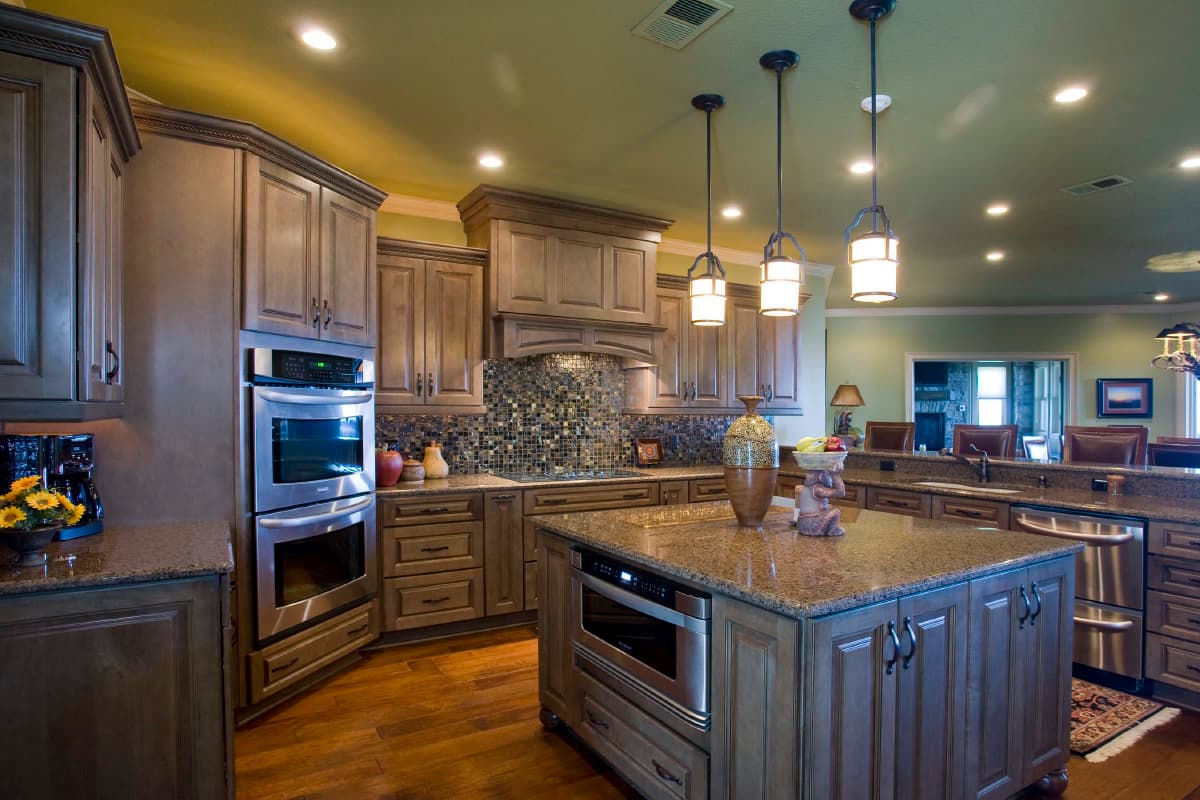

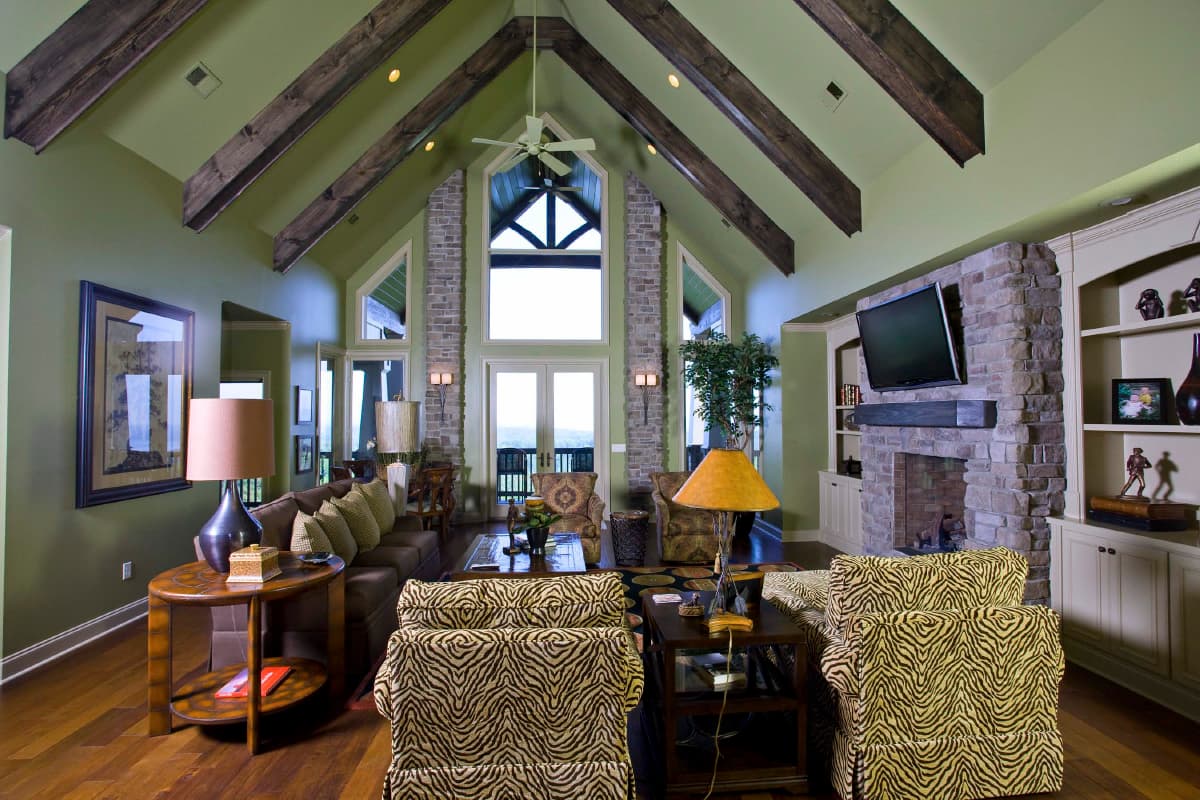

Upon entry, the foyer leads into an open great room with vaulted ceiling allowing a magnificent rear view. A nearby kitchen and hearth/dining area open into a large screened porch creating a huge space for entertaining.

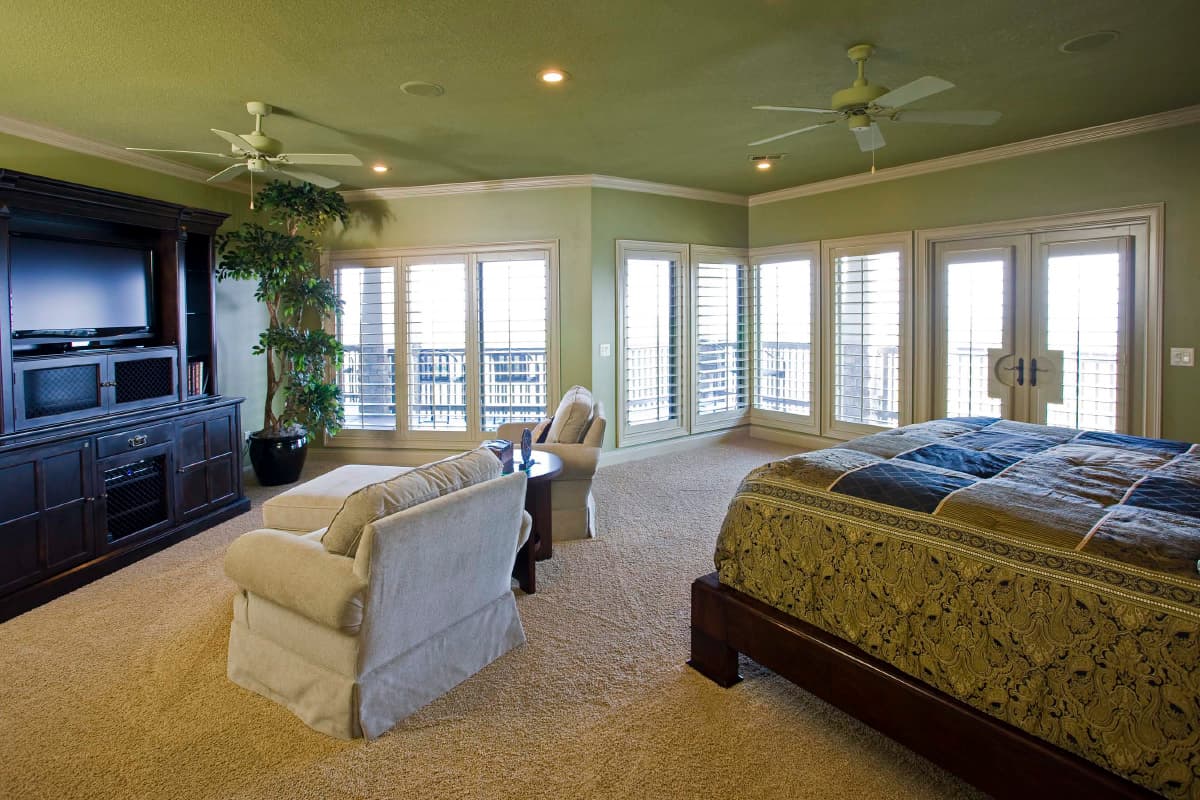

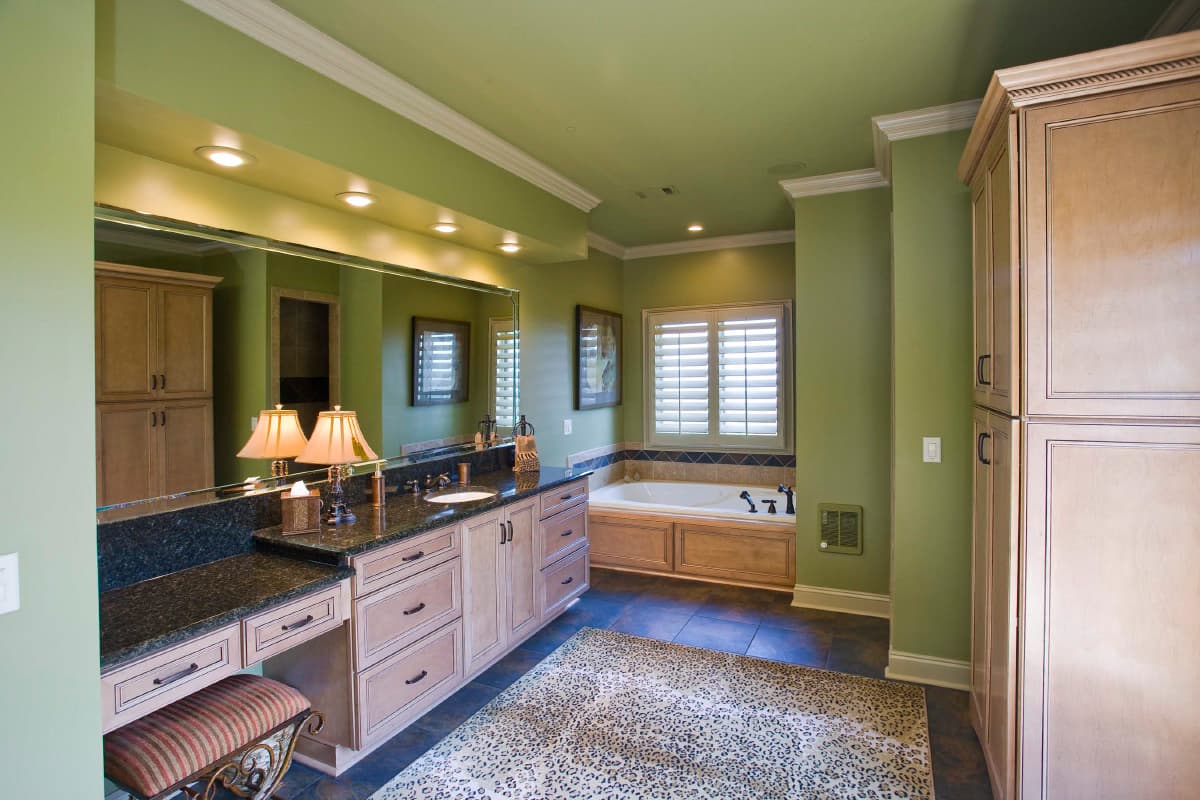

The luxurious master suite and a secondary suite can also be found on the main level of this home.

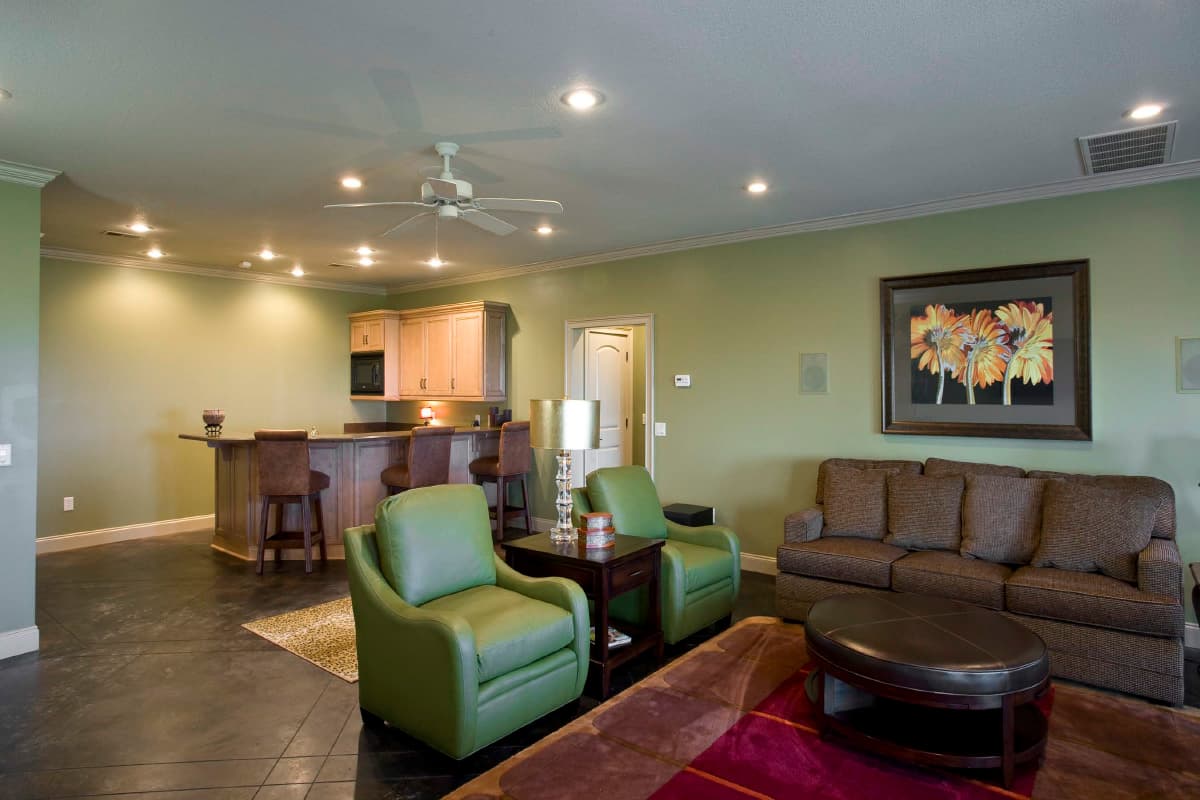

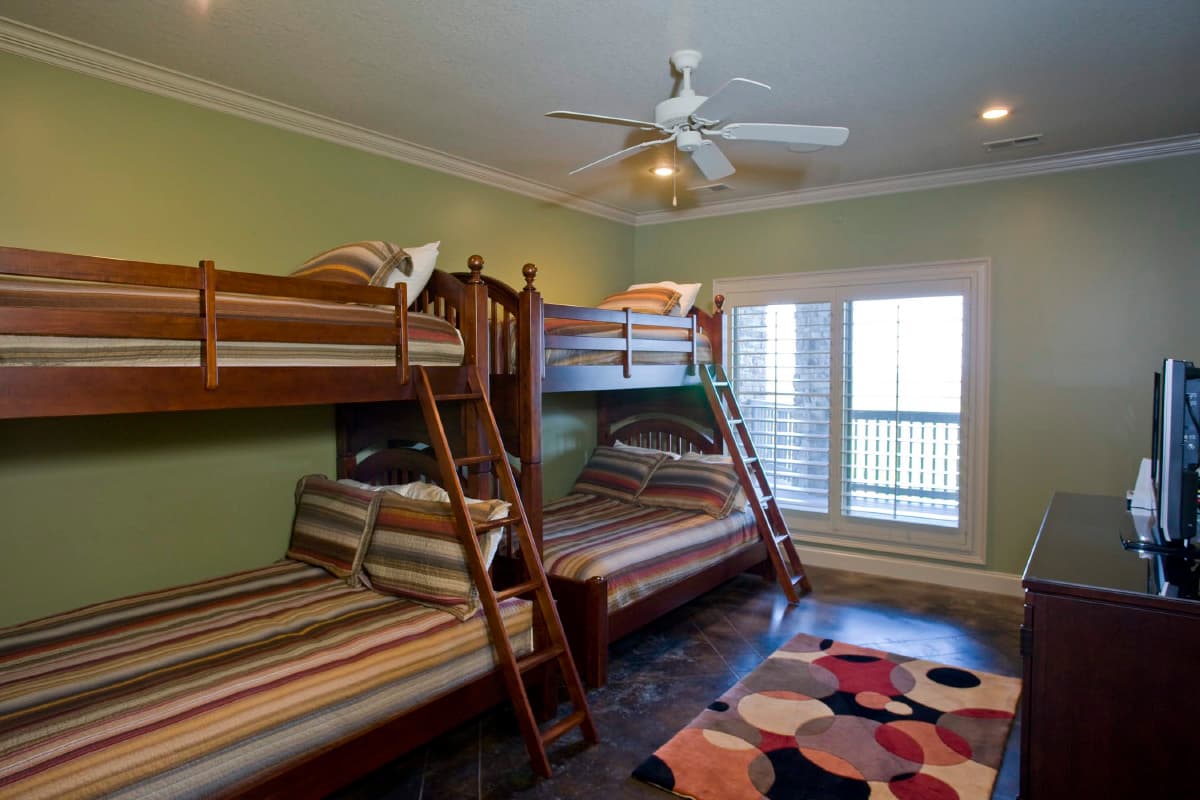

The lower floor includes an enormous game room as well as two more suites with private baths, perfect for large weekend gatherings.
Related Plans: Get an alternate version with house plans 70534MK.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,144 sq. ft.

Lower Level

1,684 sq. ft.

1st Floor

3,460 sq. ft.

Porch, Front

308 sq. ft.

Porch, Rear

709 sq. ft.

Screened Porch

213 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

125' 0"

Depth

107' 4"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

1044 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Special Features

Butler Walk-in Pantry

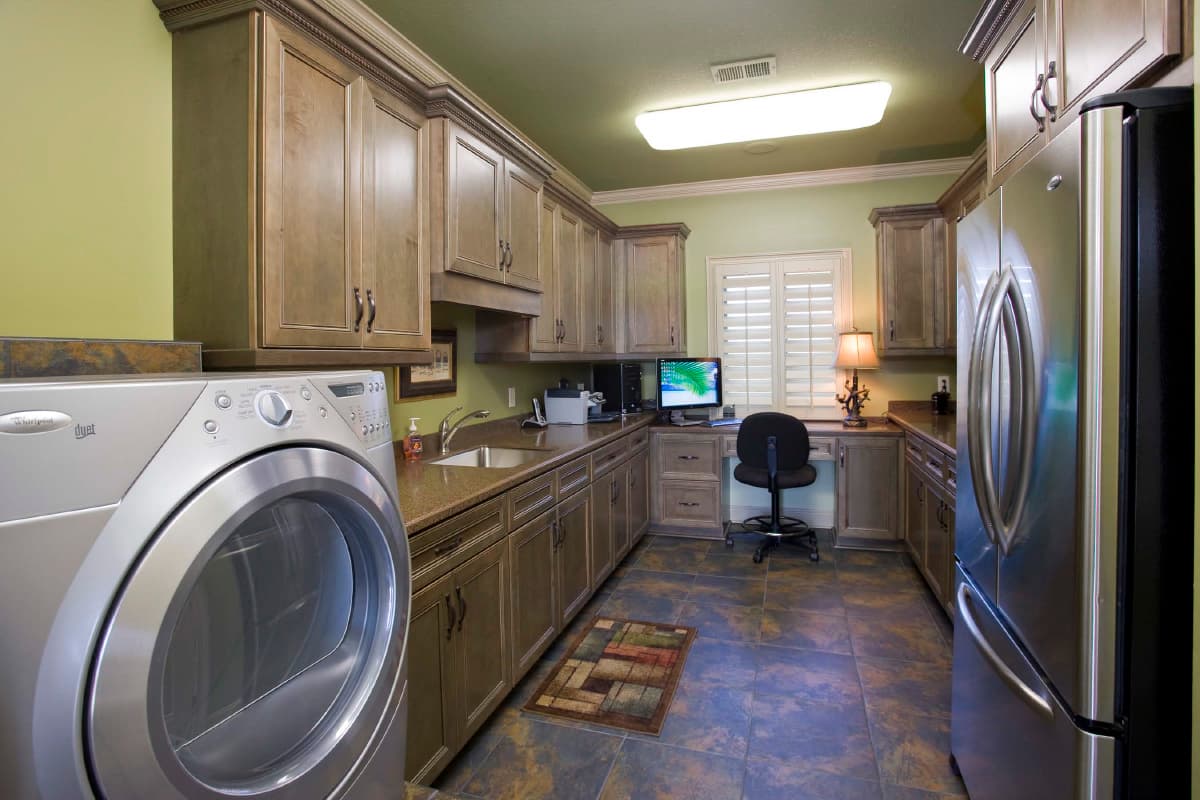

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Two Story Great Room

Plan Collections

Premium Collection
