Plan 623488DJ
Multi Family House Plan with Two 1-Bed Matching Units Under 700 Sq Ft Each
Heated S.F.
1,302
Units
2
Width
Depth
Tour
Floor Plan

Plan 623488DJ

Main Level
slide image 0

Plan 623488DJ

1-800-854-7852

1-262-521-4596

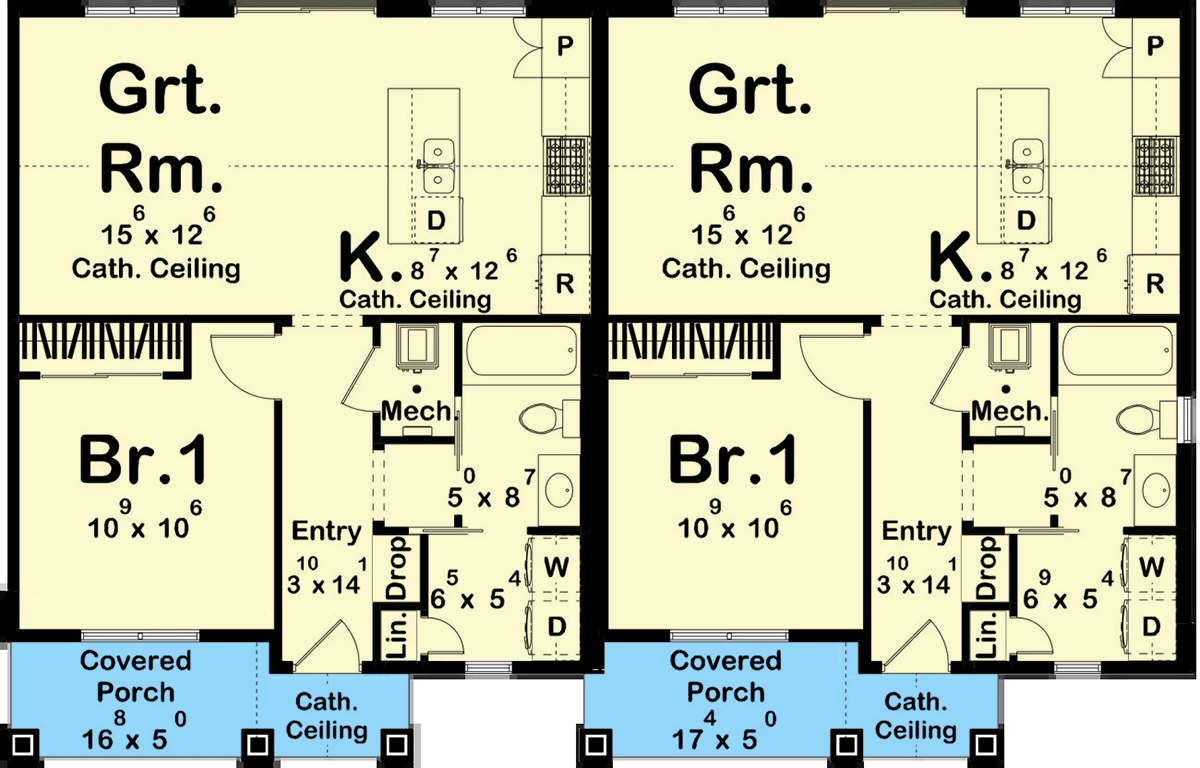

Main Level
floor plan image Main Level
Plan Details

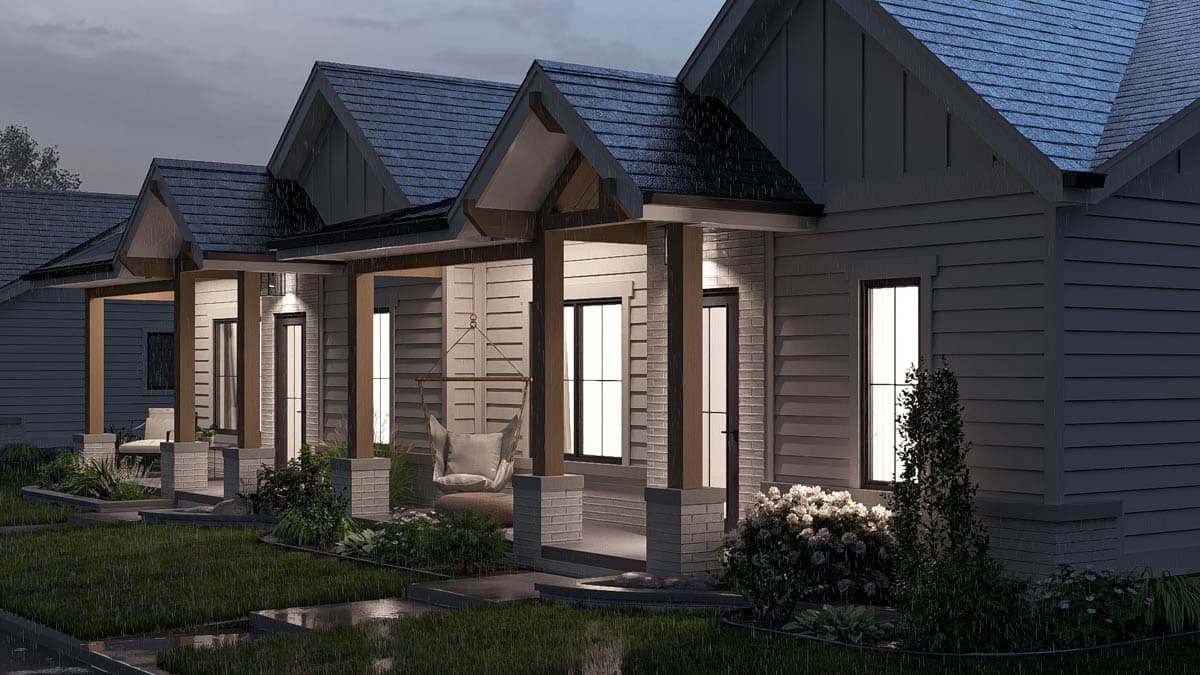

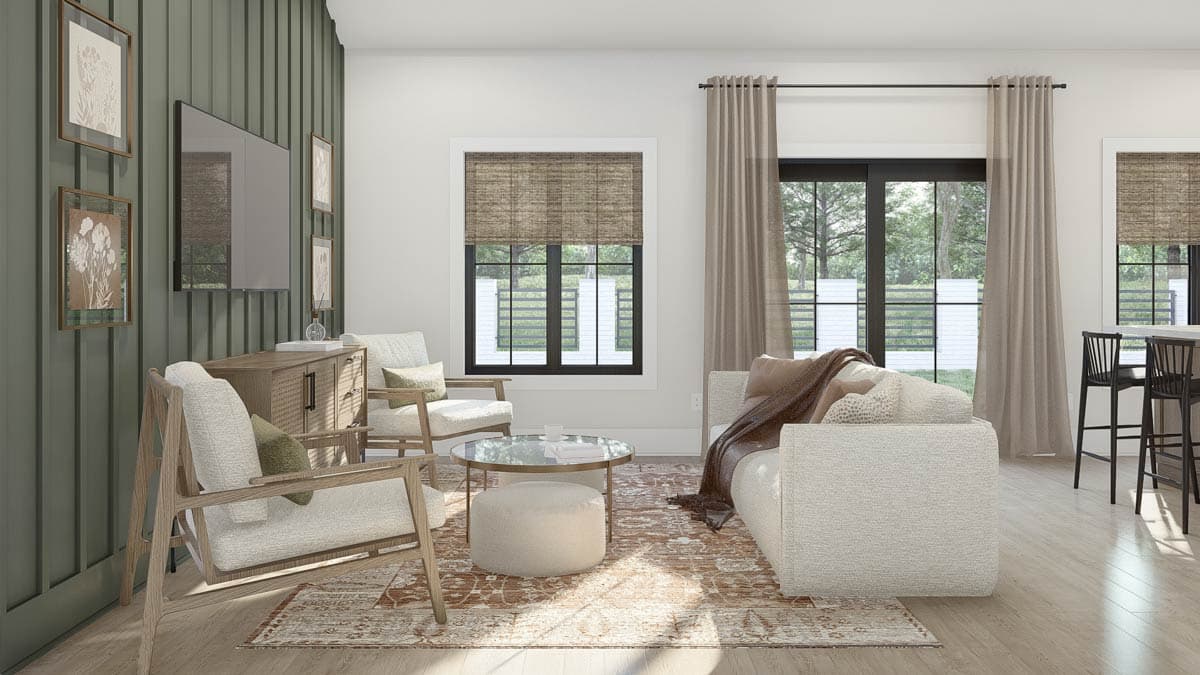

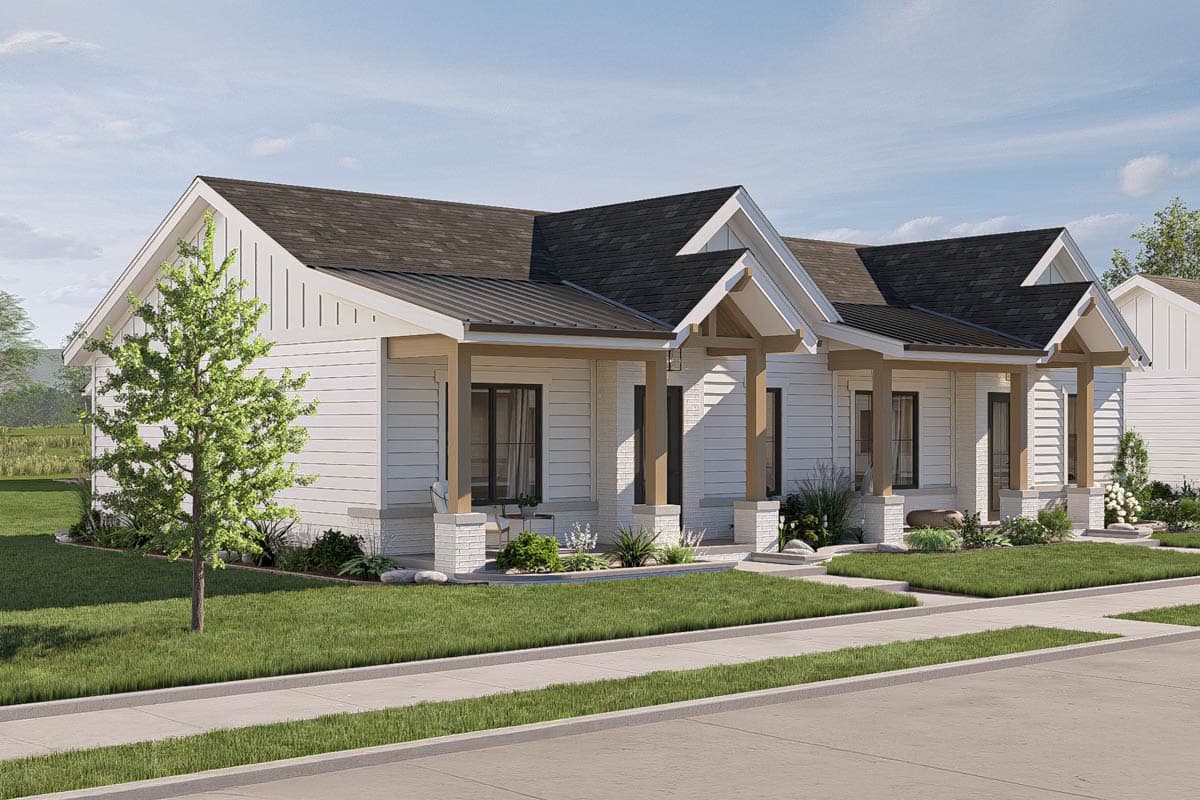

  • This is a multi-family home designed for efficiency and comfort. Its gabled rooflines and covered porches create a welcoming exterior, while large windows enhance the open-concept living areas.

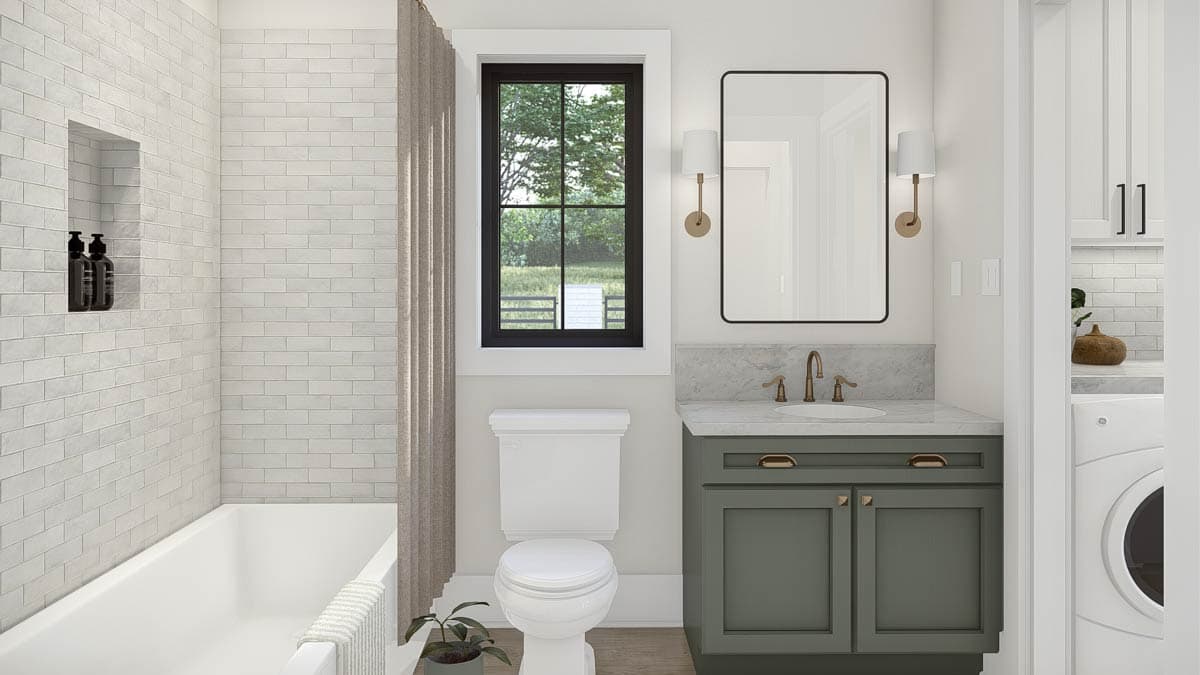

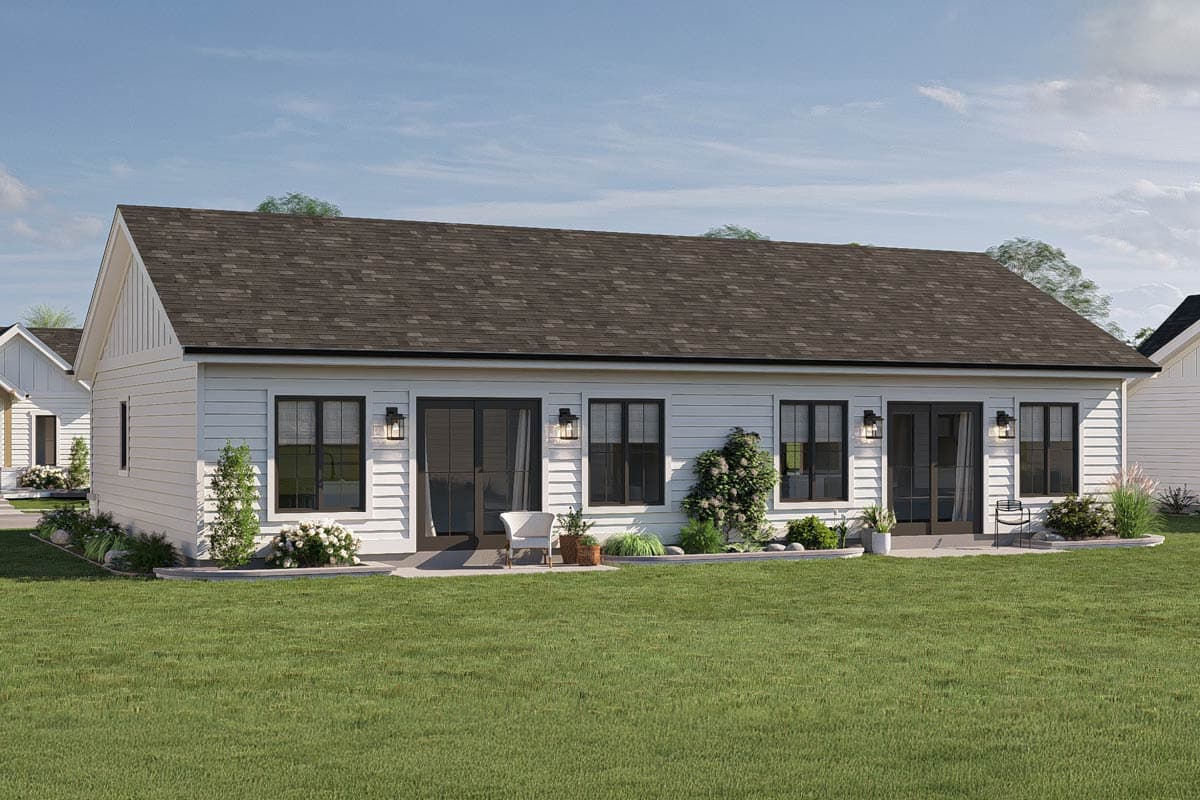

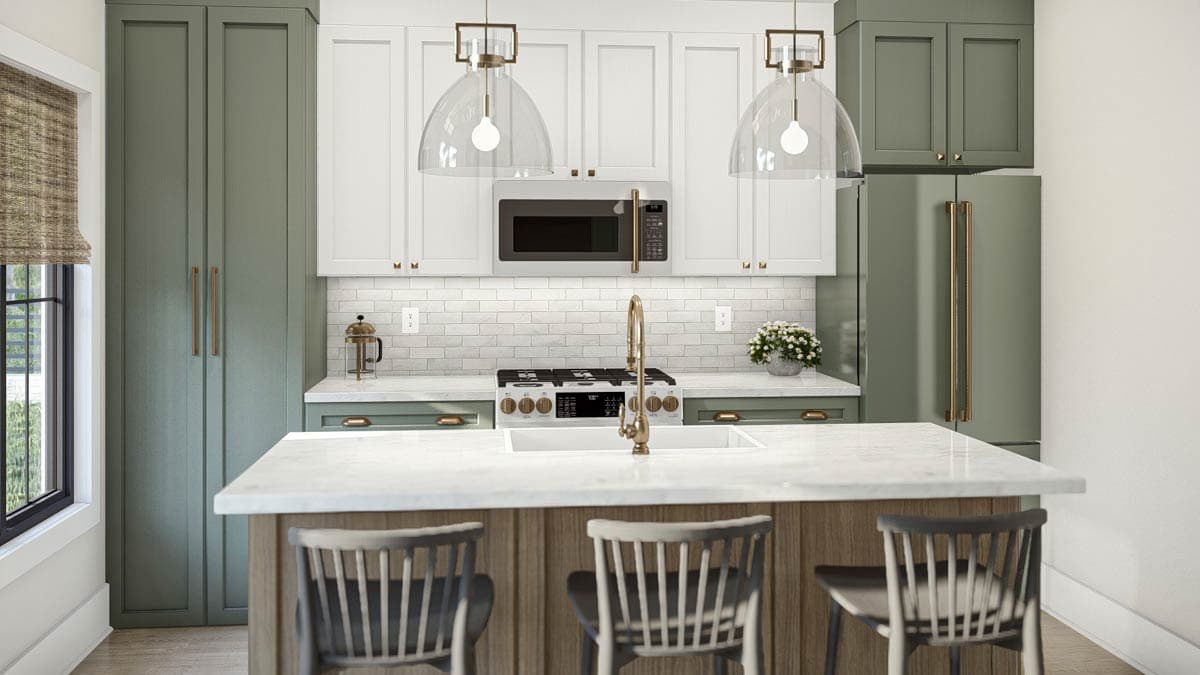

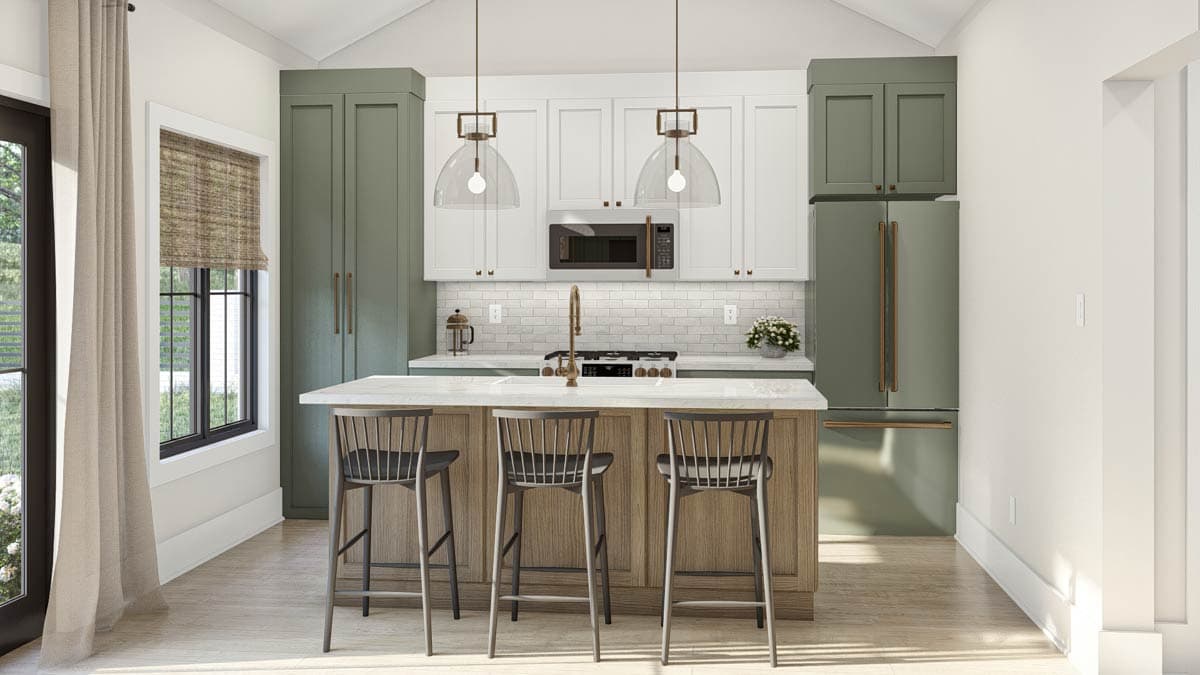

  • Each unit features a modern kitchen with an island, a comfortable bedroom, and a bathroom with a tub/shower combo. A full-sized washer and dryer maximize convenience. Private patios or decks provide outdoor space.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
651Sq. Ft.
651 Sq. Ft.
1st Floor
1Beds
1Full Bath
25'width
31'depth
Unit B
651Sq. Ft.
651 Sq. Ft.
1st Floor
1Beds
1Full Bath
25'width
31'depth
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,302 sq. ft.

1st Floor

1,302 sq. ft.

Porch, Front

153 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

31' 4"

Max Ridge Height

16' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Ranch

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,302 sq. ft.

1st Floor

1,302 sq. ft.

Porch, Front

153 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

31' 4"

Max Ridge Height

16' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Ranch

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
