Plan 790048GLV

Exclusive

Multi-Gabled Traditional House Plan
Heated S.F.
2,562
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 790048GLV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 790048GLV

1-800-854-7852

1-262-521-4596

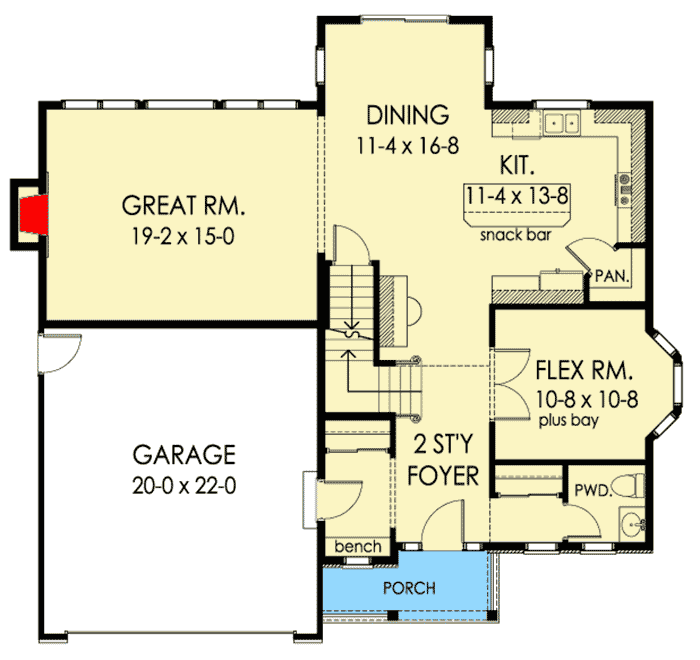

Main Level
floor plan image Main Level

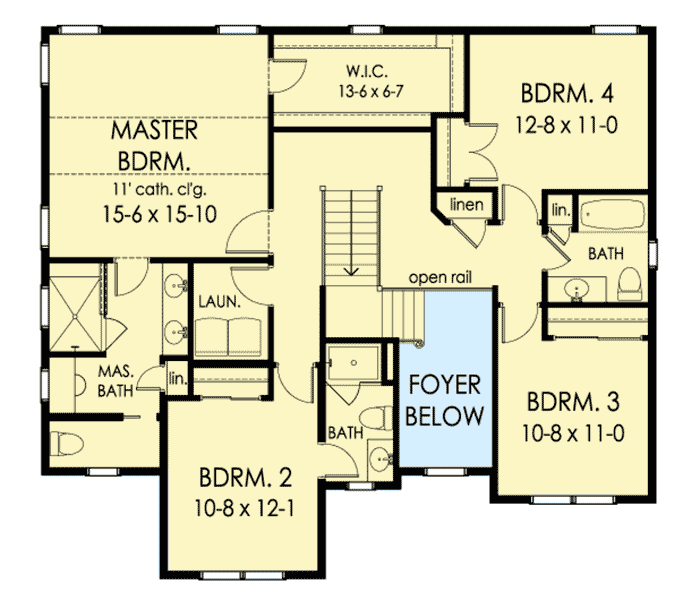

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Traditional house plan gets its good looks from multiple gables, a touch of metal roofing and a round window by the foyer.
  • A two-story foye and flex room with a bay window are added perks.
  • The back of the house holds the large kitchen with an island and walk-in pantry, a generous dining room and the large great room with its fireplace and wall of windows.
  • Upstairs, the master suite  features an 11' high ceiling and a huge walk-in closet.
  • A second floor laundry room has been added for your convenience.
What's Included
  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,562 sq. ft.

1st Floor

115 sq. ft.

2nd Floor

1,407 sq. ft.

Optional Lower Level

1,155 sq. ft.

Porch, Front

56 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

43' 4"

Depth

44' 0"

Max Ridge Height

31' 2"

Garage

Type

Attached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Flex Room

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
