Plan 24410TW
Multi-Generational Craftsman House Plan with Timber-Framed Gables - 3088 Sq Ft
Heated S.F.
3,088
Beds
4
Baths
3.5
Stories
2
Cars
4
Floor Plan

Plan 24410TW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24410TW

1-800-854-7852

1-262-521-4596

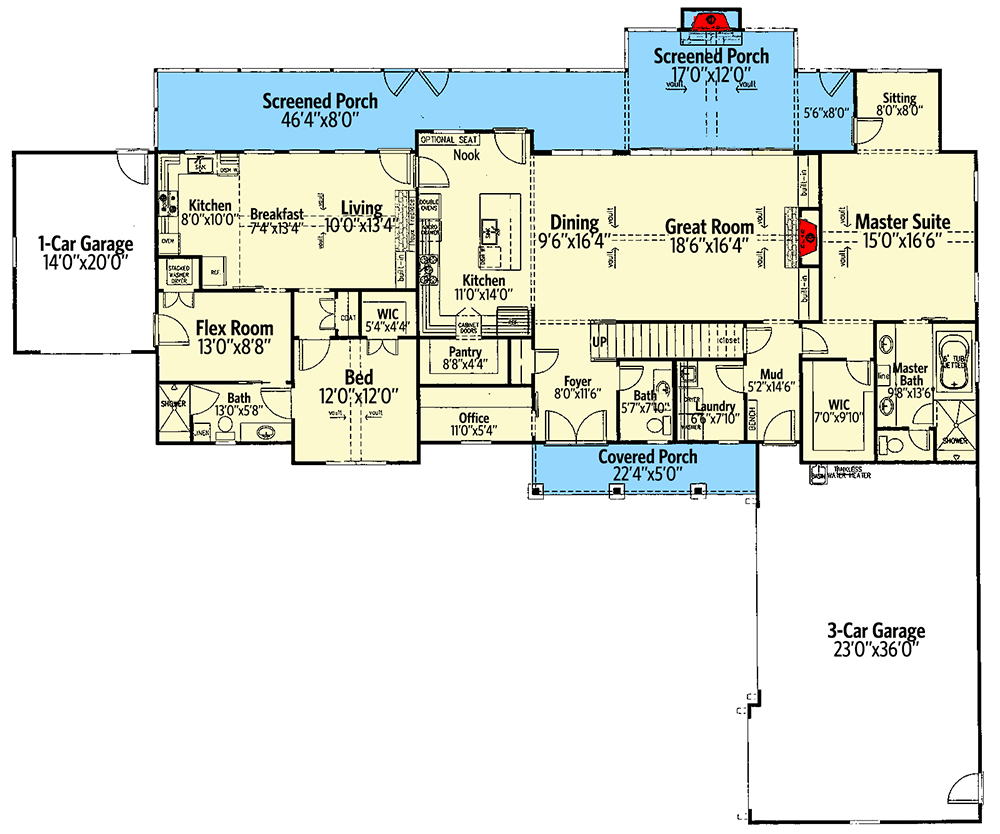

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

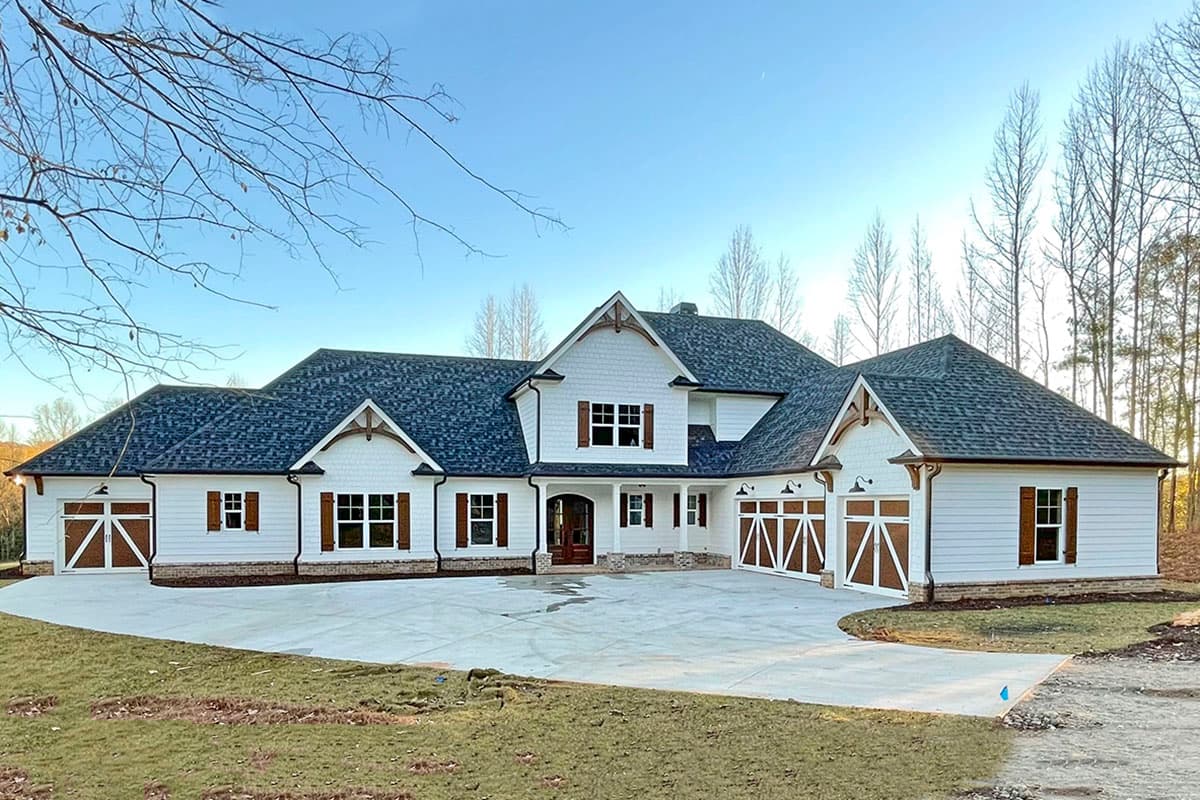

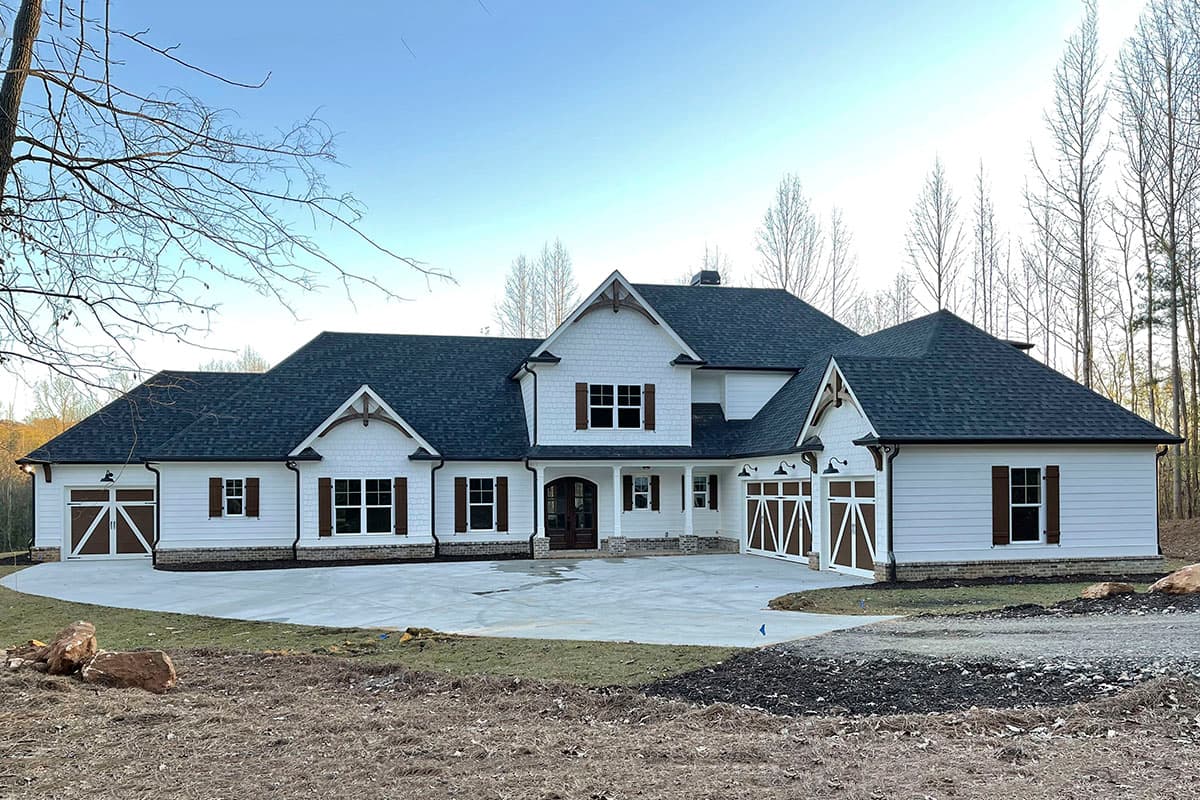

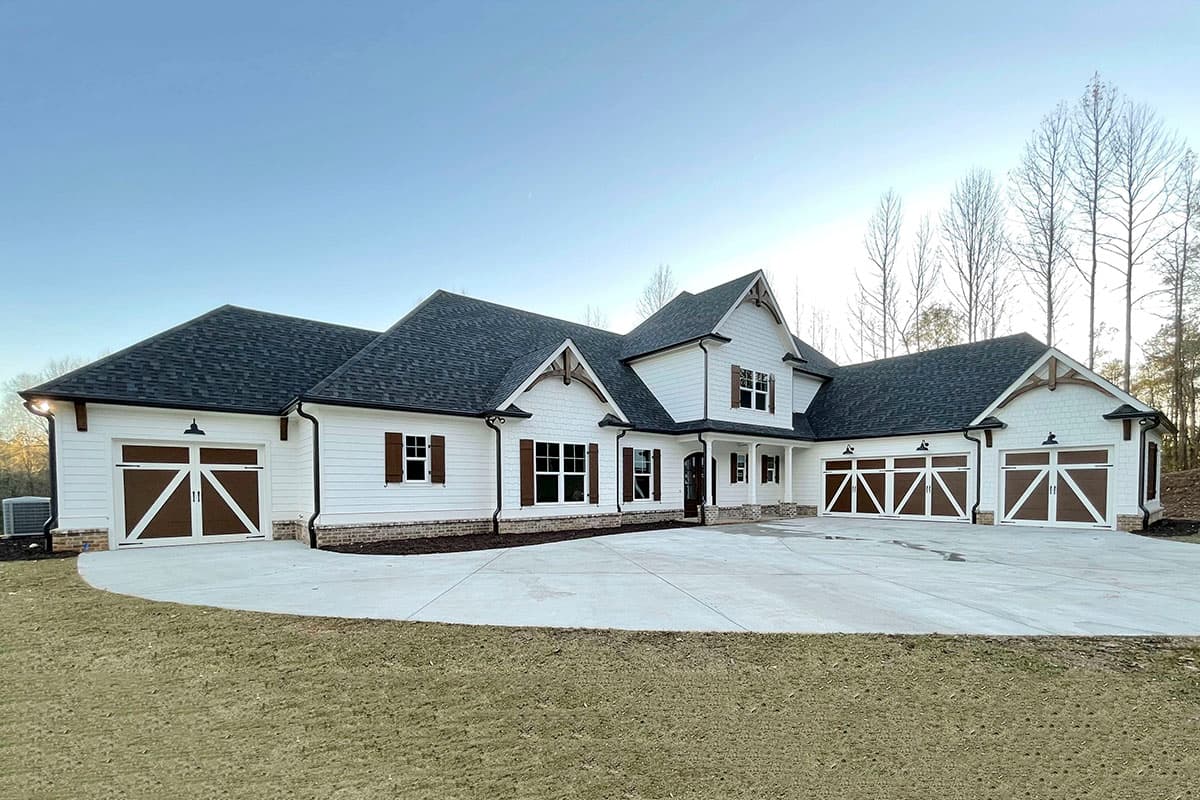

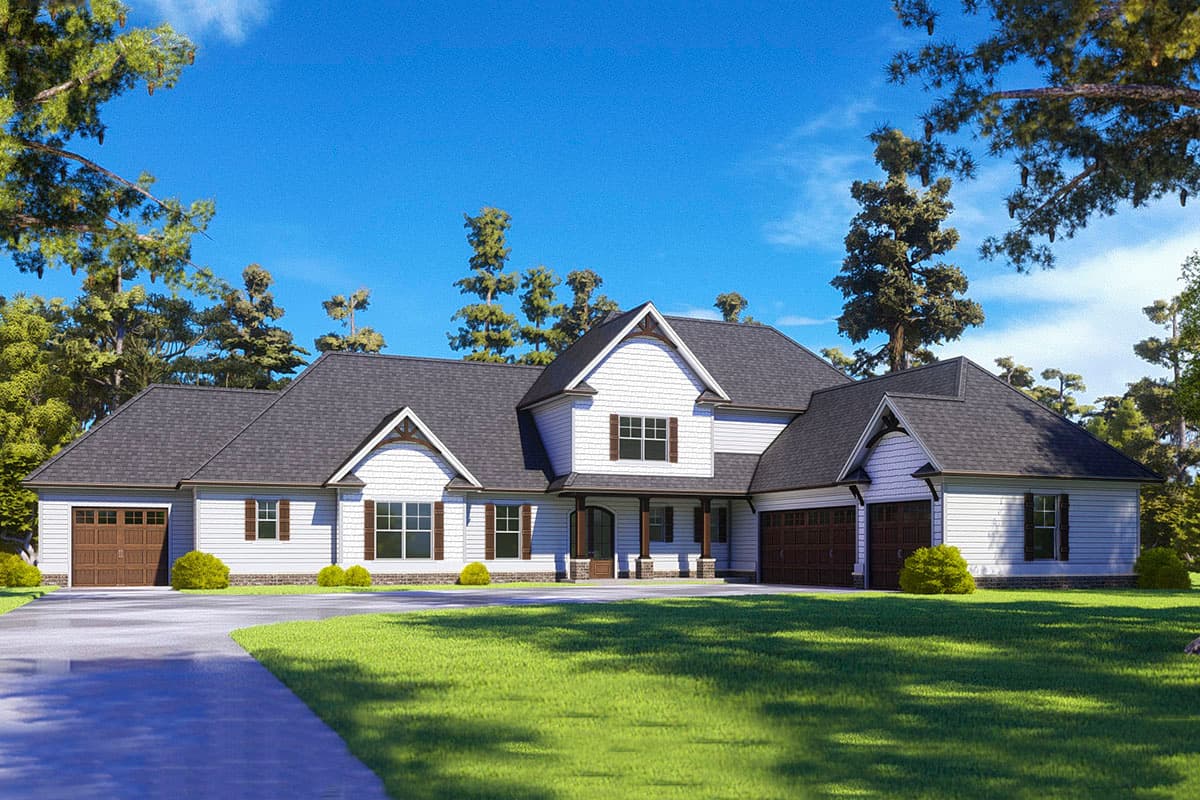

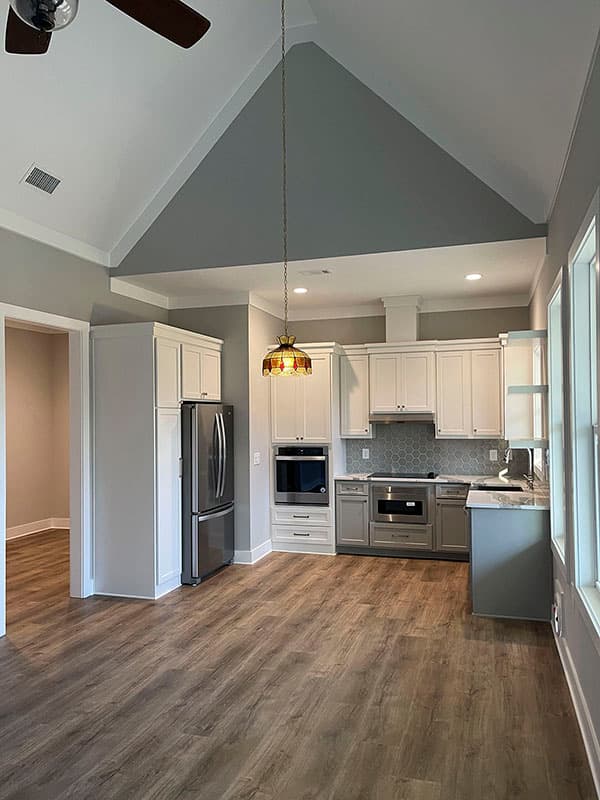

  • Timber-framed gables and shake siding decorate the exterior of this 3-bedroom multi-generational Craftsman house plan, complete with an attached, 1-bedroom apartment with a private entrance, which is perfect for in-laws or a boomerang child.

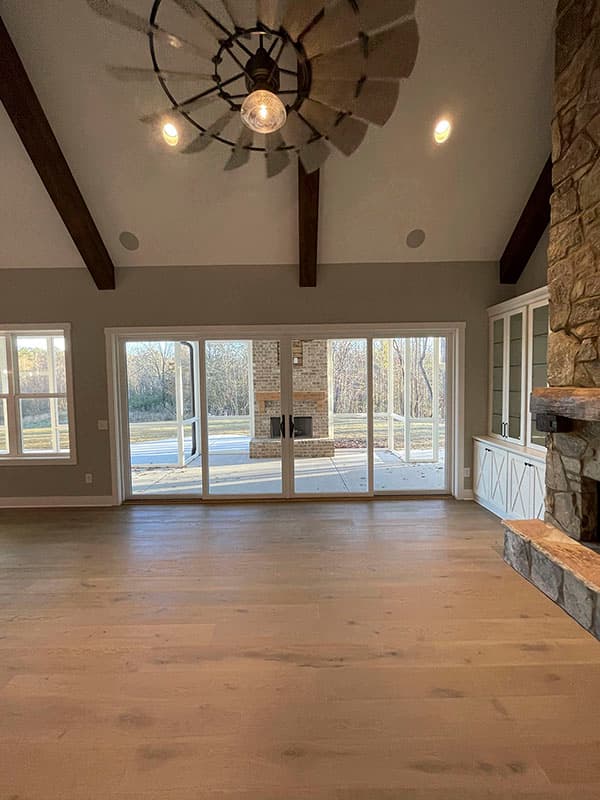

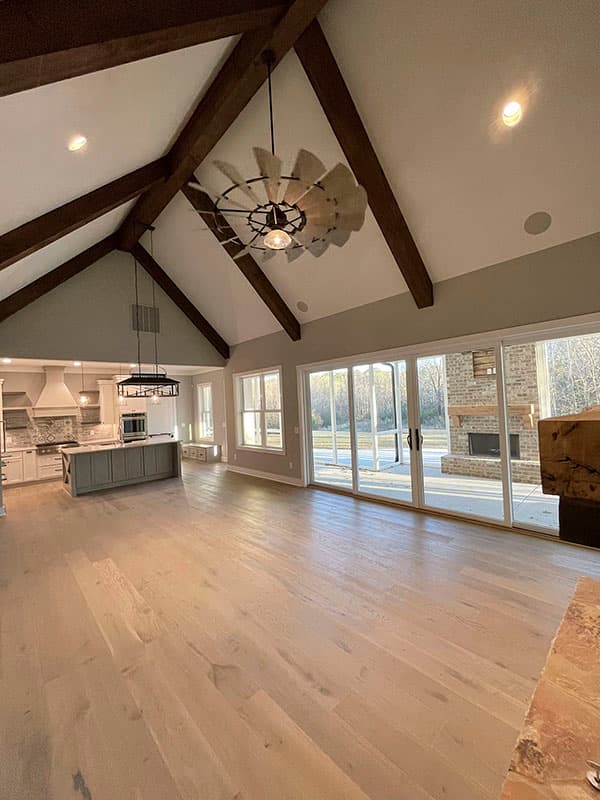

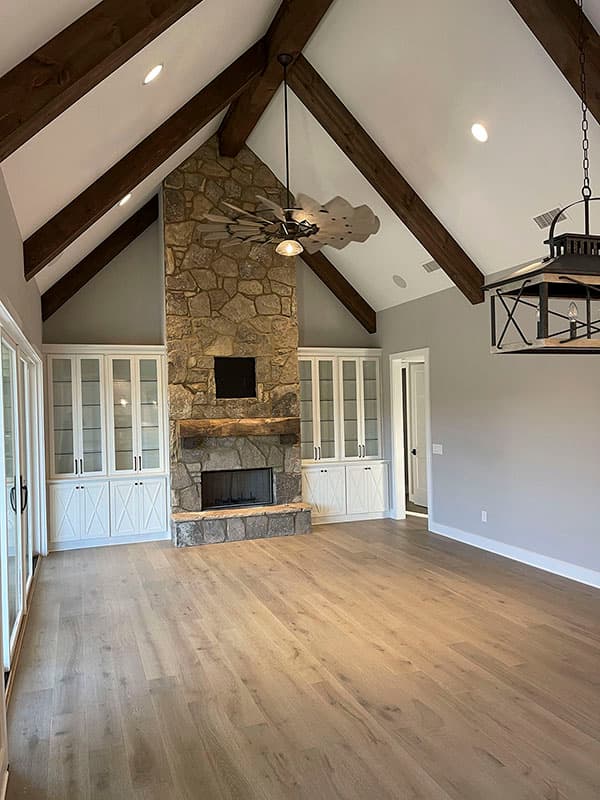

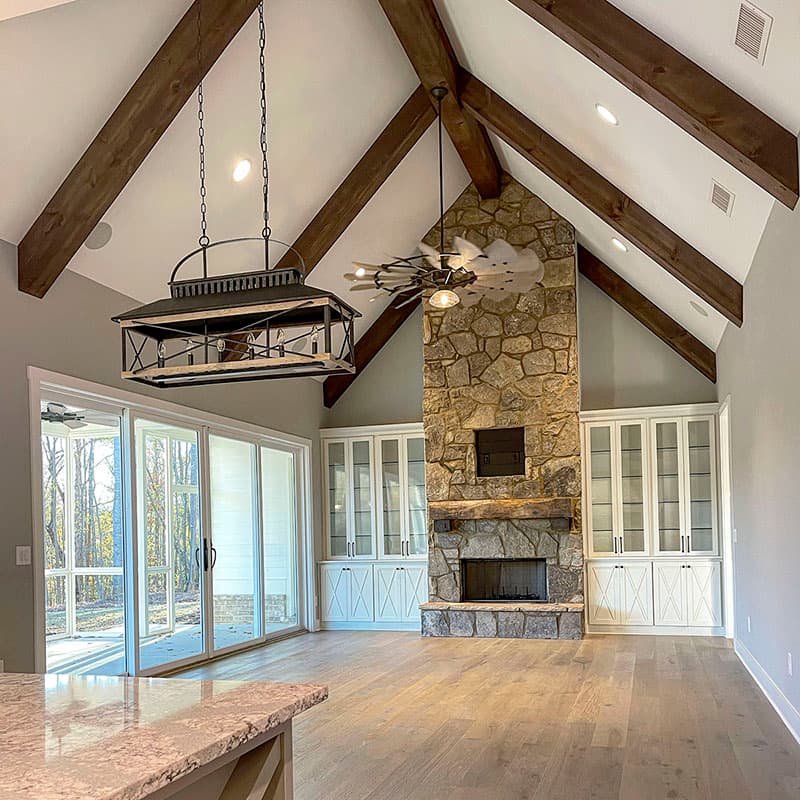

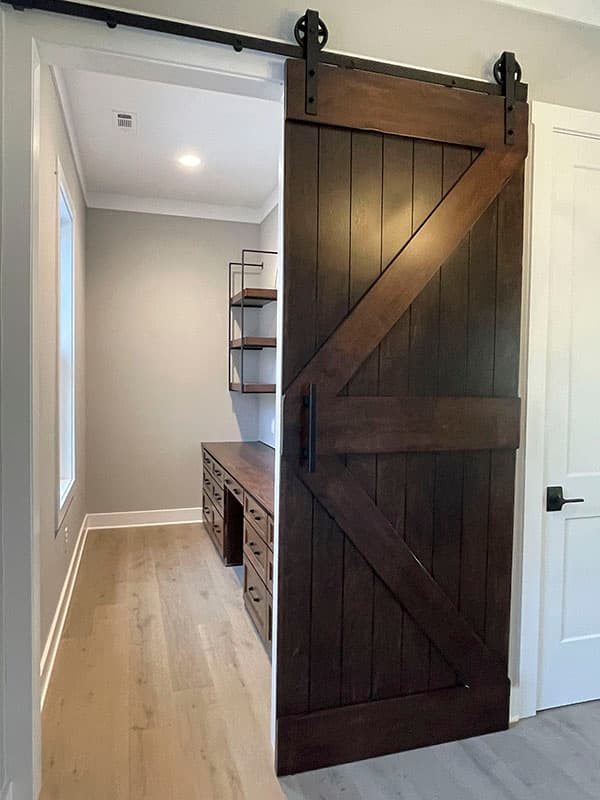

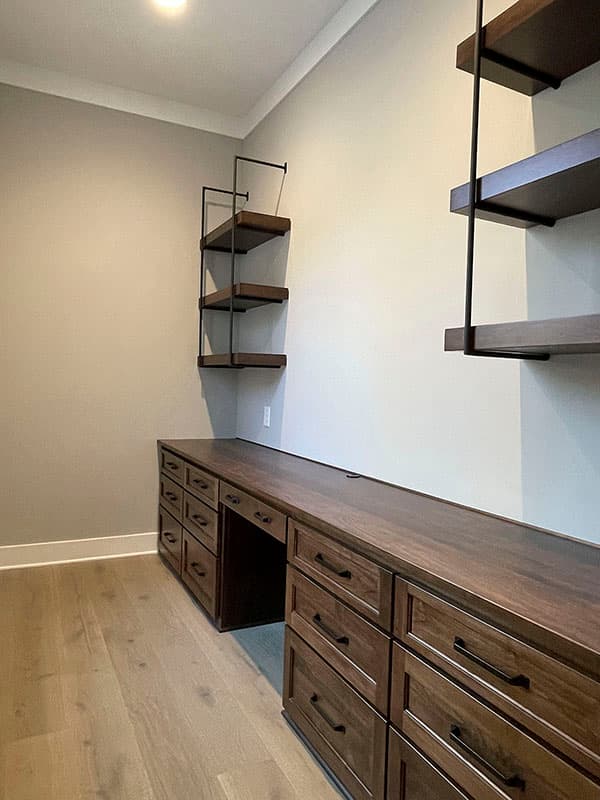

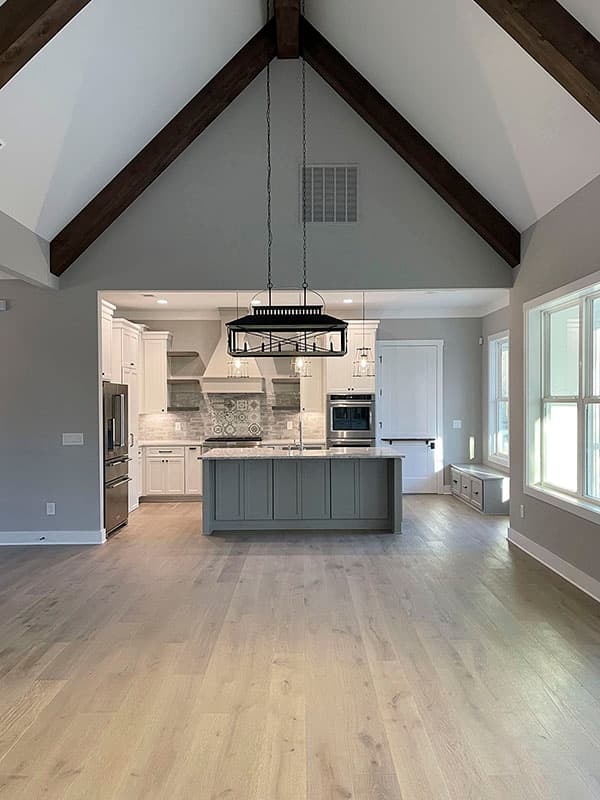

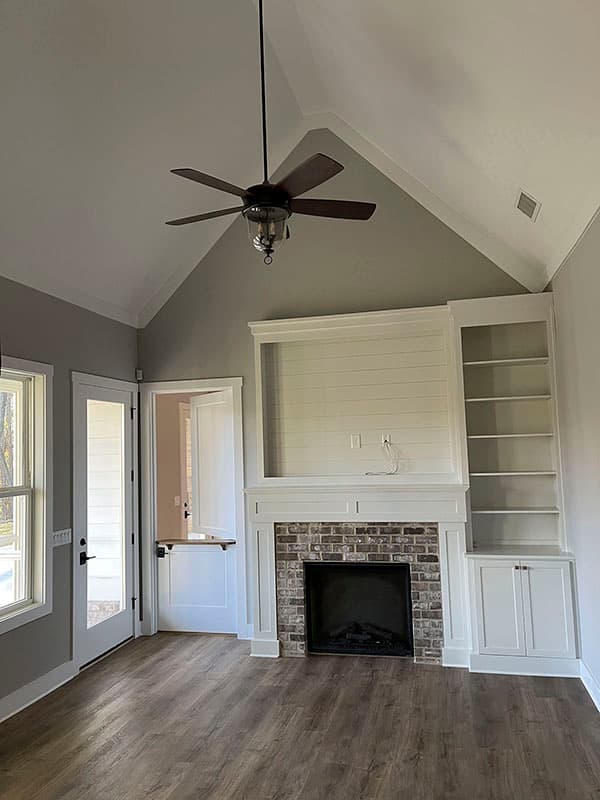

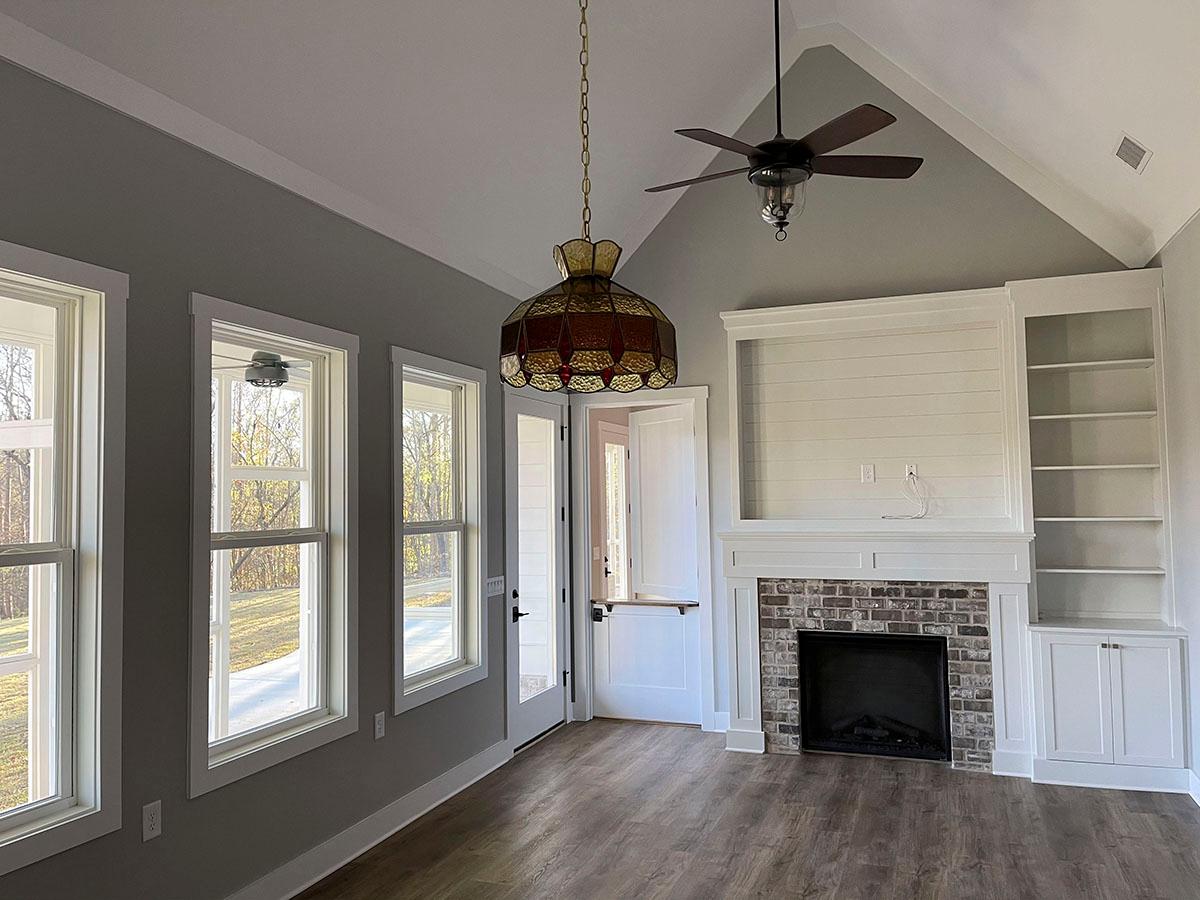

  • Inside the formal entrance, a barn door reveals a cozy office, across the foyer from a full bath. Straight ahead, a vaulted ceiling soars above the combined great room and dining area, guiding your eye to the fireplace anchoring the right wall.

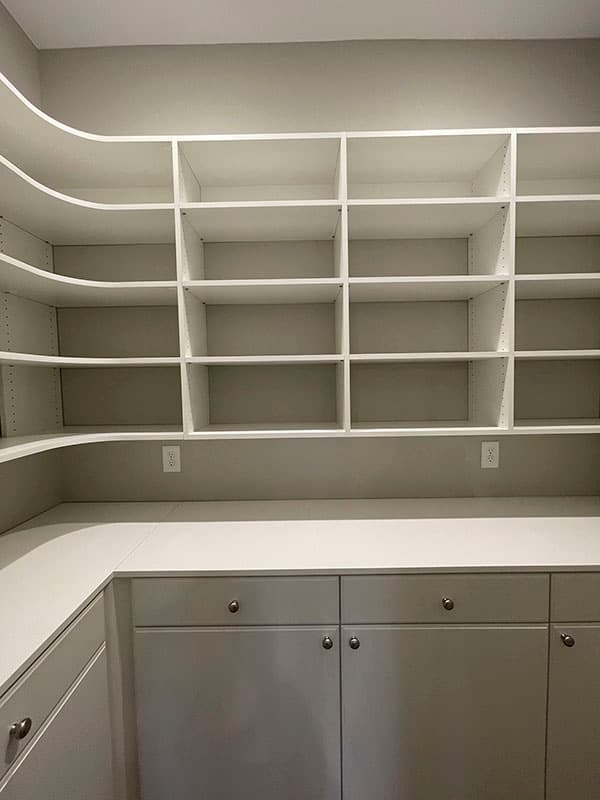

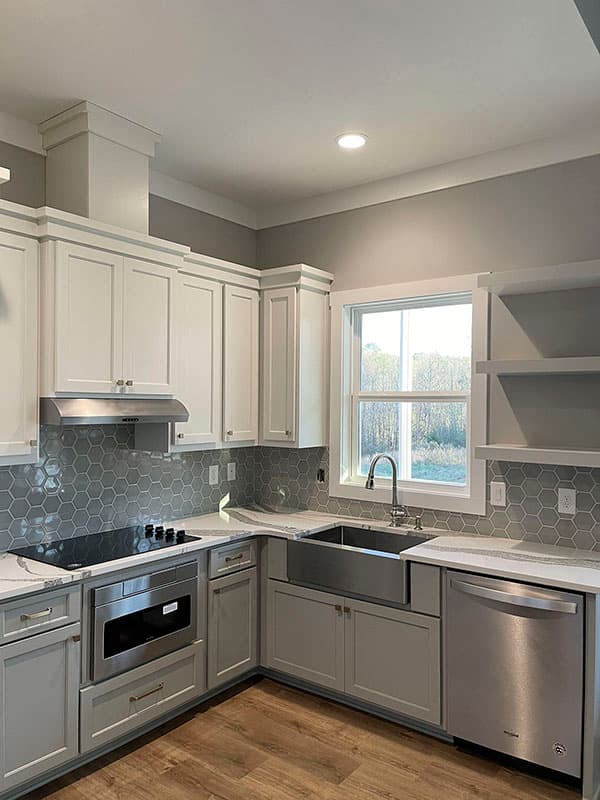

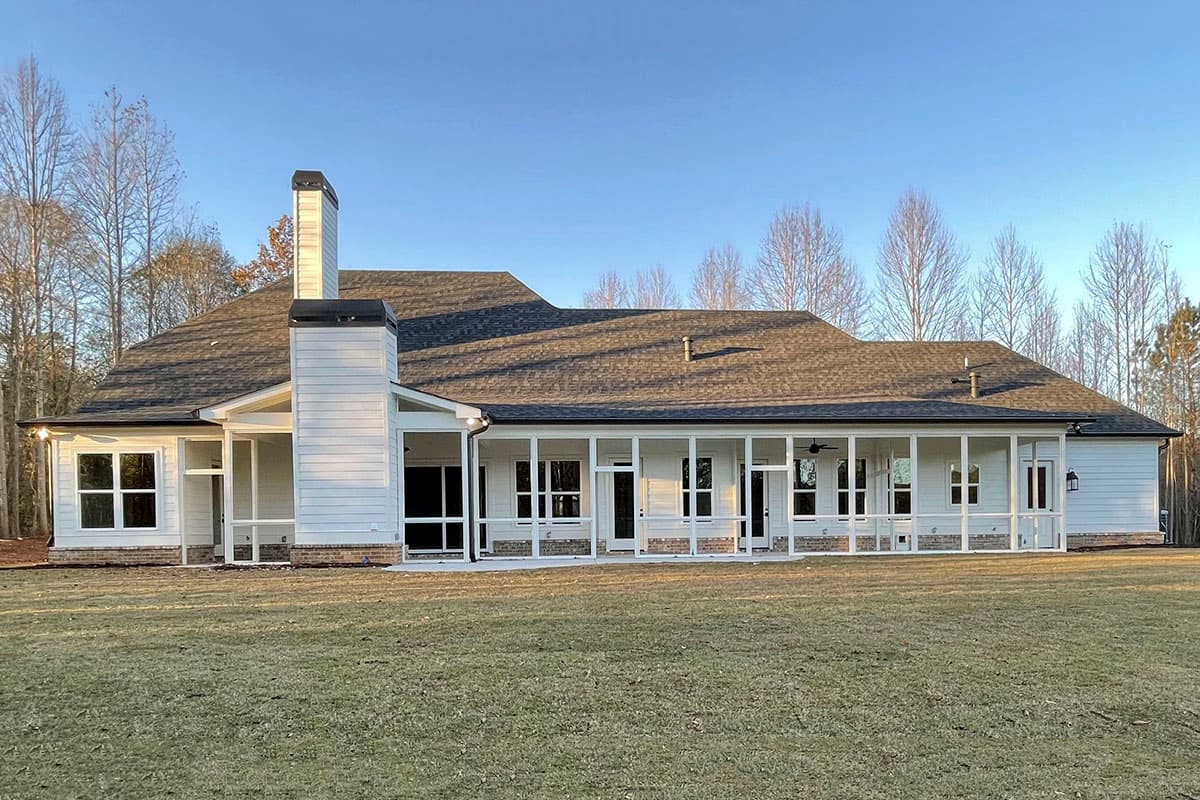

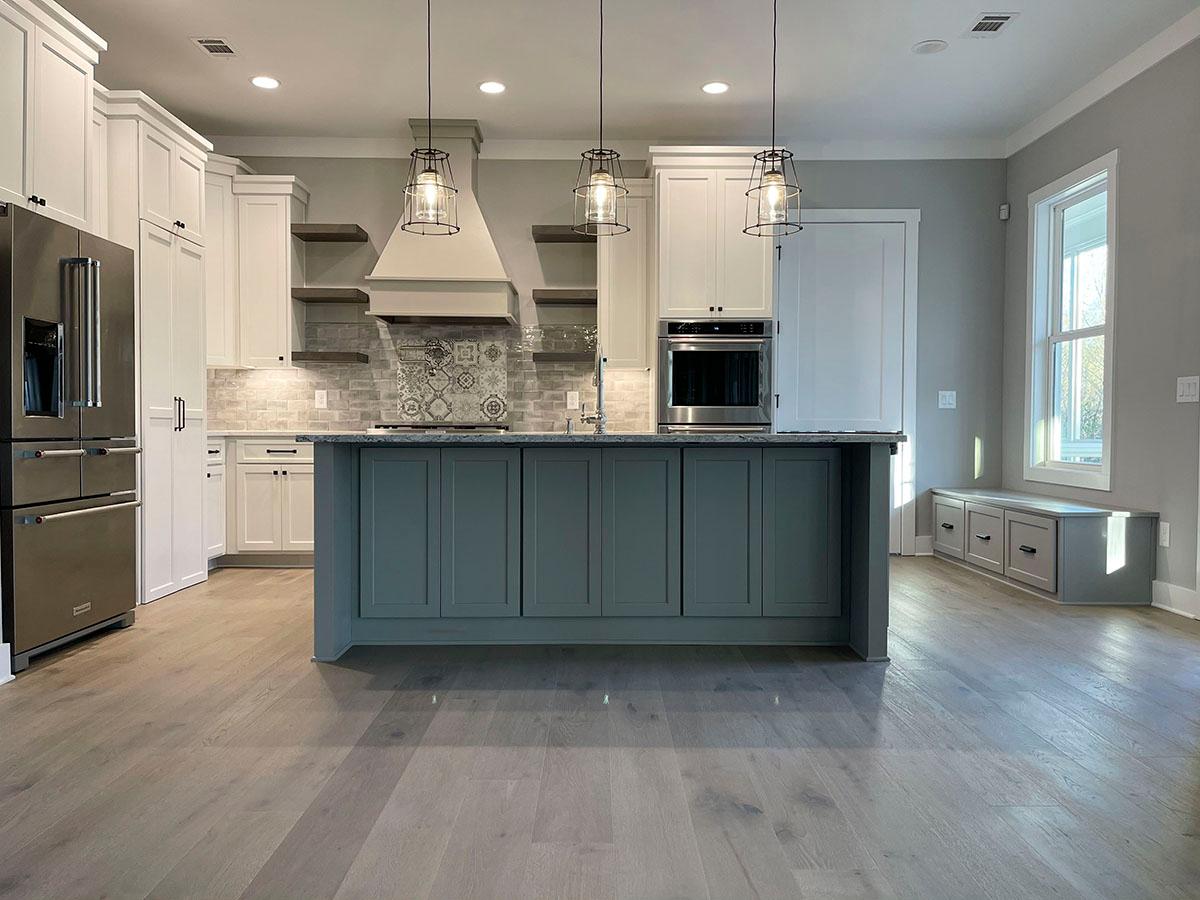

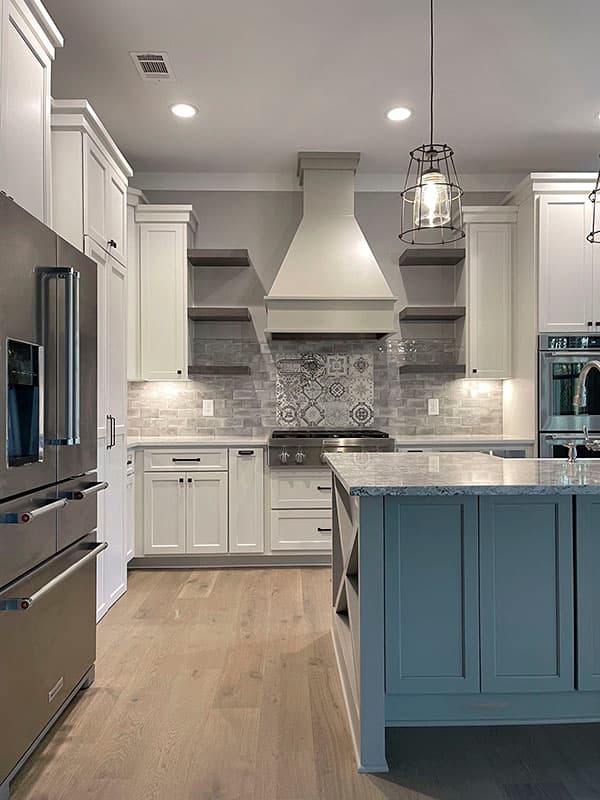

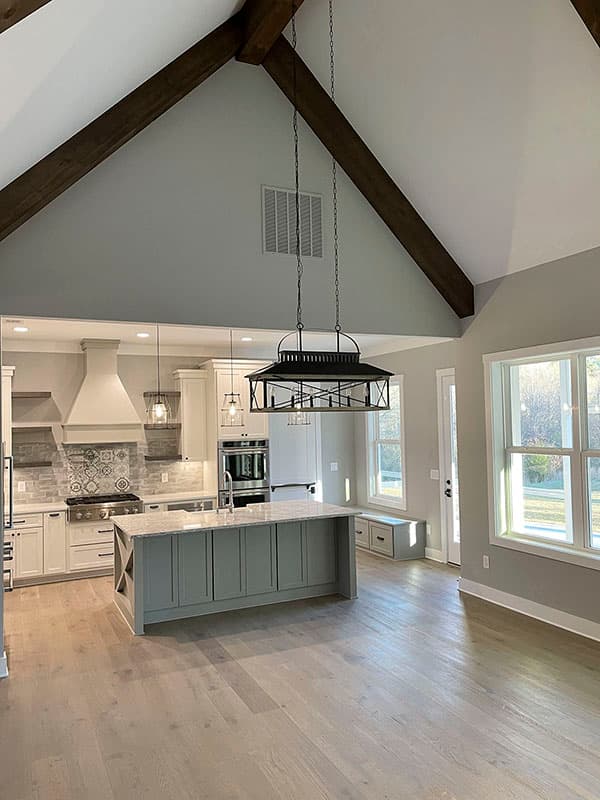

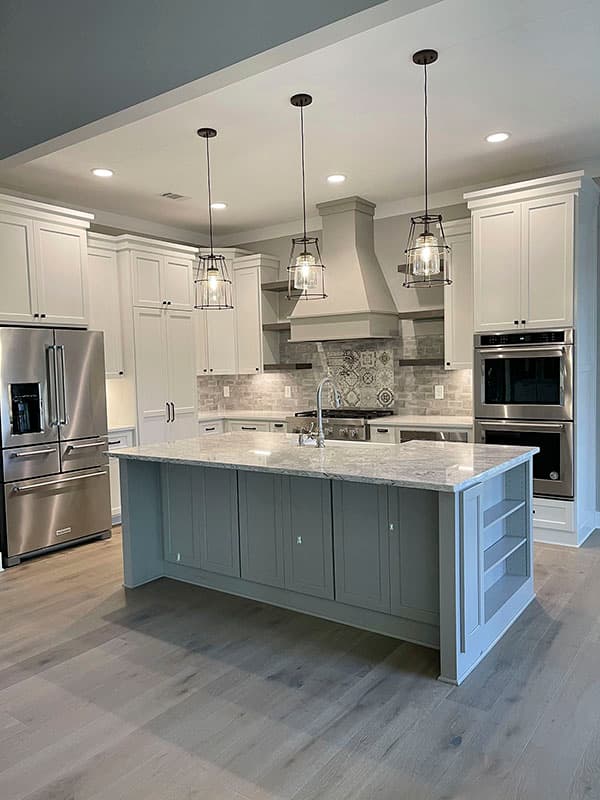

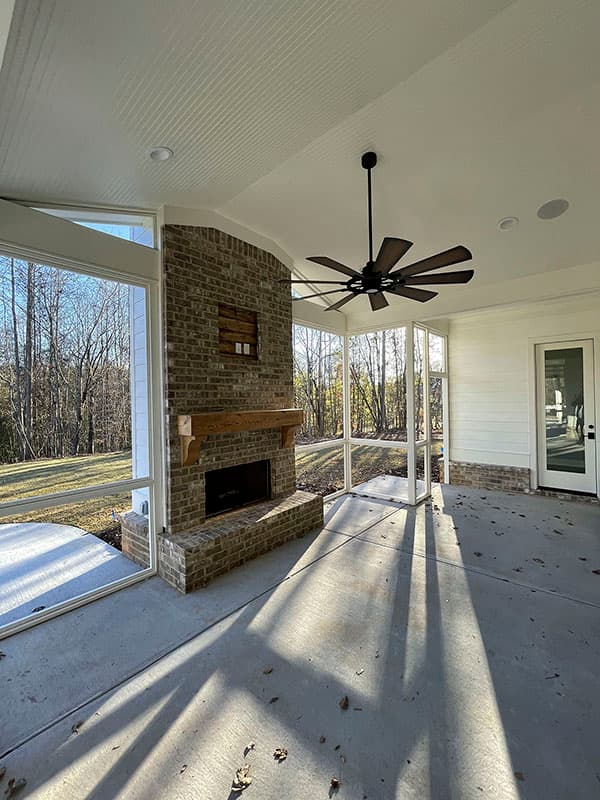

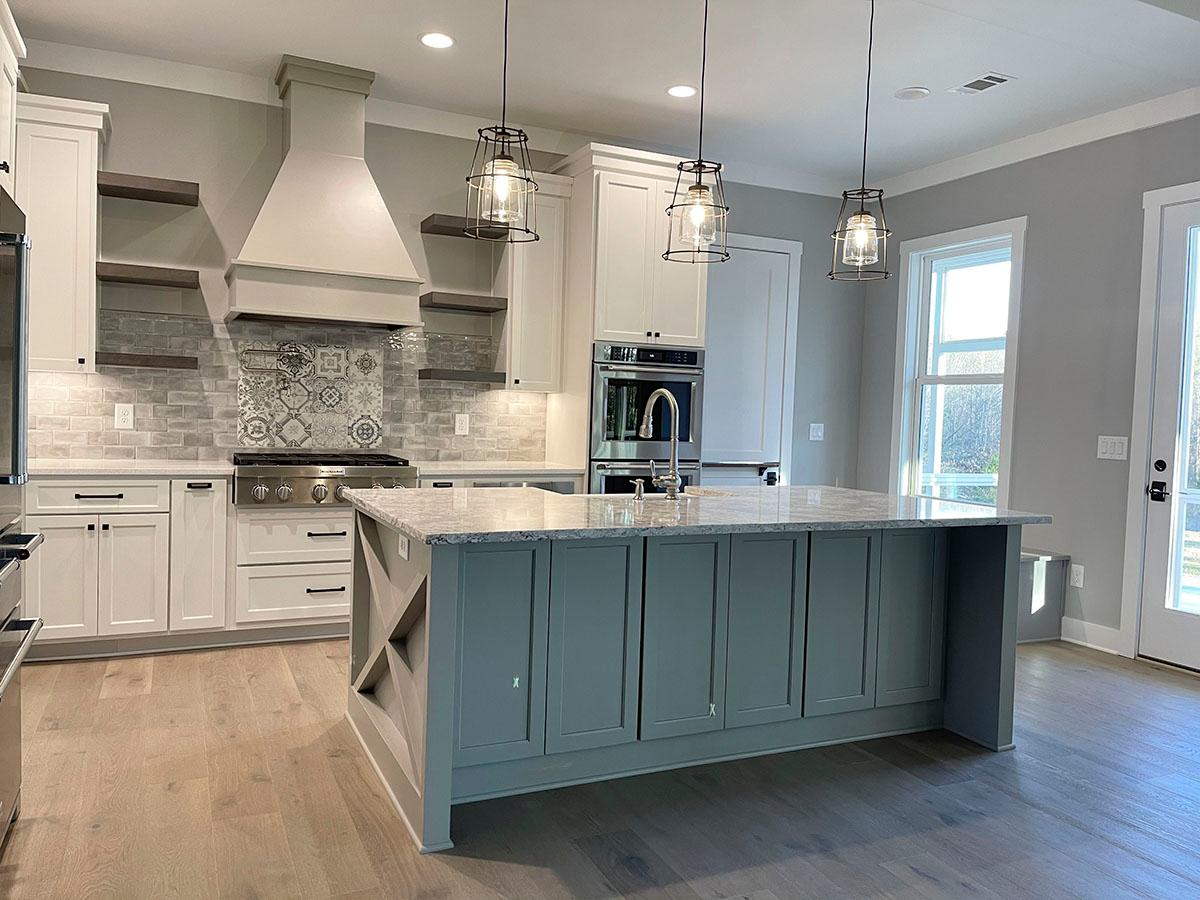

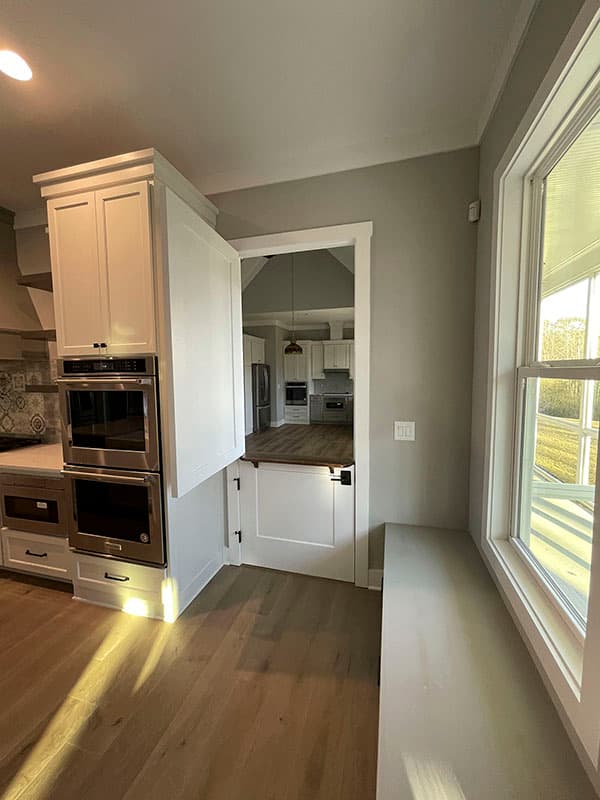

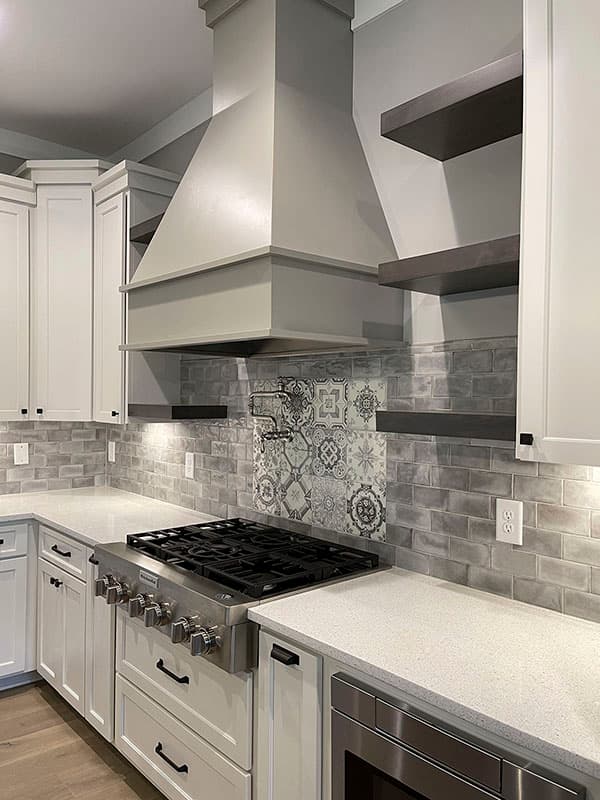

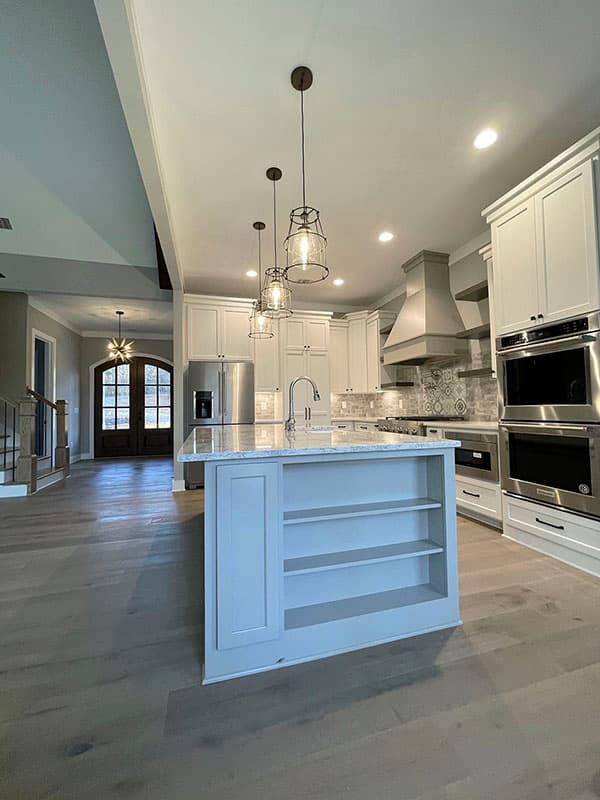

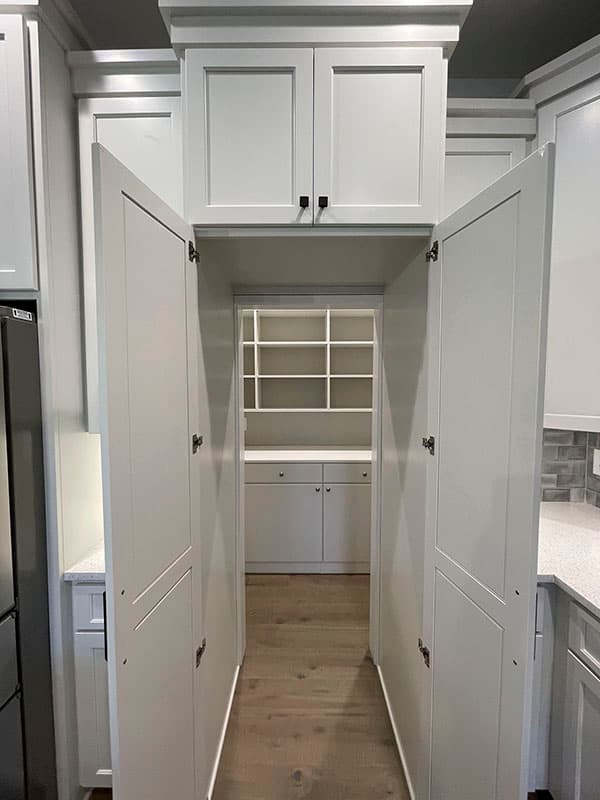

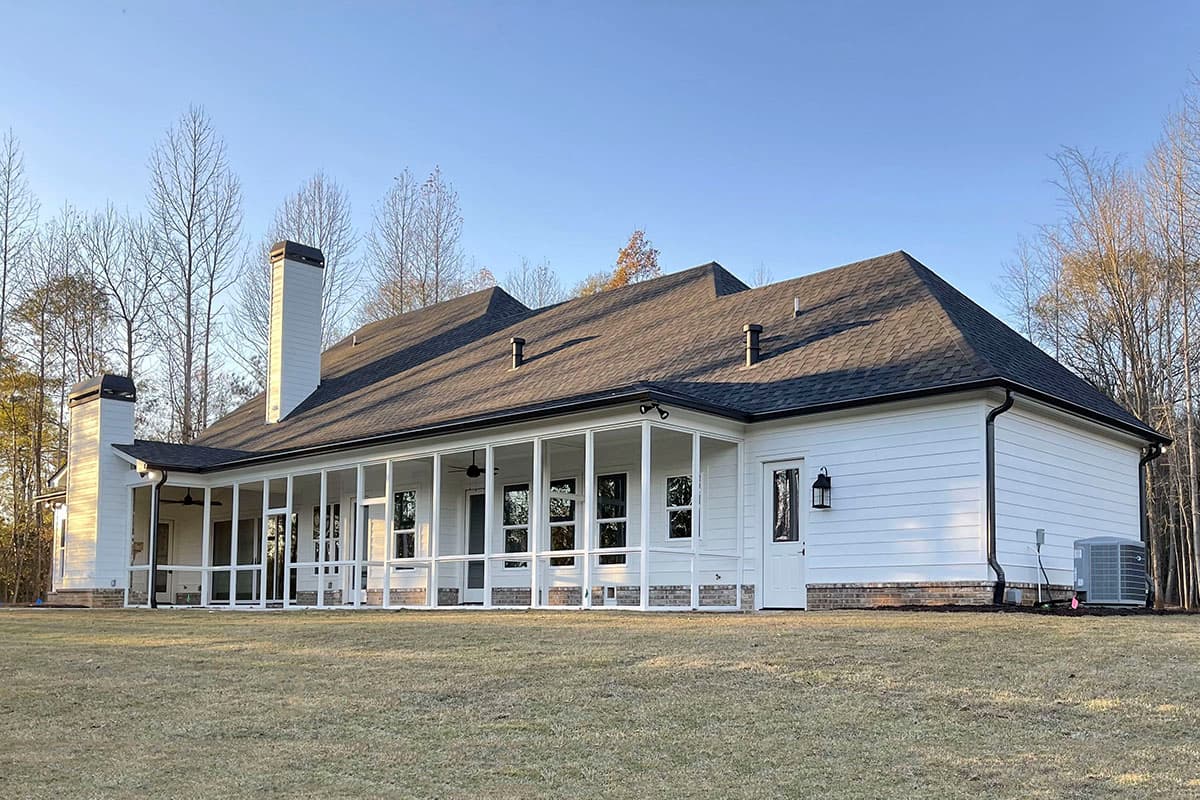

  • The open kitchen includes a breakfast nook and prep island, while cabinet doors conceal a large, walk-in pantry. The massive screened porch is ideal for family and friends to enjoy one another, without the bother of insects.

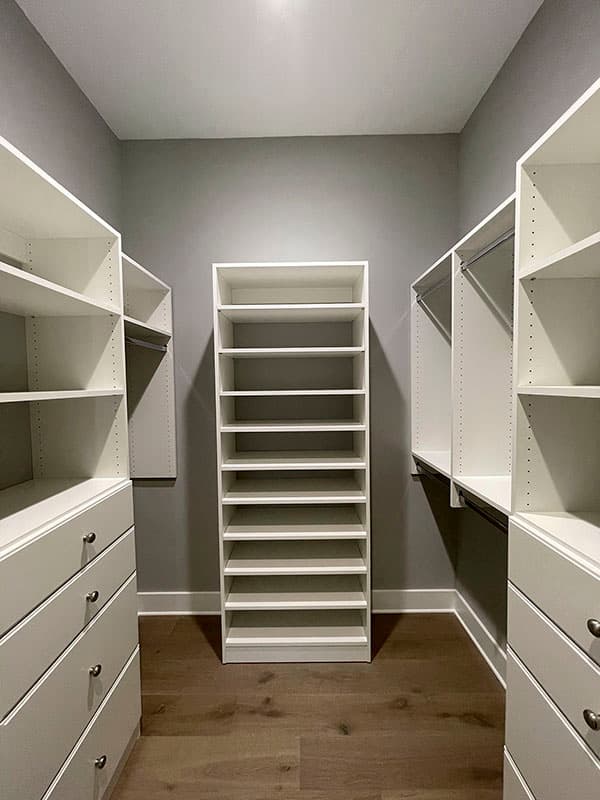

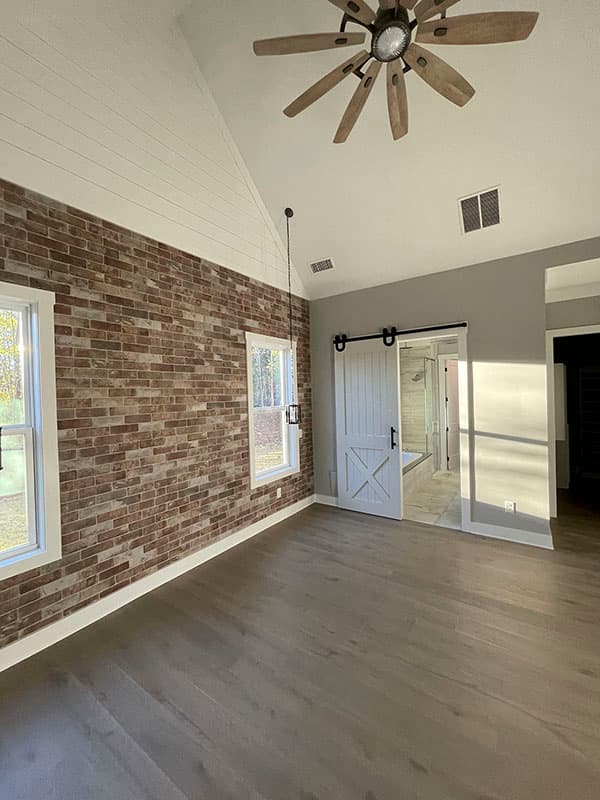

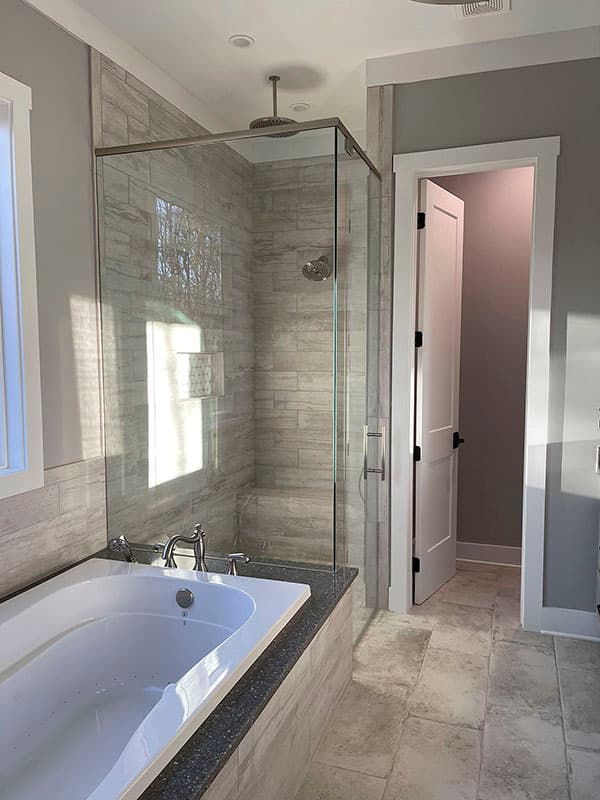

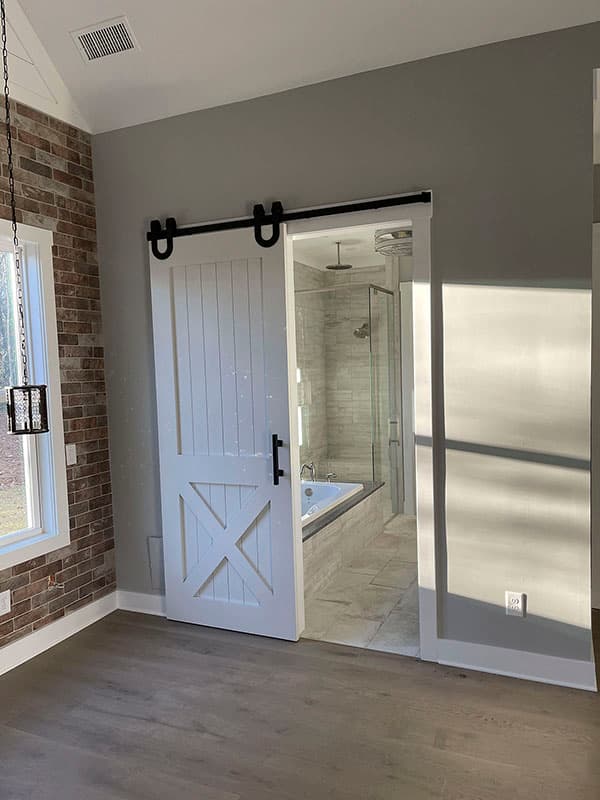

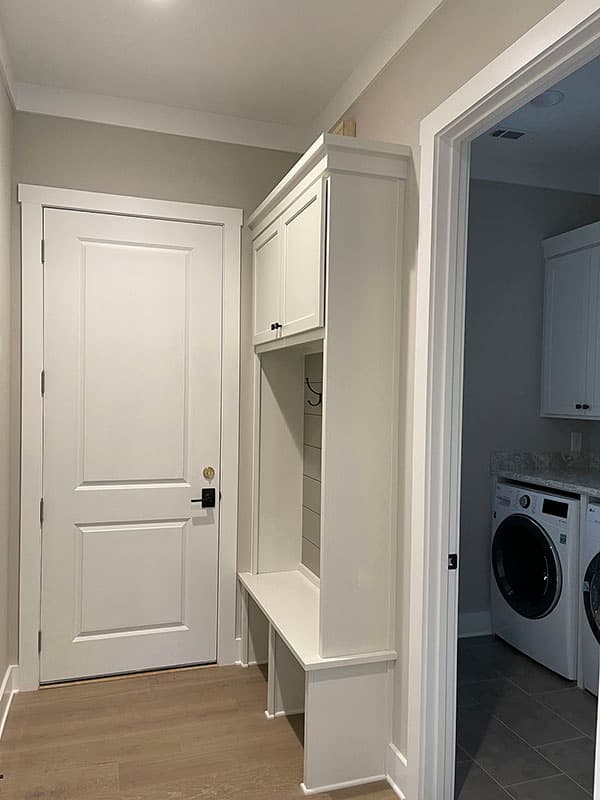

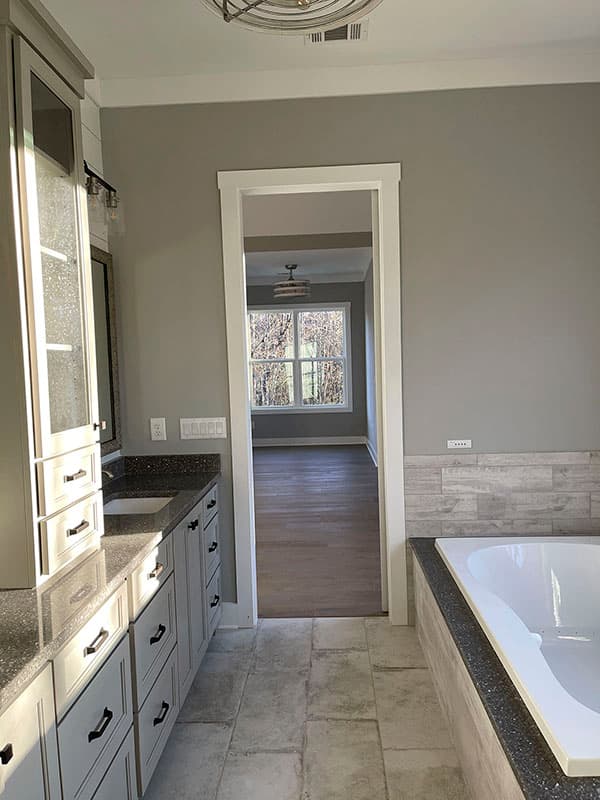

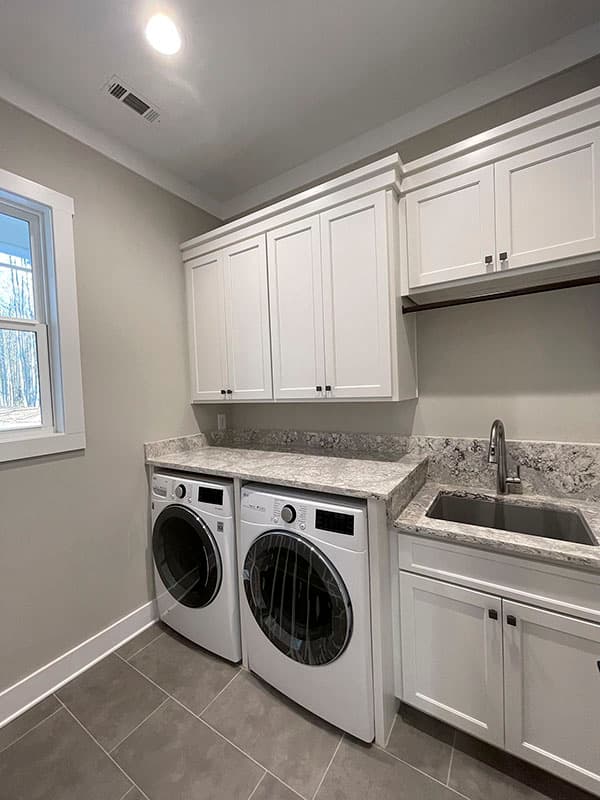

  • The master suite is located behind the 3-car garage, and features a sitting area with access to the back porch, a 5-fixture bath, and a walk-in closet. The laundry room is conveniently located nearby.

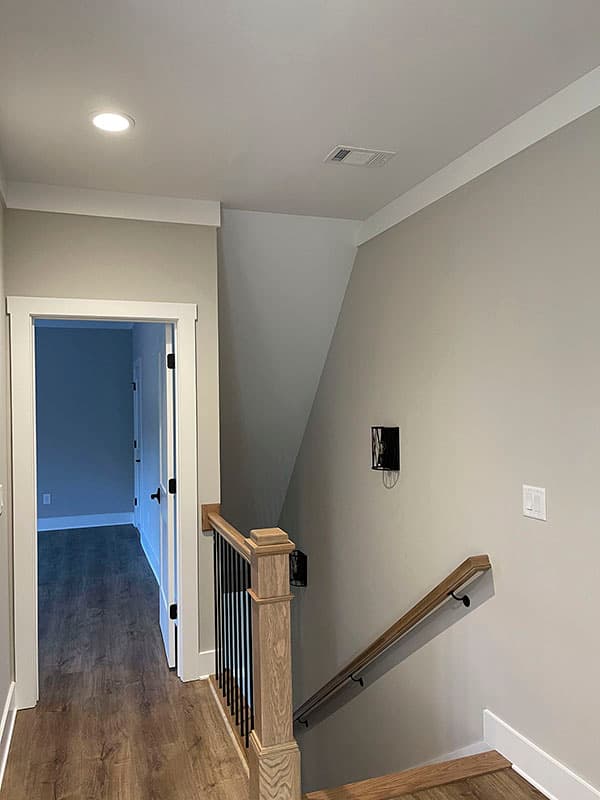

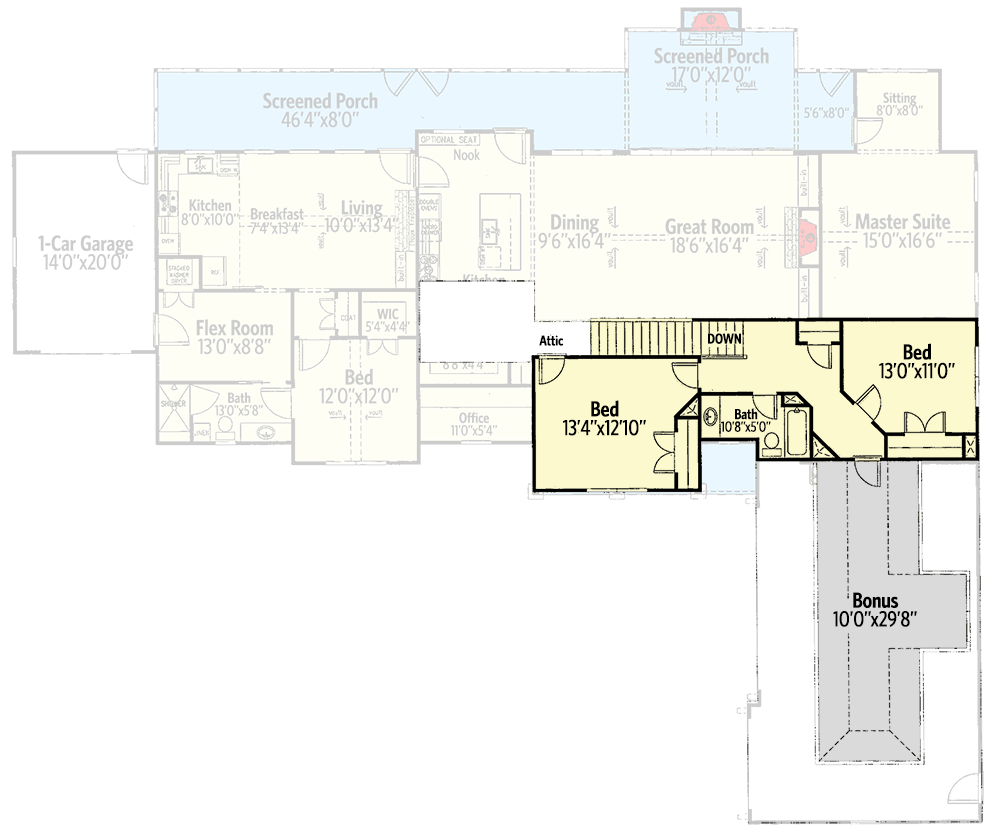

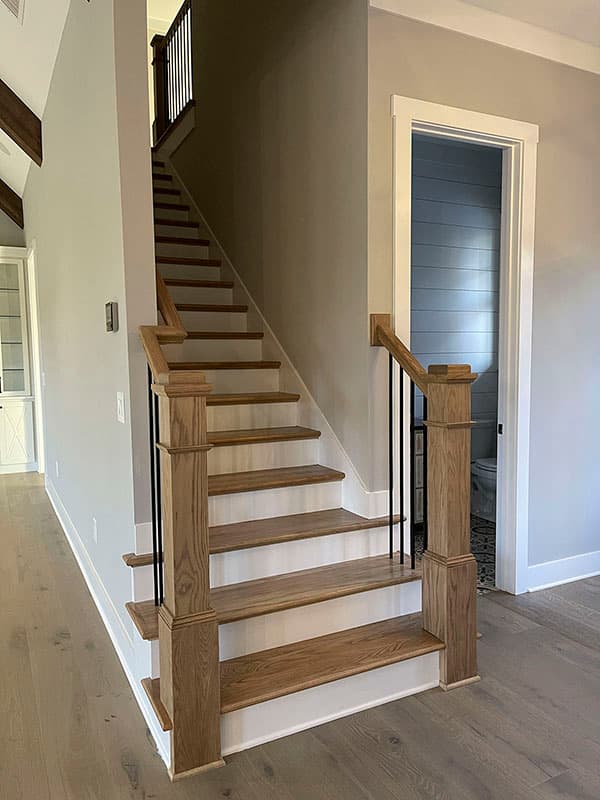

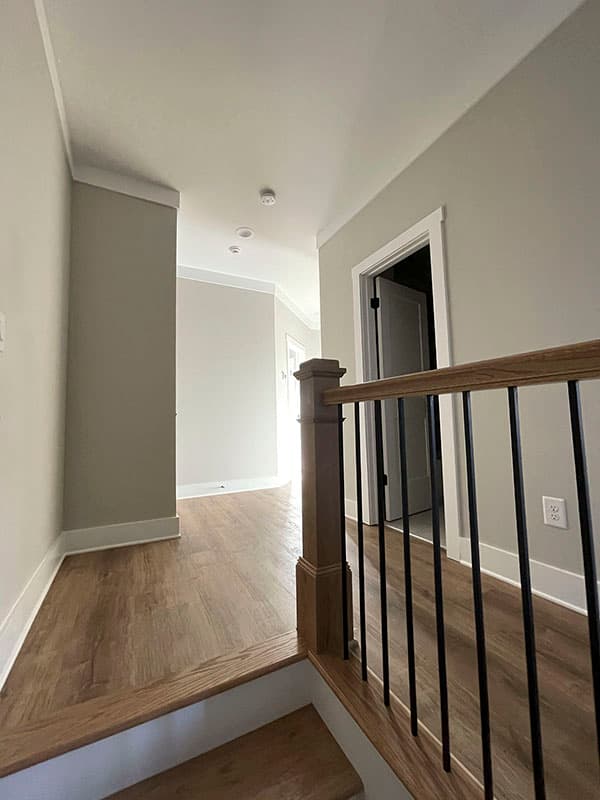

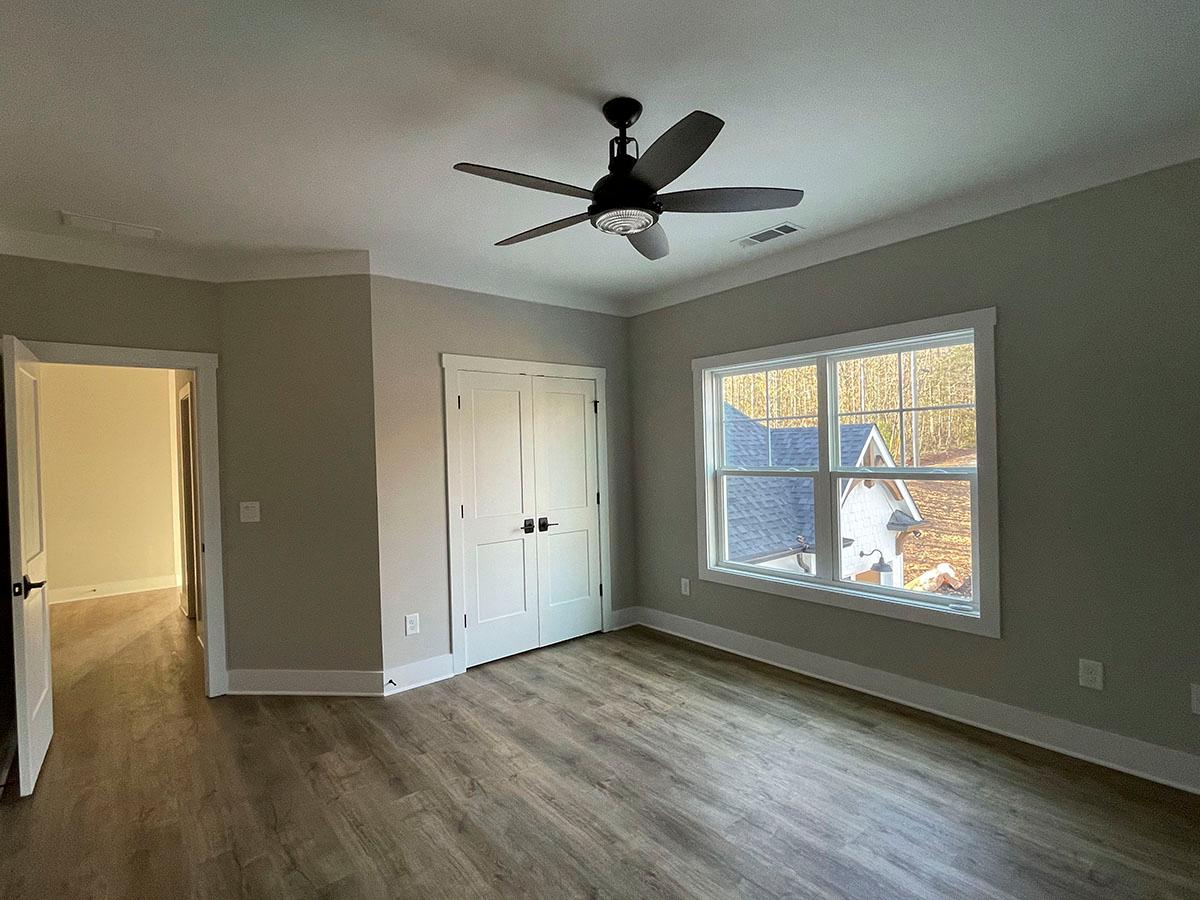

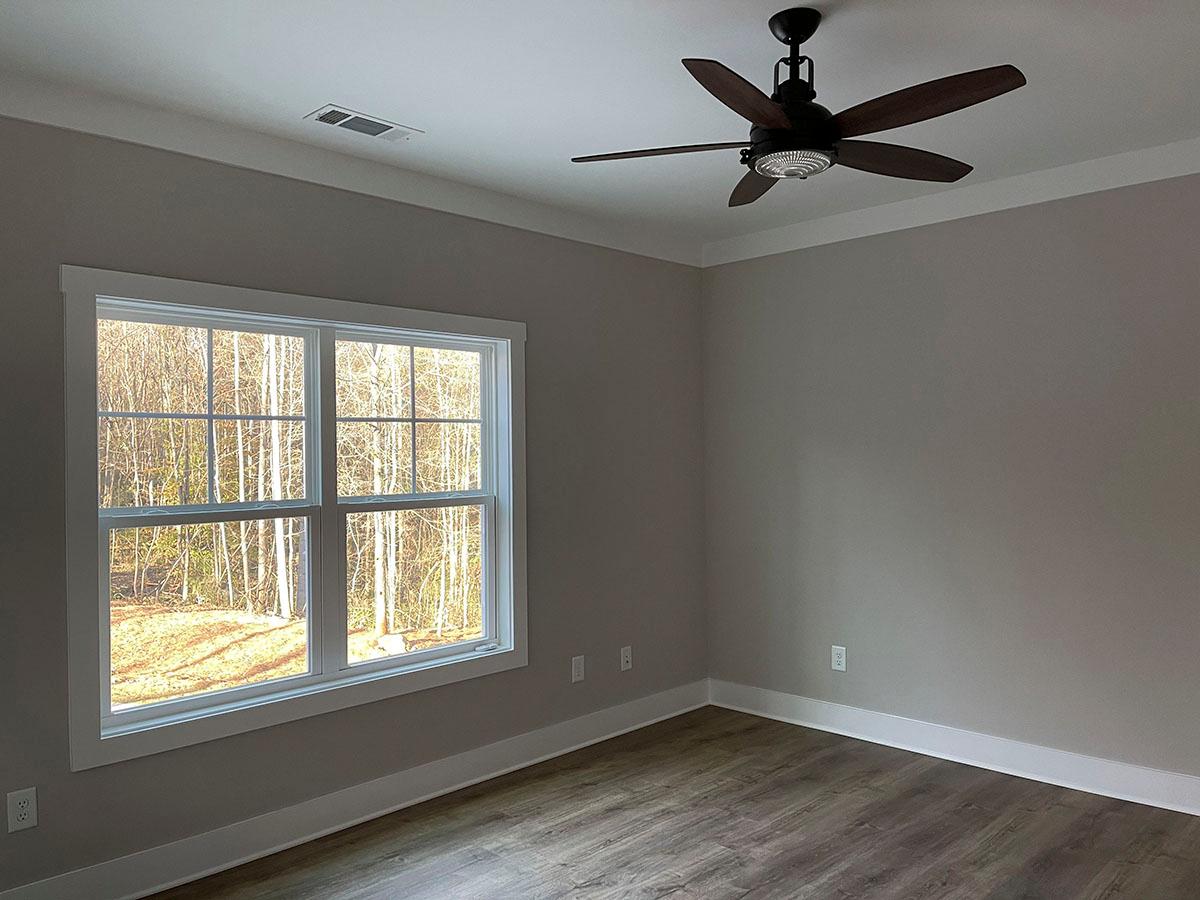

  • Upstairs, bedrooms 2 and 3 frame a full bath, and a bonus room (357 sq ft) provides a fun, flexible space for the second level.
What's Included

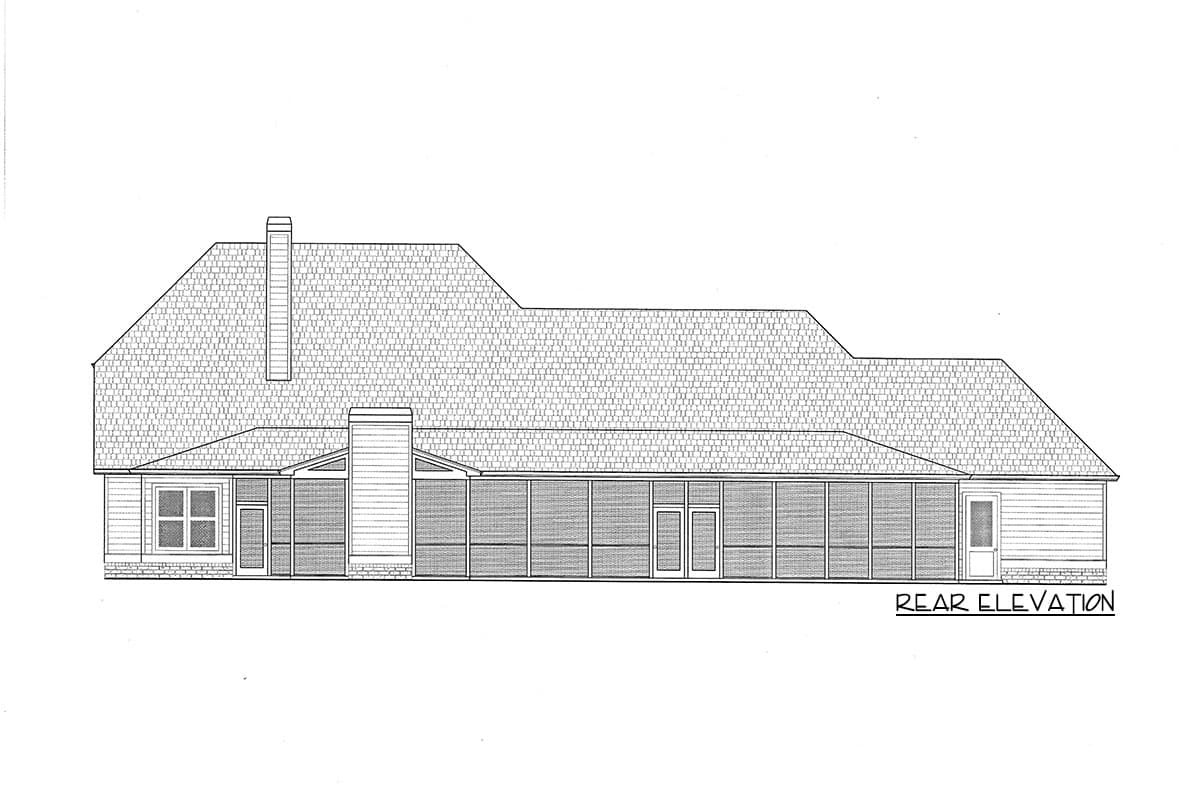

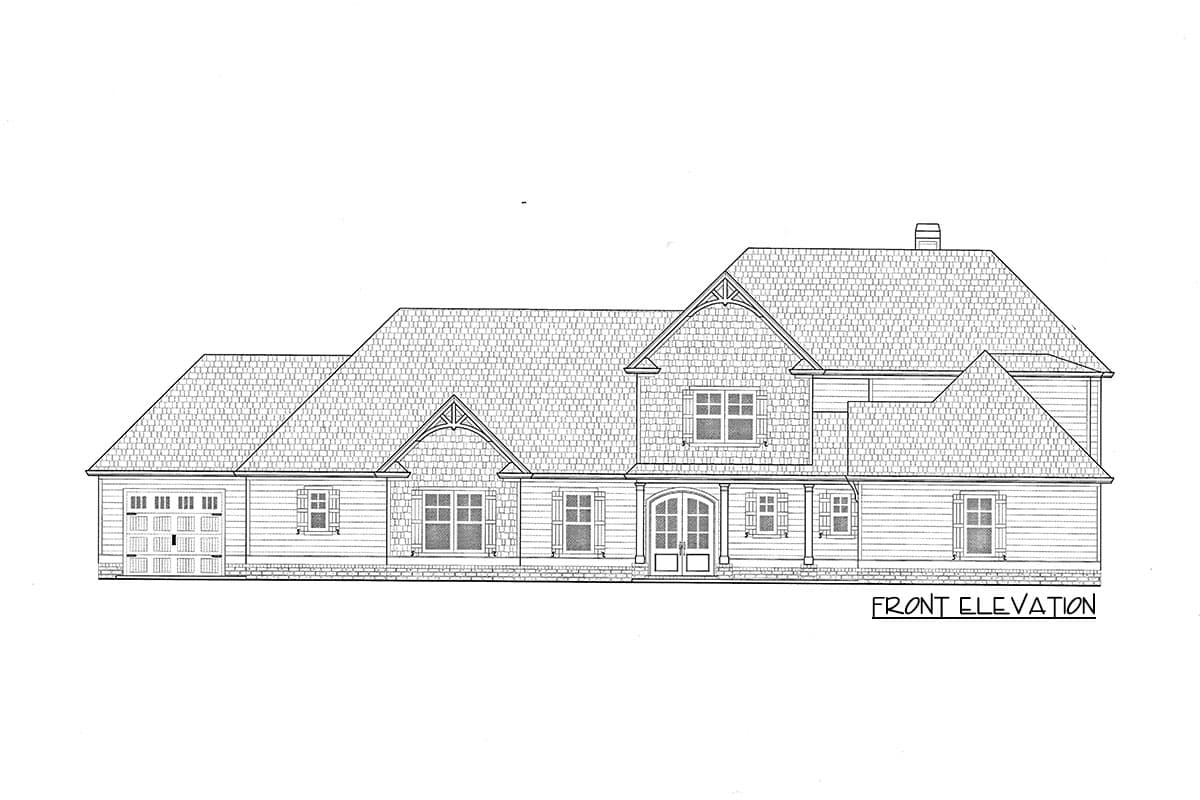

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,088 sq. ft.

1st Floor

2,502 sq. ft.

2nd Floor

586 sq. ft.

Bonus

357 sq. ft.

Porch, Combined

705 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

95' 0"

Depth

80' 8"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

1085 sq. ft.

Count

4 Cars

Entry Location

Courtyard, Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Rustic

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Plan Collections

Multi-Generational
