Plan 21765DR
Multi-Generational House Plan withUnits Linked by Laundry Room - 2442 Sq Ft and 870 Sq Ft
Heated S.F.
3,207
Units
2
Width
Depth
Floor Plan

Plan 21765DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21765DR

1-800-854-7852

1-262-521-4596

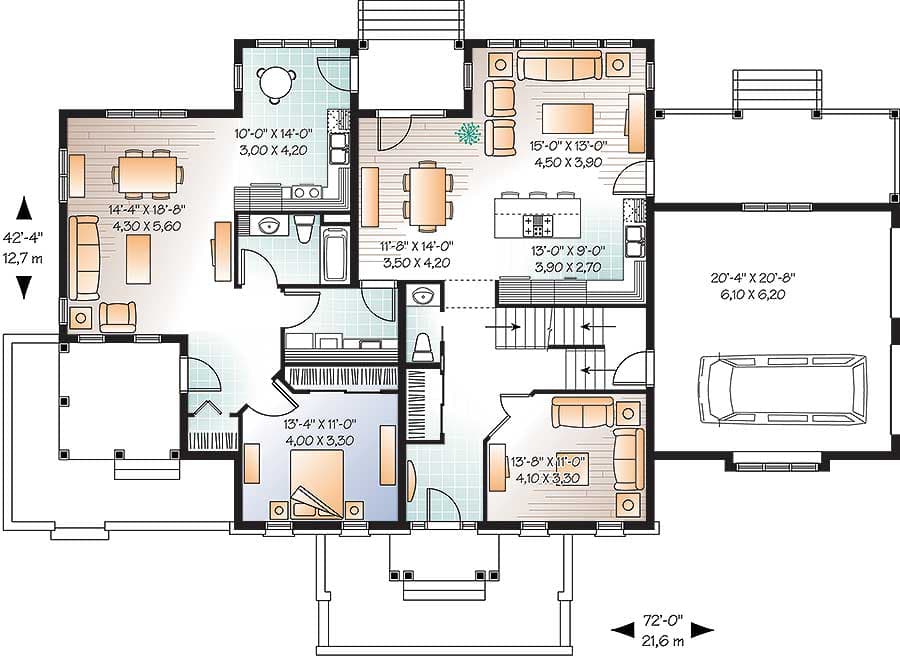

Main Level
floor plan image Main Level

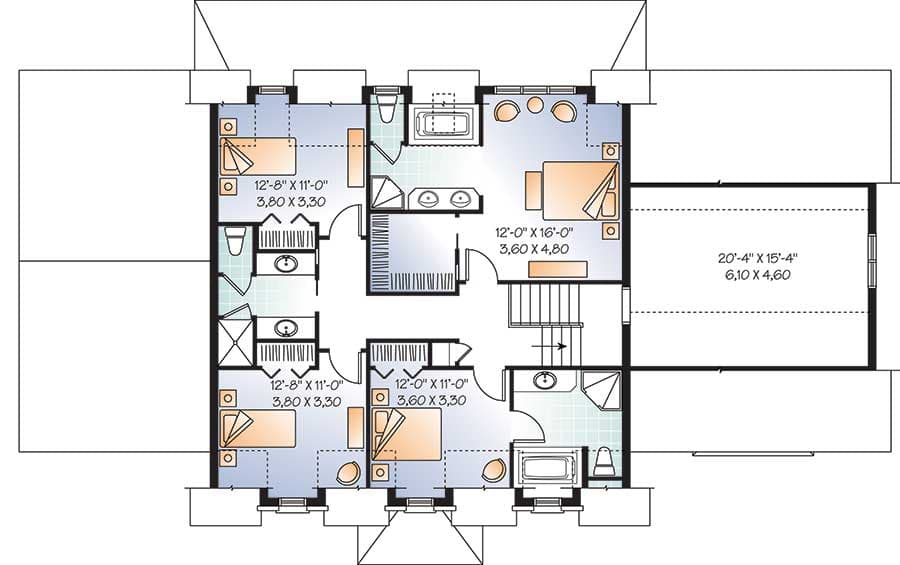

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A main floor in-law suite, complete with kitchen, distinguishes this house plan.
  • The family will enjoy the open floor plan in the back with the kitchen, dining room and family room combined into a welcoming space. A small deck off the back is a nice detail.
  • For more intimate moments, a den is located at the front of the home.
  • Two suites are upstairs plus two smaller bedrooms. Expand into the bonus space above the garage if you need more room.
  • Related Plan: Get a one-story multi-generational house plan with 21766DR.
Unit A
2,442Sq. Ft.
1133 Sq. Ft.
1st Floor
1309 Sq. Ft.
2nd Floor
4Beds
3Full Baths
1Half Bath
2Vehicle
Attached
462 Sq. Ft.
25' 6"width
42'depth
31' 4"height
Unit B
870Sq. Ft.
870 Sq. Ft.
1st Floor
1Beds
1Full Bath
29' 6"width
42'depth
31' 4"height
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,207 sq. ft.

1st Floor

1,817 sq. ft.

2nd Floor

1,390 sq. ft.

Bonus

343 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

42' 4"

Max Ridge Height

31' 4"

Garage

Type

Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Traditional

Special Features

Bonus Room

Den

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Multi-Generational
