Plan 135268GRA
Multi-Purpose Detached Garage Plan for Cars, Trucks and Motorcyles Plus Lounge Space
Heated S.F.
920
Beds
Baths
0.5
Stories
2
Cars
3
Floor Plan

Plan 135268GRA

Main Level
slide image 0
2nd Floor
slide image 1

Plan 135268GRA

1-800-854-7852

1-262-521-4596

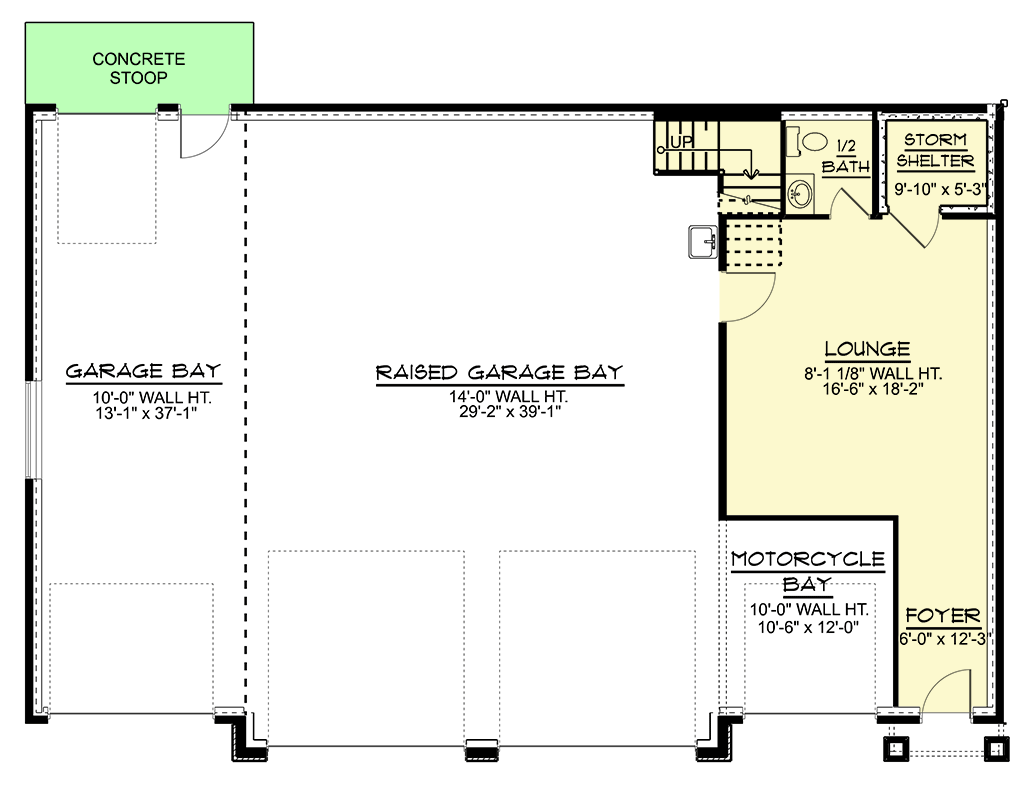

Main Level
floor plan image Main Level

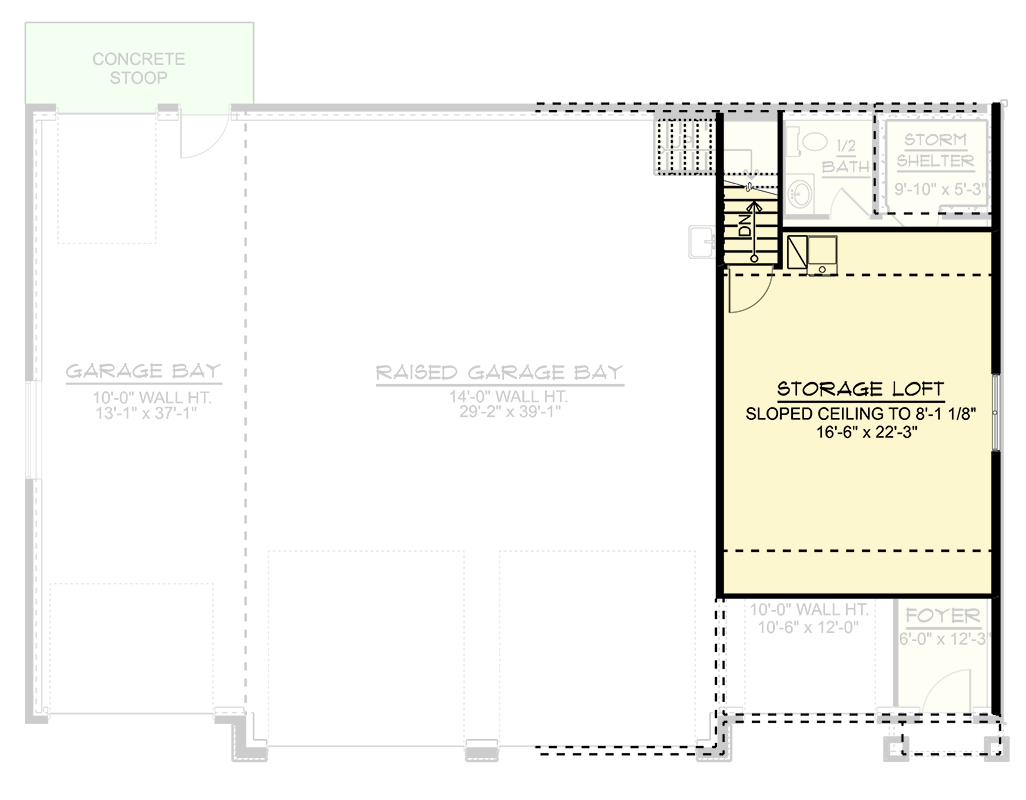

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This multi-purpose detached garage plan has 3 different types of bays: one for cars and trucks, two RV-friendly bays with 14' wall height, and one motorcycle bay. Combined, this plan gives you 1,810 square feet of parking space for your various vehicles.
  • A lounge with a half bathroom and a storm shelter on the main floor (530 square feet) and an upstairs loft (390 square feet) give you great flexibility.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

920 sq. ft.

1st Floor

530 sq. ft.

2nd Floor

390 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

40' 0"

Max Ridge Height

24' 6"

Garage

Type

Detached, RV Garage

Area

1810 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Craftsman

Traditional

Special Features

Game/Rec Room

Loft

Safe Room

Square Footage Breakdown

Total Heated Area

920 sq. ft.

1st Floor

530 sq. ft.

2nd Floor

390 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

40' 0"

Max Ridge Height

24' 6"

Garage

Type

Detached, RV Garage

Area

1810 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Craftsman

Traditional

Special Features

Game/Rec Room

Loft

Safe Room
