Plan 24336TW
Multiple Versions to Enjoy
Heated S.F.
3,065
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 24336TW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24336TW

1-800-854-7852

1-262-521-4596

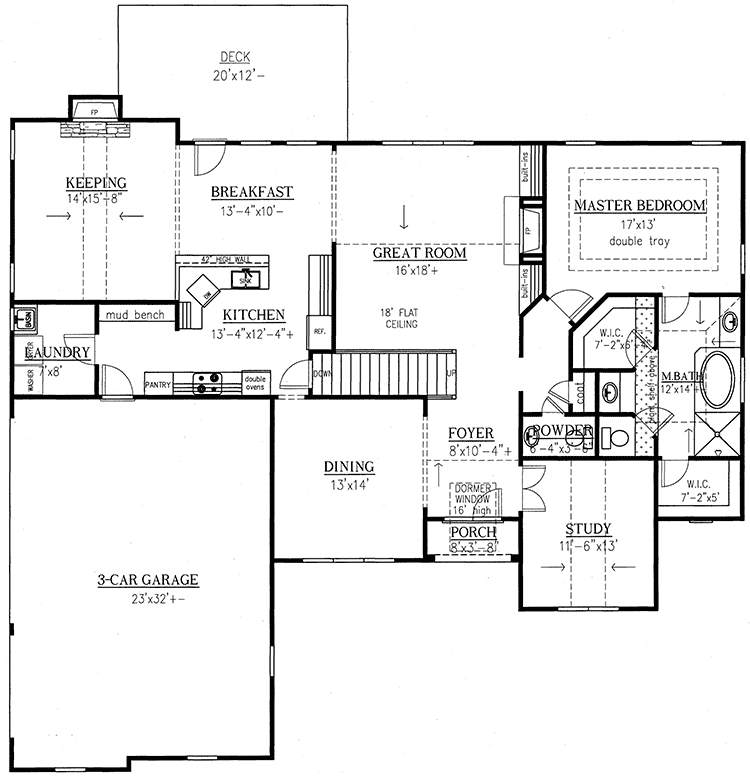

Main Level
floor plan image Main Level

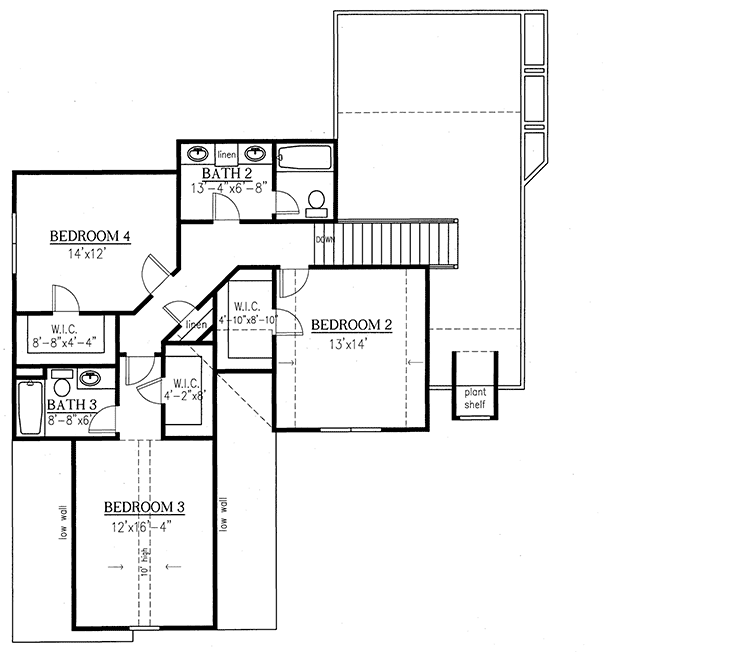

2nd Floor
floor plan image 2nd Floor
Plan Details

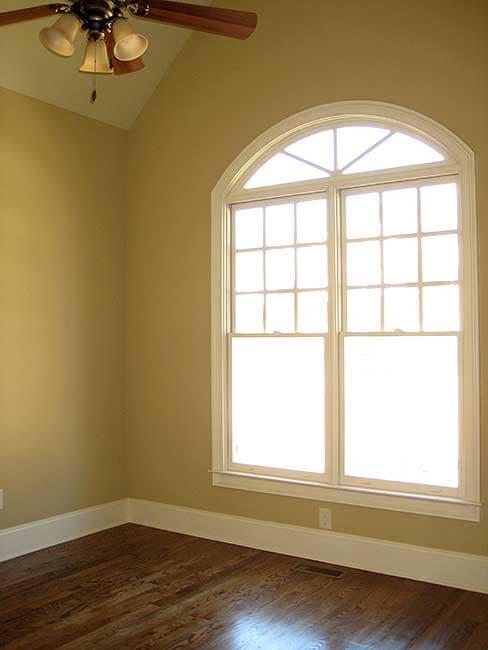

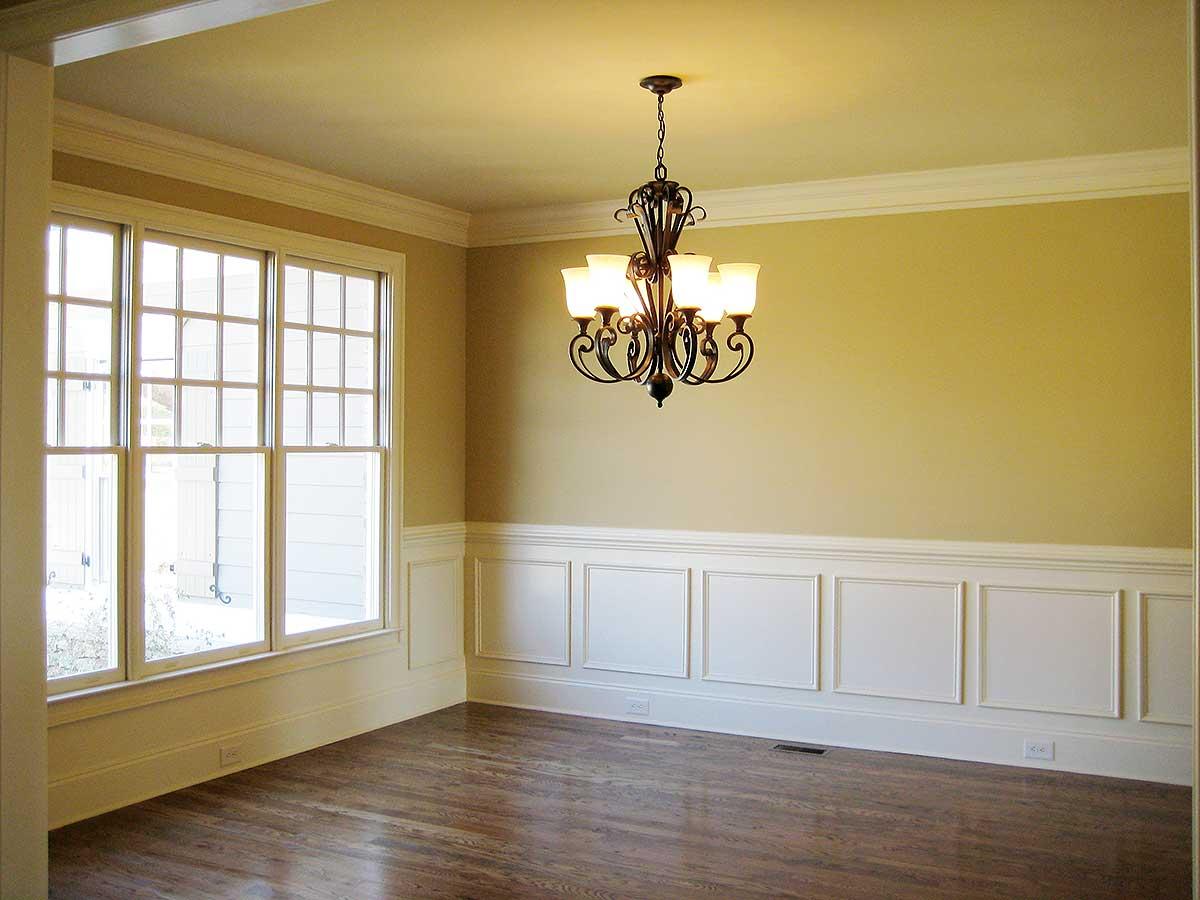

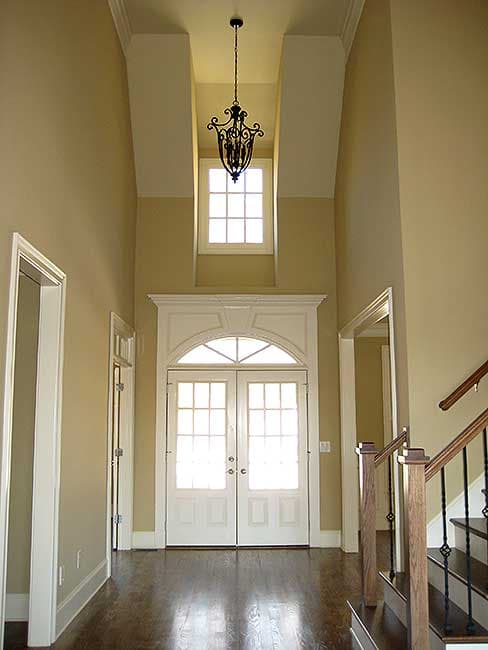

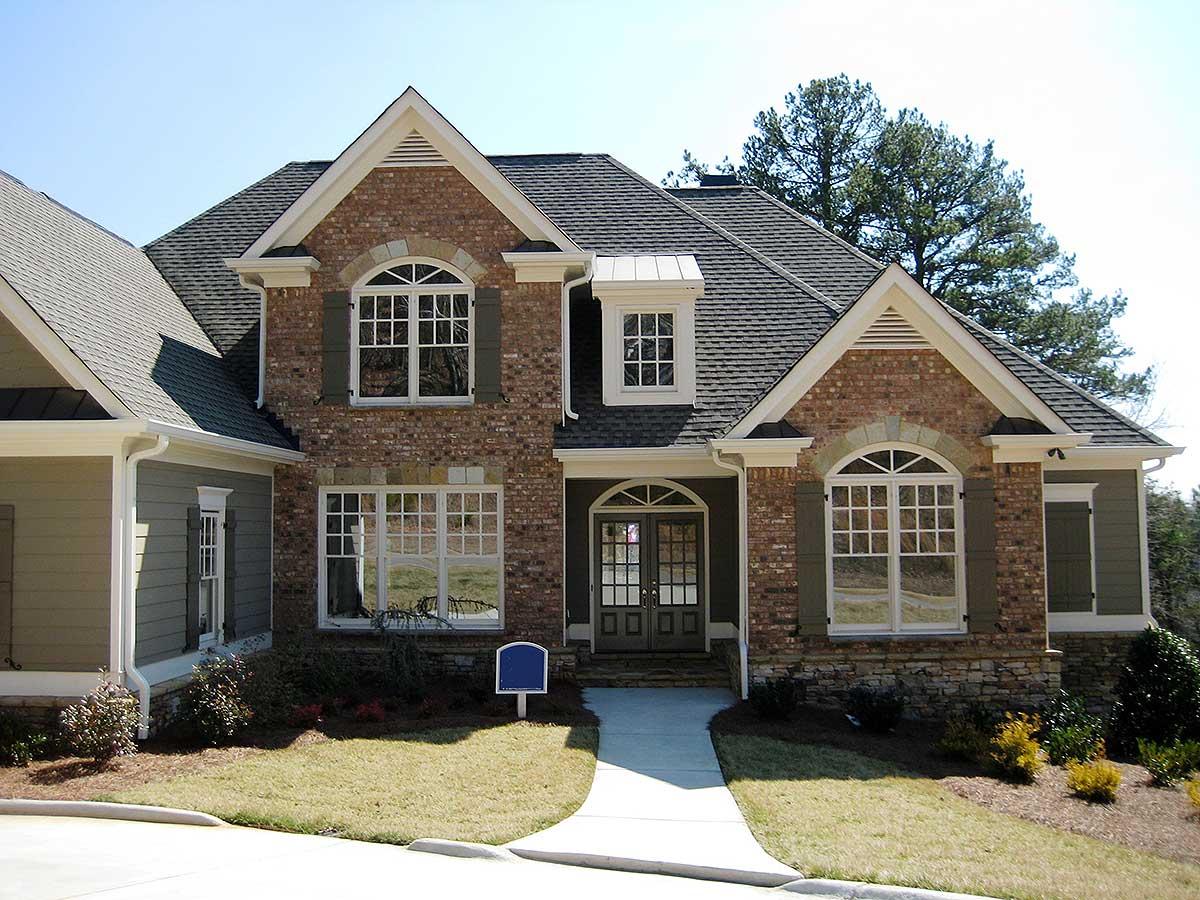

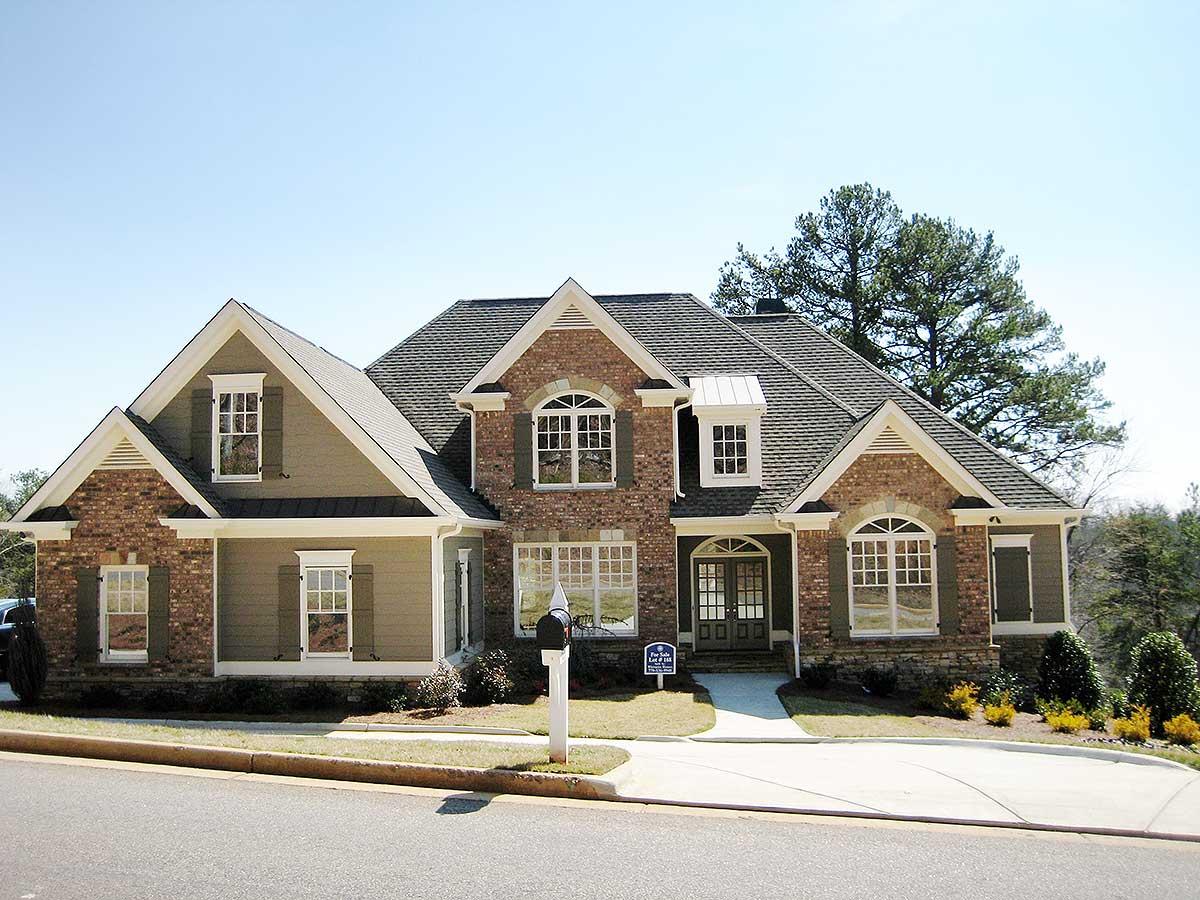

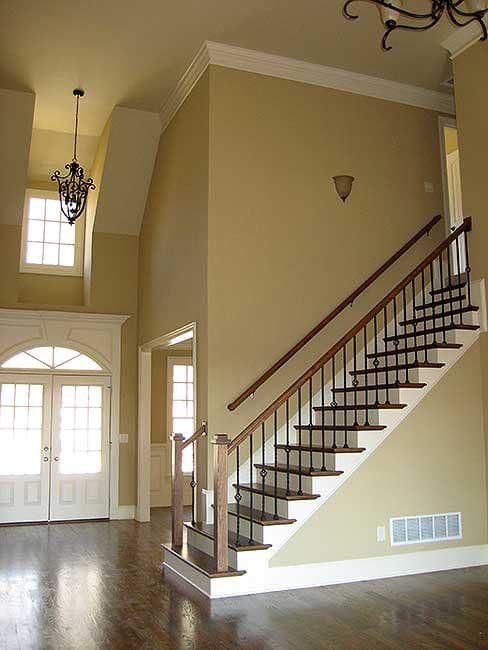

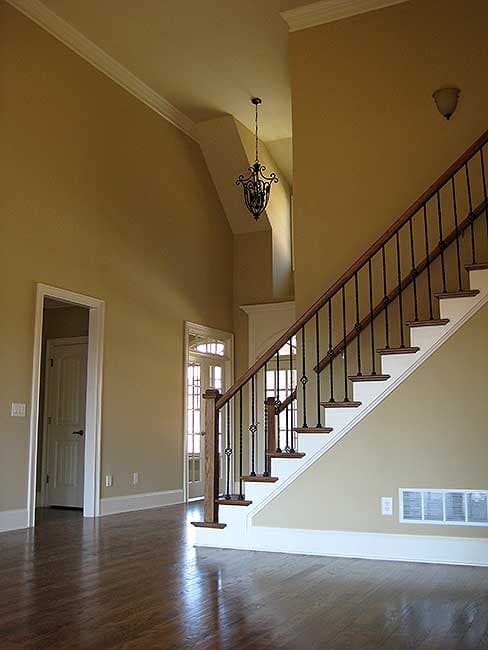

  • This house plan has great flow evident as soon as you enter the foyer which gets light from the dormer above. It is flanked by the dining room and vaulted study.

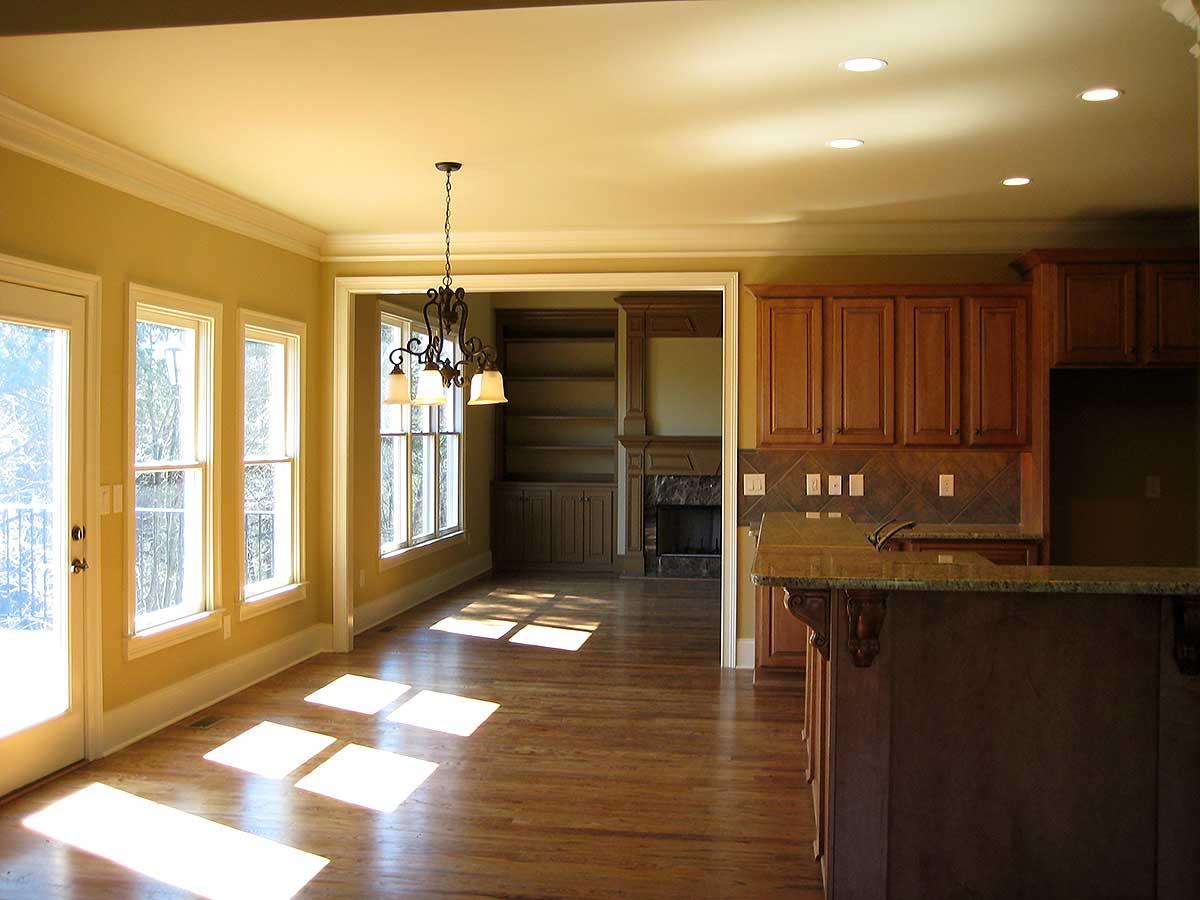

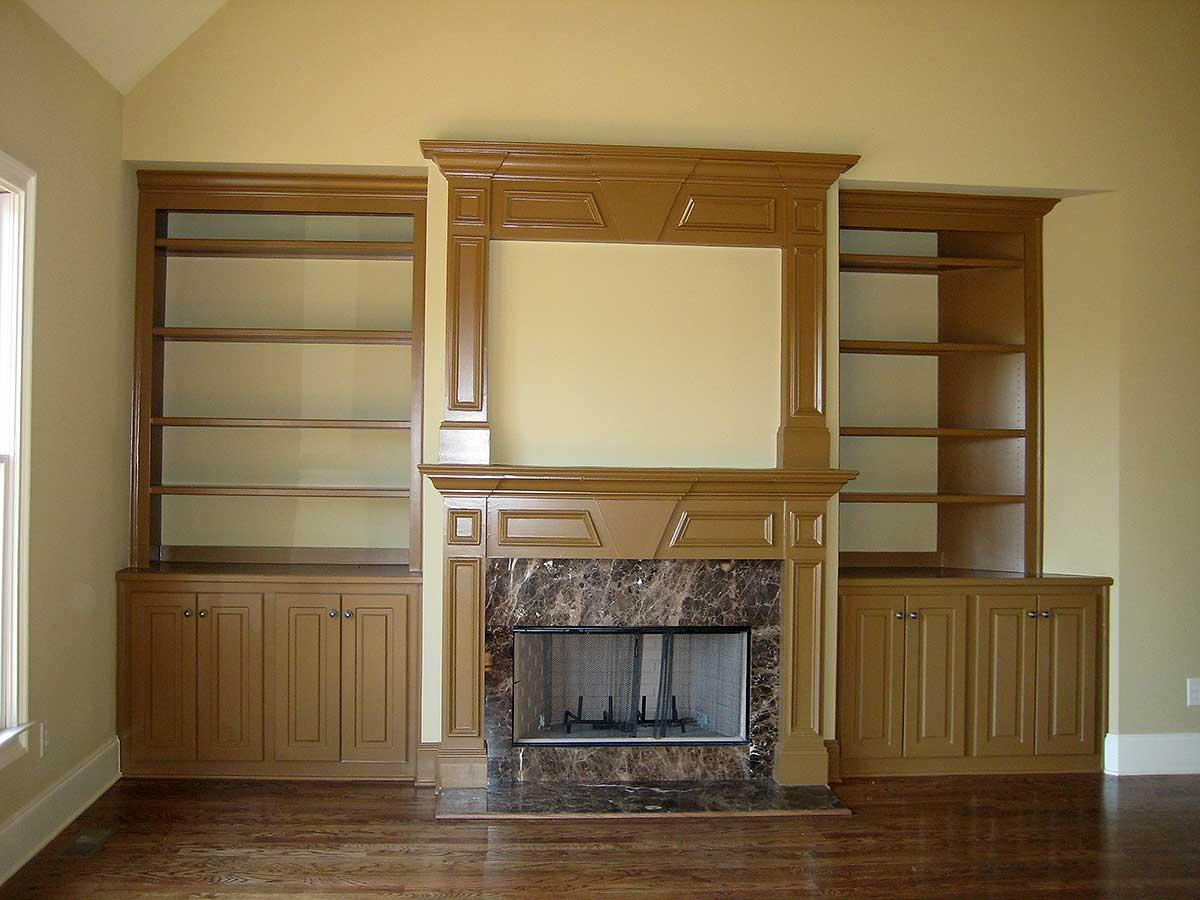

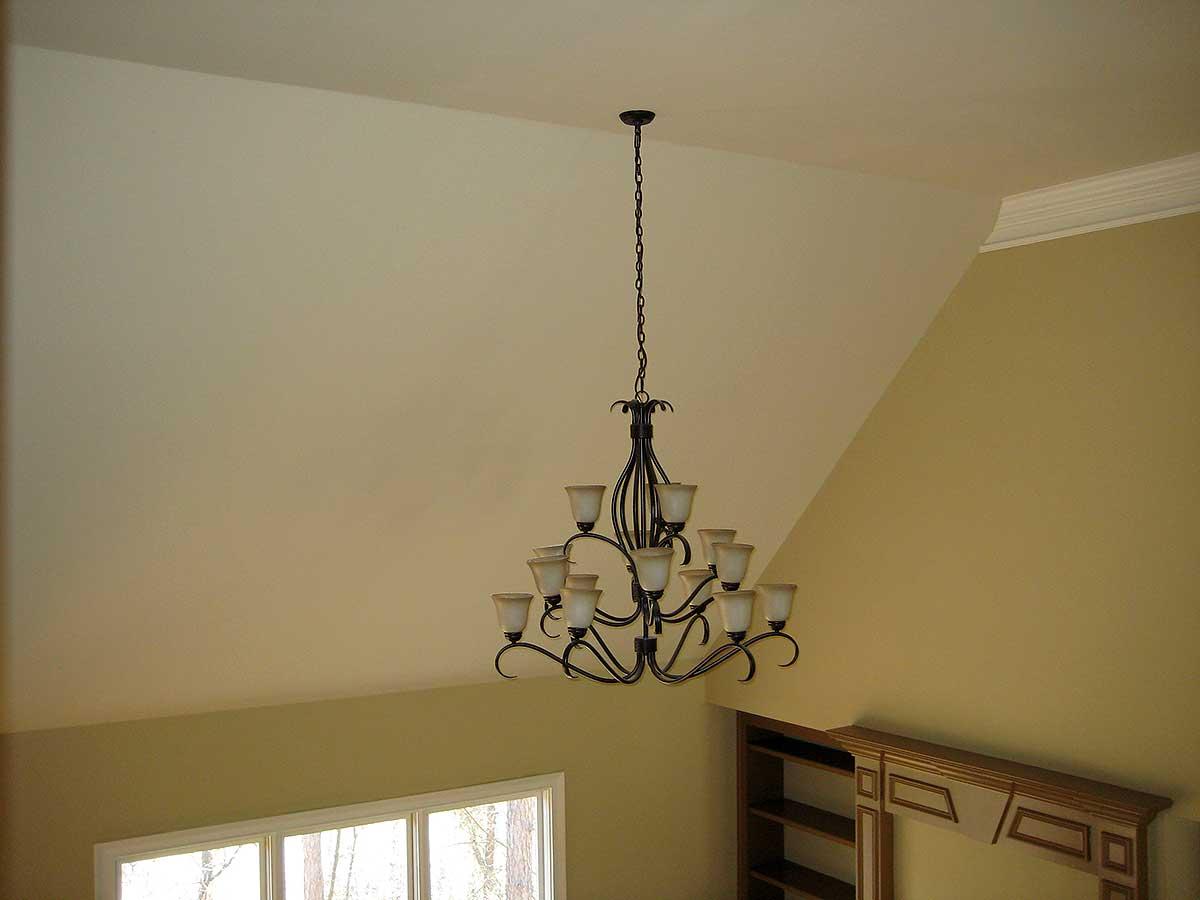

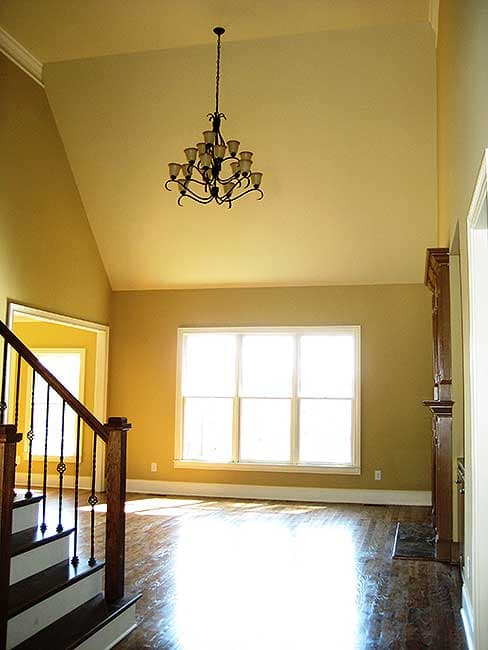

  • The great room features an 18'-high ceiling. The fireplace is flanked by built-ins. This room flows to the breakfast room and kitchen.

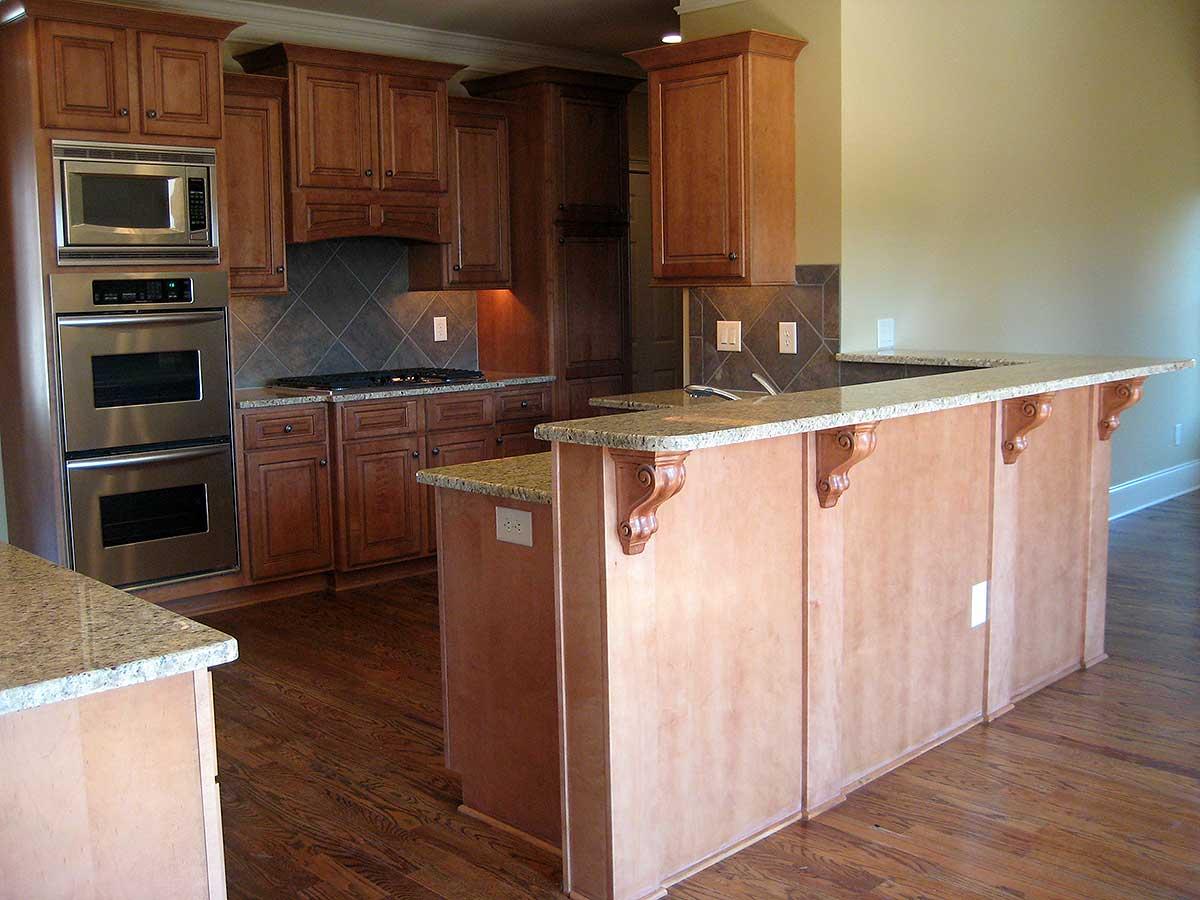

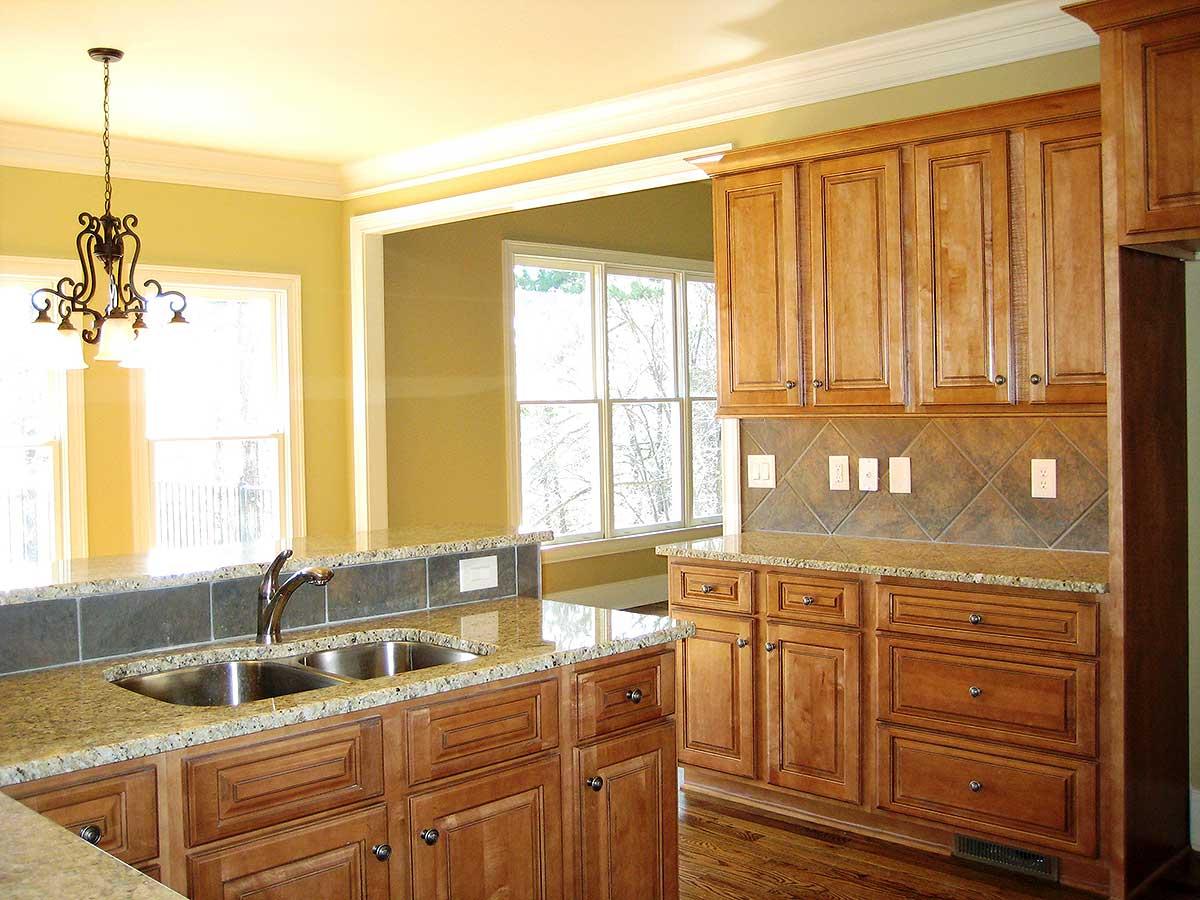

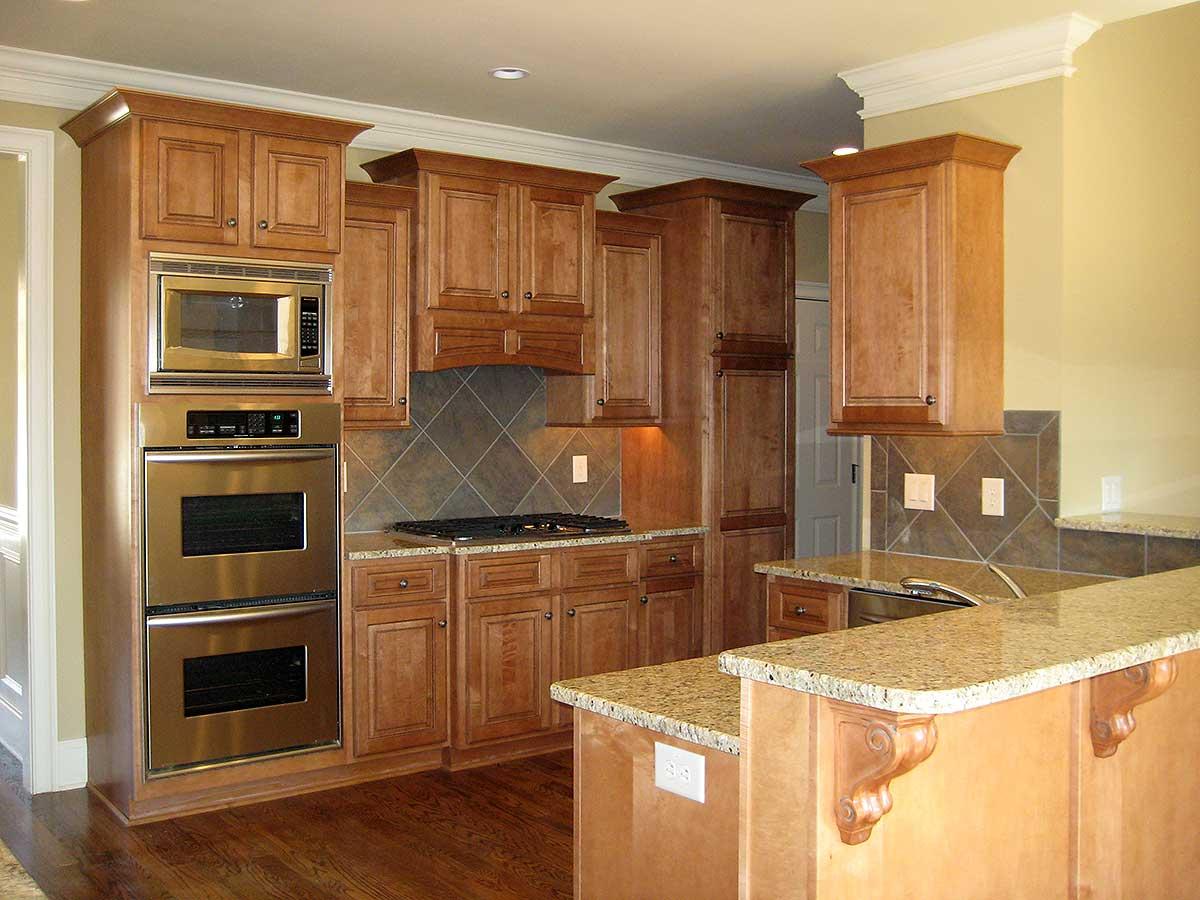

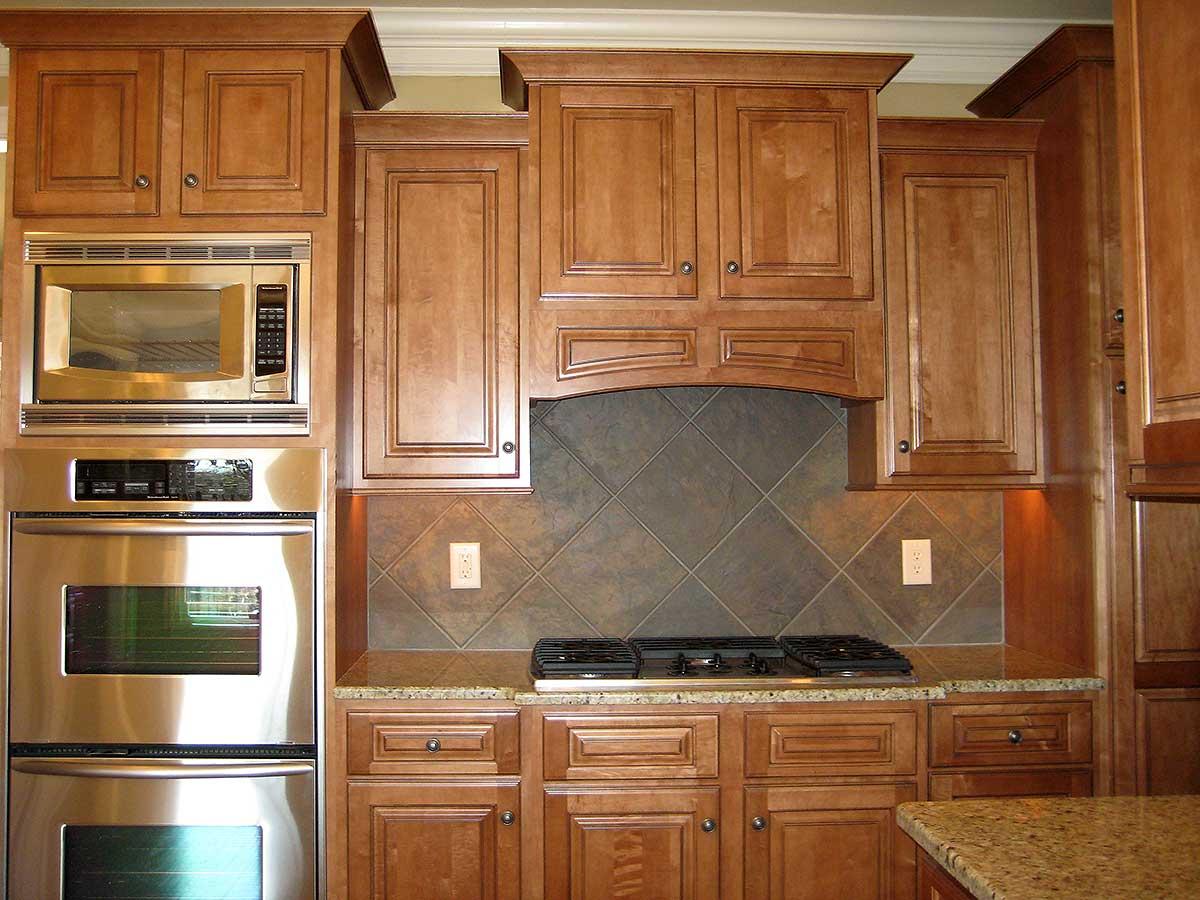

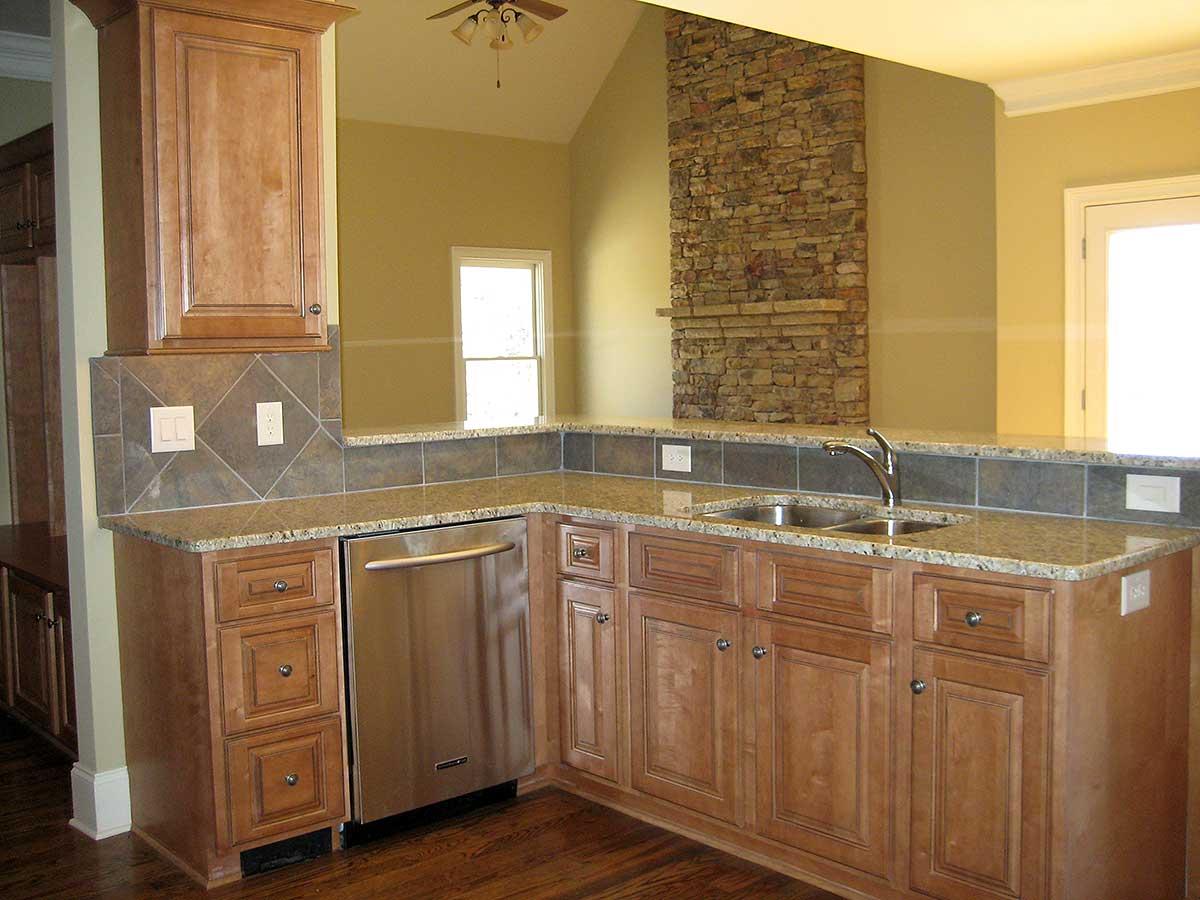

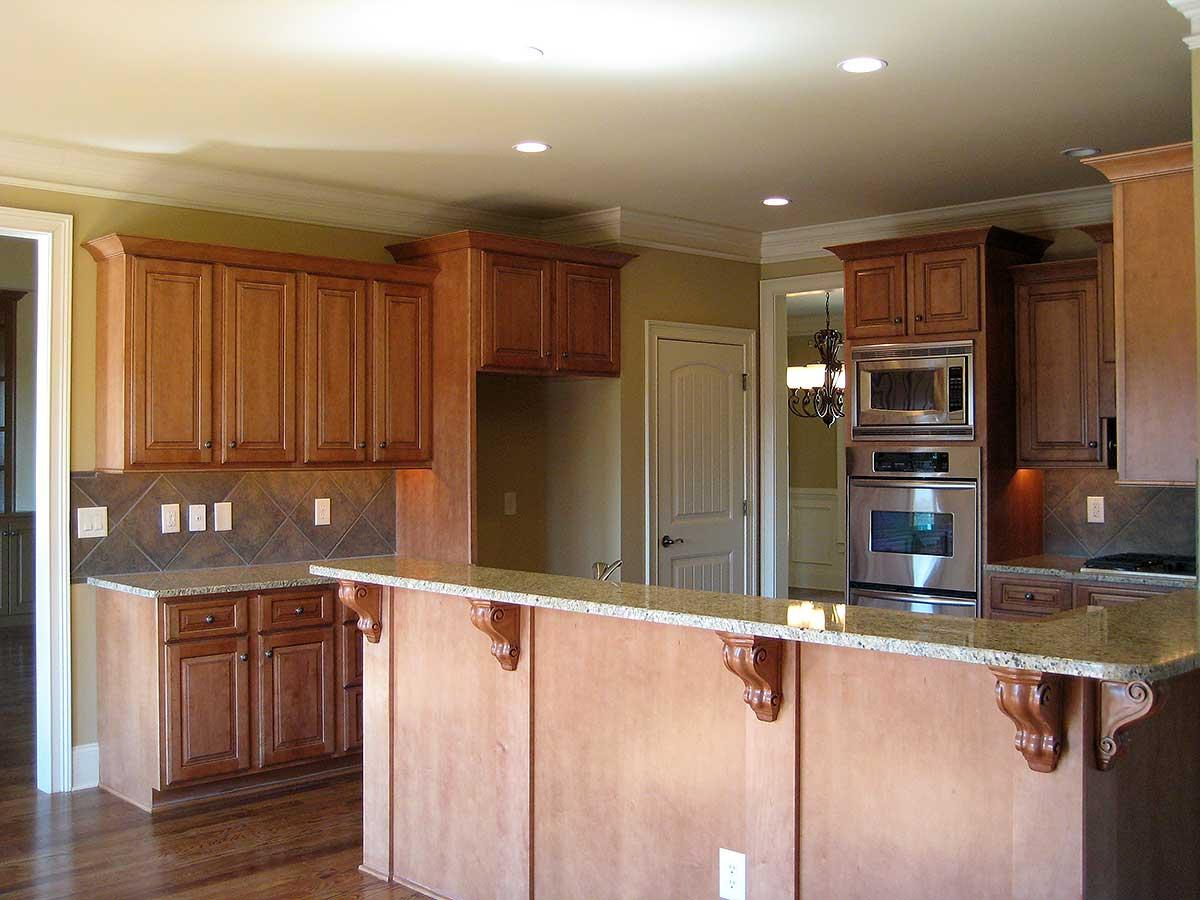

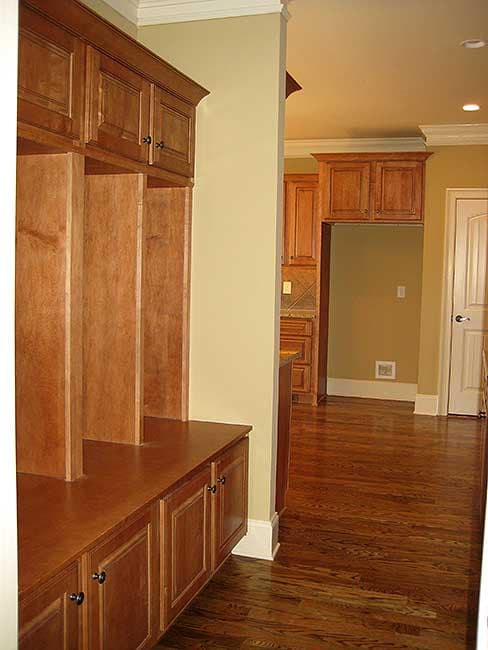

  • In the kitchen, a seating counter is perfect for informal meals. The garage entrance is conveniently located making grocery unloading a breeze. The mud room is a nice convenience.

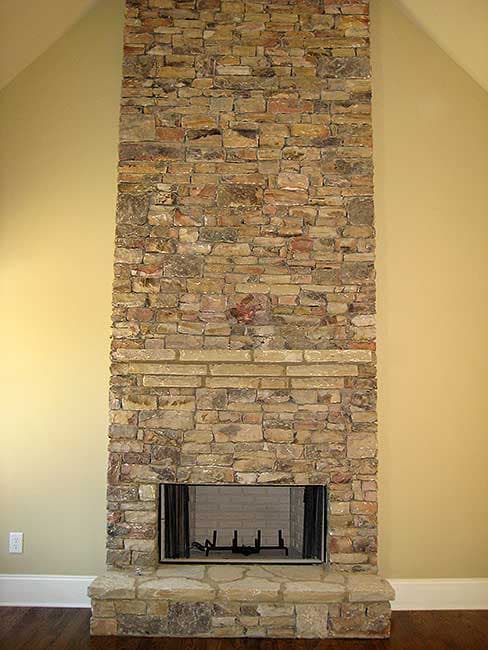

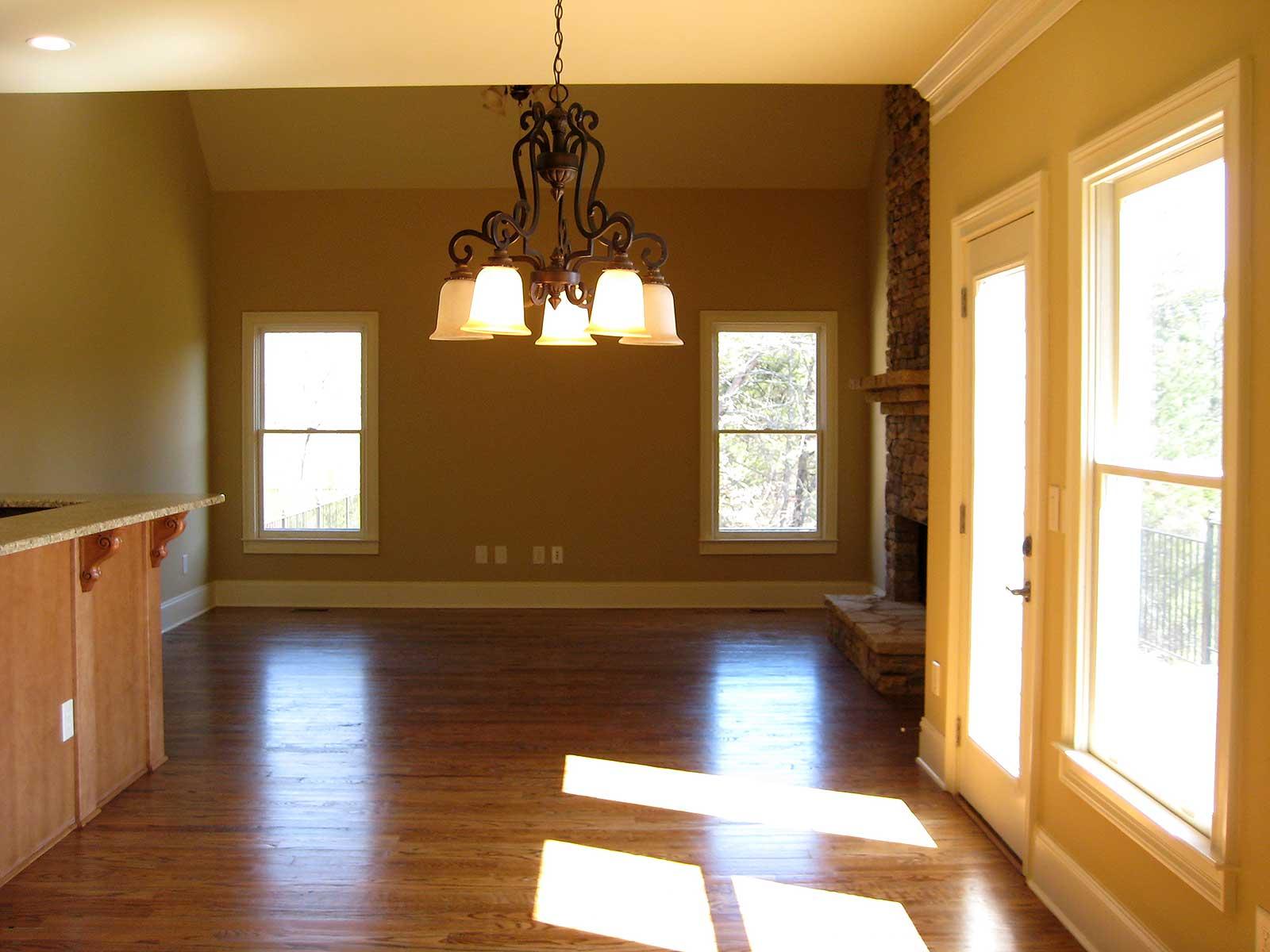

  • The keeping room is vauled and features a fireplace.

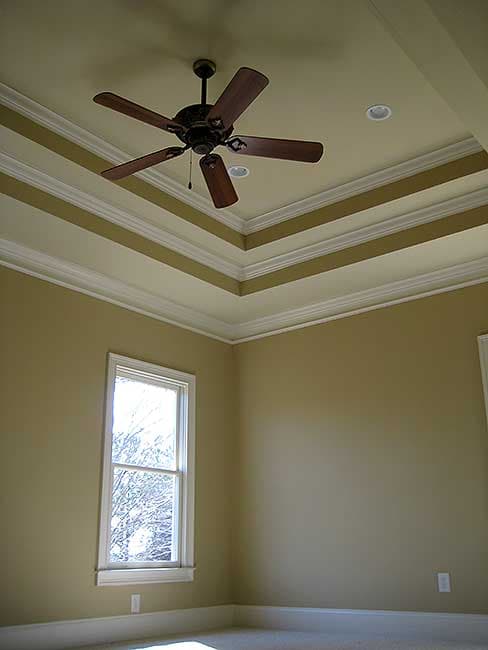

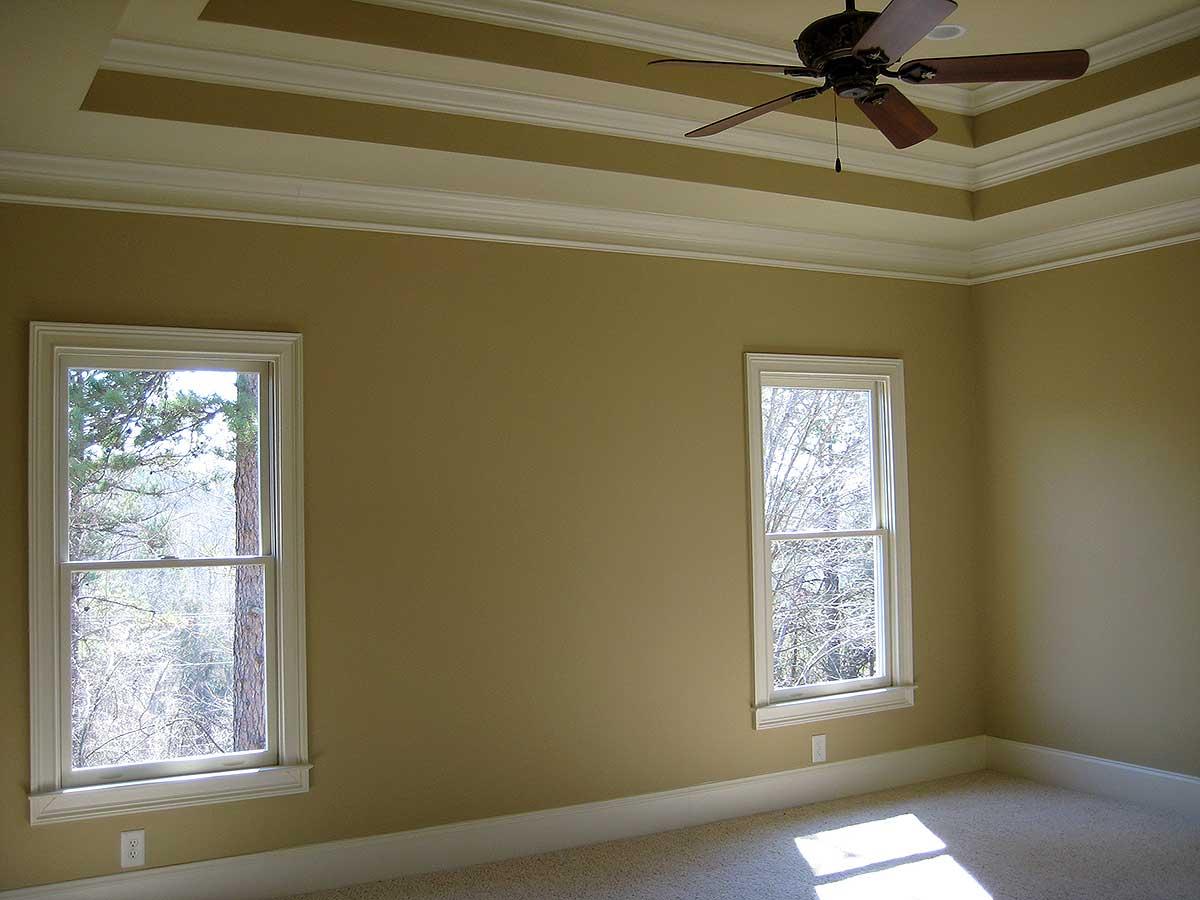

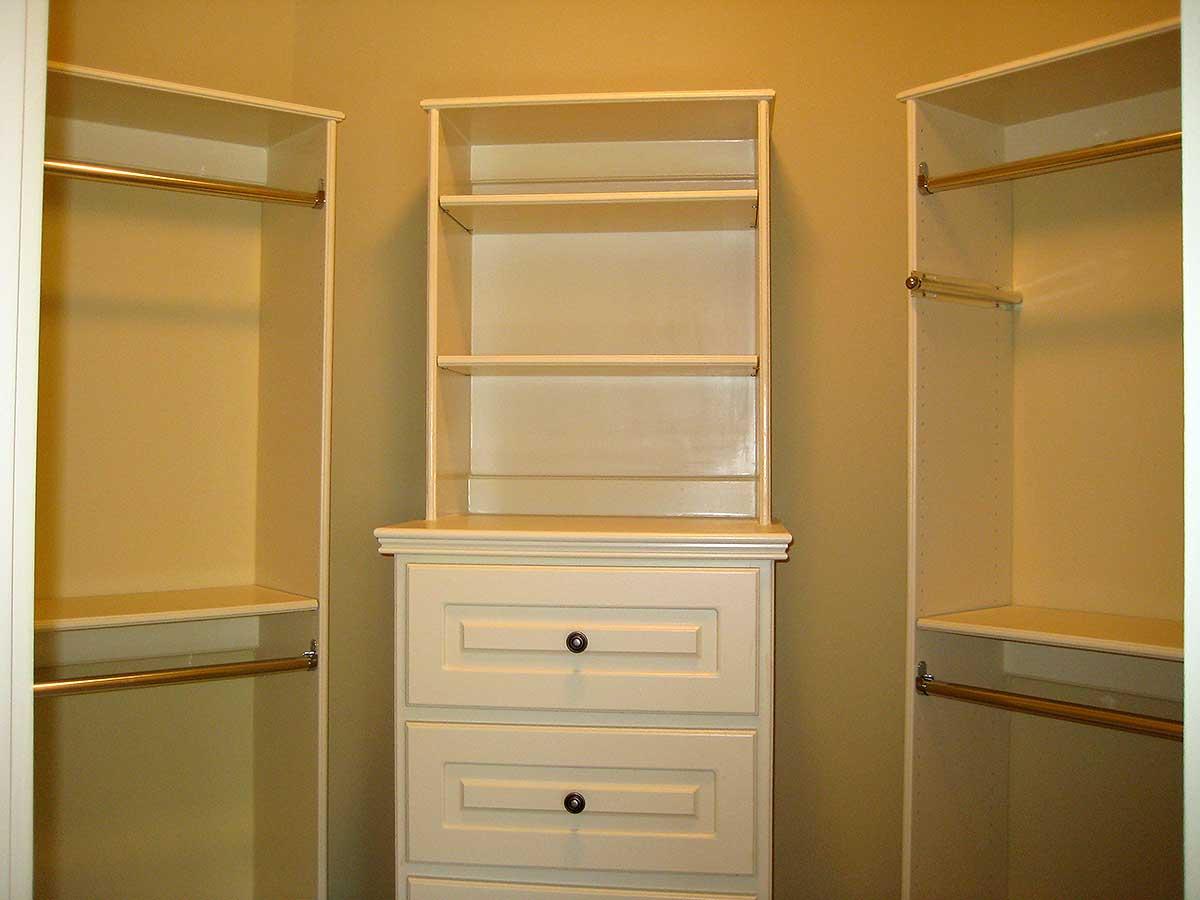

  • The private master bedroom features a double tray ceiling and has his-and-her closets.

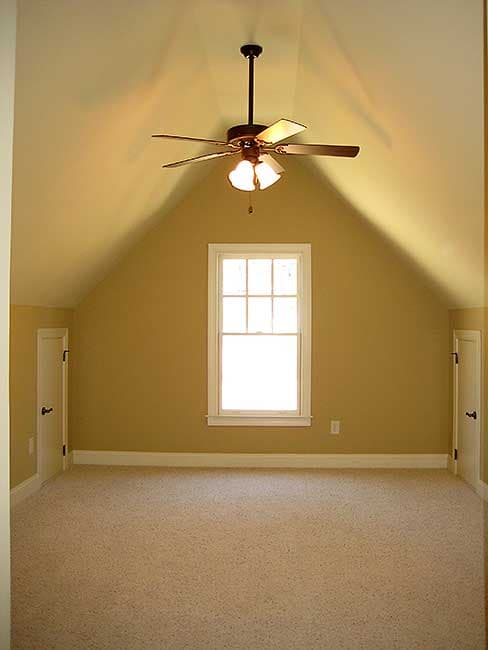

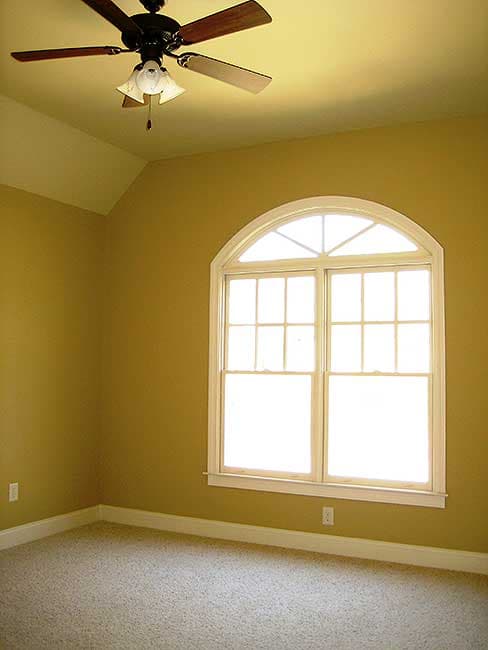

  • Upstairs, three bedrooms (one vaulted) share two baths.
  • Related Plans: For an alternate version, see house plan 24335TW.
  • For something more grand, see house plan 24346TW. And for something smaller try house plan 24327TW.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.
What's Included

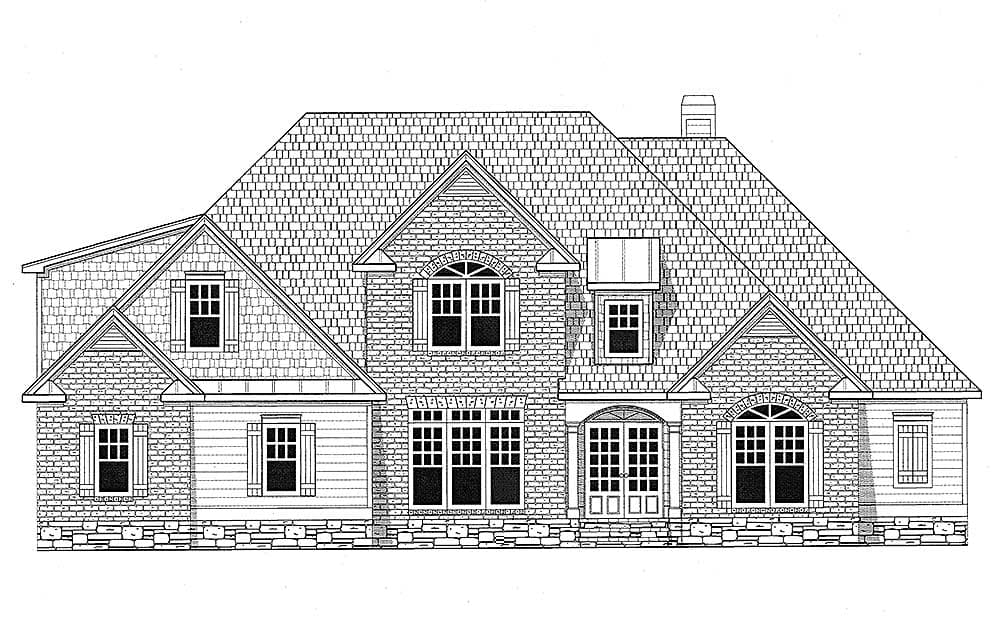

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,065 sq. ft.

1st Floor

2,068 sq. ft.

2nd Floor

997 sq. ft.

Entry

66 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

59' 4"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

736 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Keeping Room

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Luxury

Photo Gallery

Premium Collection

Sloping Lot
