Plan 521001TTL

Exclusive

Narrow 3-Bed Home Plan with Rear Garage - 1701 Sq Ft
Heated S.F.
1,701
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 521001TTL

Main Level
slide image 0

Plan 521001TTL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

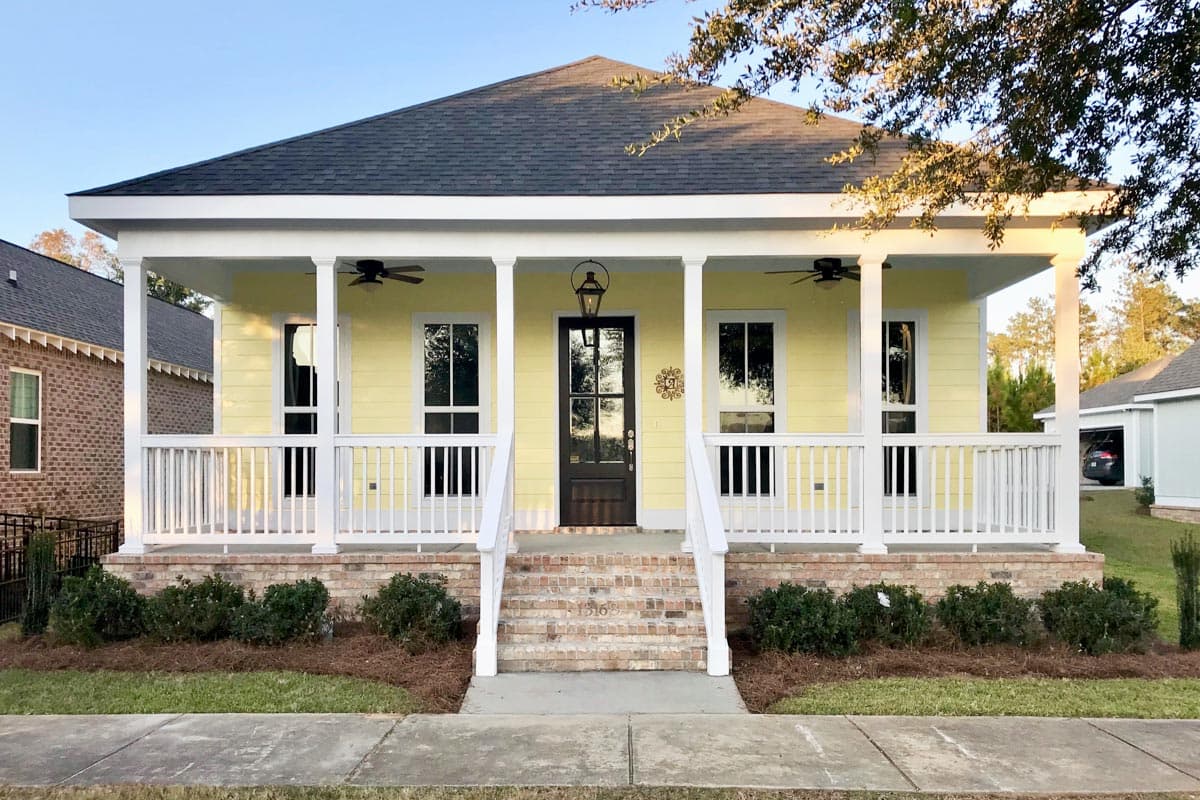

  • With a width of 28 feet, this 3-bedroom home plan is perfect for narrow plot lines. The front porch spans the width of the home, adding to the curb appeal of this exclusive floor plan.
  • Step inside to find a flex room to the left of the foyer, while the living room, kitchen, and dining area line the left side of the design.
  • L-shaped cabinets help define the kitchen, and a central prep island increases workspace. A rear porch off the dining area leads to the double garage, while providing an ideal space for a grill.
  • The master bedroom is situated towards the back of the home, next door to the laundry room, and features a 5-fixture bathroom and walk-in closet.
  • Bedrooms 2 and 3 are identical in size and separated by a full bath.
  • Related Plan: Get an alternate version with house plan 521016TTL.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan

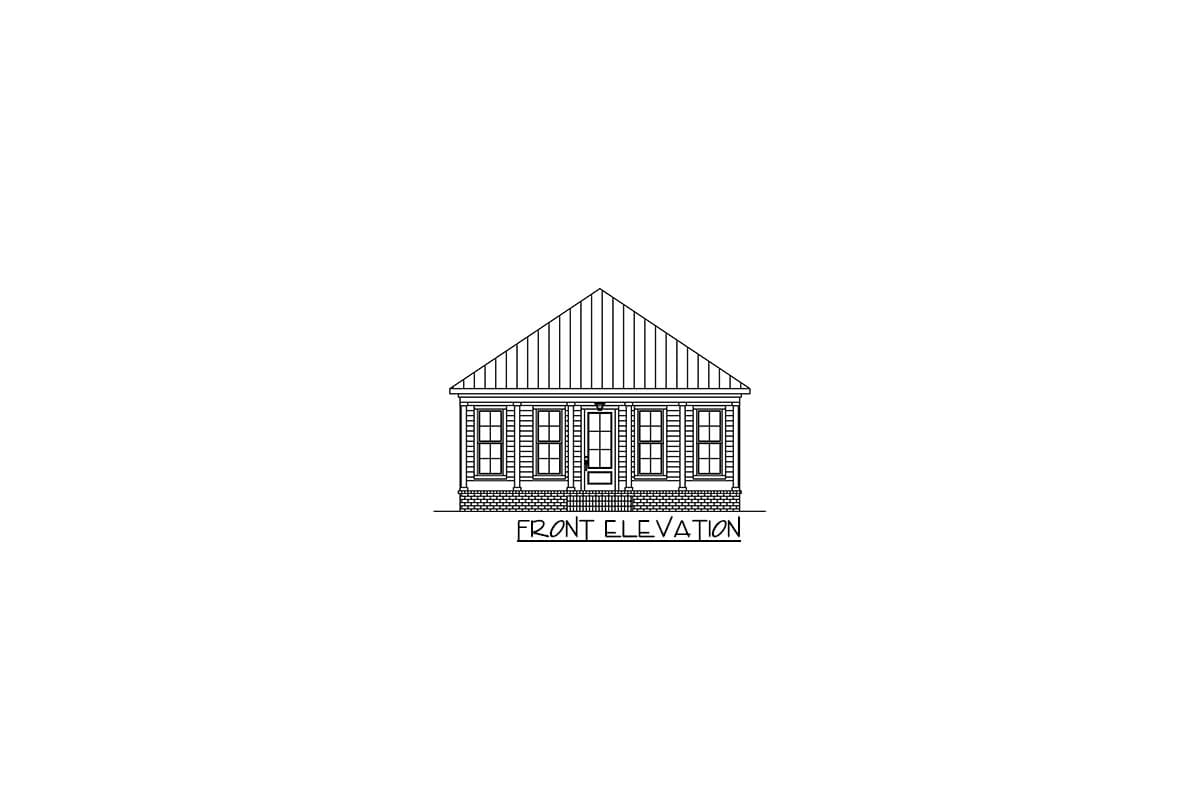

  • Front, side and rear elevations
