Plan 51713HZ
Narrow Cottage with 3 Dormers - 2172 Sq Ft
Heated S.F.
2,172
Beds
4
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 51713HZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 51713HZ

1-800-854-7852

1-262-521-4596

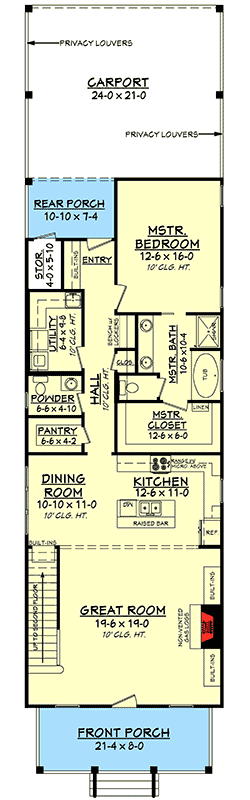

Main Level
floor plan image Main Level

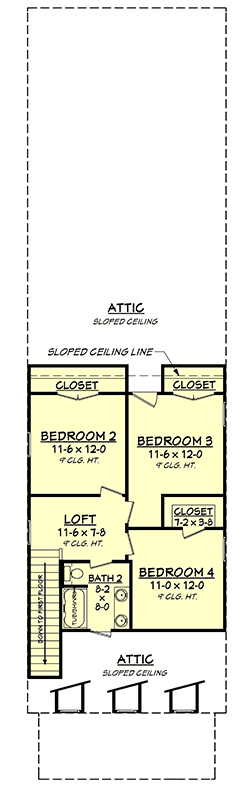

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This narrow lot home has a grand appeal with 10' ceilings throughout the first floor. The spacious front porch enters into a large great room featuring a gas fireplace and a decorative staircase entrance to the second floor.
  • The kitchen and dining room have the advantage of a nearby pantry and are open to the great room for convenience in entertaining.
  • The master suite is nestled privately down the hall on the first floor. It offers a sizable master bath and closet. Three other bedrooms are situated on the second floor featuring 9 ceilings.
  • The generous loft opens to all three upstairs' bedrooms and the second full bath. Plenty of attic storage is also readily available on the second floor.
  • The main pitch is 8:12 and the secondary pitch is 10:12.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51713HZ comes to life in Georgia!

House Plan 51713HZ comes to life in Georgia!

3

Photos

What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

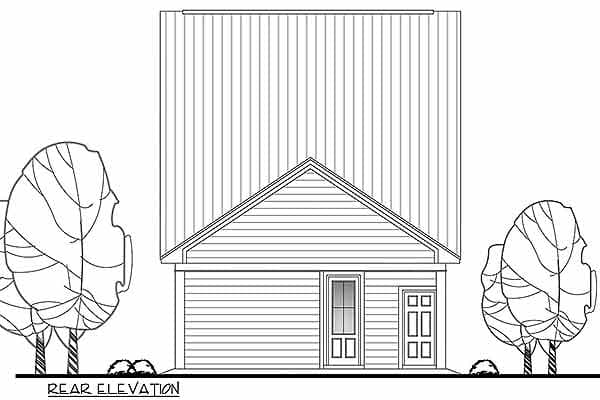

  • Four exterior views (front, rear, right, left)
