Plan 17685LV
Narrow Craftsman Cottage
Heated S.F.
2,107
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 17685LV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17685LV

1-800-854-7852

1-262-521-4596

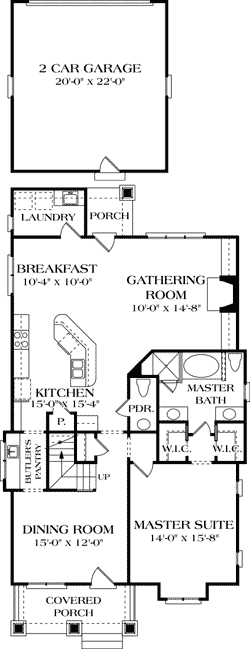

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Shingles and stone define this craftsman style house plan.
  • The kitchen is flanked by a breakfast area and butler's pantry leading into the formal dining room.
  • The gathering room enjoys a fireplace and built-ins and is open to the kitchen.
  • The master suite is on the main for convenience. A bumpout makes a great reading nook.
  • Two bedrooms share a bath upstairs. You'll also find extra storage as well.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,107 sq. ft.

1st Floor

1,478 sq. ft.

2nd Floor

629 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

59' 0"

Garage

Type

Detached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Shingle

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,107 sq. ft.

1st Floor

1,478 sq. ft.

2nd Floor

629 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

59' 0"

Garage

Type

Detached

Area

434 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Shingle

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
