Plan 68765VR
Narrow Craftsman Home Plan with Rear Double Garage - 1888 Sq Ft
Heated S.F.
1,888
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 68765VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68765VR

1-800-854-7852

1-262-521-4596

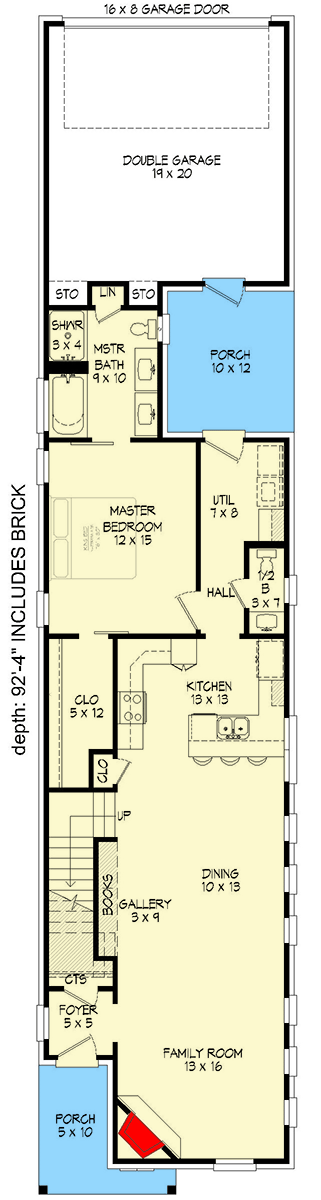

Main Level
floor plan image Main Level

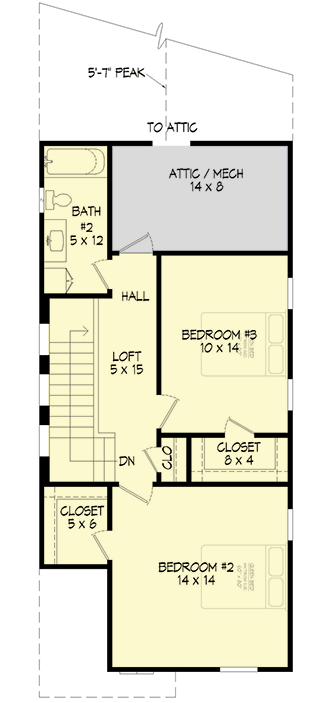

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Craftsman home plan is perfect for skinny lots and includes an open-concept living space, main-level master bedroom, and a double garage accessible from the rear of the home.
  • A coat closet greets you in the foyer, which opens to the family room with a corner fireplace. Unobstructed views are provided between the living, dining, and kitchen areas for a truly open family-friendly space.
  • From the double garage, a porch provides a breezeway to the house.
  • The master bedroom is conveniently located on the main level and features a walk-in closet and 5-fixture bathroom with a linen closet.
  • Each of the bedrooms upstairs include a walk-in closet and share the hall bath.
  • Related Plan: Get an alternate exterior with house plan 68764VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,888 sq. ft.

1st Floor

1,217 sq. ft.

2nd Floor

671 sq. ft.

Porch, Combined

174 sq. ft.

Attic

124 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

92' 4"

Depth

20' 0"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
