Plan 38023LB
Narrow Duplex with Vaulted Bedrooms
Heated S.F.
3,324
Units
2
Width
Depth
Floor Plan

Plan 38023LB

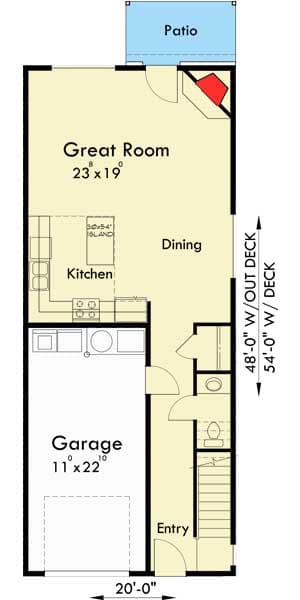

Main Level
slide image 0

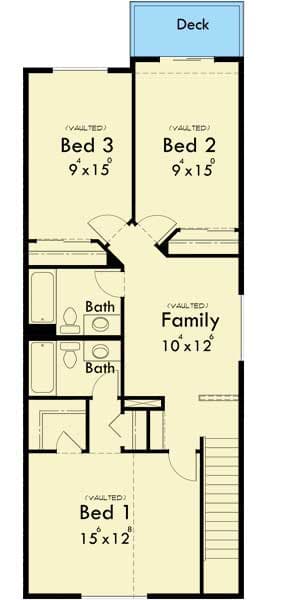

2nd Floor
slide image 1

Plan 38023LB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This duplex house plan gives you matching 20'-wide units with 3 beds and 2.5 baths in each one.
  • Each unit gives you 1,662 square feet of living (692 sq. ft. on the main floor and 970 sq. ft. on the upper floor) and a 268 square foot garage and a 52 square foot deck.
  • All the bedrooms are on the upper floor and have vaulted ceilings. Bed 2 has access to the back deck.
  • The main floor is open concept with sliding glass doors leading to a covered patio.
Unit A
1,662Sq. Ft.
692 Sq. Ft.
1st Floor
970 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
268 Sq. Ft.
20'width
54'depth
25'height
Unit B
1,662Sq. Ft.
692 Sq. Ft.
1st Floor
970 Sq. Ft.
2nd Floor
3Beds
2Full Baths
1Half Bath
1Vehicle
Attached
268 Sq. Ft.
20'width
54'depth
25'height
What's Included
  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,324 sq. ft.

1st Floor

1,384 sq. ft.

2nd Floor

1,940 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Rear

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,324 sq. ft.

1st Floor

1,384 sq. ft.

2nd Floor

1,940 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

54' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Rear

Special Features

Master Suite - 1st Floor
