Plan 420116WNT

Exclusive

Narrow Lot 3-Bed House Plan with 5-Foot Deep Front Porch - 1100 Sq Ft
Heated S.F.
1,100
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 420116WNT

Main Level
slide image 0

Plan 420116WNT

1-800-854-7852

1-262-521-4596

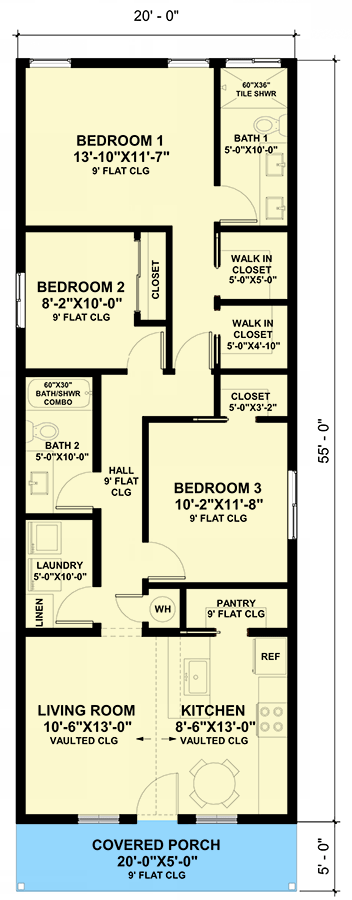

Main Level
floor plan image Main Level
Plan Details

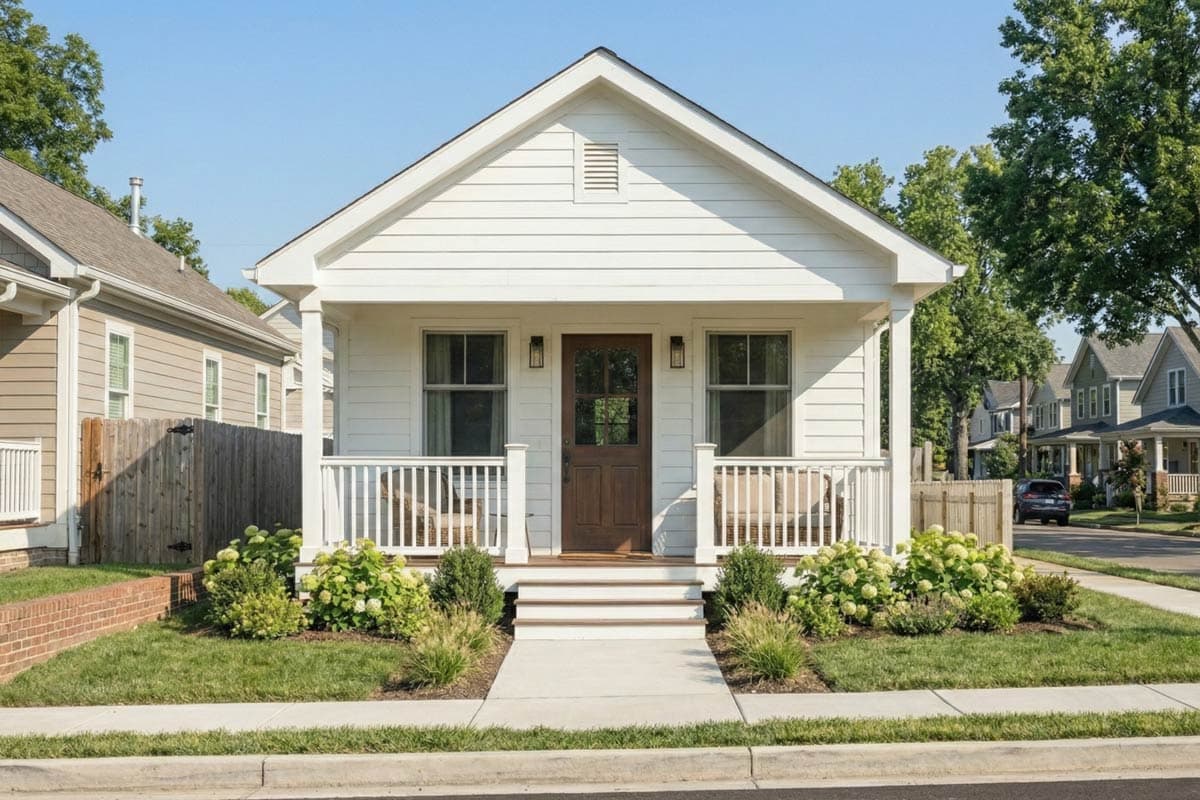

  • This narrow lot house plan - just 20' wide - gives you 3 beds, 2 baths and 1100 square feet of heated living space. A 5-foot-deep front porch spans the entire width of the home plan.
  • Enter the home and find yourself in a vaulted interior with the living room open to the kitchen with peninsula seating. A pantry hidden behind a pocket door gives you great storage.
  • Pass the laundry room and you'll find the bedrooms as you progress down the hall. The largest bedroom fills the back of the home with its ensuite bathroom.

What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

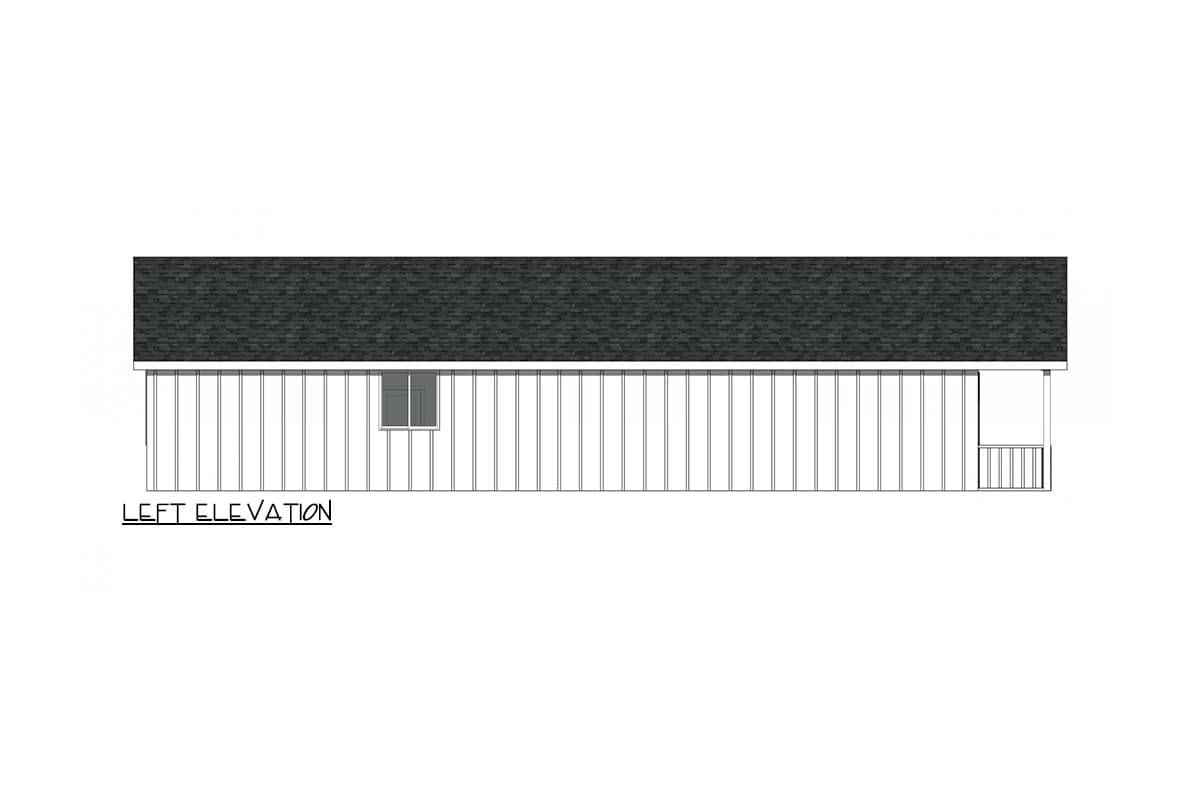

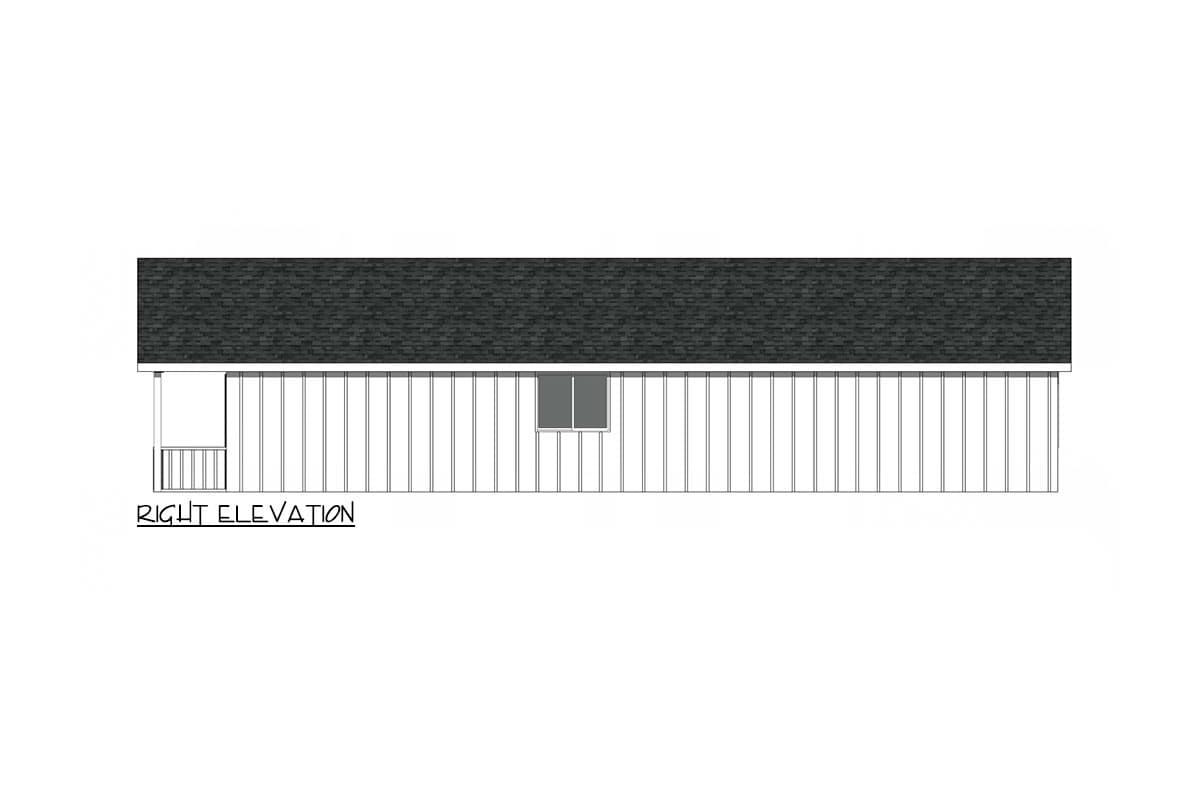

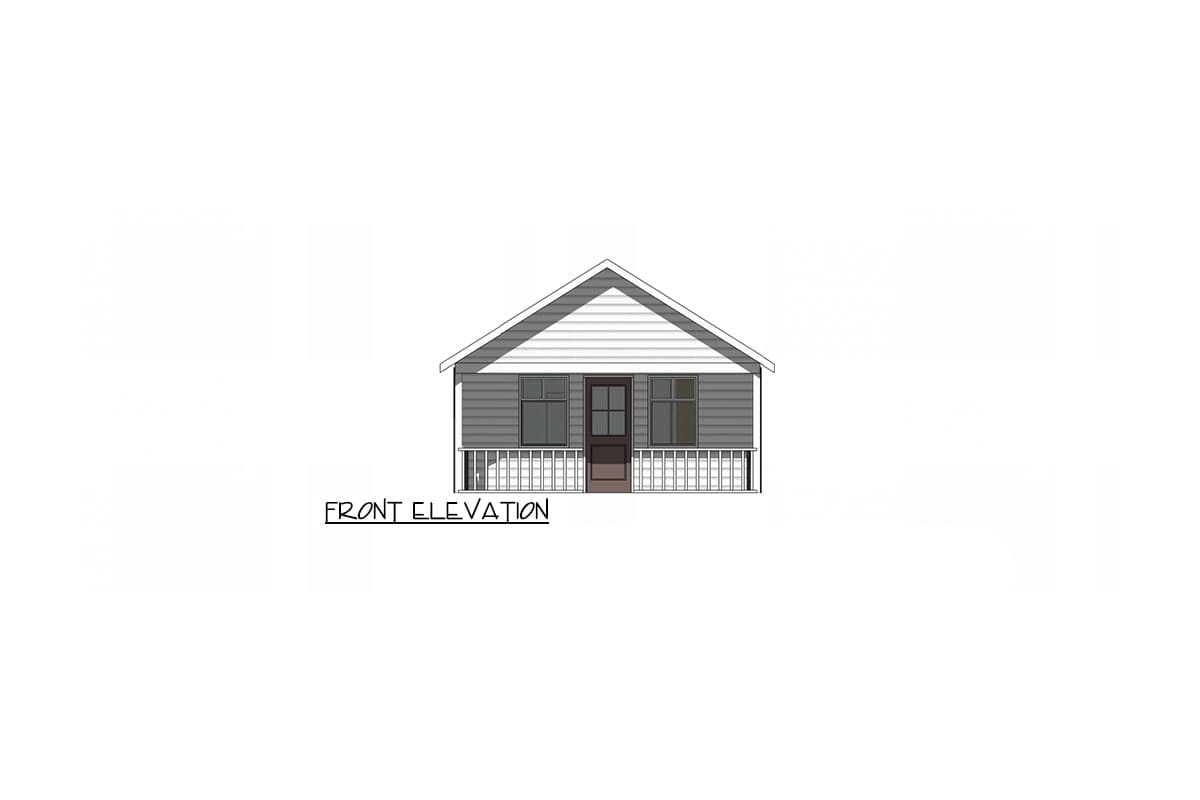

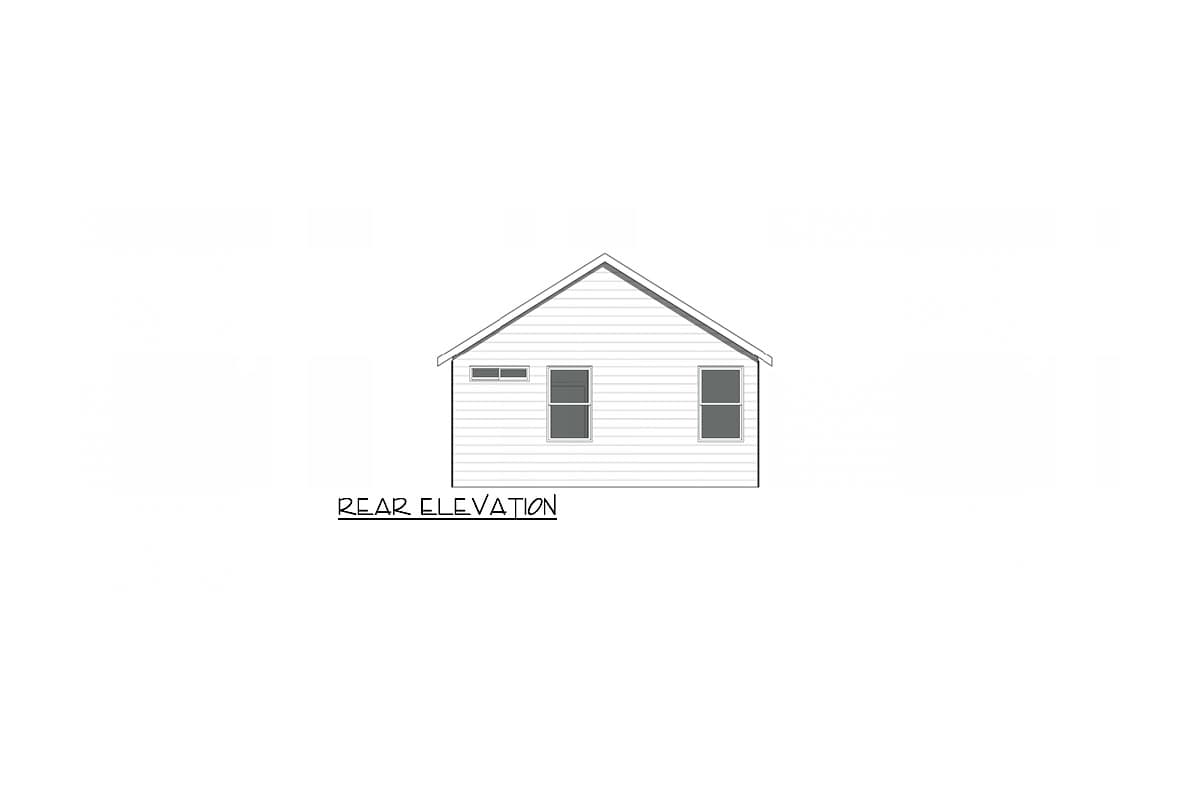

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,100 sq. ft.

1st Floor

1,100 sq. ft.

Porch, Front

100 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

60' 0"

Max Ridge Height

15' 6"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

12' 0''

Kitchen

Vaulted

12' 0''

Roof Details

Primary Pitch

7.5 on 12

Framing Type

Truss

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
