Plan 42089MJ
Narrow Lot 3-Bed House Plan with Front-to-Back Entertaining - 1278 Sq Ft
Heated S.F.
1,278
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 42089MJ

Main Level
slide image 0

Plan 42089MJ

1-800-854-7852

1-262-521-4596

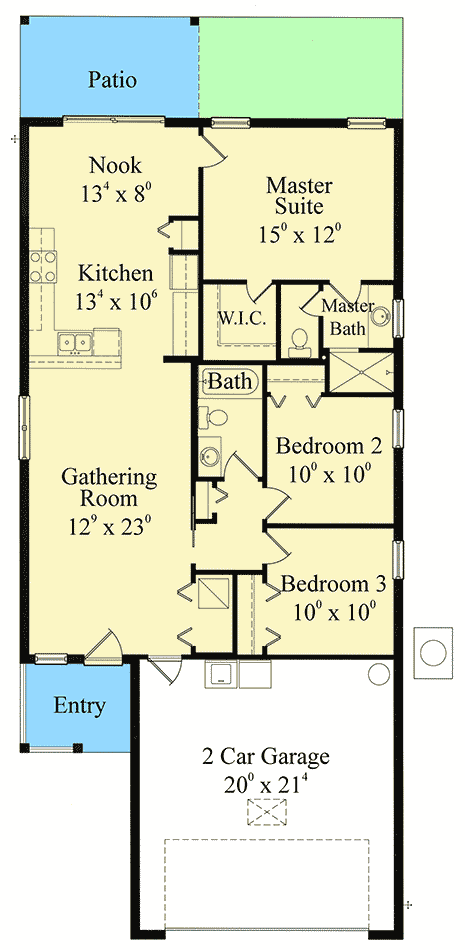

Main Level
floor plan image Main Level
Plan Details
  • At only 30'-wide, this 3-bed house plan is perfect for your narrow lot.
  • The left side of the home is open front-to-back and is designed for gathering with friends. The bedrooms are on the right. The master suite has a walk-in closet and a walk-in shower. Beds 2 and 3 share a hall bath.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)

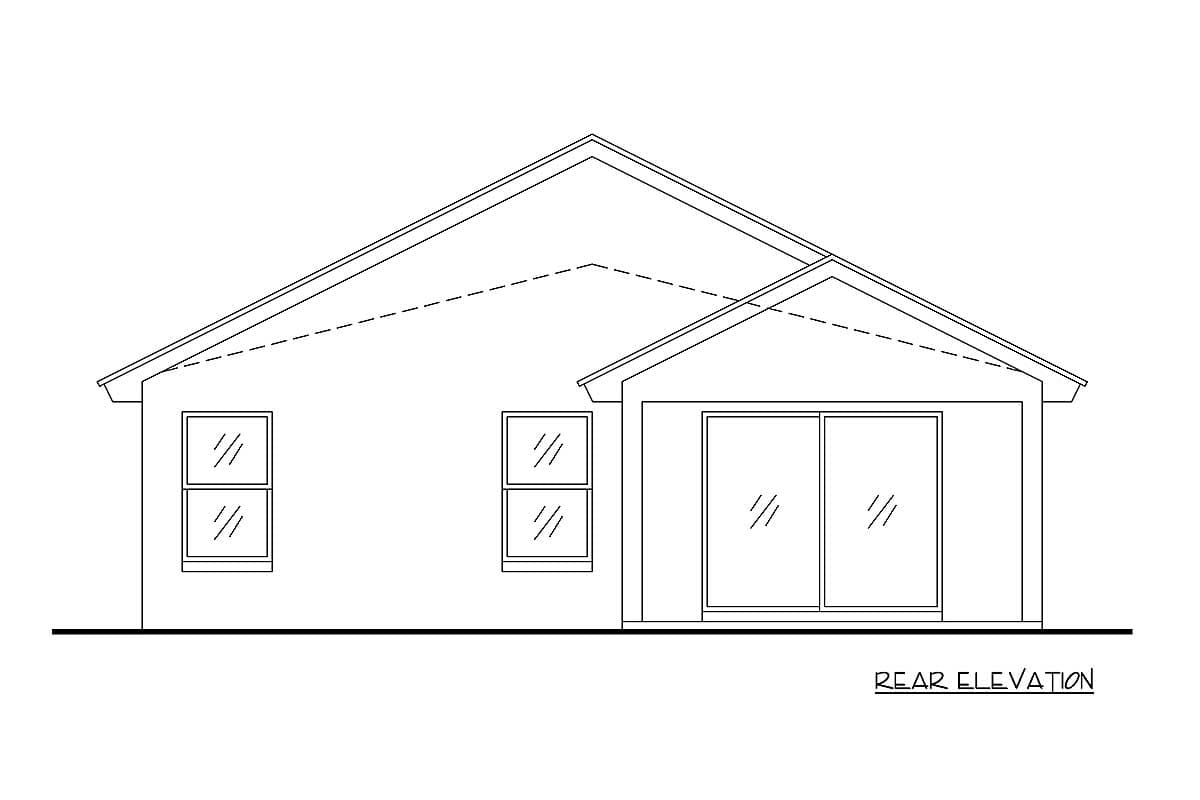

  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,278 sq. ft.

1st Floor

1,278 sq. ft.

Entry

60 sq. ft.

Covered Patio

112 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

30' 0"

Depth

64' 6"

Max Ridge Height

16' 7"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,278 sq. ft.

1st Floor

1,278 sq. ft.

Entry

60 sq. ft.

Covered Patio

112 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

30' 0"

Depth

64' 6"

Max Ridge Height

16' 7"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
