Name: Plan 80741PM: Narrow Lot Cabin
SKU: 80741PM
Price: 920.0 USD
Availability: InStock

Plan 80741PM

Narrow Lot Cabin

Heated S.F.

1,352

Beds

Baths

Stories

Floor Plan

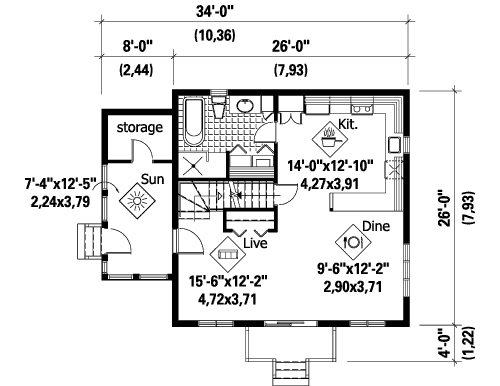

Main Level

2nd Floor

Plan Details

What a great rustic Vacation home plan!
This home would look equally well on a lake or in the mountains.
You can enter through the sunporch or use the sliding glass doors and enter right into the main living area.
The kitchen is spacious and has a lot of counter space.
The first floor bathroom is efficiently designed with a laundry closet to save space.
Upstairs you will find the sleeping quarters with two bedrooms and lots of storage.

What's Included

Please note this plan is designed to the National Building Code of Canada.

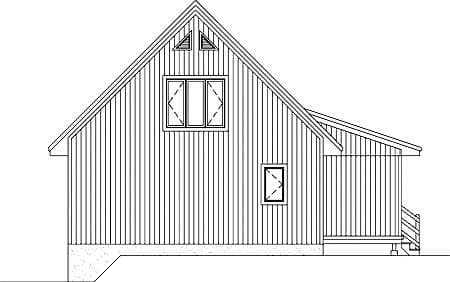

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
