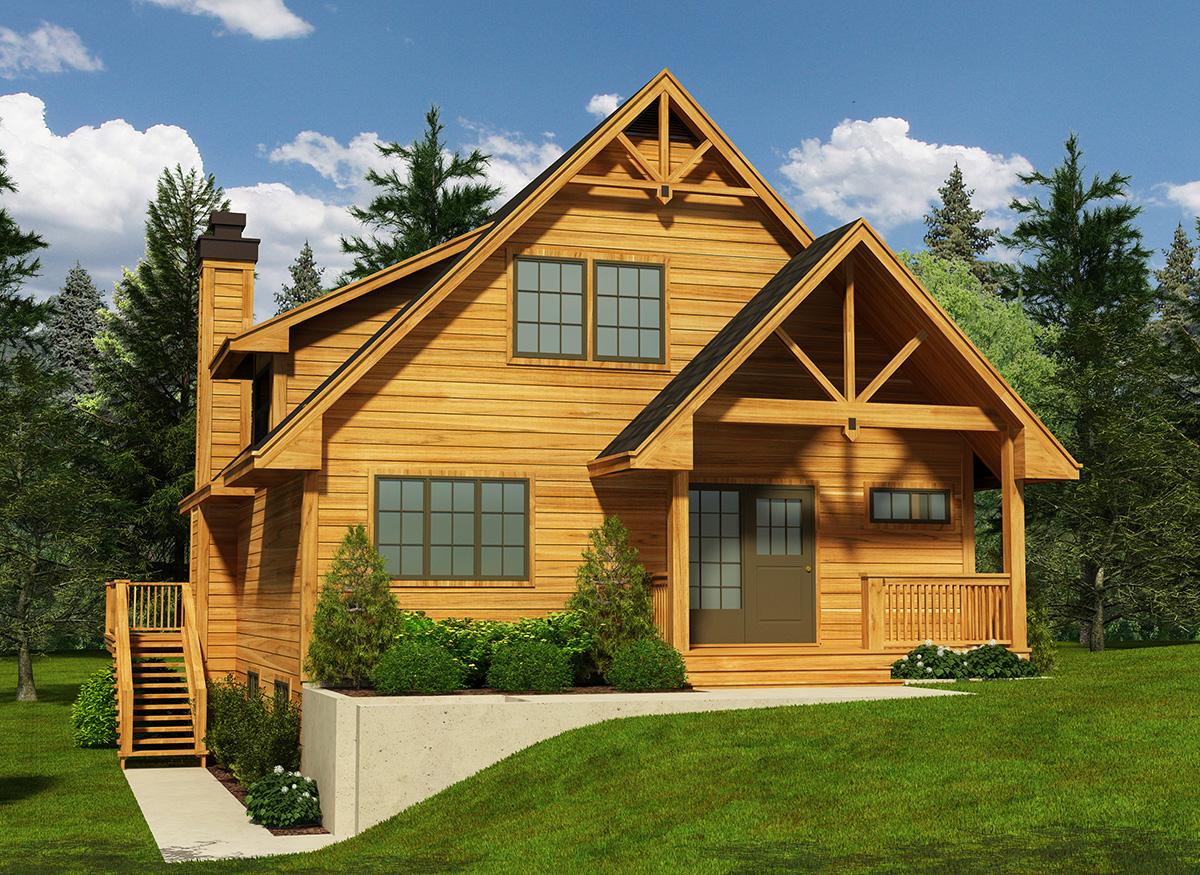

Plan 9818SW
Narrow Lot Cottage House Plan
Heated S.F.
1,662
Beds
3 - 5
Baths
2 - 3
Stories
2
Floor Plan

Plan 9818SW

Basement
slide image 0
Main Level
slide image 1
2nd Floor
slide image 2

Plan 9818SW

1-800-854-7852

1-262-521-4596

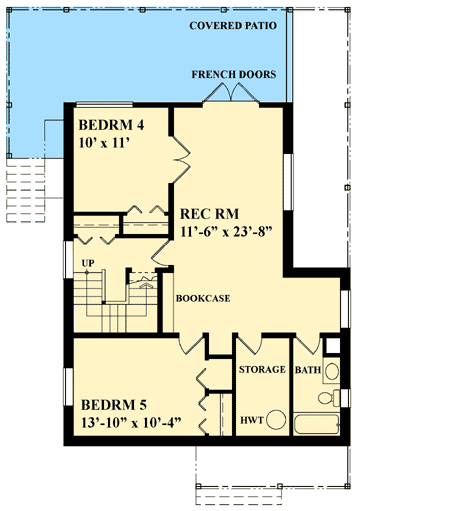

Basement
floor plan image Basement

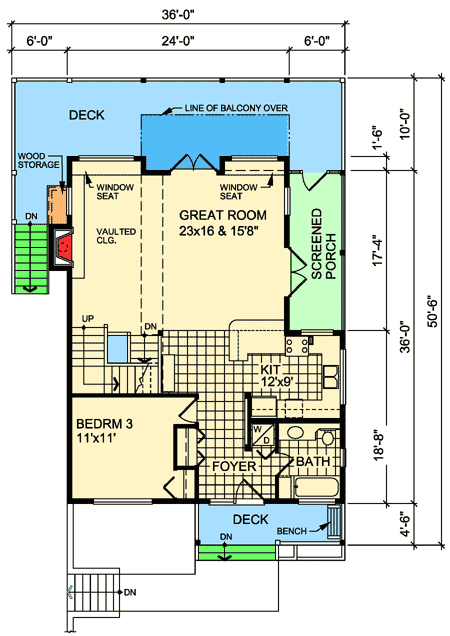

Main Level
floor plan image Main Level

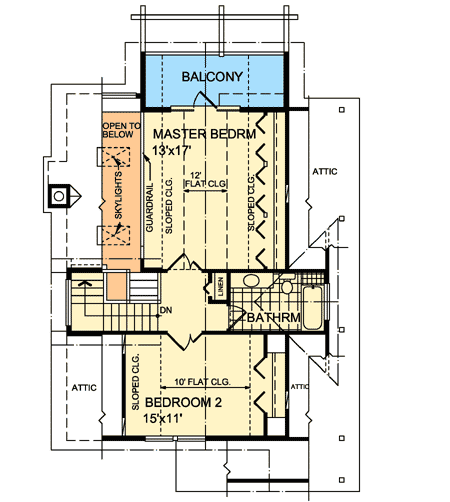

2nd Floor
floor plan image 2nd Floor

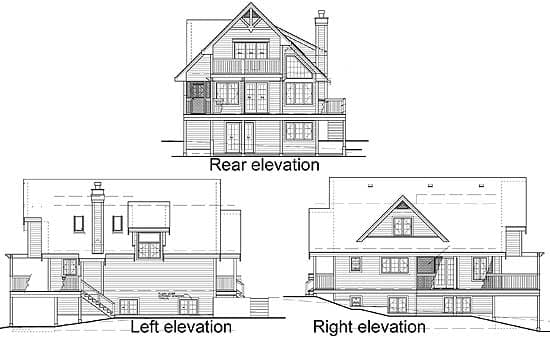

Plan Details
  • The great room in this narrow lot cottage house plan redefines the terms; open floor plan, versatile and spaciousness with its 23'-foot clear span width and partial vaulted ceiling.
  • The side screened porch area adjacent to the kitchen, the partially rear cover deck and rear open sundeck ensures ongoing individual or group activities regardless of the weather or local resident insect life intrusions.
  • Note the great room staircase "square spiral" staircase - it has all the great attributes of a spiral staircase but having none of the tight restrictiveness and limited furniture access usually associated with one.
  • The two second floor bedrooms with ten and twelve foot ceilings and private covered balcony bring a soothing airiness to this vaulted level.
  • The daylight basement plan contains an optional two bedrooms, shared bathroom and multipurpose recreation room with patio access. The separate private entrance easily transforms this level into a home office or business space.
  • Related Plan: For an alternate version with an unfinished lower level, see house plan 9819SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,662 sq. ft.

1st Floor

976 sq. ft.

2nd Floor

686 sq. ft.

Screened Porch

73 sq. ft.

Deck

475 sq. ft.

Balcony / Veranda

96 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 6"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Mountain

Rustic

Vacation

Special Features

Home Office

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,662 sq. ft.

1st Floor

976 sq. ft.

2nd Floor

686 sq. ft.

Screened Porch

73 sq. ft.

Deck

475 sq. ft.

Balcony / Veranda

96 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 6"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Mountain

Rustic

Vacation

Special Features

Home Office

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans
