Plan 22100SL
Narrow Lot Garage with 500 Square Foot Apartment Above
Heated S.F.
598
Beds
1
Baths
1
Stories
2
Cars
1
Floor Plan

Plan 22100SL

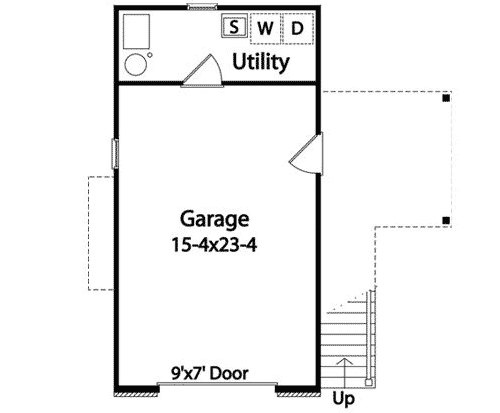

Main Level
slide image 0

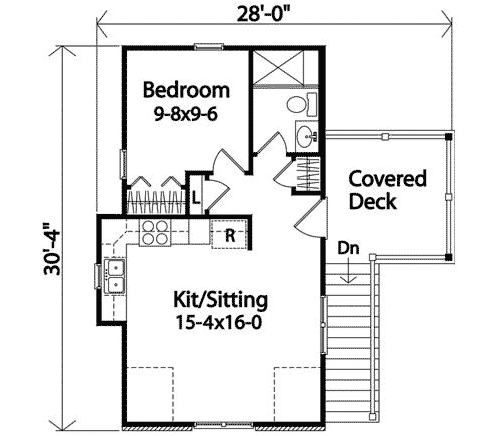

2nd Floor
slide image 1

Plan 22100SL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

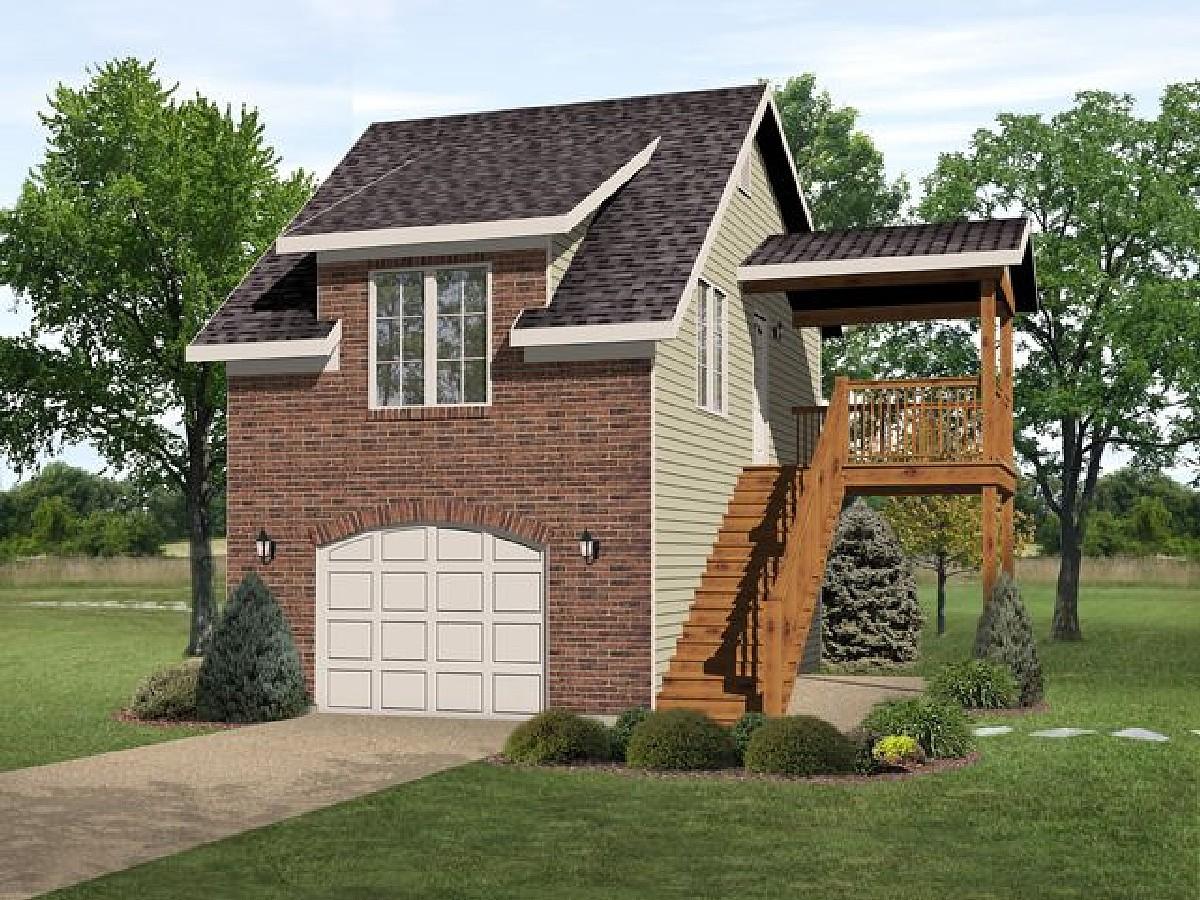

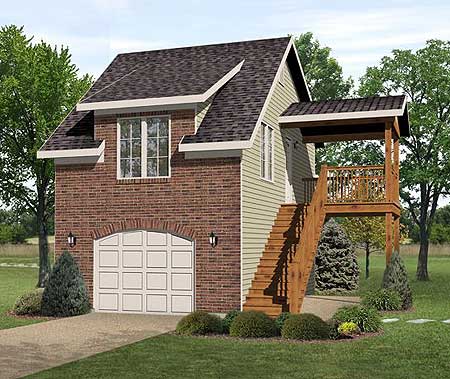

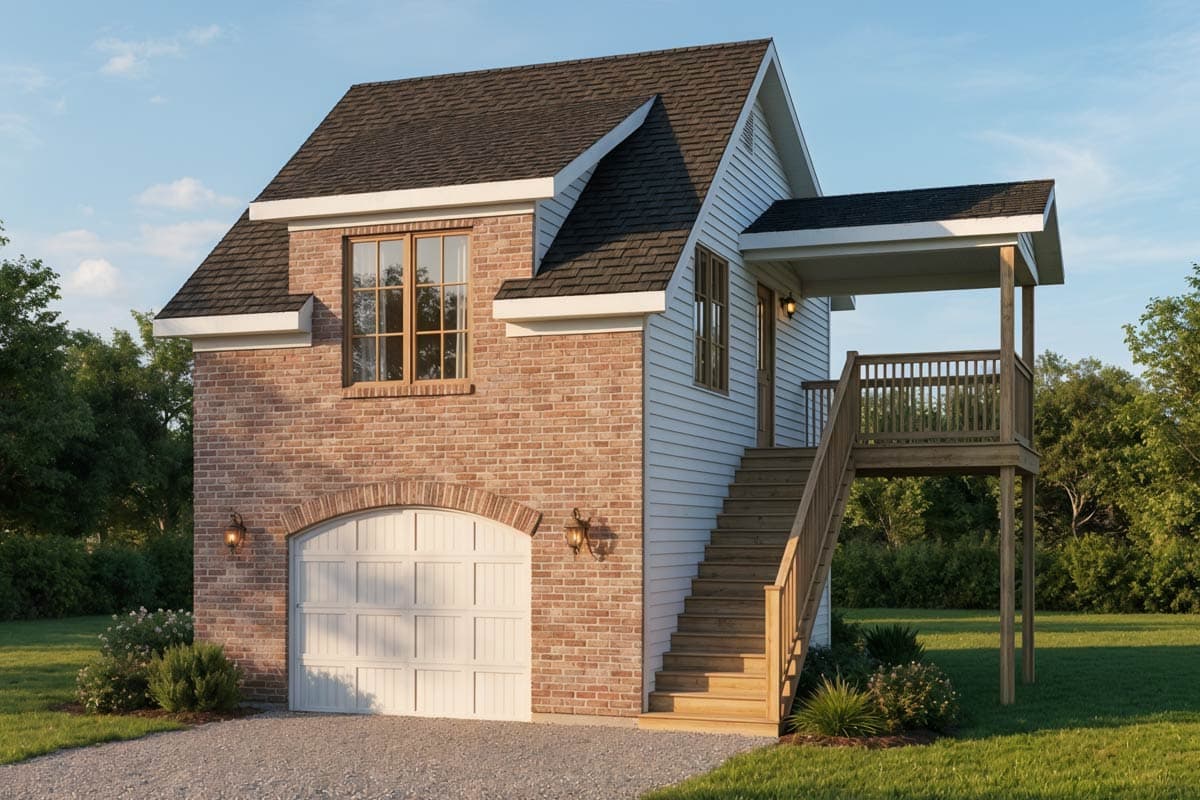

  • Designed for a narrow spot, this one car garage apartment has a shed dormer in front to add appeal.
  • The lower level has room for a full-sized washer and dryer plus a utility sink.
  • The large covered deck on the second floor has plenty of room for a grill.
  • Related Plan: Get a 2-car garage with an alternate exterior with house plan 22108SL.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

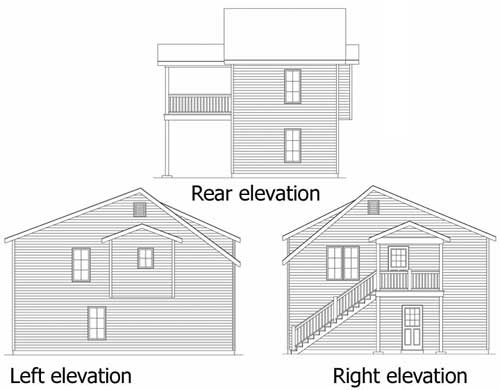

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

598 sq. ft.

1st Floor

100 sq. ft.

2nd Floor

498 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

30' 4"

Max Ridge Height

25' 6"

Garage

Type

Detached

Area

381 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor
