Plan 66248WE
Narrow Lot Mediterranean House Plan - 3012 Sq Ft
Heated S.F.
3,012
Beds
4
Baths
4
Stories
2
Cars
2
Floor Plan

Plan 66248WE

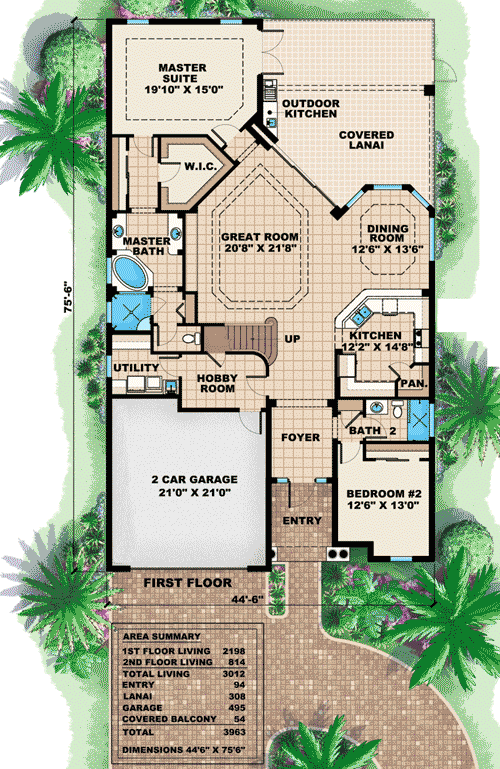

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66248WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

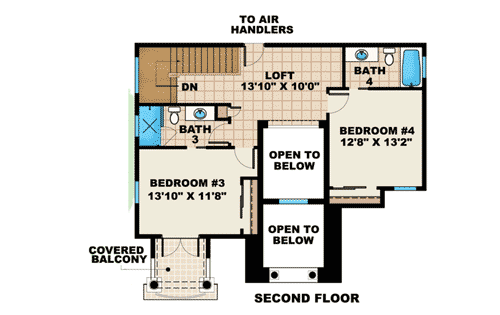

2nd Floor
floor plan image 2nd Floor
Plan Details

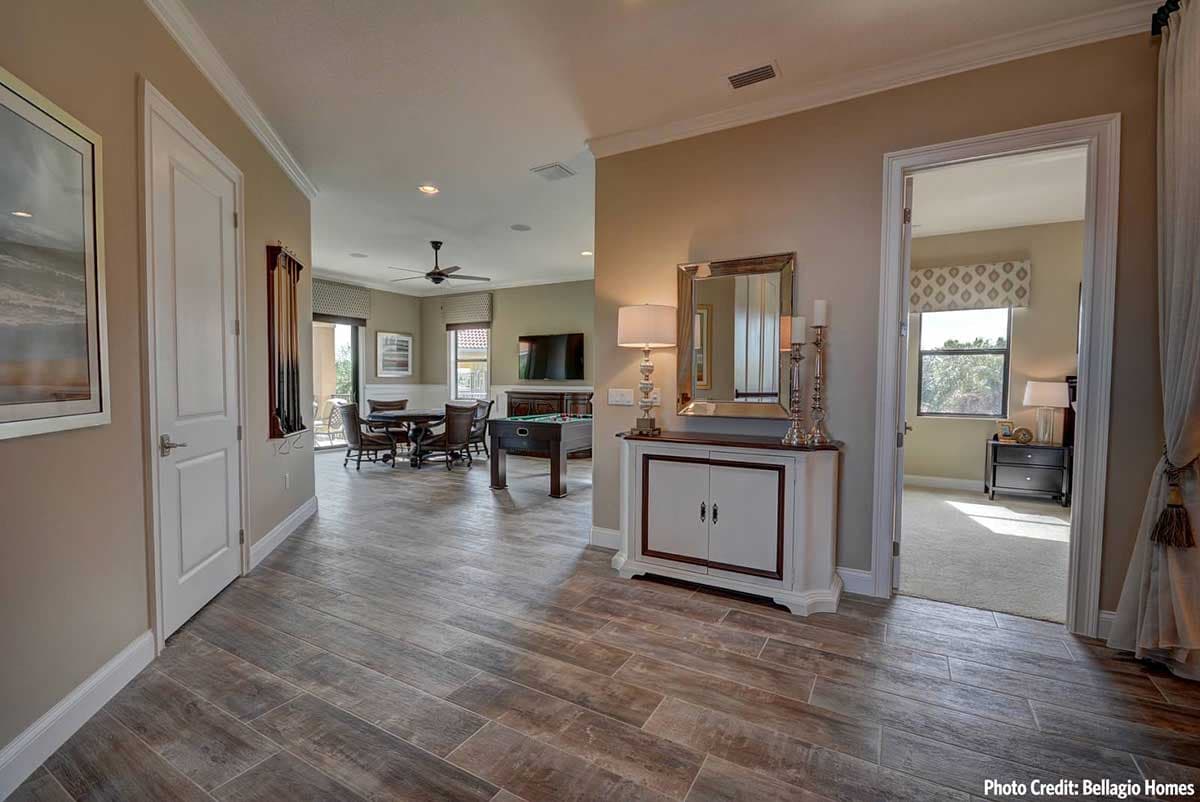

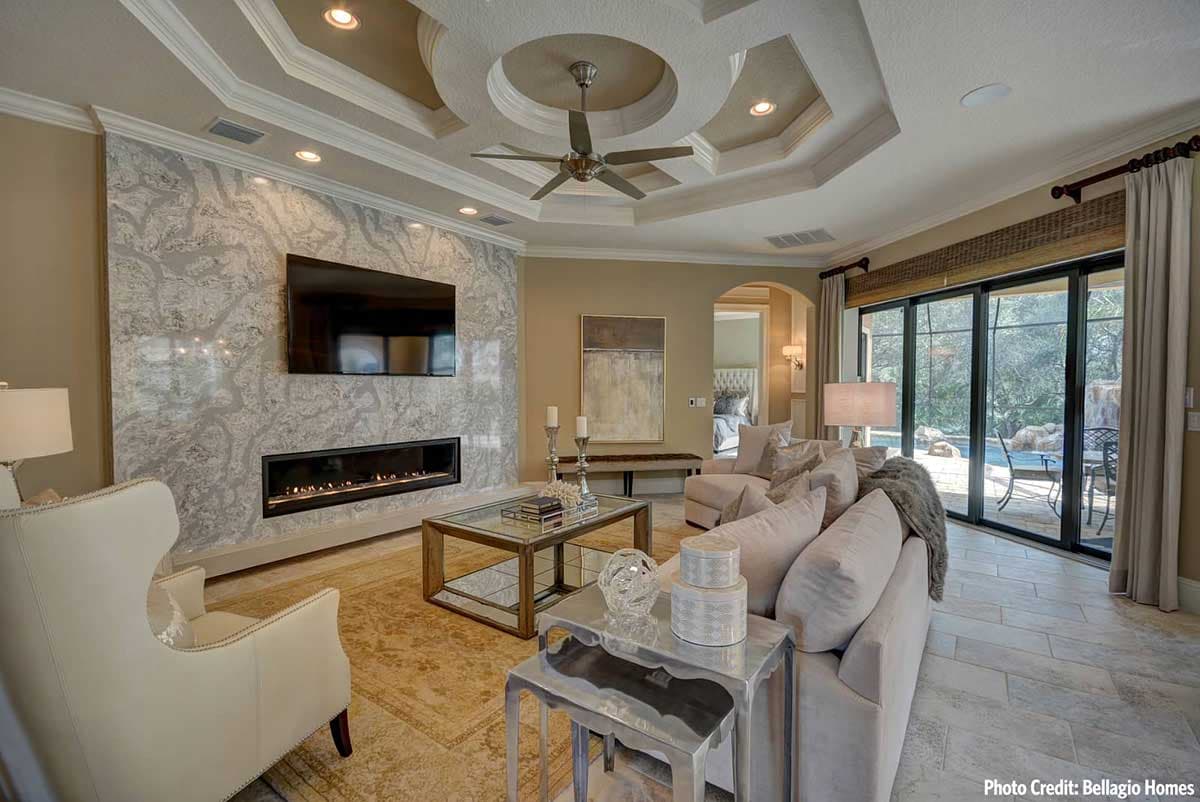

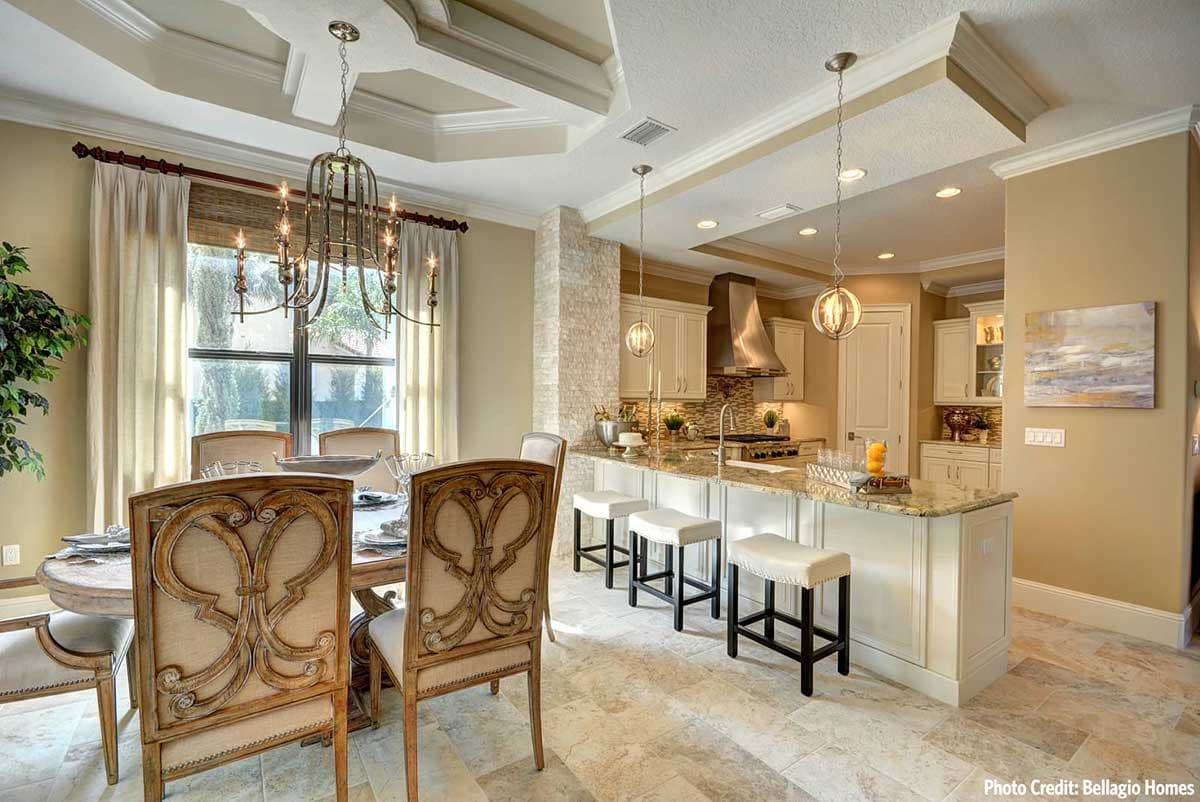

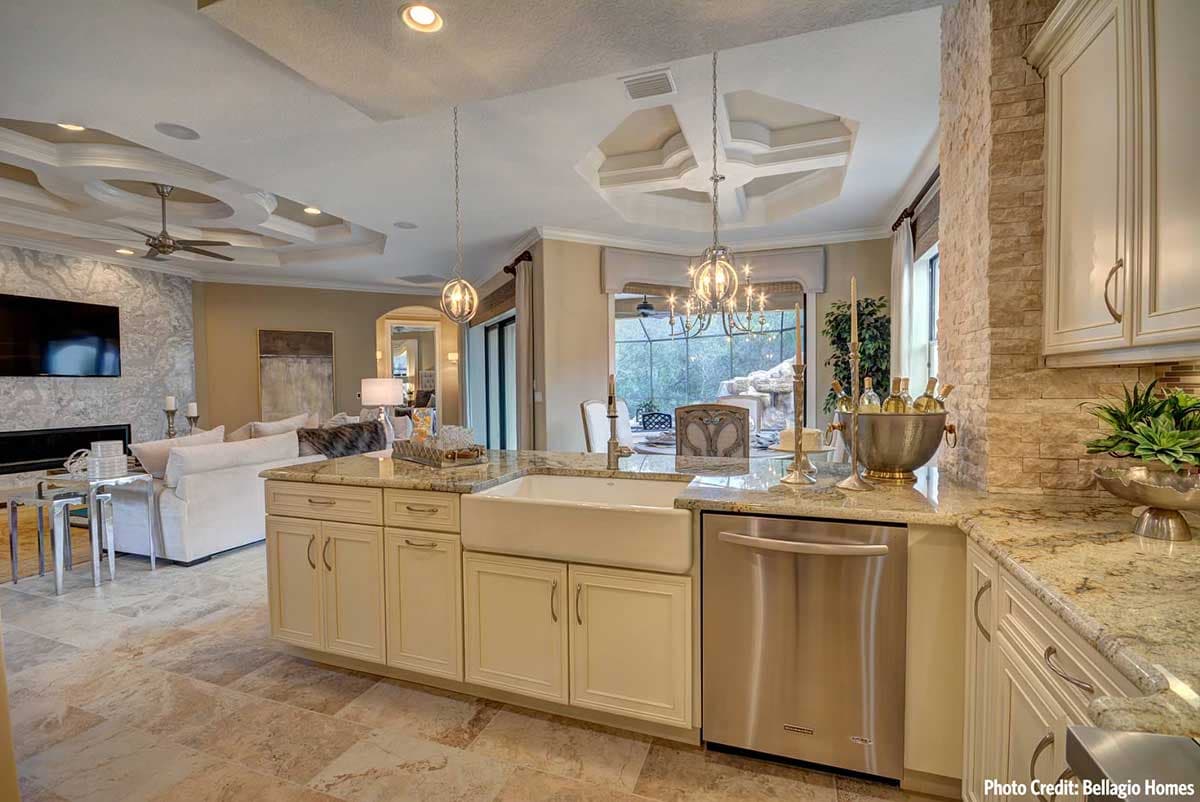

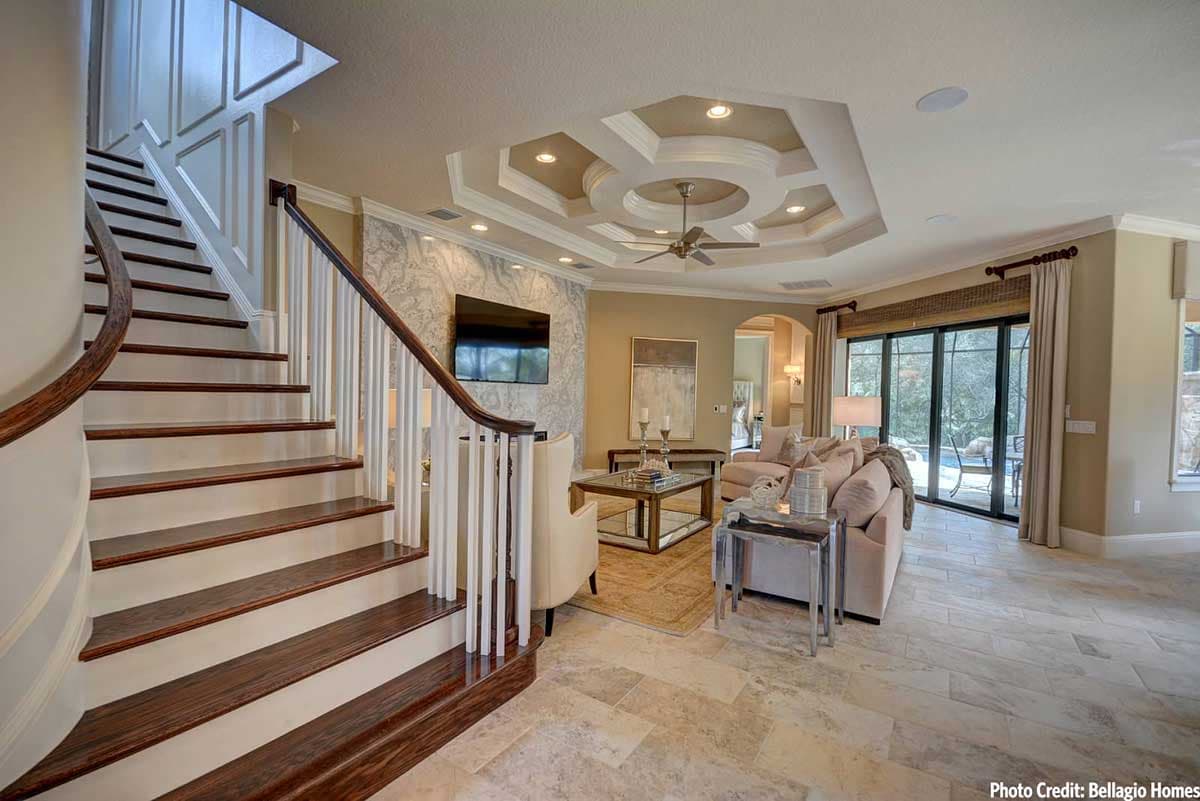

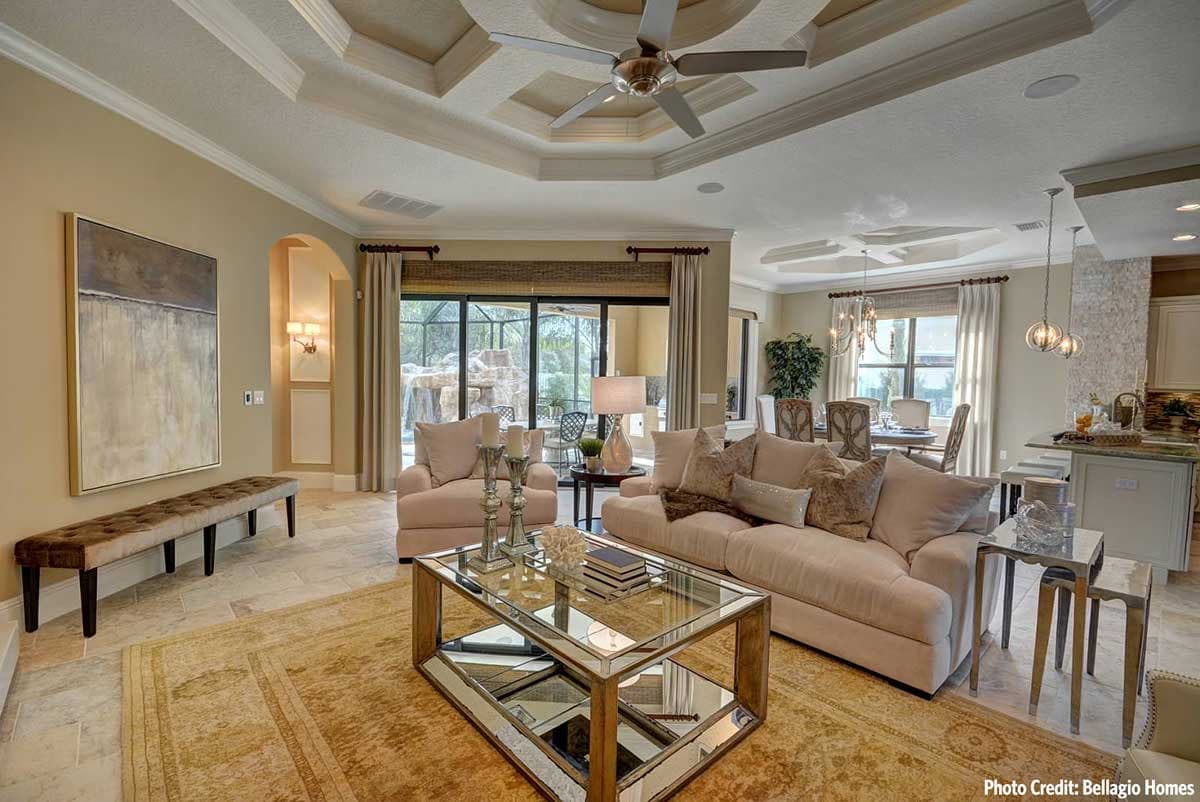

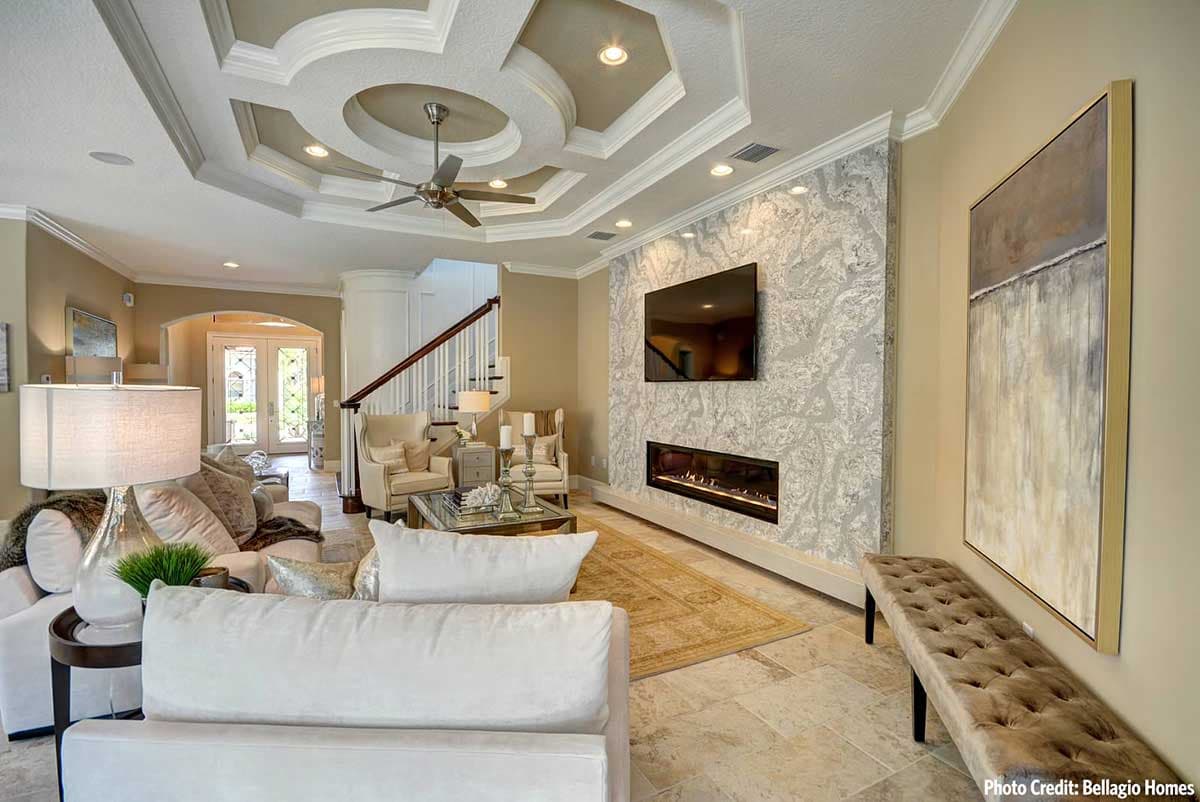

  • An open concept floor plan with a double-coffered great room at the center makes this home great for entertaining.

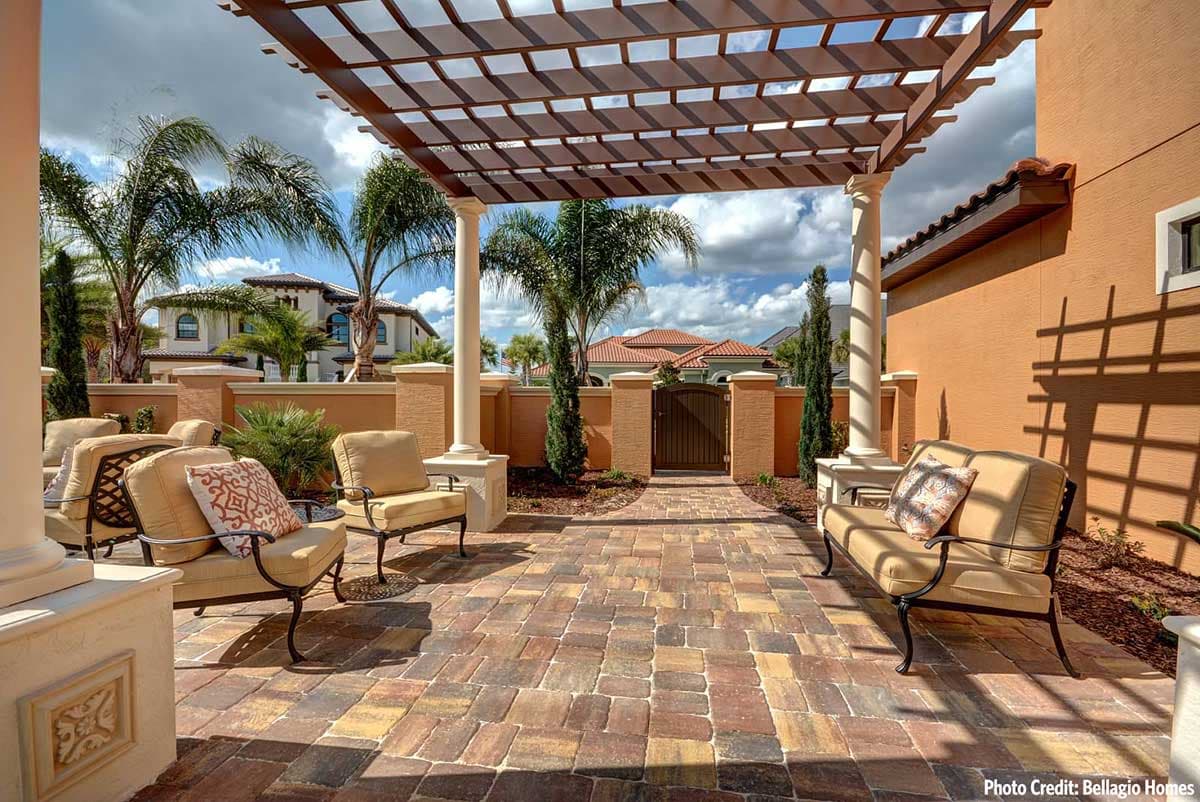

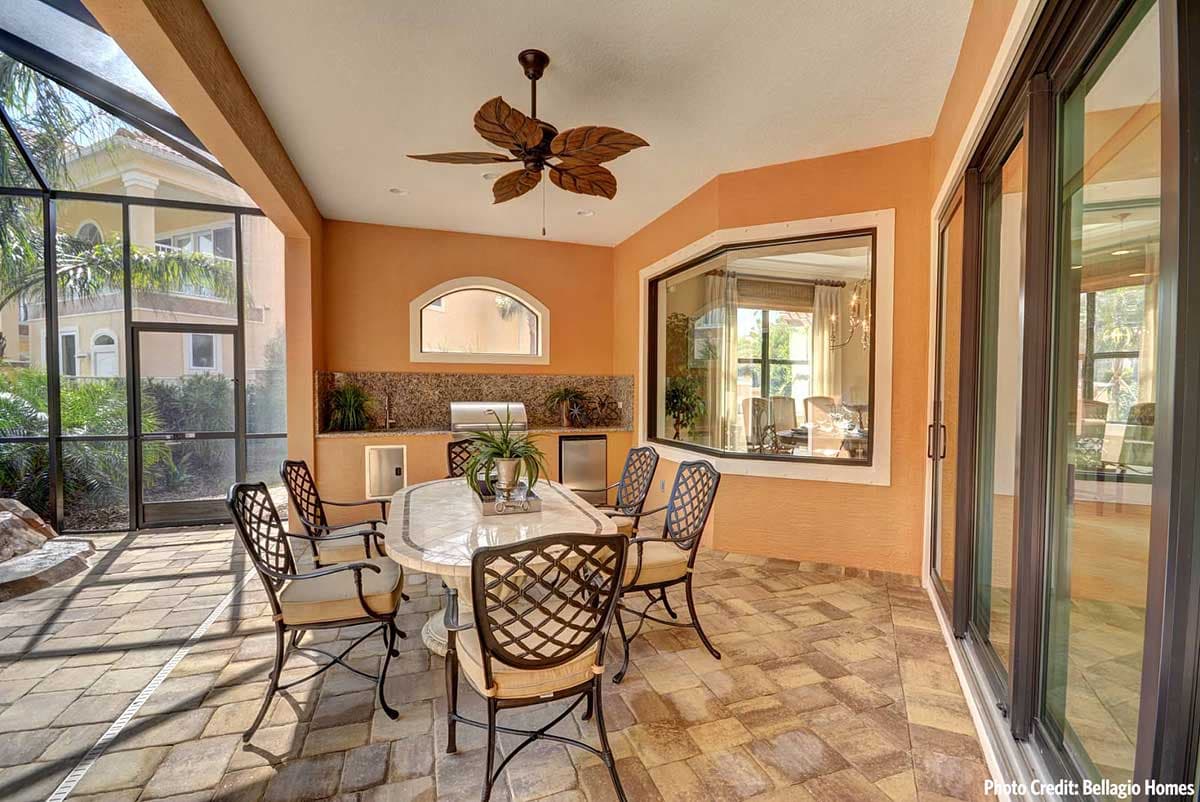

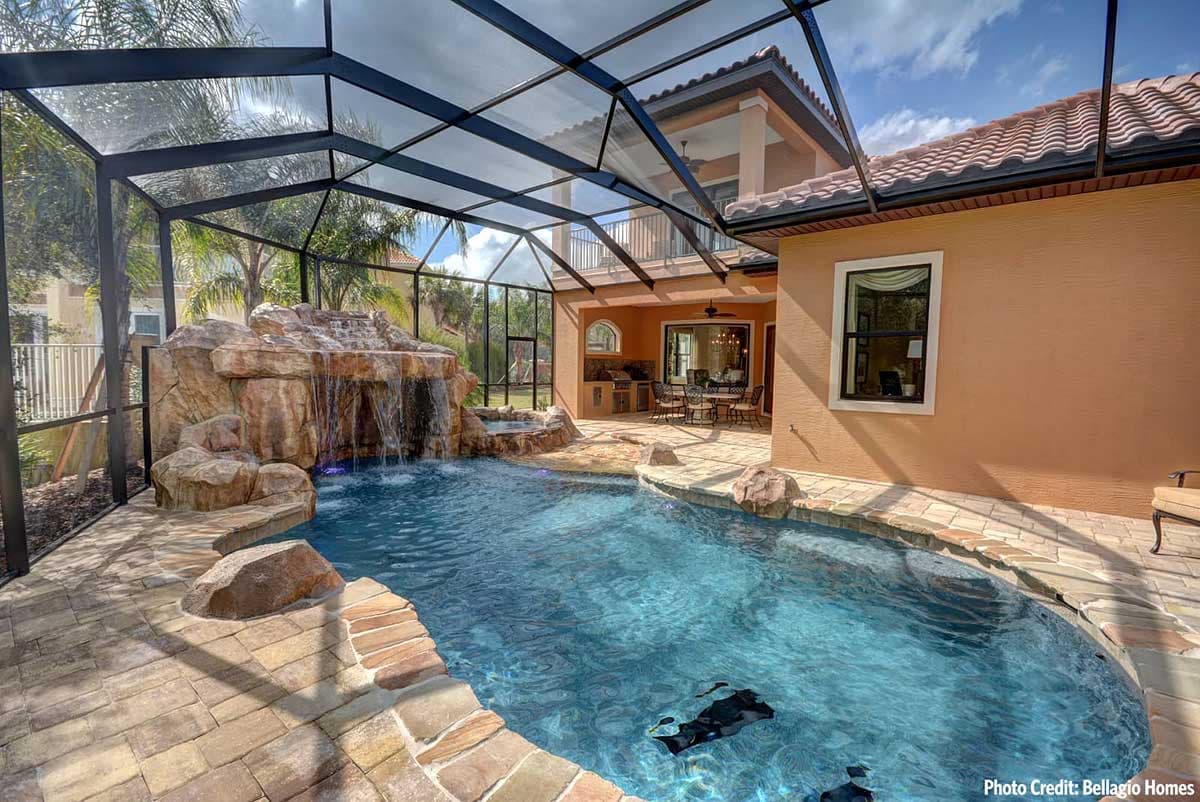

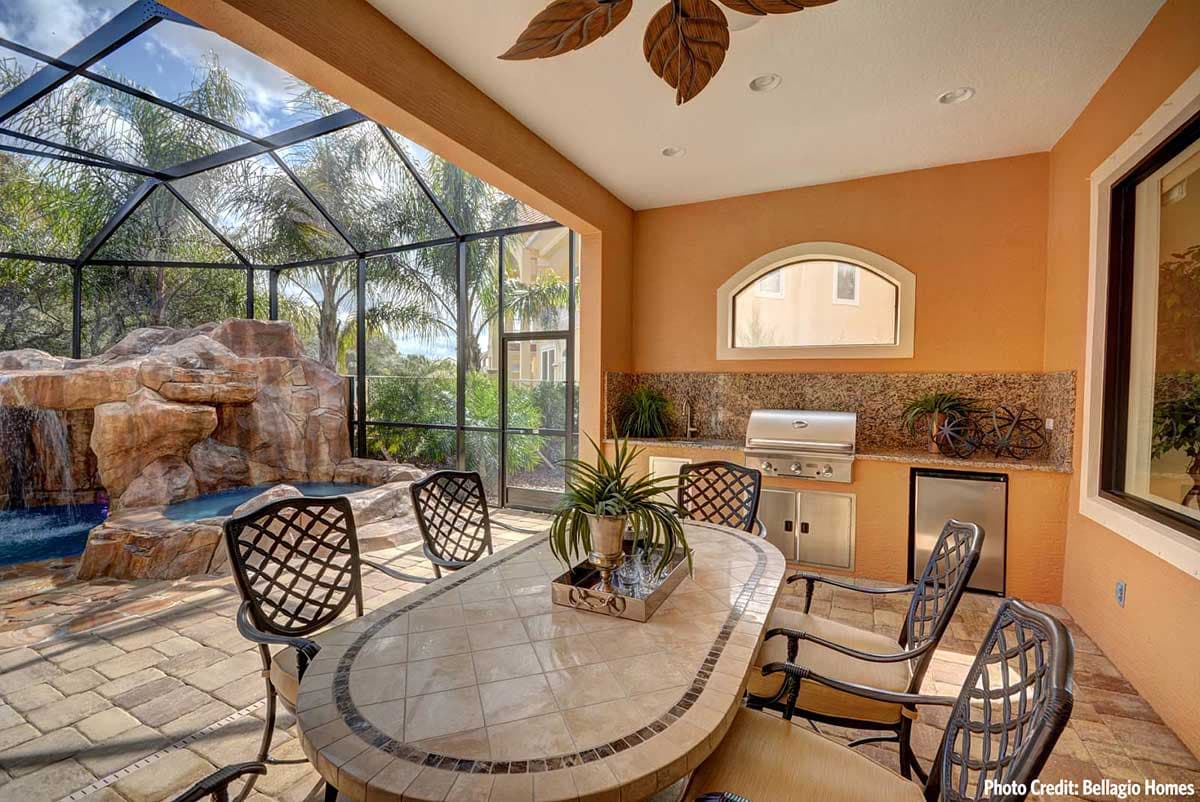

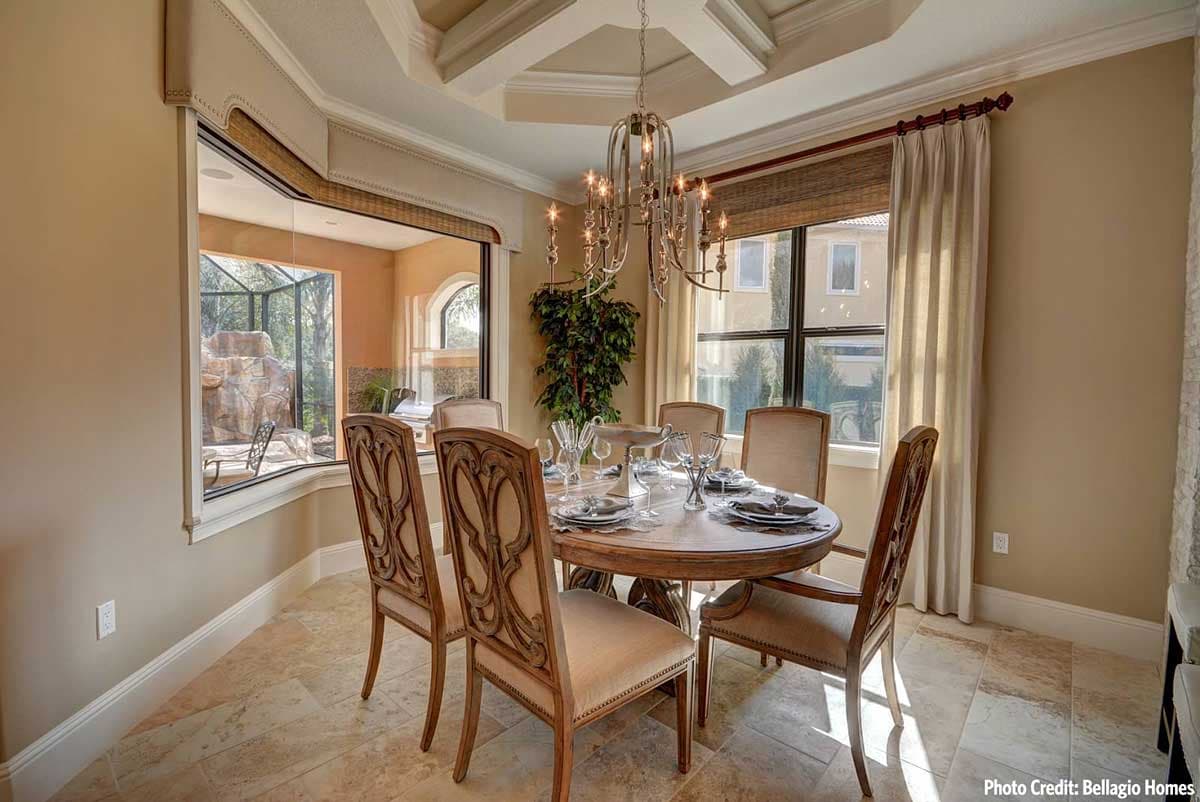

  • Tray ceilings are found throughout the first floor, creating a feeling of spaciousness. Both the great room and dining room are open to each other, sharing views of the covered lanai. Note the outdoor kitchen.

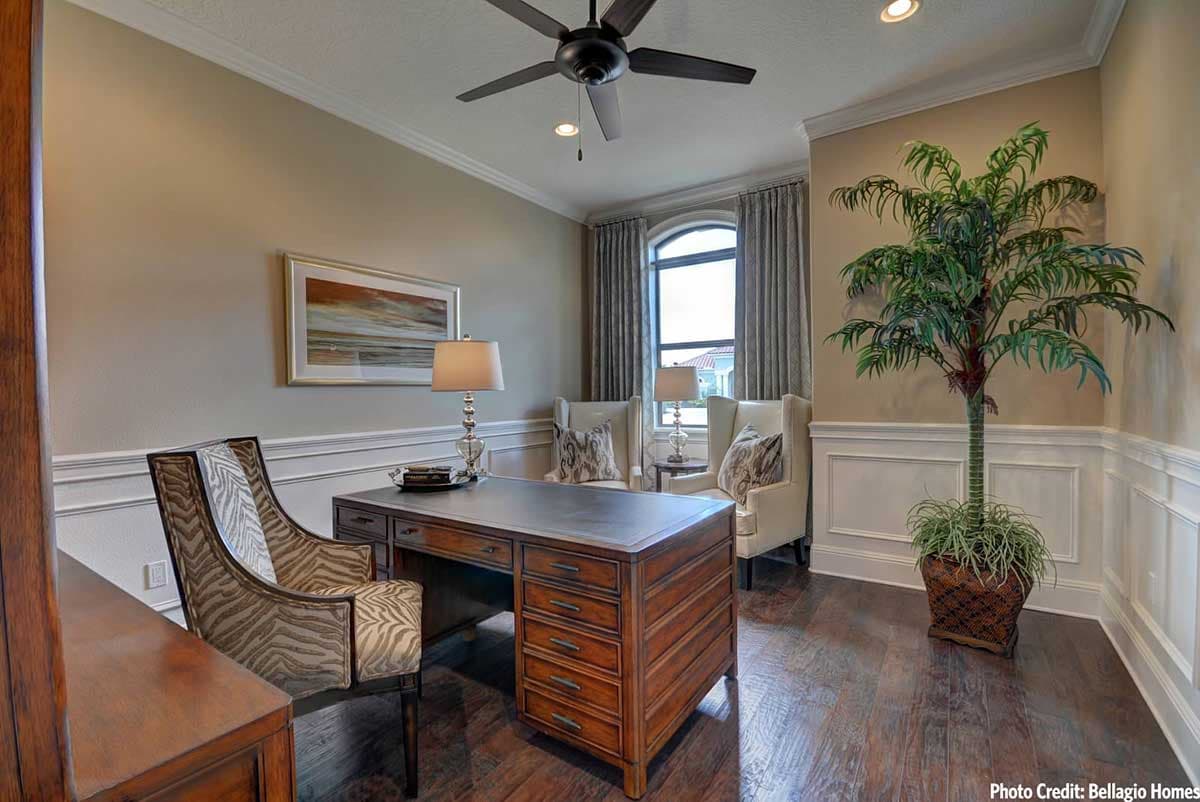

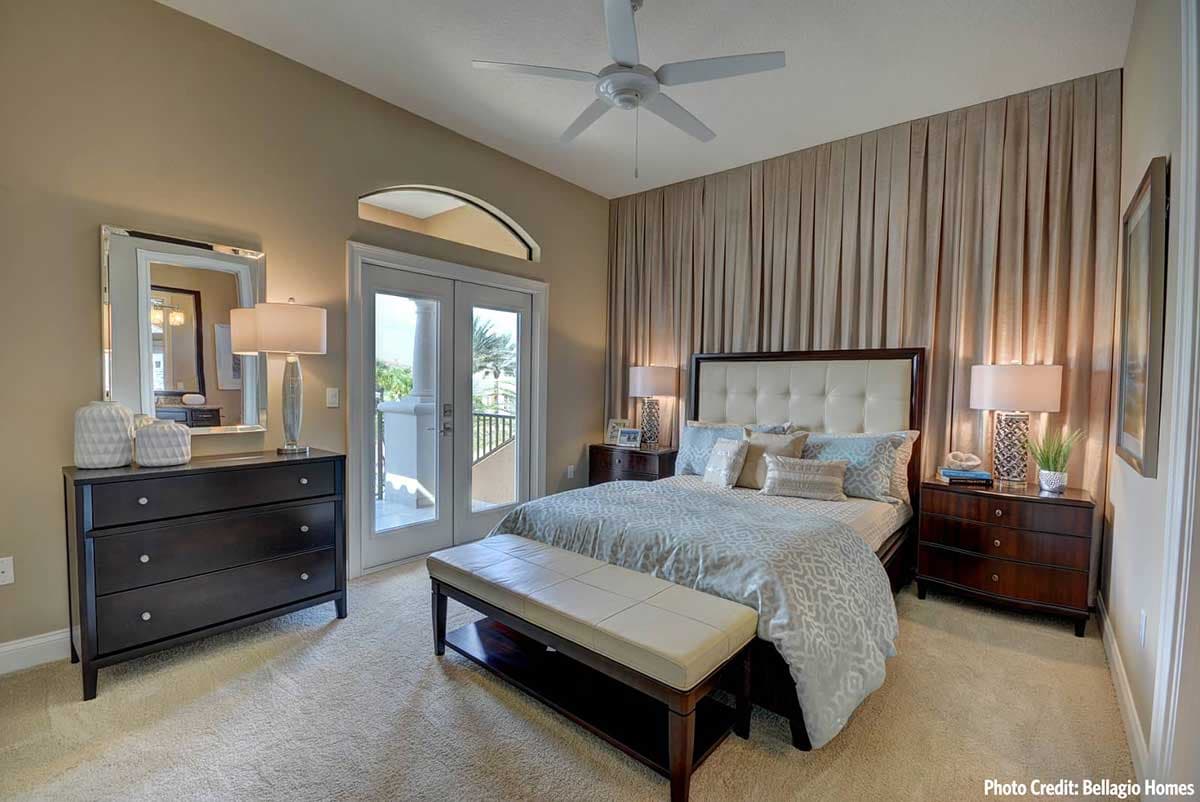

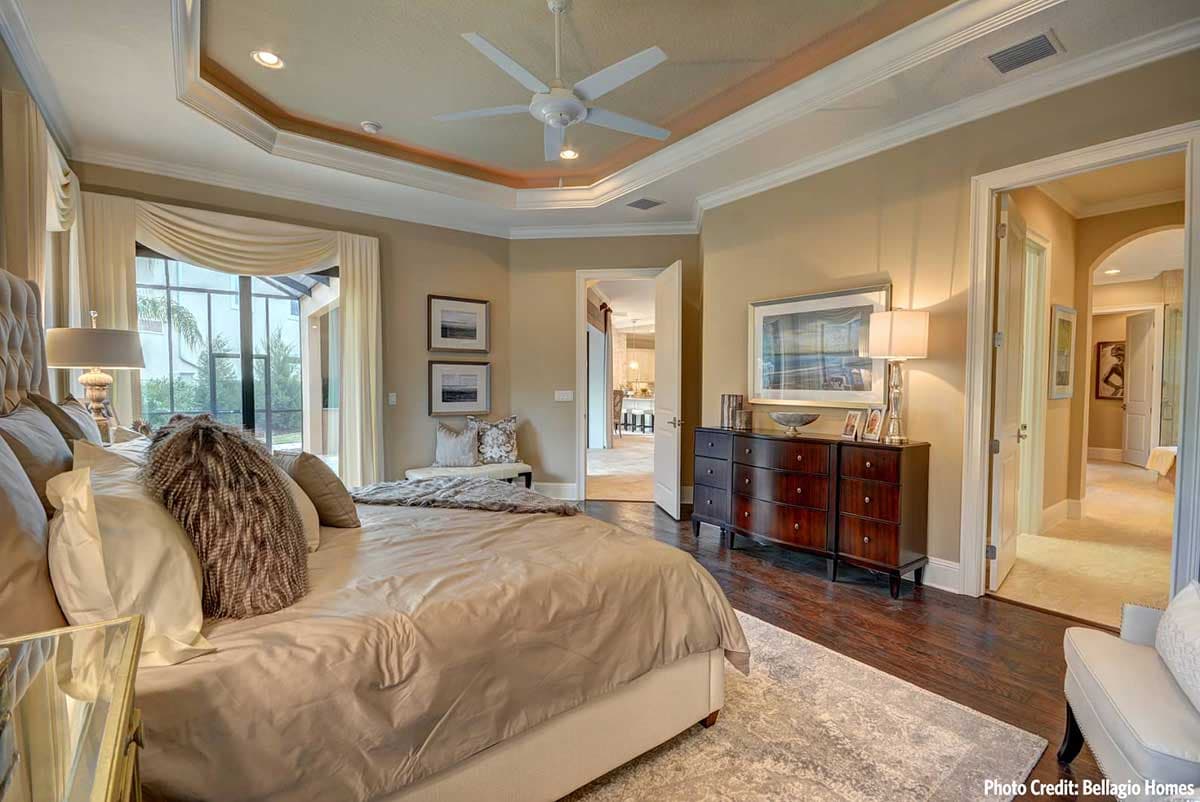

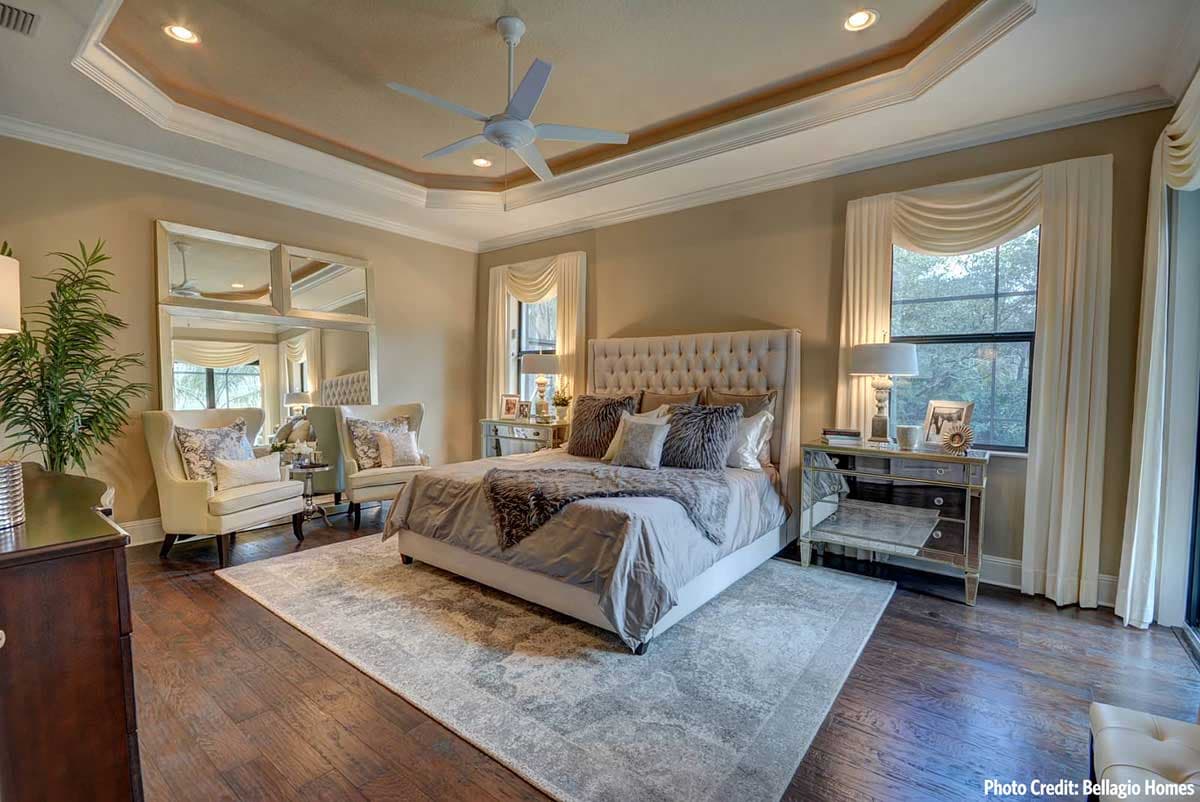

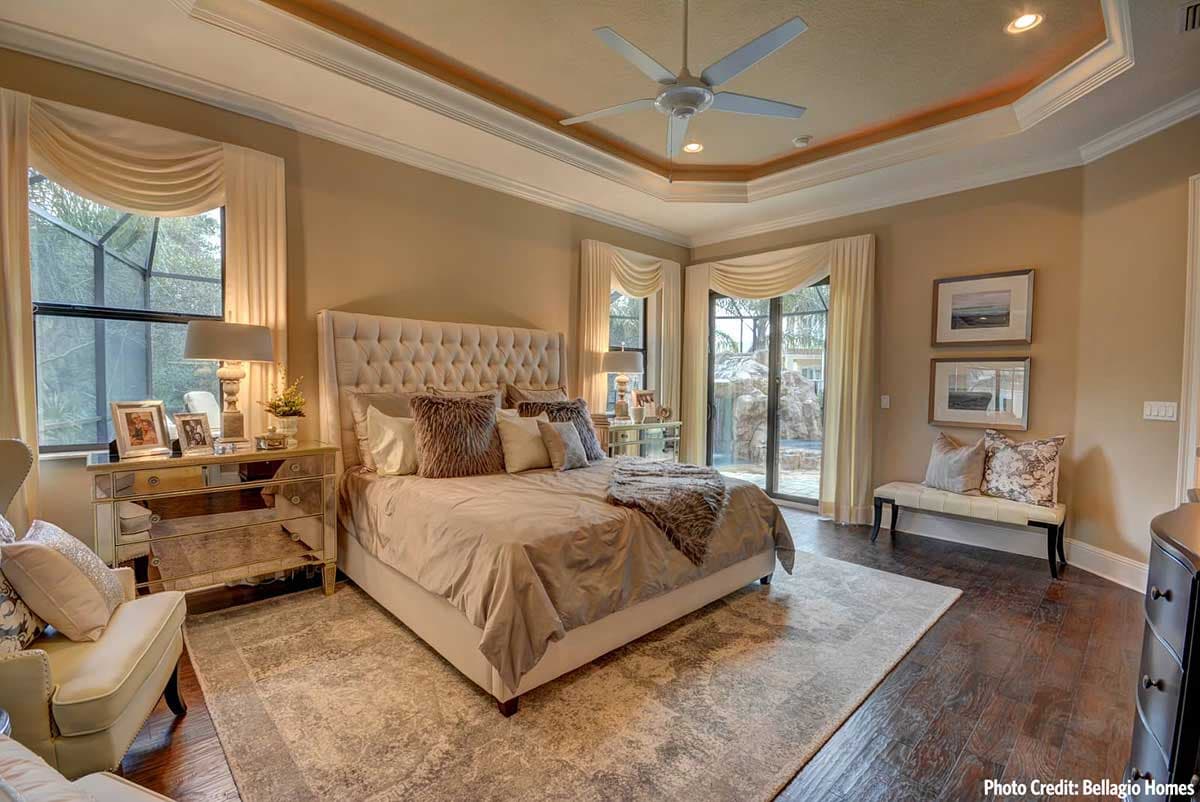

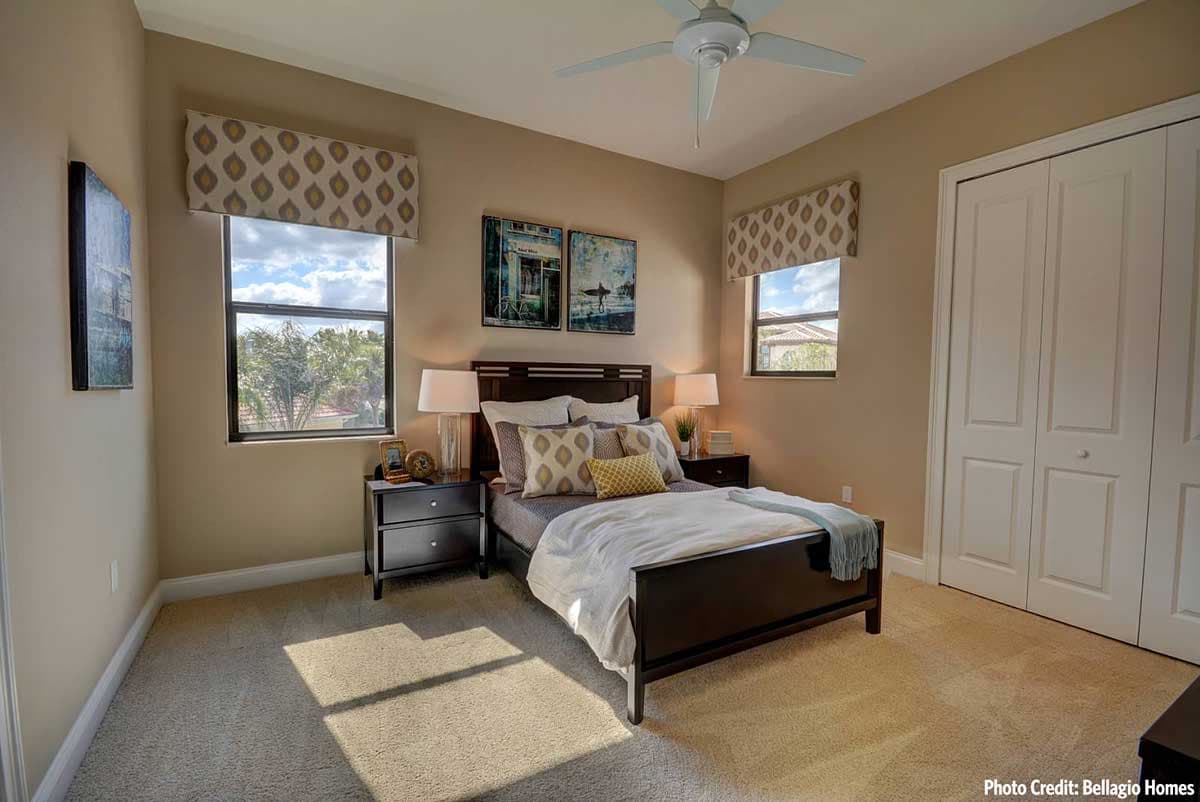

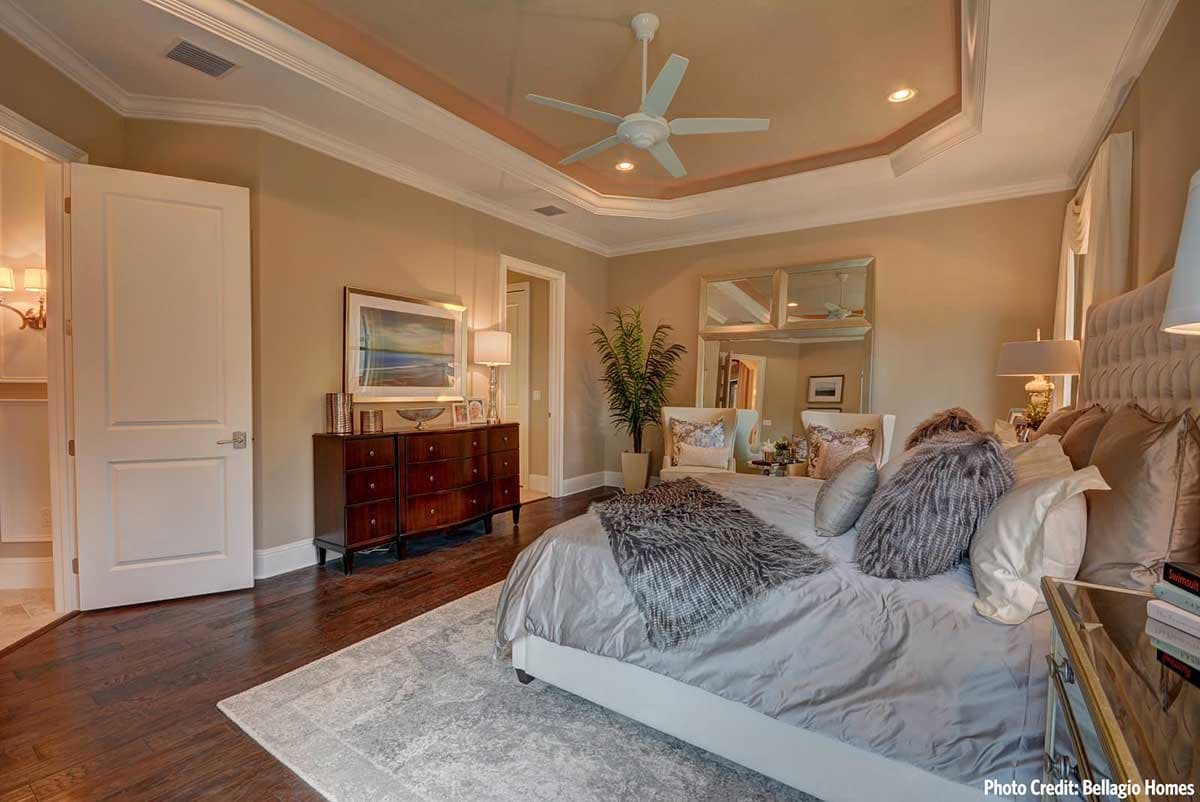

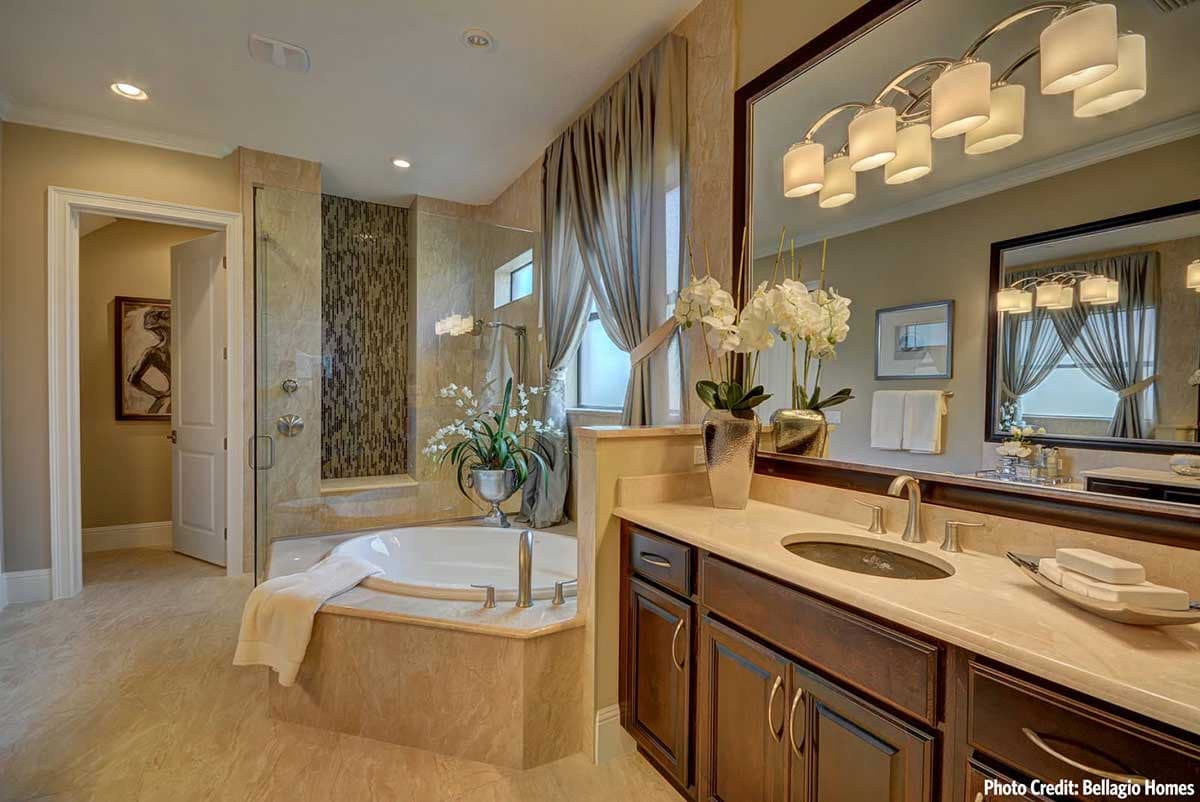

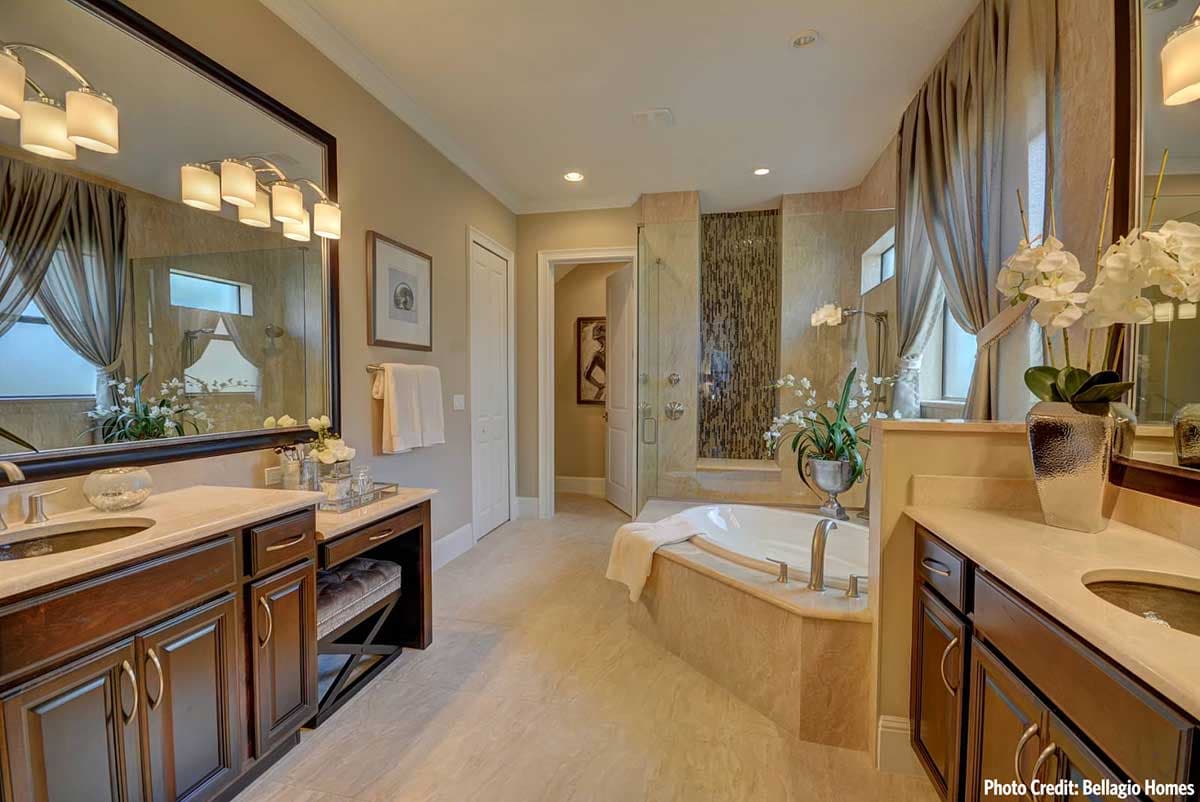

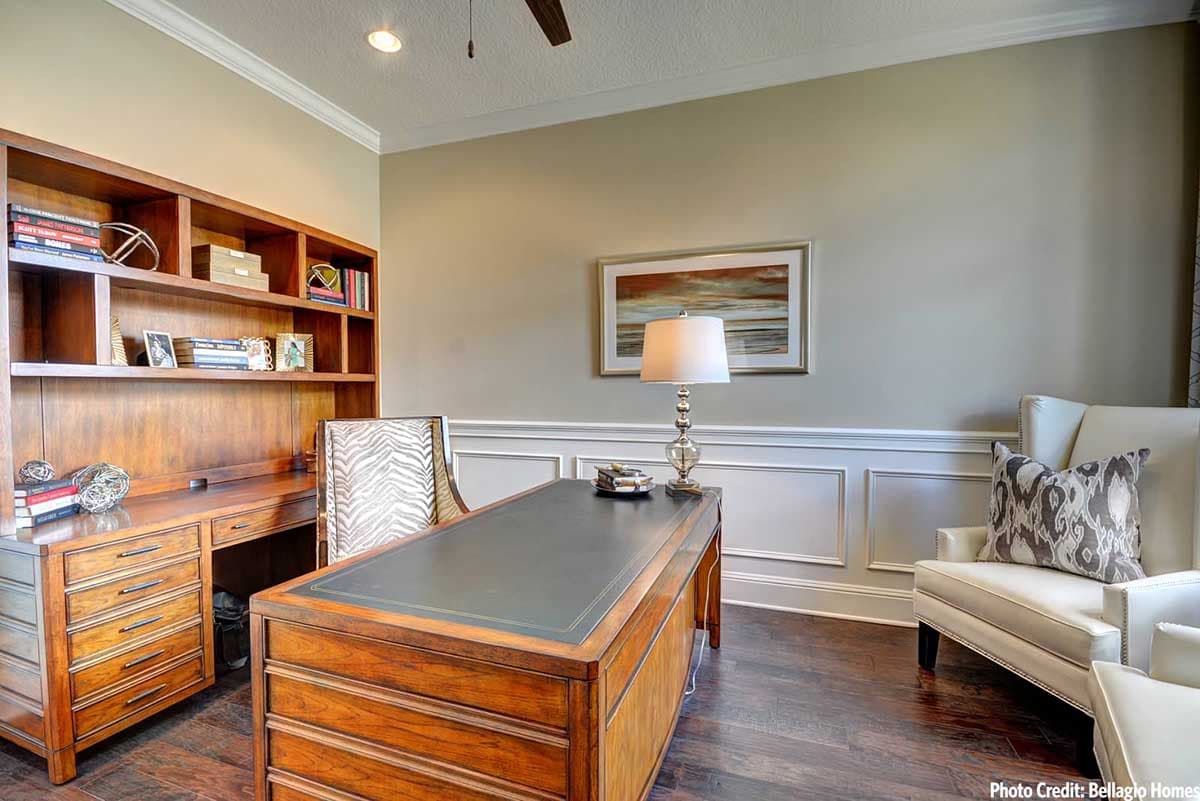

  • Located in the rear for privacy, the master suite enjoys both a walk-in and a linear closet and has access to the patio through double doors. Bedroom 2 can double as a guest room or study.

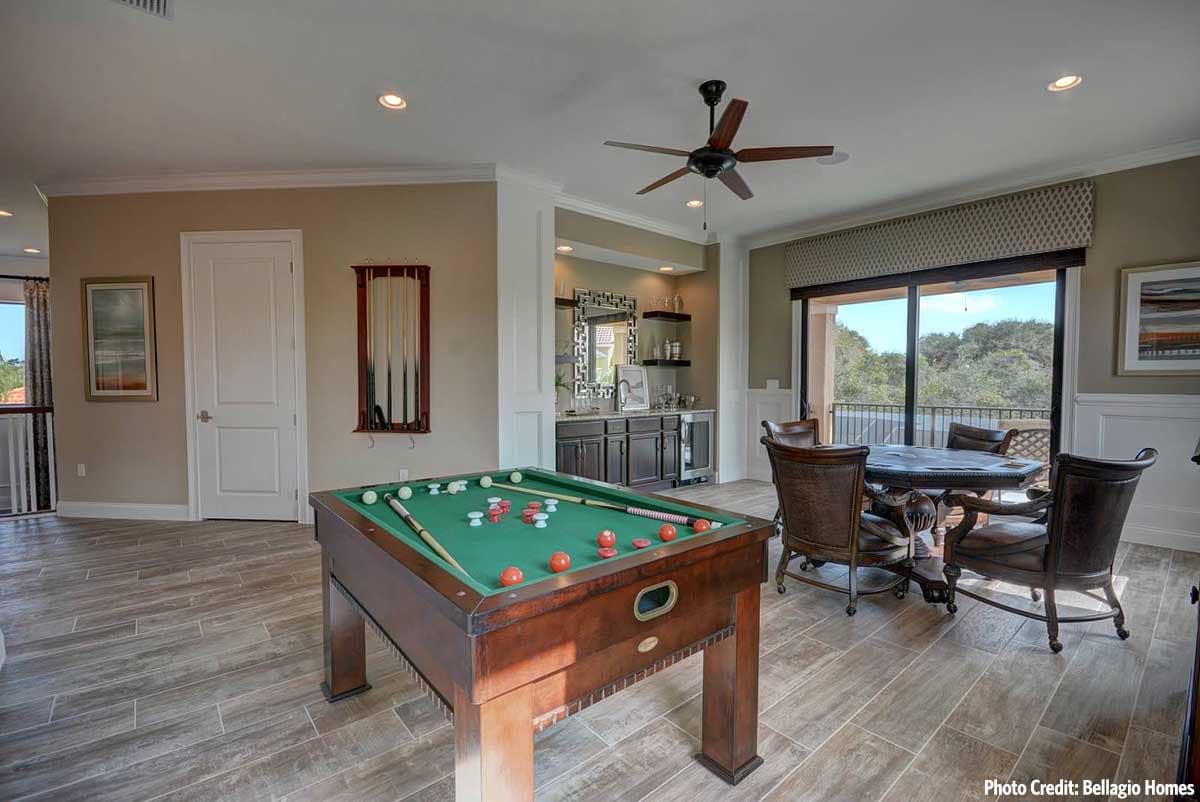

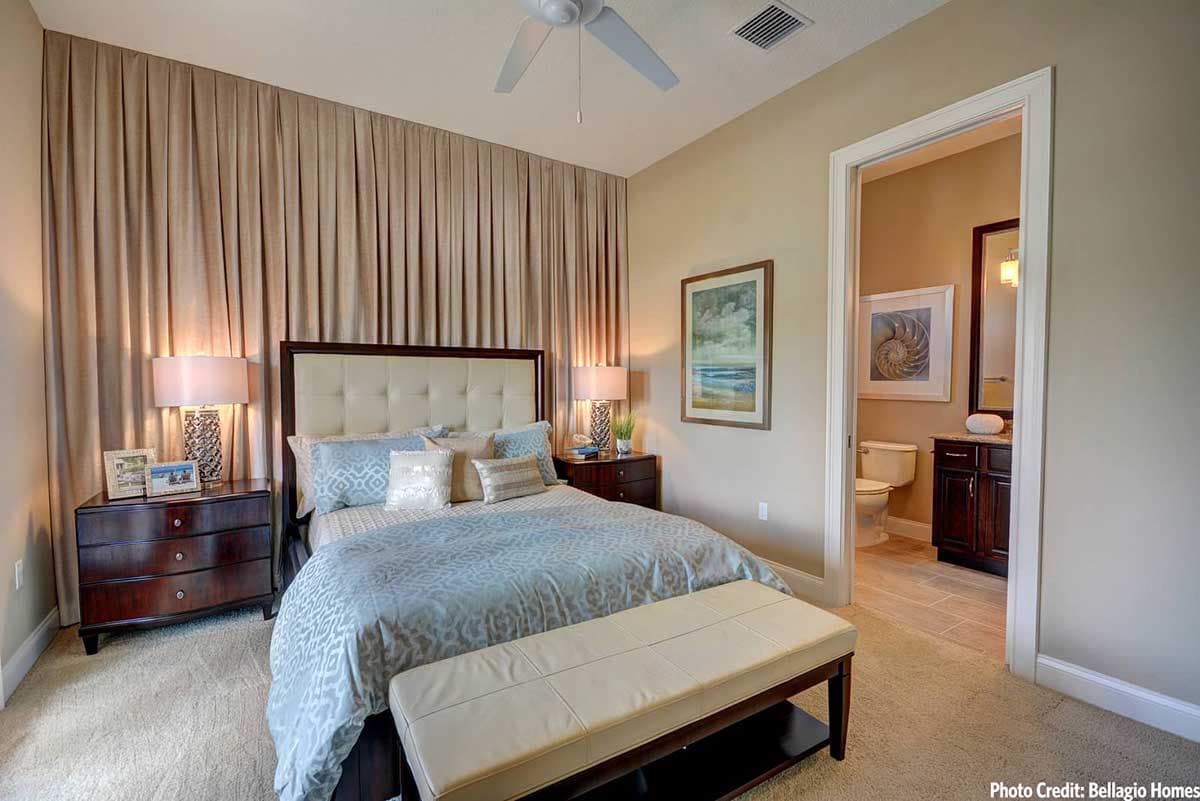

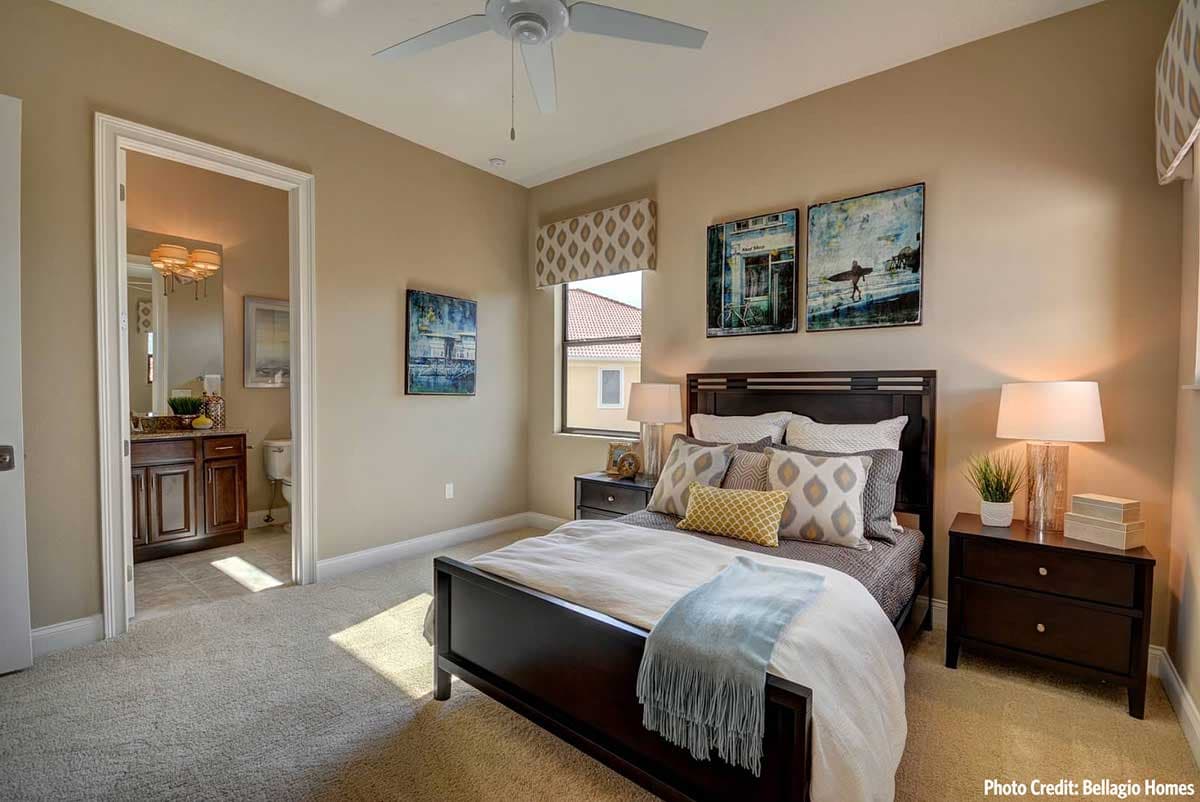

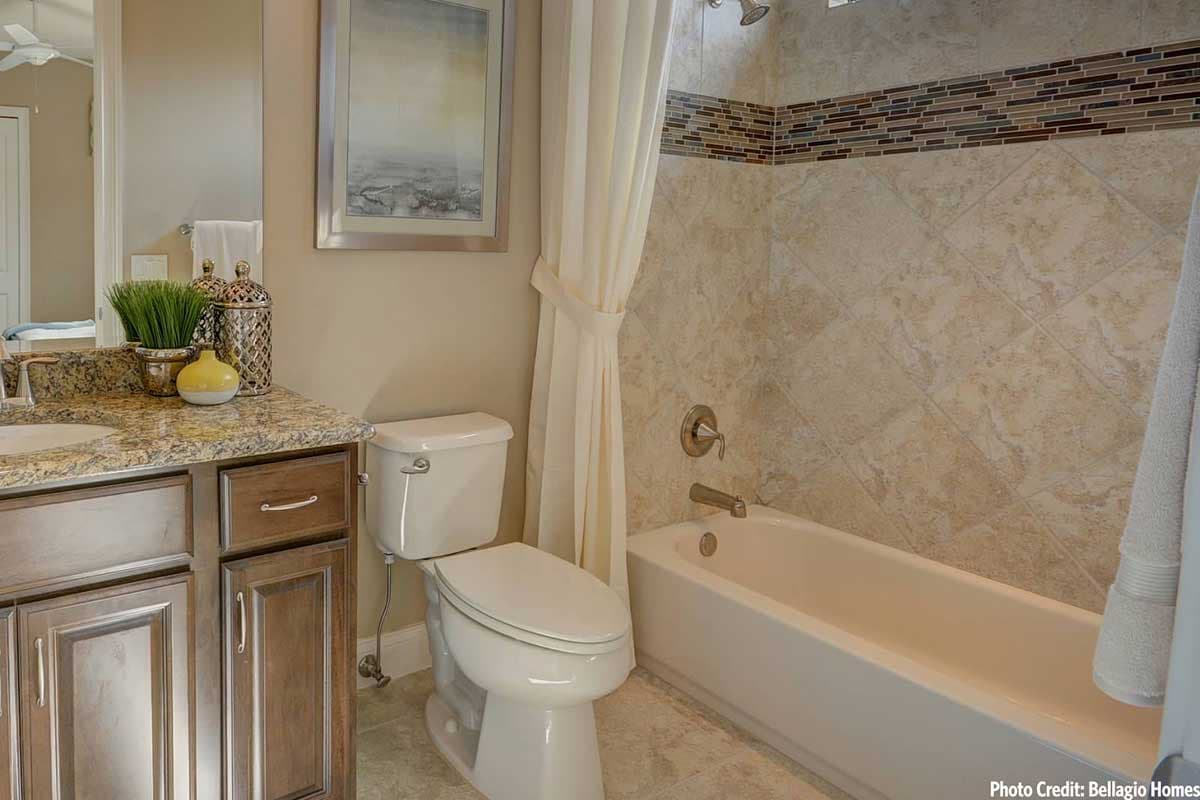

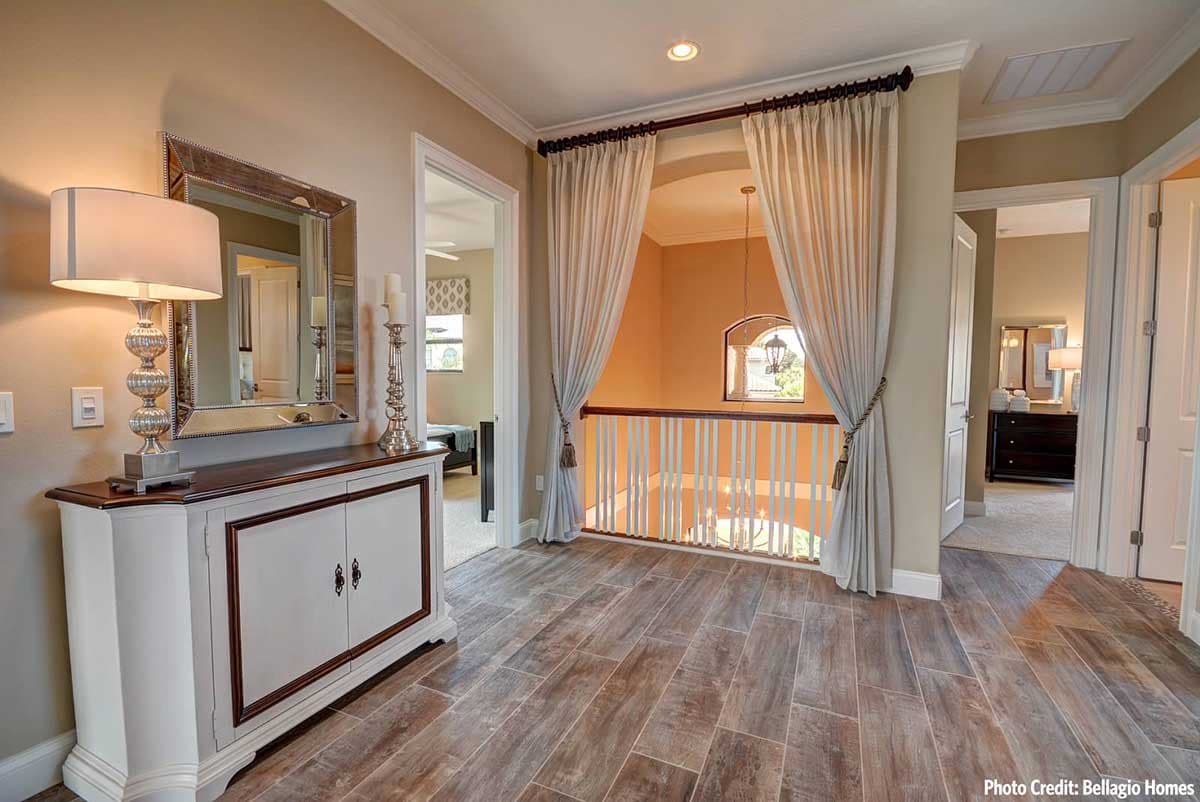

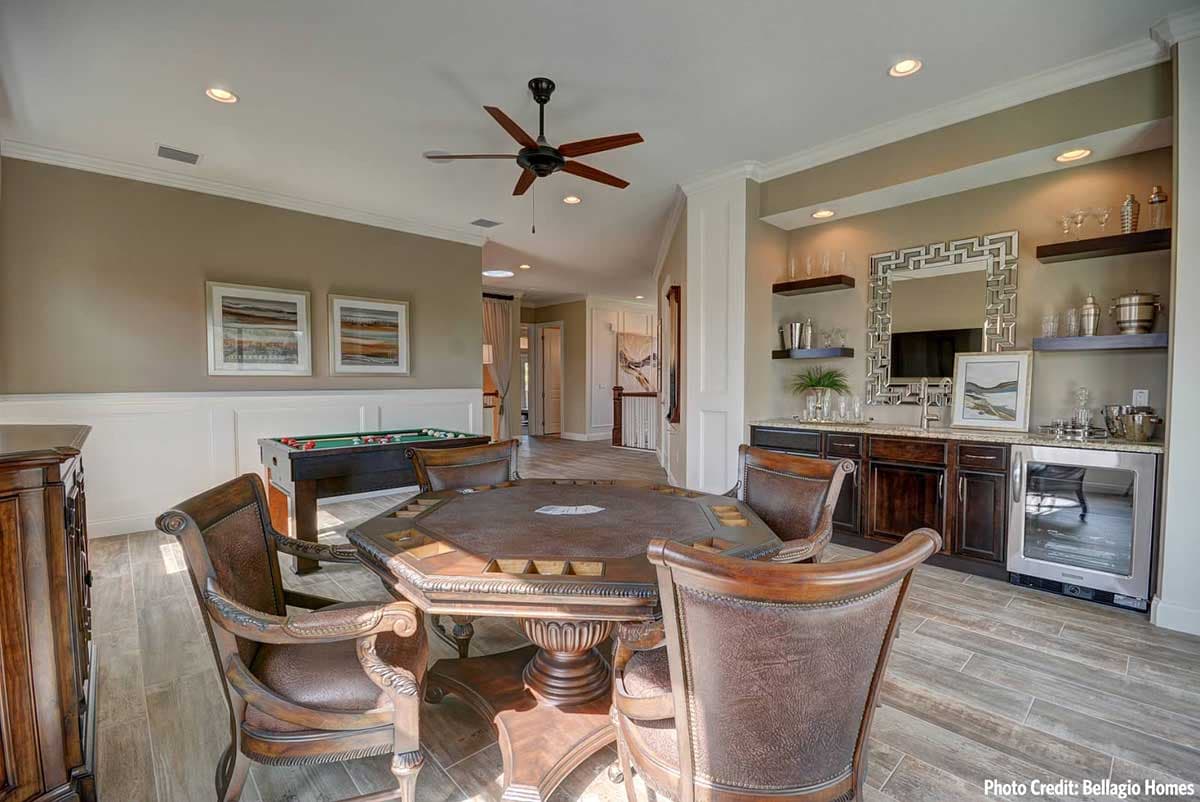

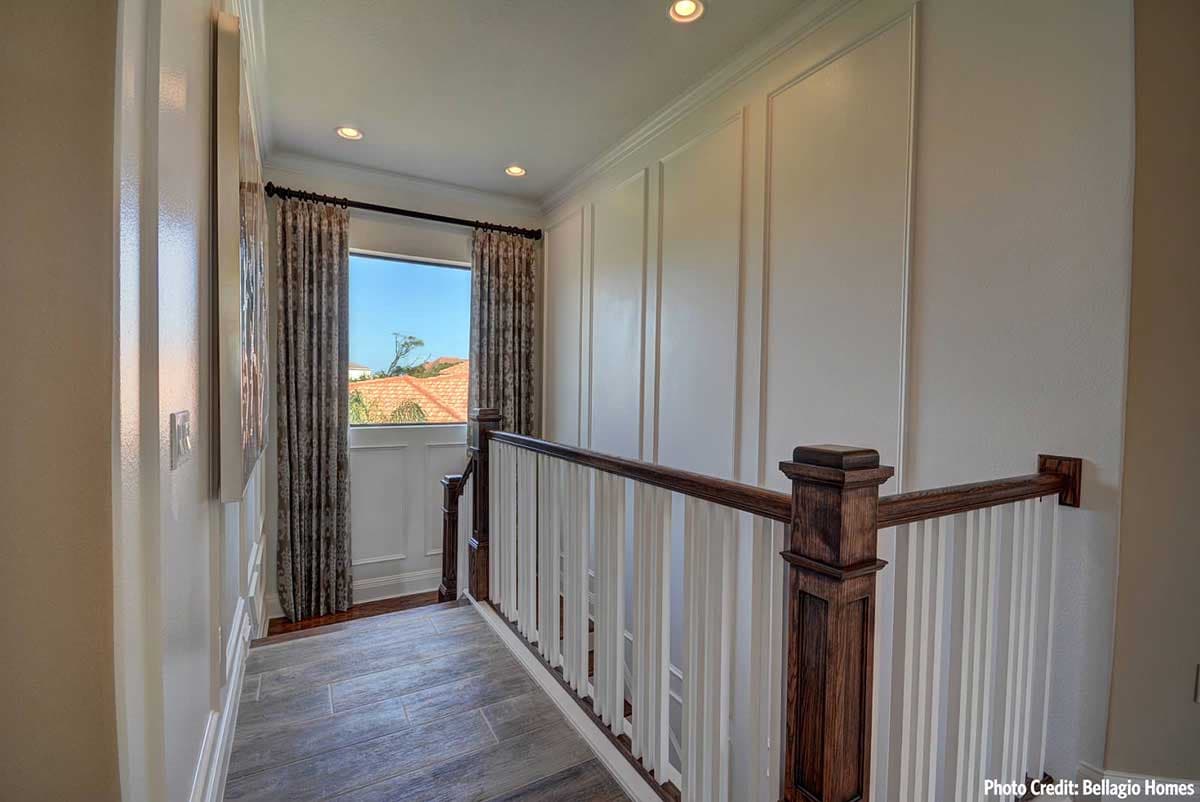

  • Each of the two bedrooms on the second floor has a bath with a loft area open to the foyer below.

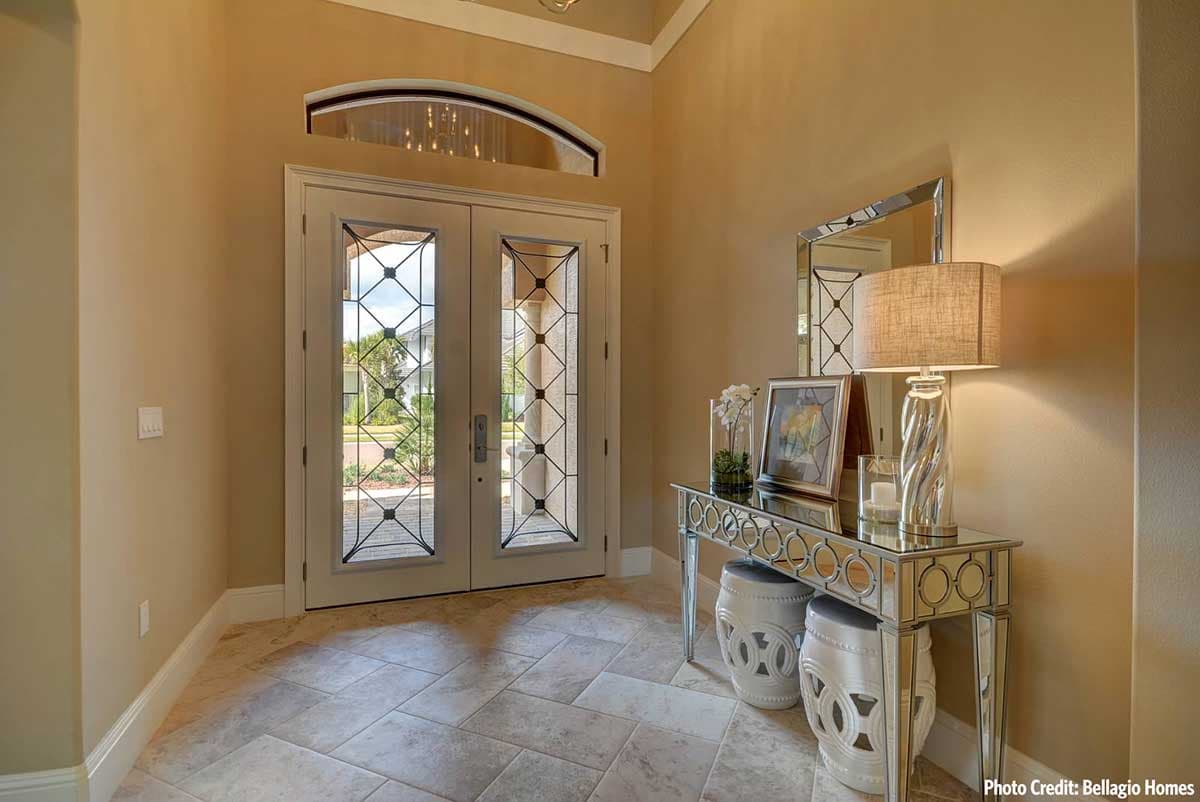

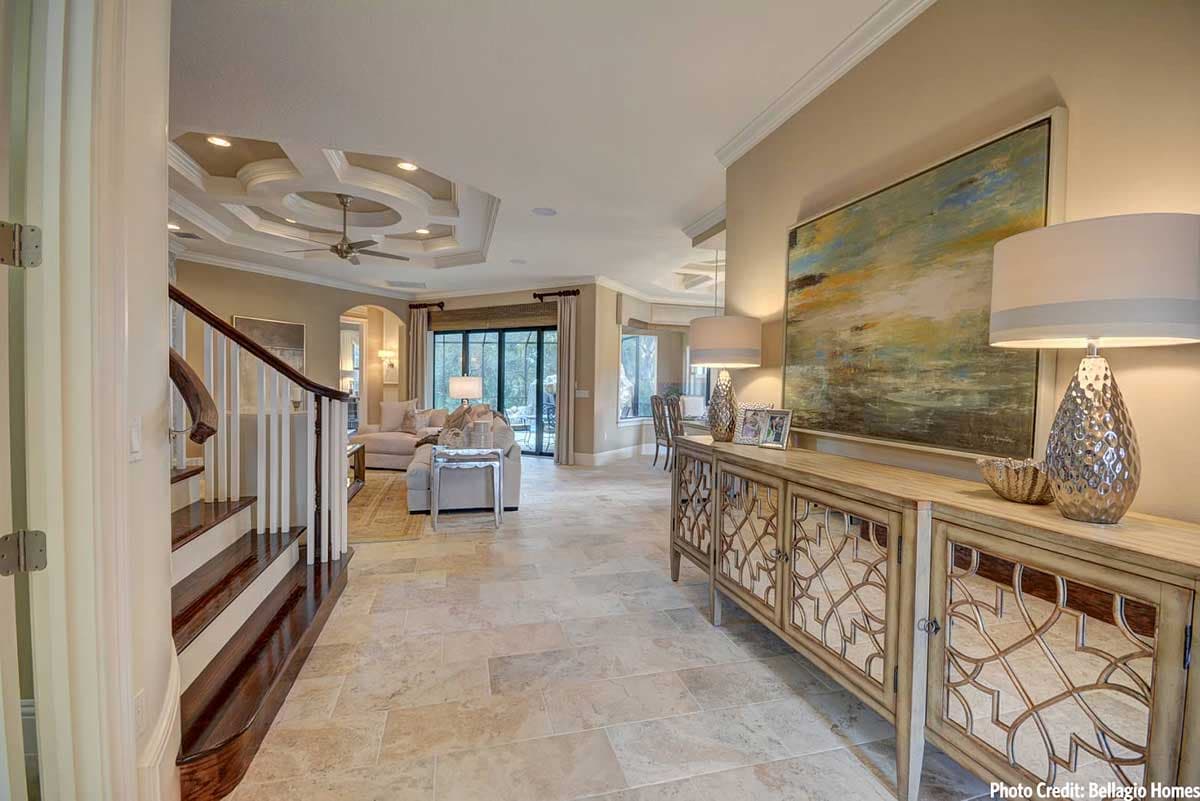

  • Ceilings: 10' standard; 21'4" foyer and entry; 10'-11'8" great room.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,012 sq. ft.

1st Floor

2,198 sq. ft.

2nd Floor

814 sq. ft.

Entry

94 sq. ft.

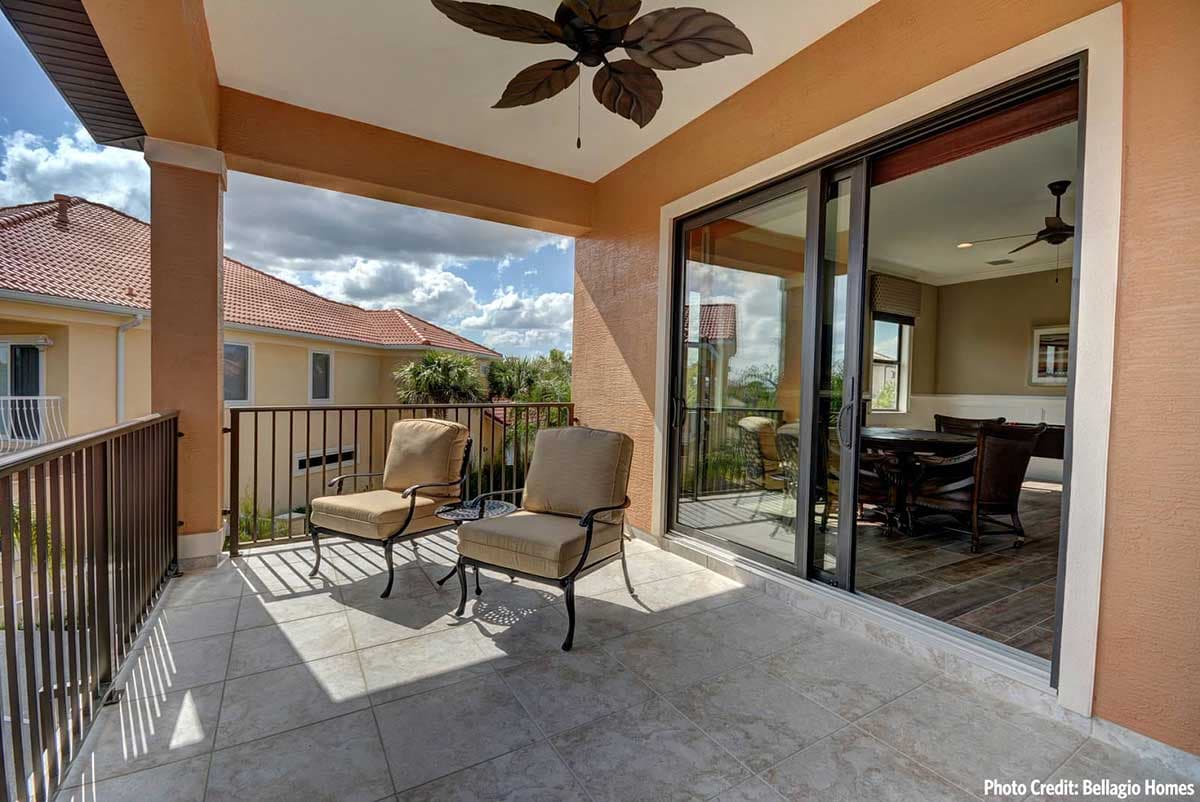

Balcony / Veranda

54 sq. ft.

Lanai

308 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

44' 6"

Depth

75' 6"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Square Footage Breakdown

Total Heated Area

3,012 sq. ft.

1st Floor

2,198 sq. ft.

2nd Floor

814 sq. ft.

Entry

94 sq. ft.

Balcony / Veranda

54 sq. ft.

Lanai

308 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

44' 6"

Depth

75' 6"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss
