Plan 80756PM
Narrow Lot Prairie Home Plan
Heated S.F.
900
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 80756PM

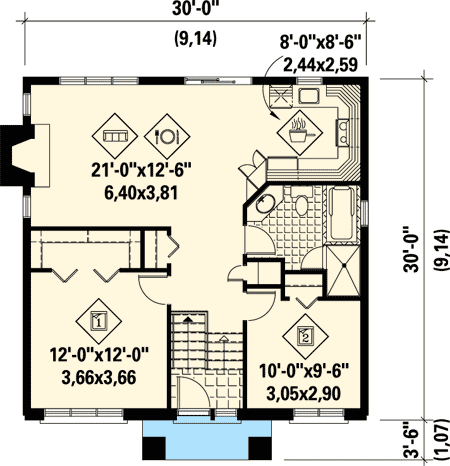

Main Level
slide image 0

Plan 80756PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Only 30' wide, this Prairie home plan is designed to sit on a narrow lot.
  • From the foyer, you can go down to the unfinished basement level or up to the bedroom and living area.
  • A big fireplace warms the main living area and can be seen all the way from the kitchen, thanks to the open layout.

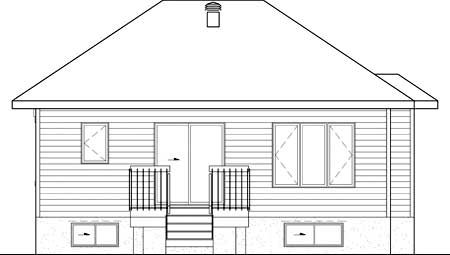

  • Sliding glass doors lead out the rear of your home and your builder can easily add a rear deck.
What's Included
Please note this plan is designed to the National Building Code of Canada.

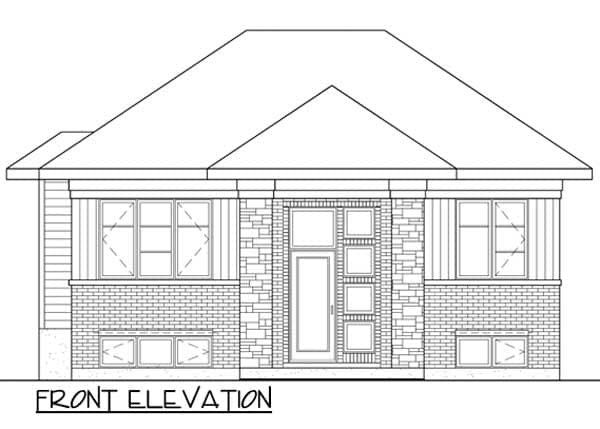

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

900 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

30' 0"

Max Ridge Height

21' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Prairie

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

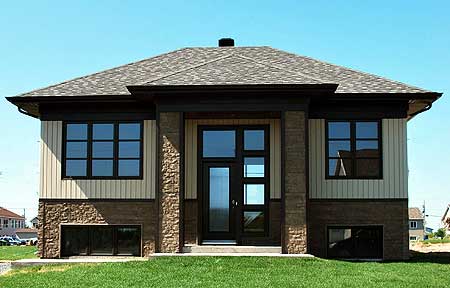

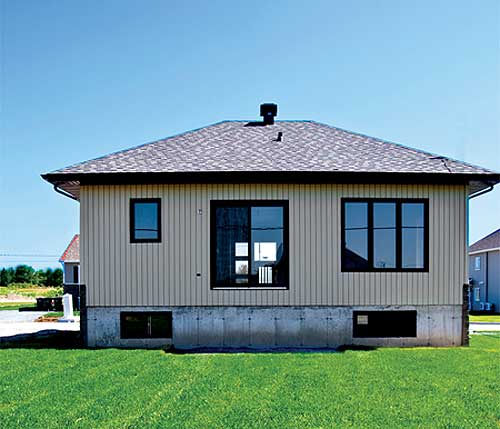

Photo Gallery
