Plan 21663DR
Narrow Lot Southern House Plan
Heated S.F.
1,634
Beds
3
Baths
2
Stories
1-2
Cars
2
Floor Plan

Plan 21663DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21663DR

1-800-854-7852

1-262-521-4596

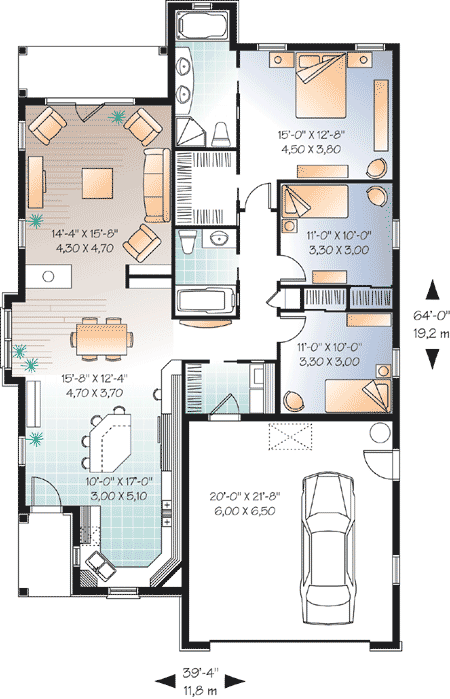

Main Level
floor plan image Main Level

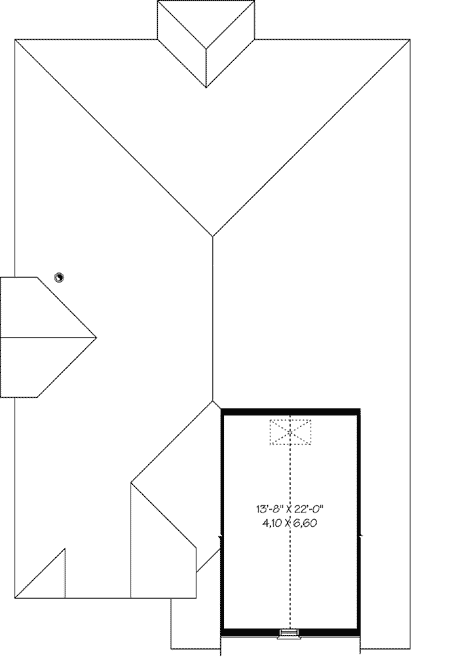

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Less than 40' wide, this attractive Southern house plan fits well on a narrow lot with great style.
  • The front door opens to front to back views that extend all the way back through the kitchen, eating area, large living room and out onto the covered rear porch.
  • All three bedrooms are grouped on the right side of the home with the master suite in back.
  • Homeowners get a private bathroom and large walk-in closet.
  • Bonus space is reached by pull-down stairs in the garage.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,634 sq. ft.

1st Floor

1,634 sq. ft.

Bonus

334 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

39' 4"

Depth

64' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

481 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 6"

Roof Details

Framing Type

Truss

Architectural Style

Florida

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,634 sq. ft.

1st Floor

1,634 sq. ft.

Bonus

334 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

39' 4"

Depth

64' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

481 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 6"

Roof Details

Framing Type

Truss

Architectural Style

Florida

Southern

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric
