Plan 62713DJ
Narrow Lot Vacation Cabin
Heated S.F.
1,190
Beds
3
Baths
1
Stories
2
Floor Plan

Plan 62713DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62713DJ

1-800-854-7852

1-262-521-4596

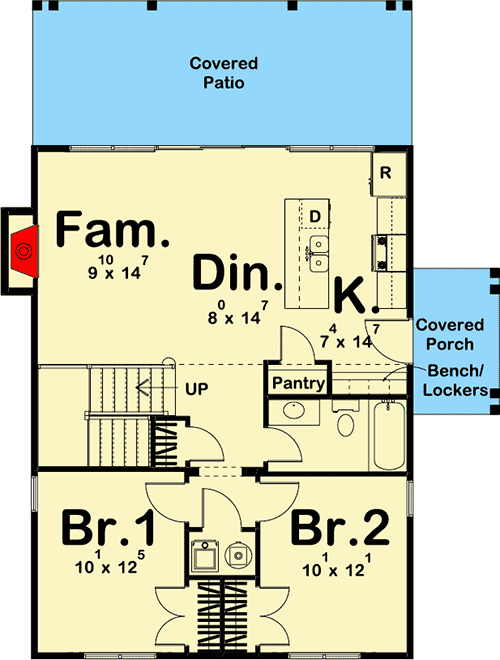

Main Level
floor plan image Main Level

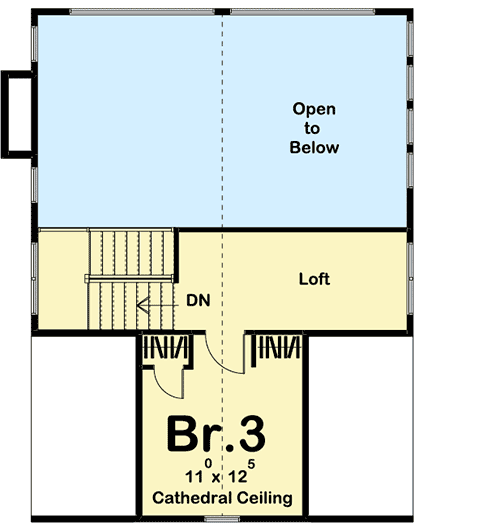

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This cottage style cabin plan has 2 bedrooms on the main floor with a 3rd bedroom upstairs.
  • The main floor includes a family room with a fireplace and an open kitchen complete with an island and breakfast bar.
  • The vaulted ceiling makes the family room, kitchen and dining area feel much larger.
  • Built-in benches and lockers off the side entry keep you organized.
  • Loft space on the second floor gives you another place for your family to relax in.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,190 sq. ft.

1st Floor

921 sq. ft.

2nd Floor

269 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

45' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Architectural Style

Cabin

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,190 sq. ft.

1st Floor

921 sq. ft.

2nd Floor

269 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

45' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Architectural Style

Cabin

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
