Plan 69325AM
New American Country Home Plan Under 2100 Square Feet with 3 Beds
Heated S.F.
2,093
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 69325AM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 69325AM

1-800-854-7852

1-262-521-4596

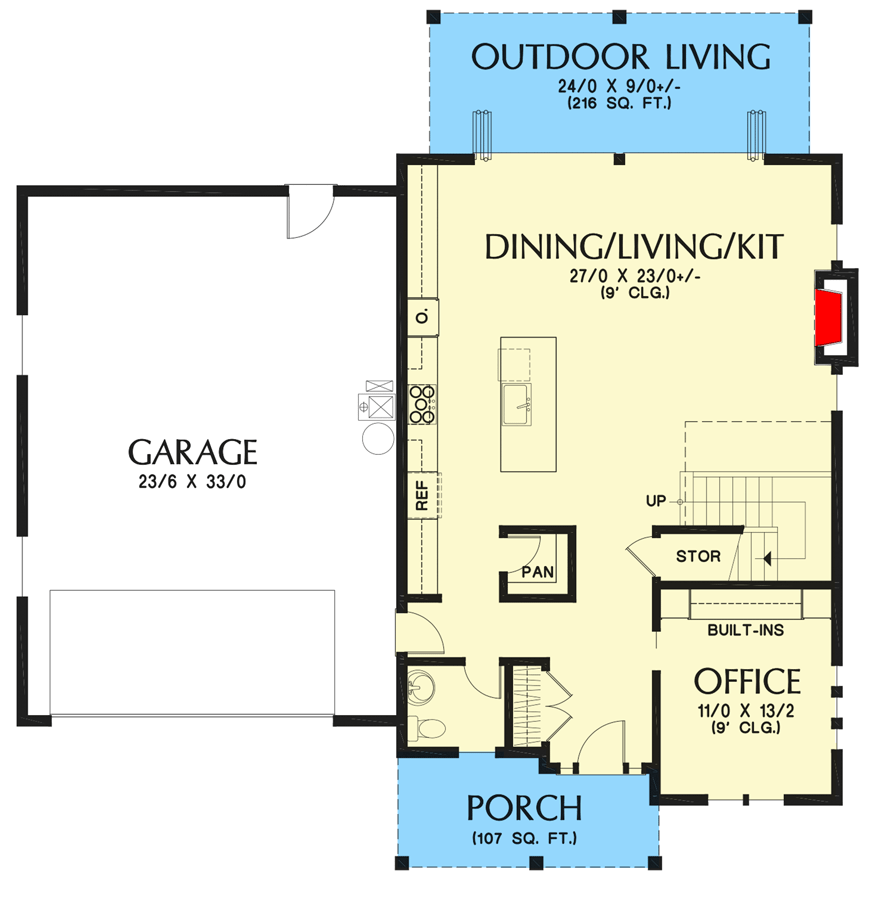

Main Level
floor plan image Main Level

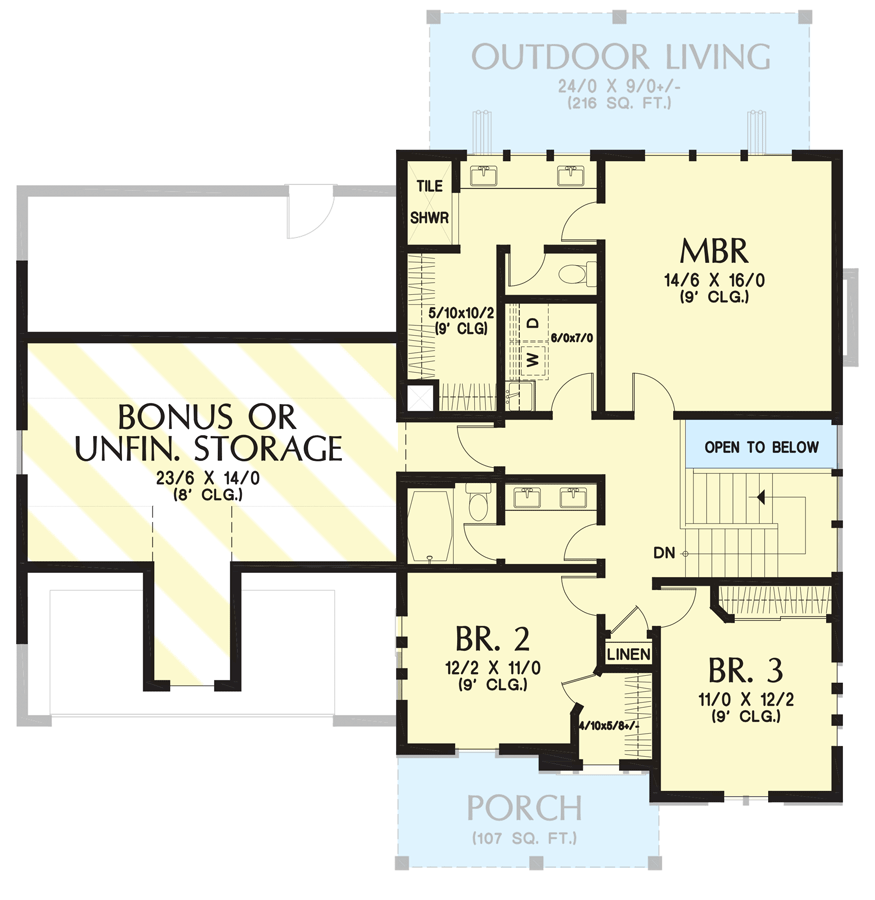

2nd Floor
floor plan image 2nd Floor
Plan Details

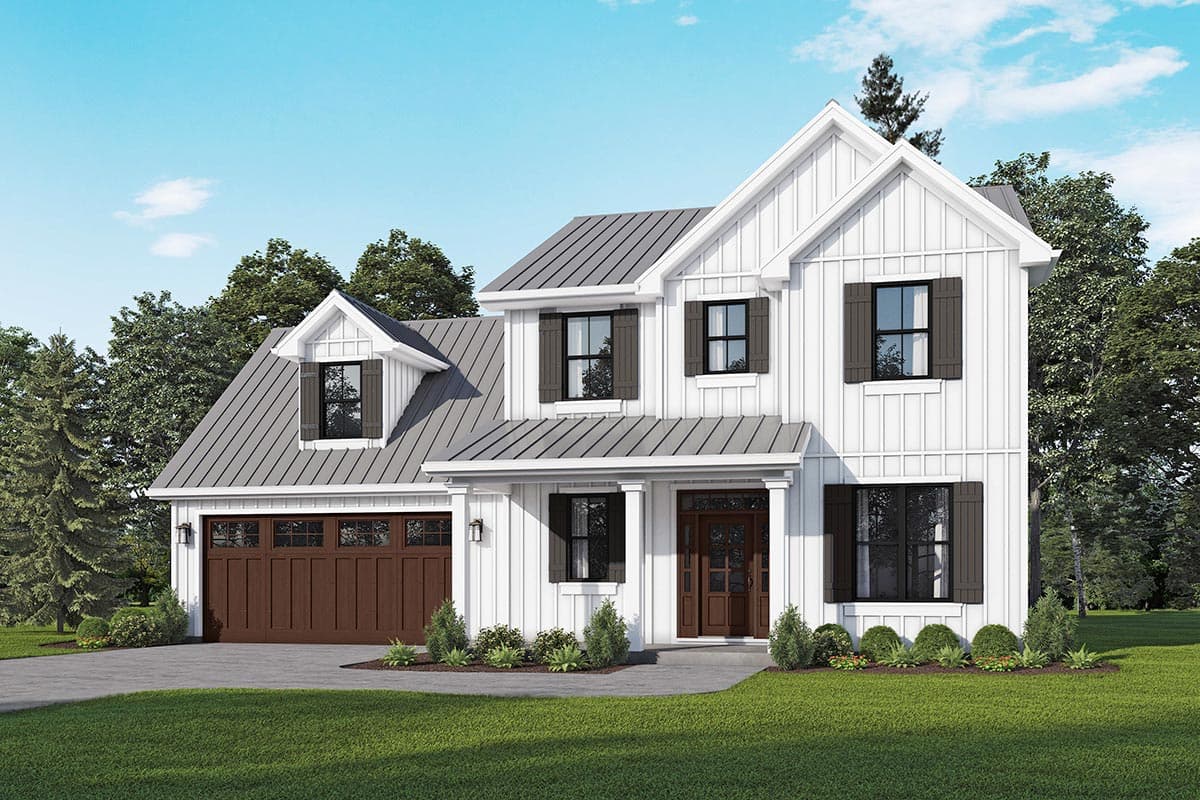

  • This 3-bed, 2.5 bath New American home plan has a board and batten exterior with a metal roof and gives you 2,093 square feet of heated living ara.
  • All 3 bedrooms are located upstairs - as is laundry - as well as 420 square feet of bonus space above the garage.
  • A home office is located off the entry and has built-ins on the back wall and windows on the front and side walls.

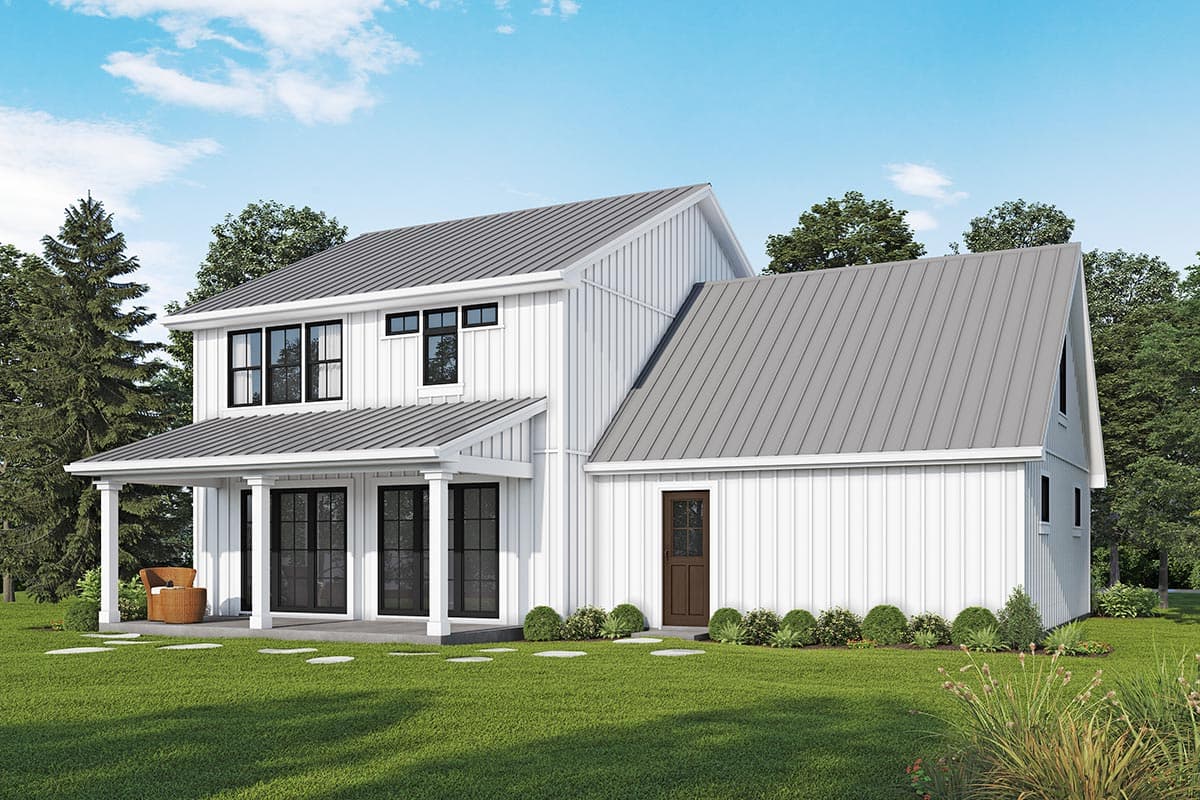

  • The back of the home is an open space with the kitchen and living area with fireplace sharing uninterrupted views. The back wall slides open extending your living to the 216 square foot covered porch in back.
  • A 2-car garage gives you 816 square feet of covered parking.
  • Related Plan: Get a modern exterior with house plan 69324AM.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,093 sq. ft.

1st Floor

1,107 sq. ft.

2nd Floor

986 sq. ft.

Bonus

420 sq. ft.

Porch, Front

107 sq. ft.

Porch, Rear

216 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

54' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

816 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor
