Plan 36629TX
New American Craftsman House Plan Designed to Entertain
Heated S.F.
4,402
Beds
4
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 36629TX

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36629TX

1-800-854-7852

1-262-521-4596

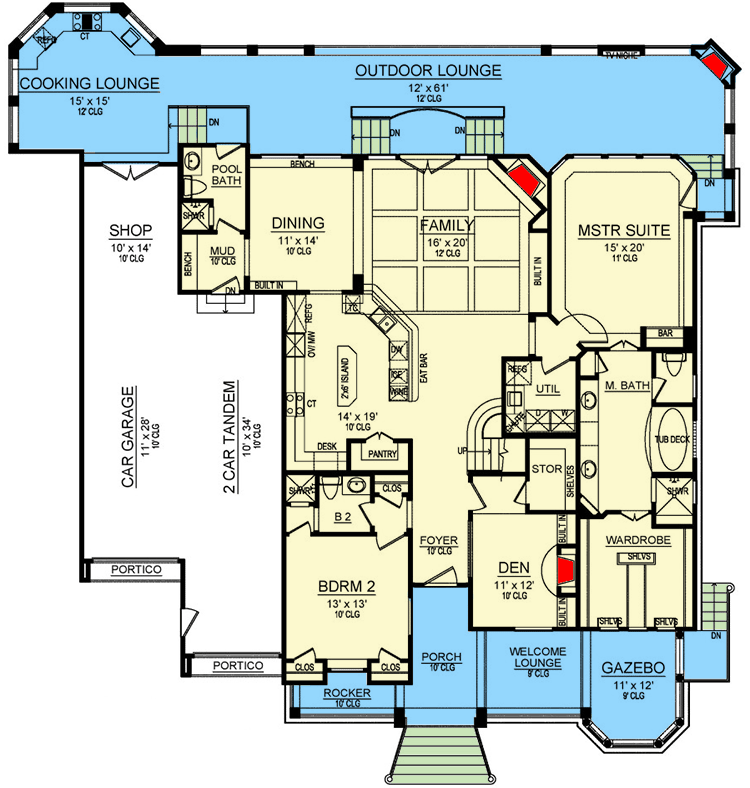

Main Level
floor plan image Main Level

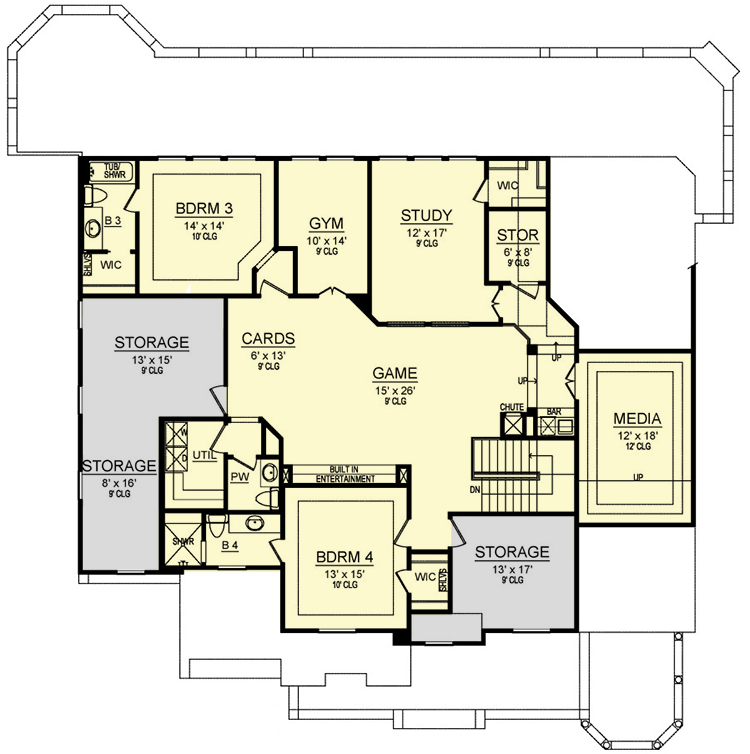

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This New American Craftsman house plan includes everything on your wish list; 4 comfortable bedrooms, plenty of storage, home gym, media room, two laundry rooms with a laundry chute, and spacious outdoor living areas.
  • The luxury kitchen features a prep island, wrap-around eating bar that connects to the family room, and a walk-in pantry. Retreat to the outdoor lounge when entertaining, complete with a summer kitchen.
  • Enjoy the convenience of a main-level master suite, which boasts a sizable 5-fixture ensuite and roomy wardrobe. A second bedroom on the main level is ideal for guests and provides access to a full bath.
  • A game room greets you at the top of the stairs with a built-in entertainment area and bar. Two bedroom suites, a gym, study, and media room can also be found upstairs.
  • The garage includes space for 3 cars and a workshop, and opens into a mudroom with a full bath.
What's Included
  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

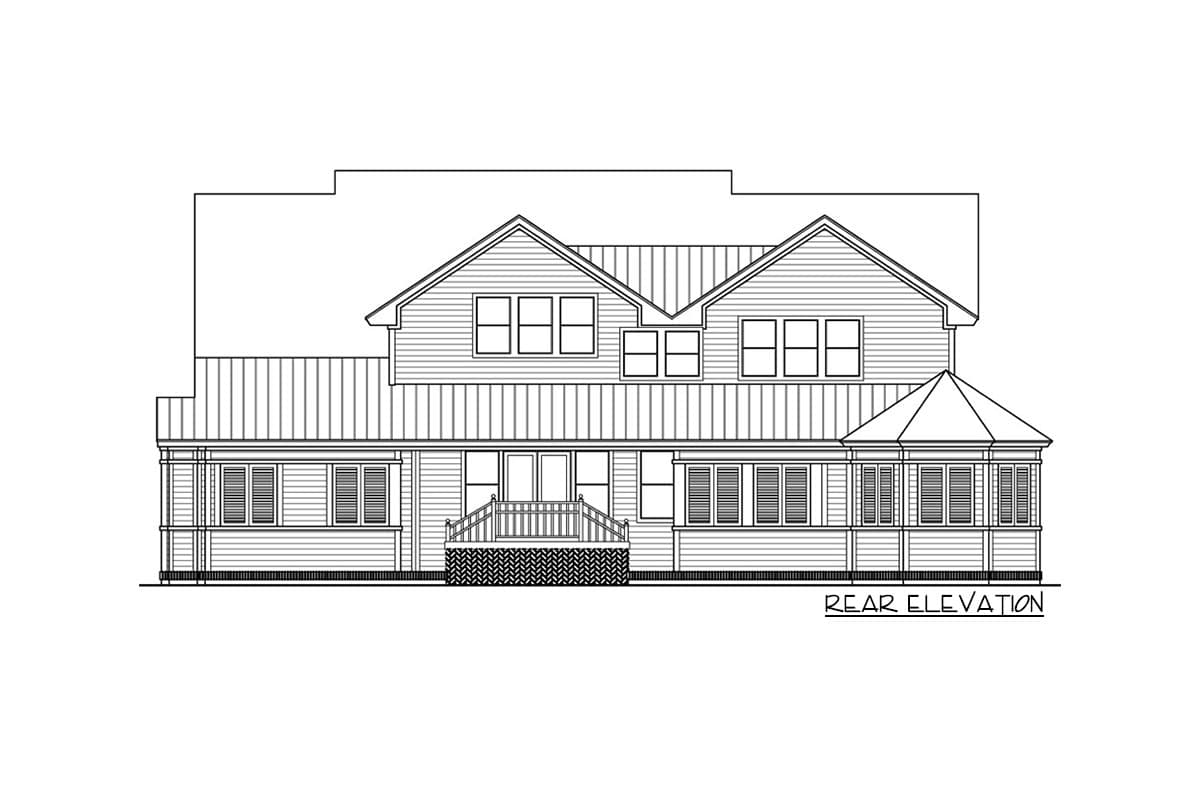

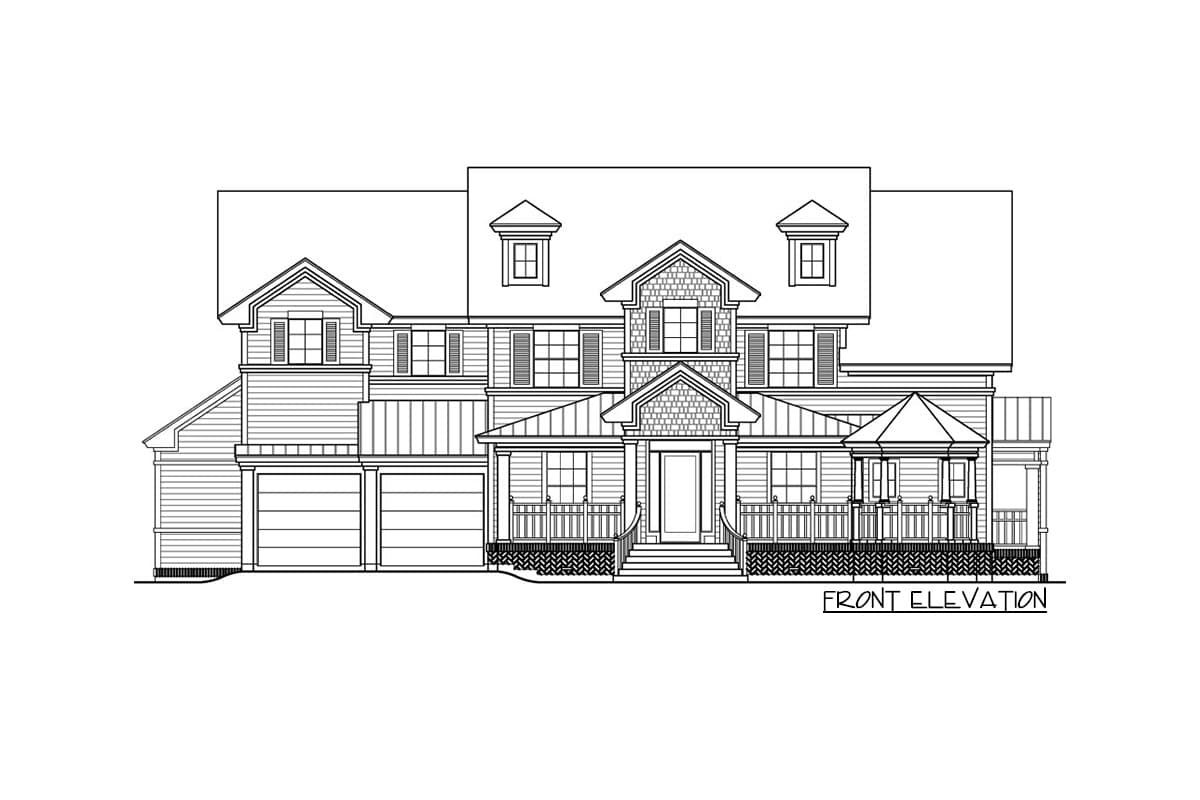

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

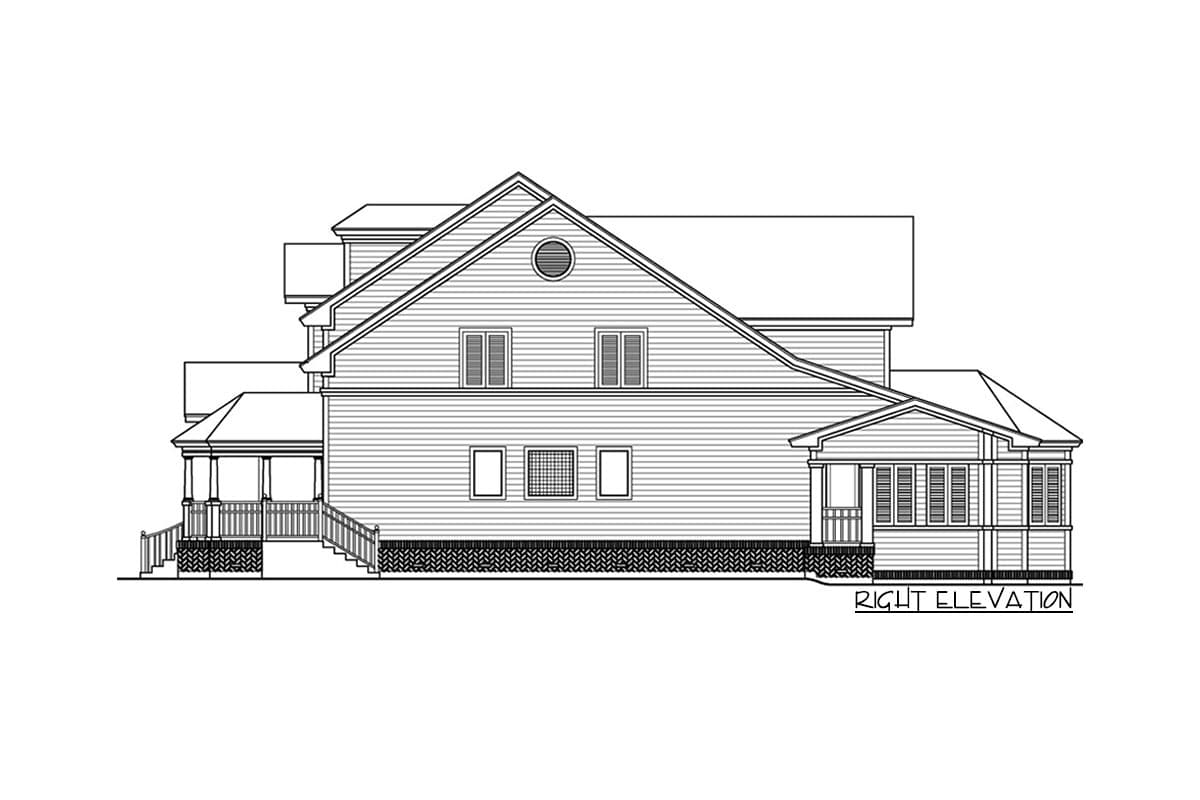

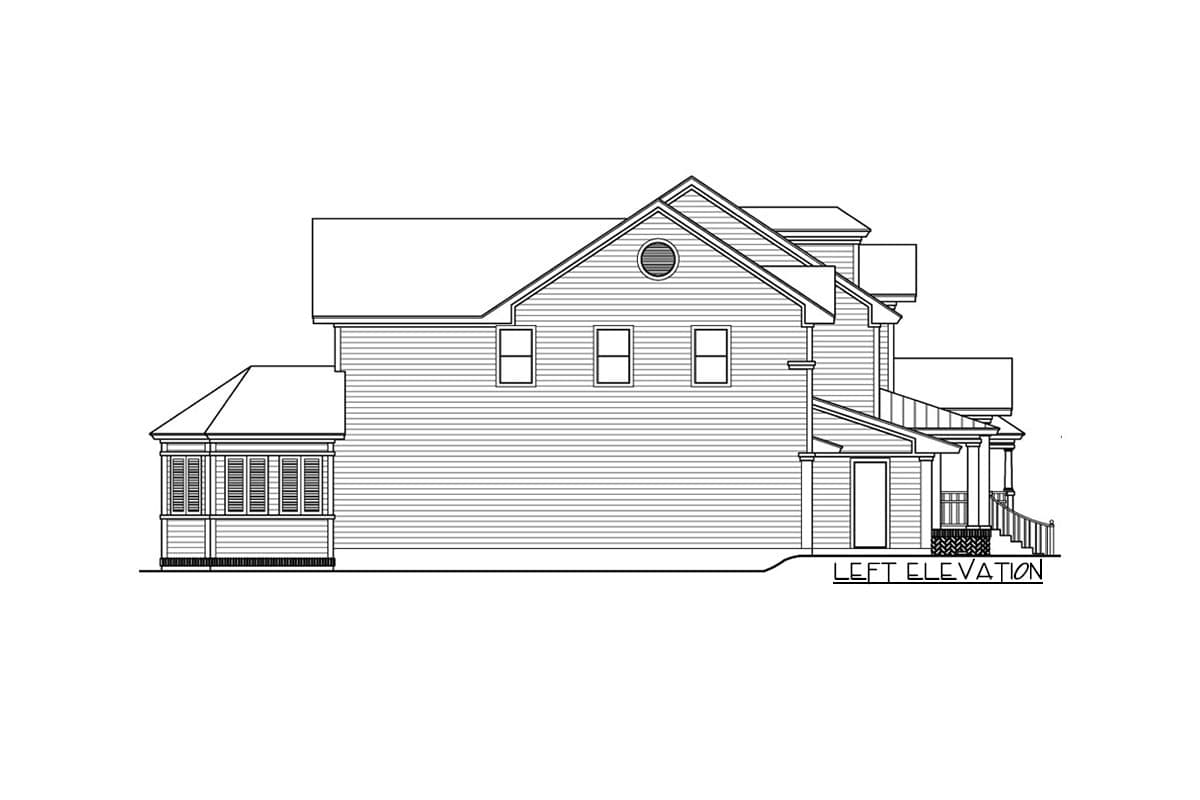

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,402 sq. ft.

1st Floor

2,398 sq. ft.

2nd Floor

2,004 sq. ft.

Bonus

611 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

79' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

886 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Craftsman

New American

Special Features

Butler Walk-in Pantry

Laundry Chute

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Workshop

Square Footage Breakdown

Total Heated Area

4,402 sq. ft.

1st Floor

2,398 sq. ft.

2nd Floor

2,004 sq. ft.

Bonus

611 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 0"

Depth

79' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

886 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Architectural Style

Craftsman

New American

Special Features

Butler Walk-in Pantry

Laundry Chute

Laundry - Upstairs

Master Suite - 1st Floor

Mudroom

Workshop
