Plan 28011J

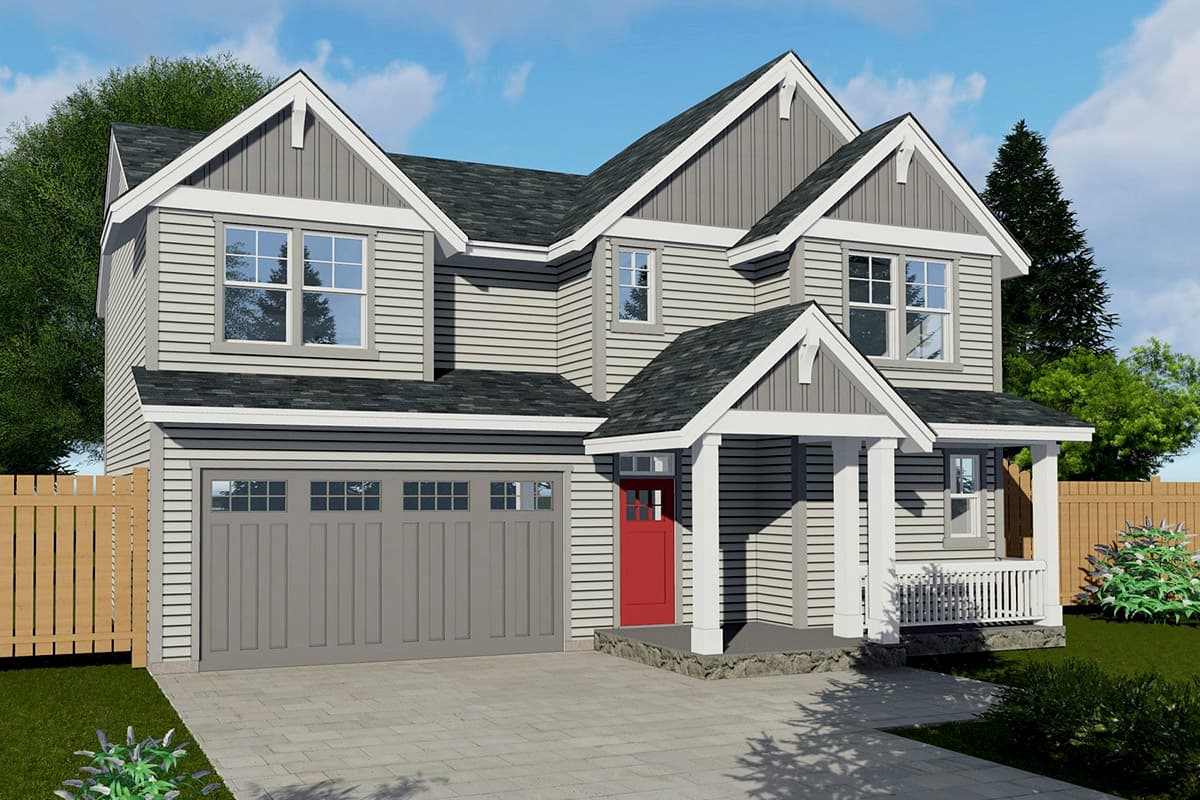

New American Craftsman Plan with 3 Upstairs Bedroom and a 2-Car Garage with Storage
Heated S.F.
1,655
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 28011J

Main Level
slide image 0
2nd Floor
slide image 1

Plan 28011J

1-800-854-7852

1-262-521-4596

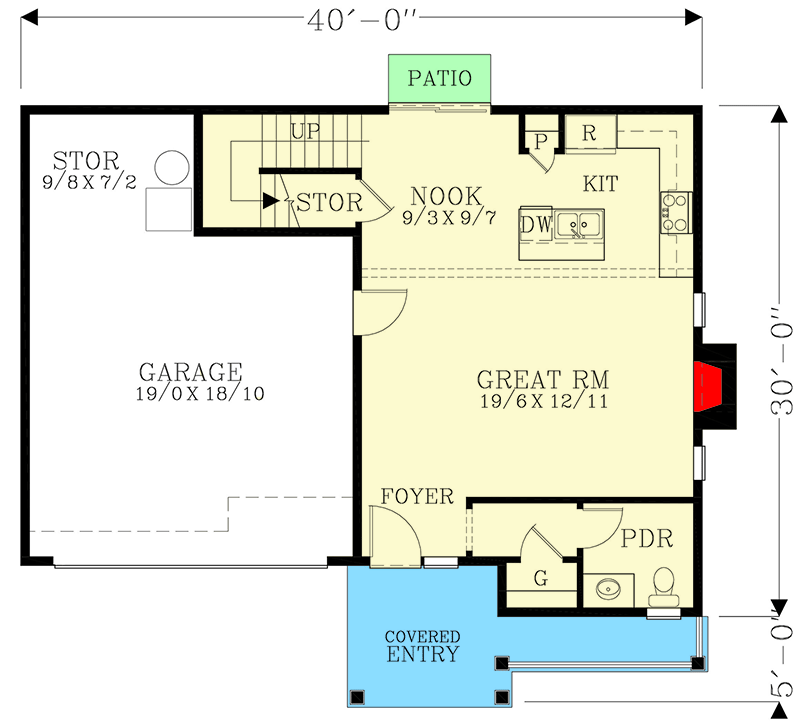

Main Level
floor plan image Main Level

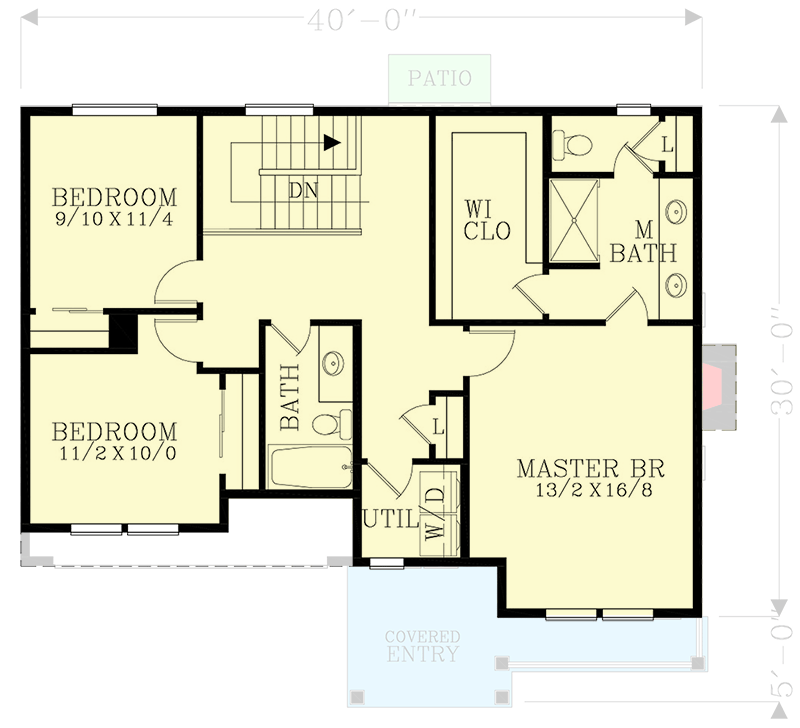

2nd Floor
floor plan image 2nd Floor
Plan Details
  • With over 1,600 square feet of living space, this New American Craftsman home plan delivers 3 bedrooms, 2.5 baths, and a 2-car garage with extra space for storage.
  • An open and airy living space consumes the main level with a fireplace anchoring the right wall and an island serving as a natural conversation hub.
  • Sliding doors off the dining area permit access to the back yard, and additional storage / pantry space is available beneath the staircase.
  • Three bedrooms surround the laundry room upstairs with the largest bedroom reserved for the homeowner.
  • Related Plans: Get alternate 4-bed versions with house plans 28009J, 28010J and 28095J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

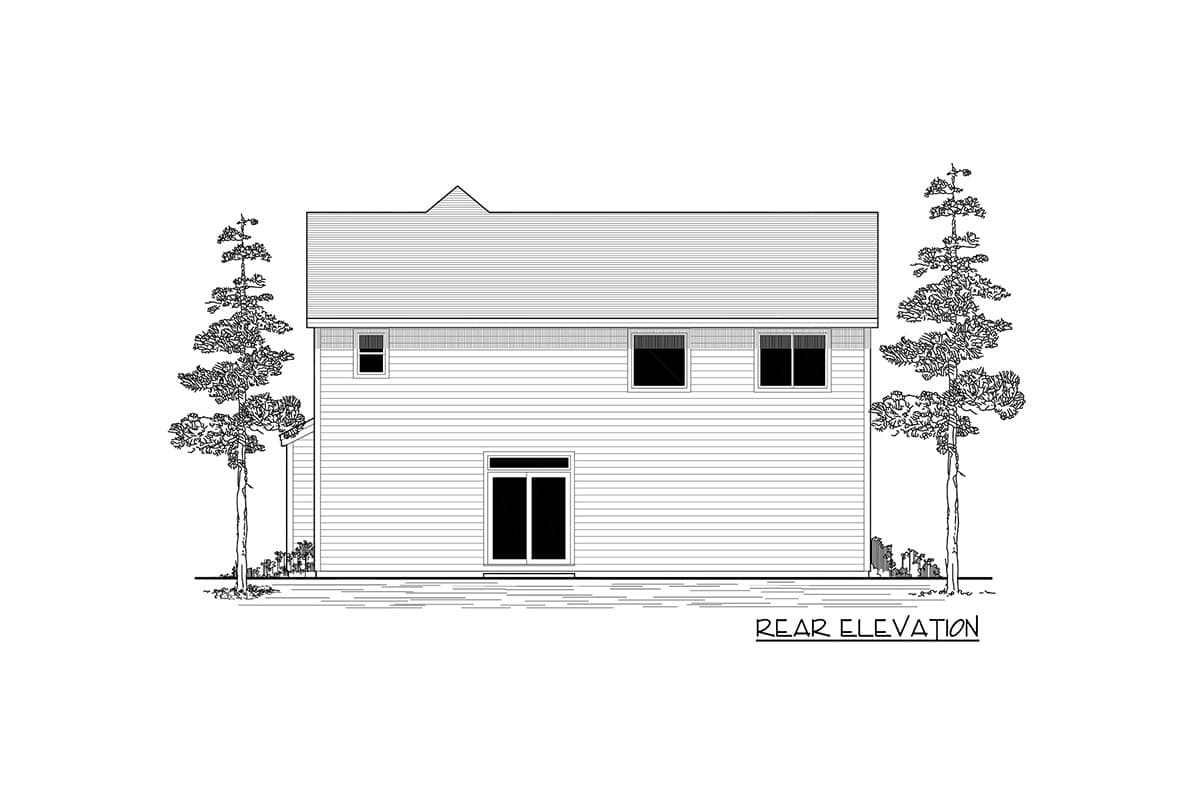

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,655 sq. ft.

1st Floor

661 sq. ft.

2nd Floor

994 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

30' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

330 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor
