New American Farmhouse with Flex and Bonus Rooms - 2523 Sq Ft

Heated S.F.

2,523

Beds

3 - 4

Baths

Stories

Cars

Floor Plan

Main Level

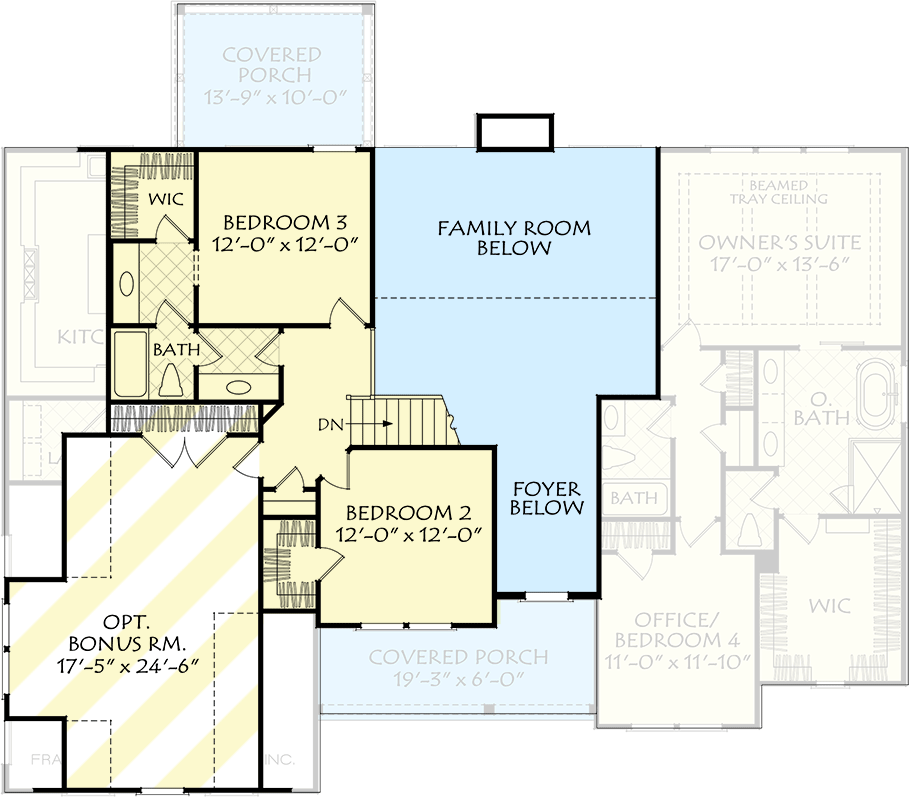

2nd Floor

Plan Details

Multiple gables and interesting roof lines frame the exterior of this 4 bed, 3 bath 2,523 square foot modern farmhouse with board-and-batten siding and contrasting trim accentuating the elevation.
A welcoming 6'-deep front porch is the perfect spot for friendly conversation or meeting guests.
The main level is open concept, light filled and flows with ease. The chef's kitchen has abundant cabinetry and a large island with seating. The dining and vaulted family rooms are open and will host family events and gatherings.
The owner's suite with walk-in closet is located on the main floor for privacy and convenience. The bath is fully appointed with a soaking tub and large shower.
A flex room can be an office, a study or additional dining area - you decide. The secondary bedroom on this level could be a nursery as it is close to the owner's suite or a guest suite.
The upper level has two additional bedrooms, a Jack-and-Jill bathroom and a multi-purpose bonus room above the garage.

What's Included

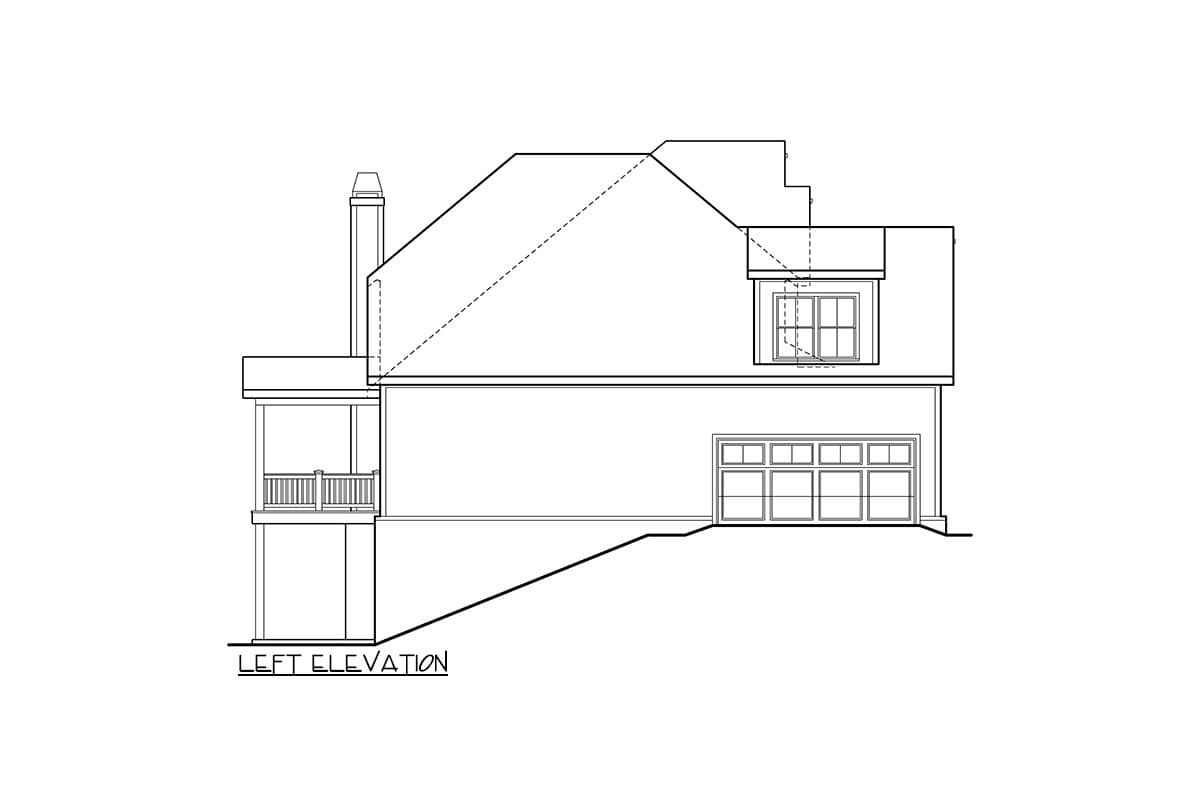

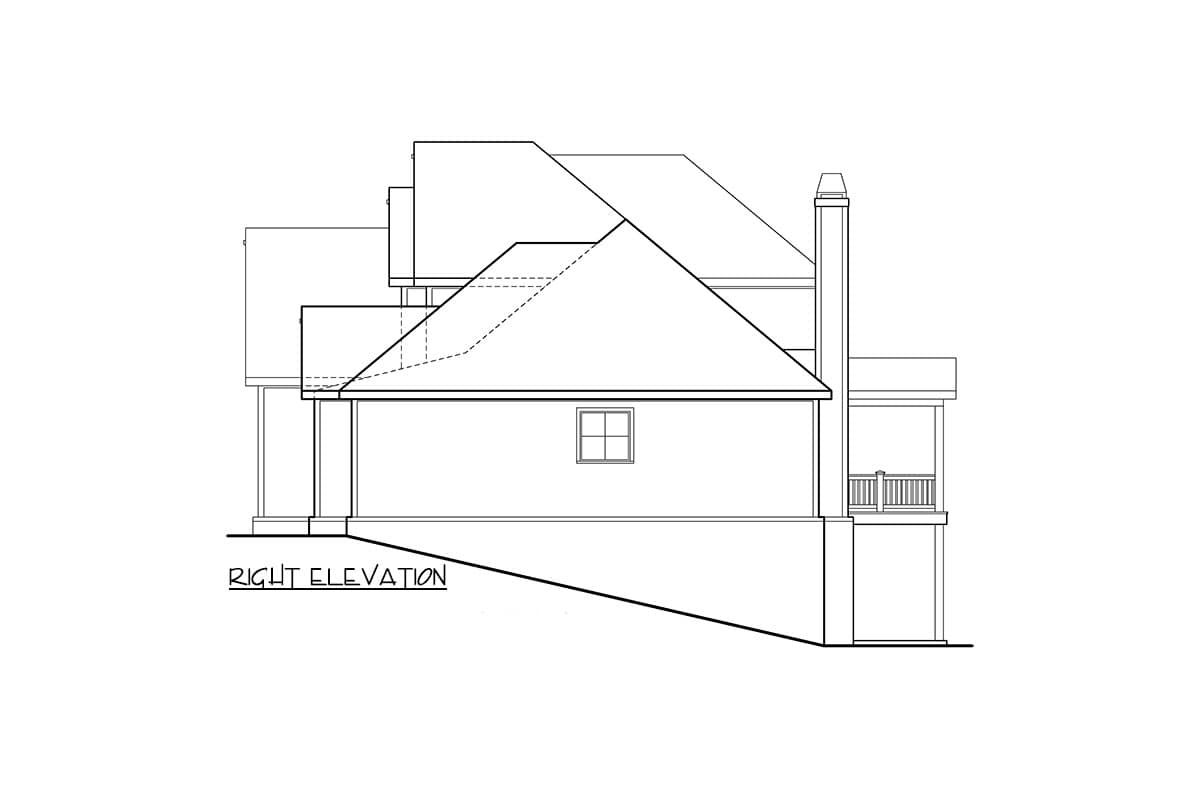

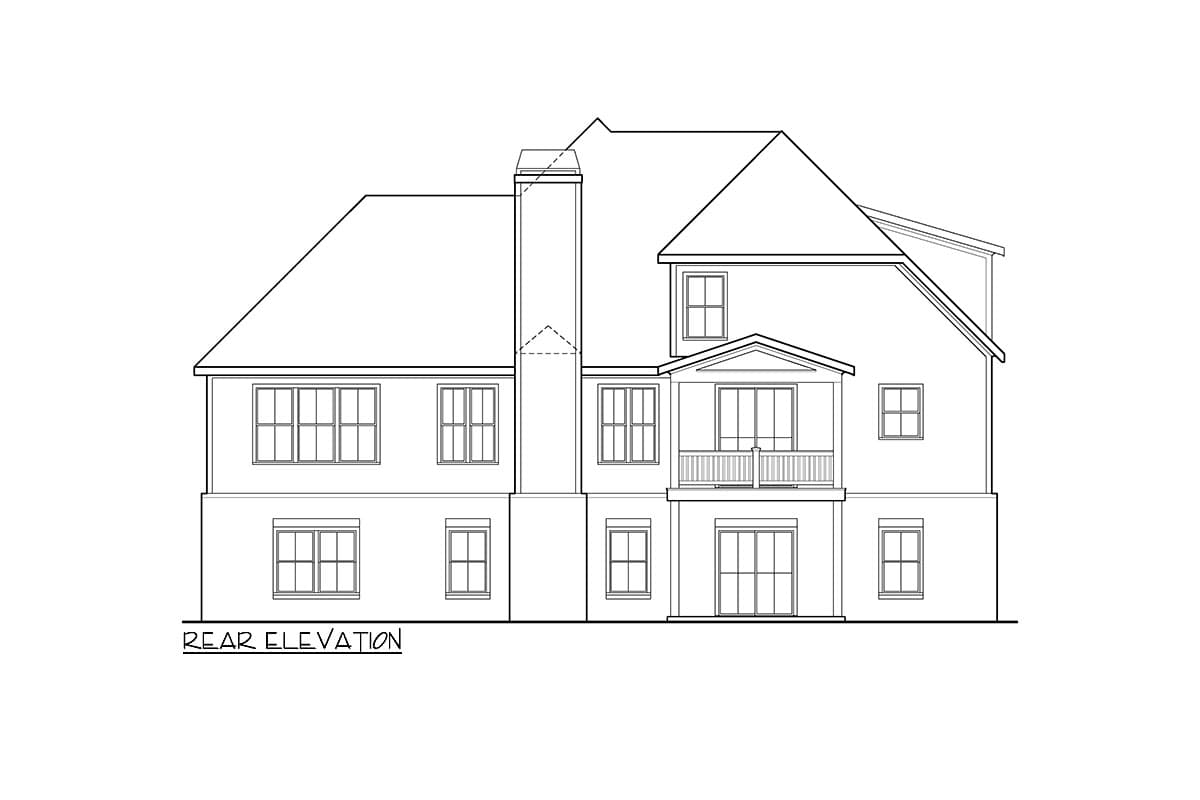

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.

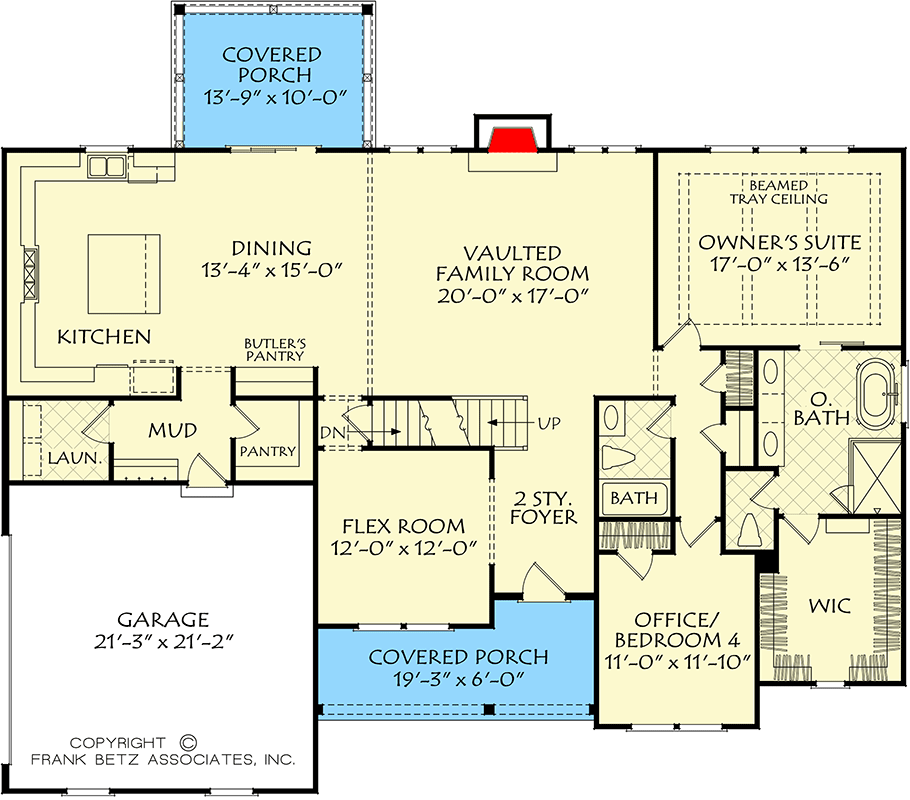

Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
