Plan 22146SL
New American Garage Apartment Plan - 888 Sq Ft
Heated S.F.
888
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 22146SL

Main Level
slide image 0
2nd Floor
slide image 1

Plan 22146SL

1-800-854-7852

1-262-521-4596

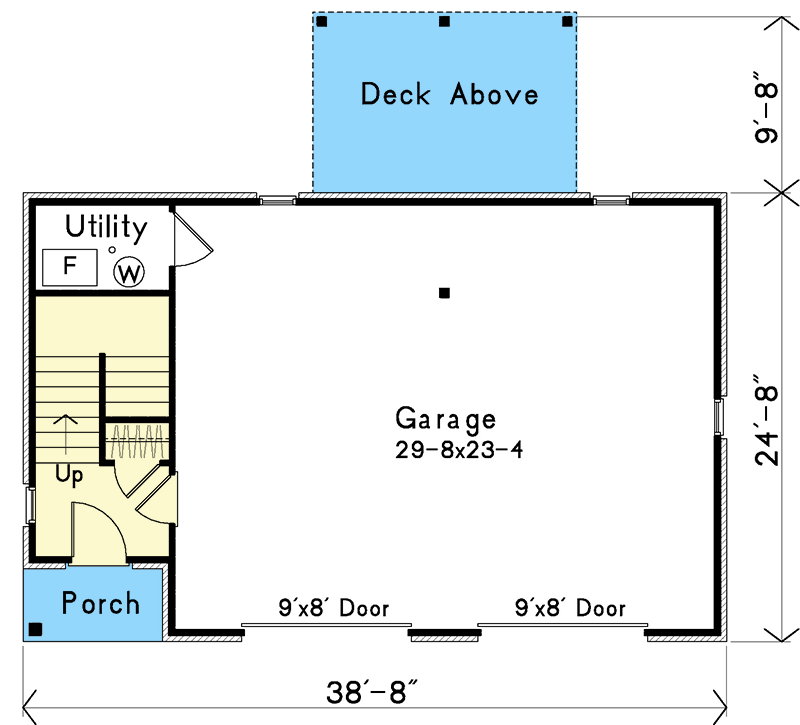

Main Level
floor plan image Main Level

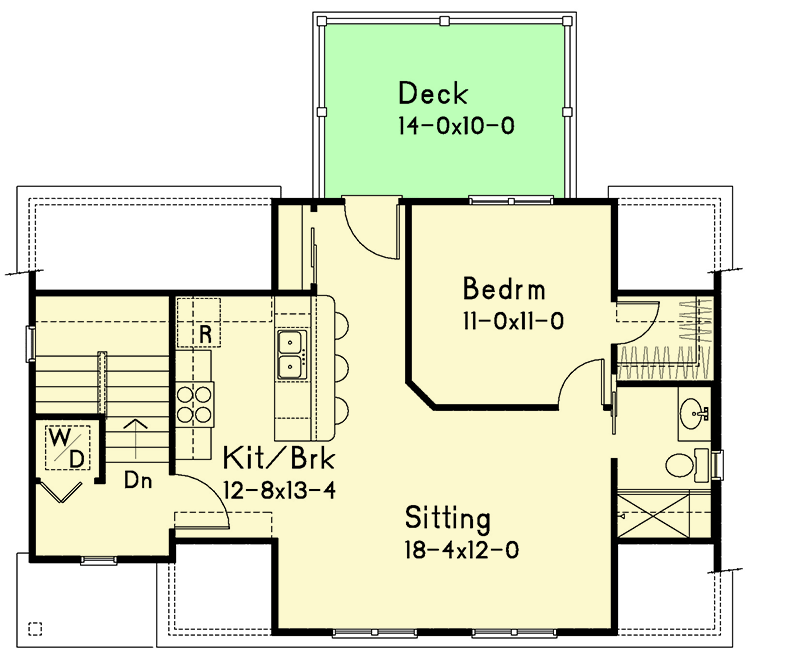

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Classic features on the exterior of this New American garage make it a great addition to any style of home. A brick trim and board and batten siding complete the design.
  • Two garage bays can be found on the main level, along with a coat closet in the entryway.
  • The upstairs apartment includes a stackable laundry unit, kitchen that opens to the living space, bedroom, full bath, and a sizable deck.
  • Bar-height counters in the kitchen provide seating for three, and a neighboring closet increases storage space.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

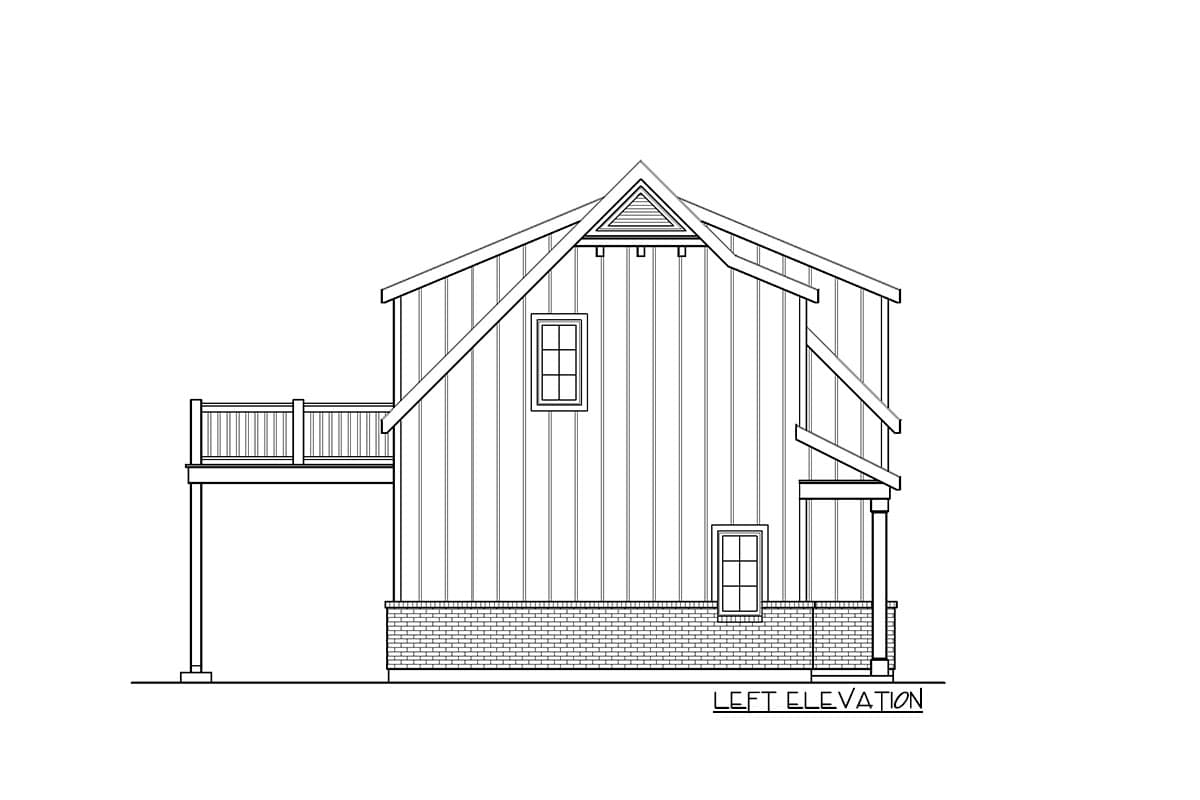

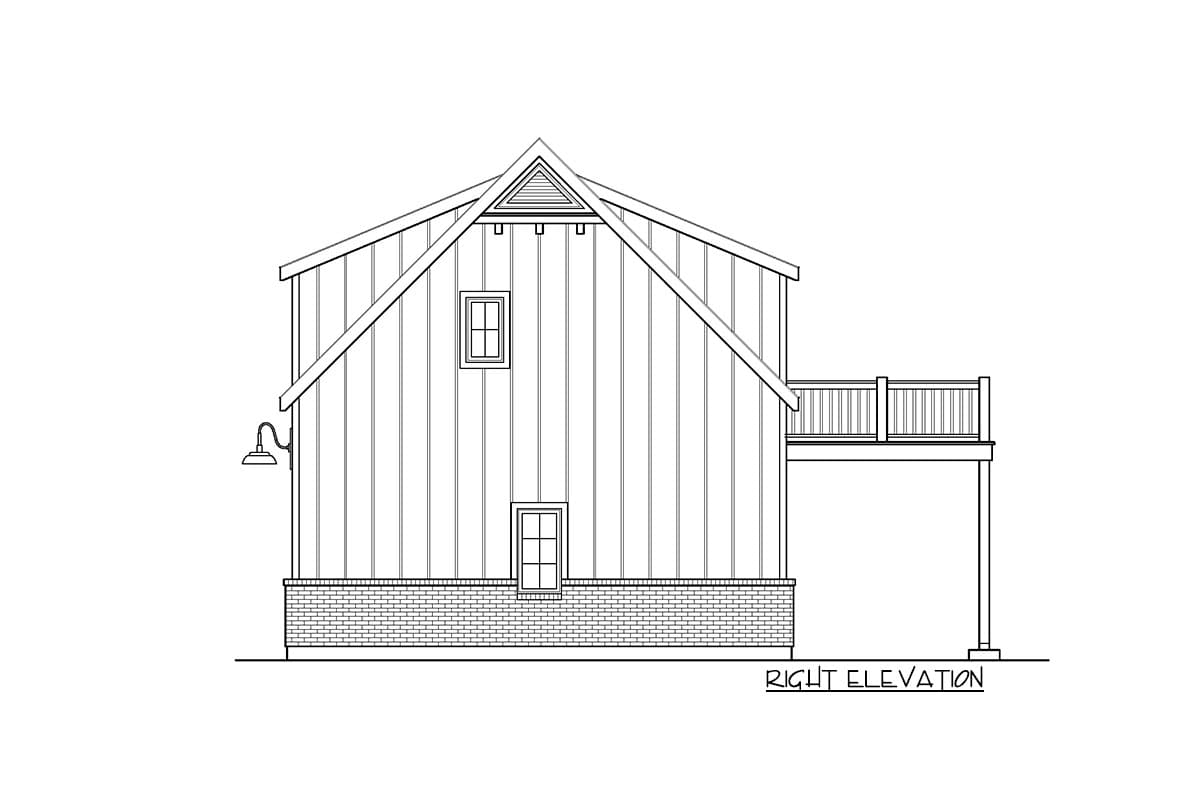

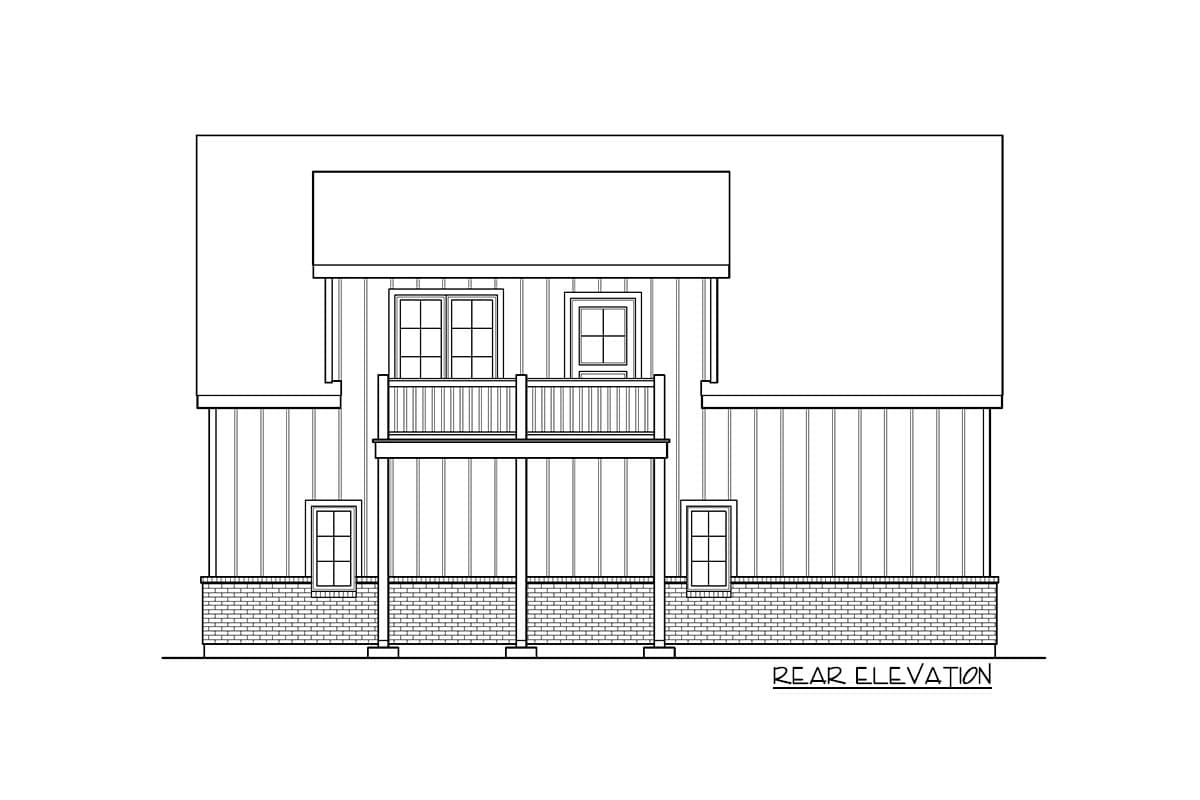

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

888 sq. ft.

1st Floor

160 sq. ft.

2nd Floor

728 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

34' 4"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

685 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

888 sq. ft.

1st Floor

160 sq. ft.

2nd Floor

728 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 8"

Depth

34' 4"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

685 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU
