Plan 68876VR
New American Garage Plan with Storage Above
Heated S.F.
0
Beds
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 68876VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68876VR

1-800-854-7852

1-262-521-4596

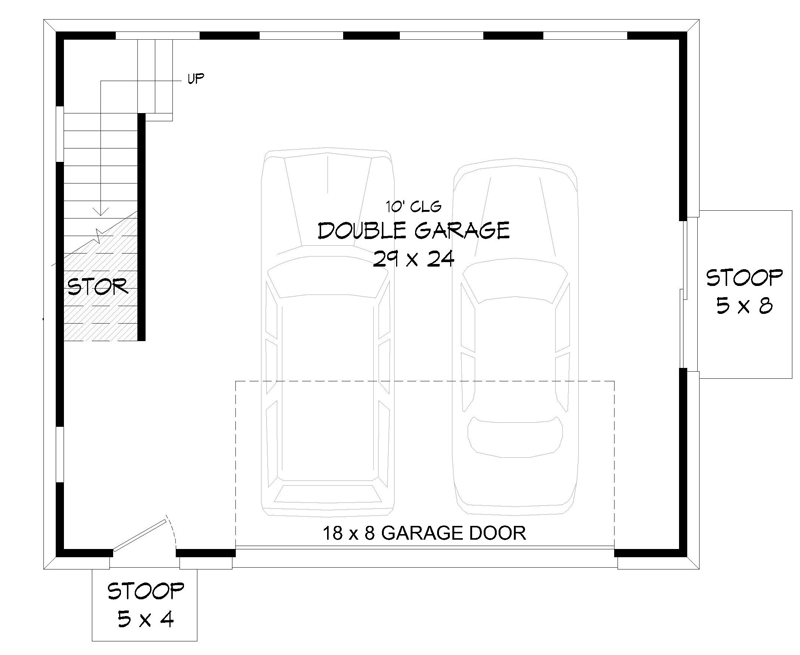

Main Level
floor plan image Main Level

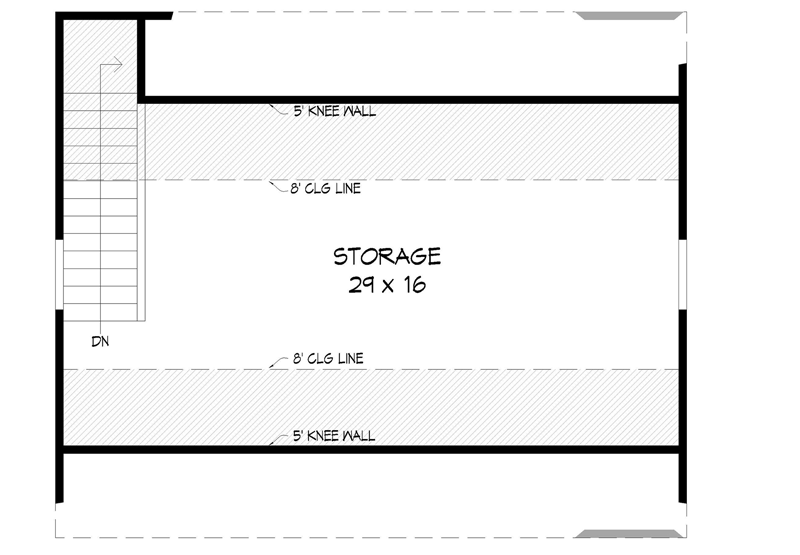

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This attractive 2-car detached garage plan has New American appeal with its board and batten siding and standing seam metal roof. Stone trim adds to the appeal.
  • A single 18' by 8' door opens for the cars. A separate person door to the left - and sliding doors on the right - get you inside on foot.
  • Stairs line the left side and take you to 527 square feet of storage space that has clearance for you to walk around. Put a ping pong table up there or a desk and turn it into a game room or a home office.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

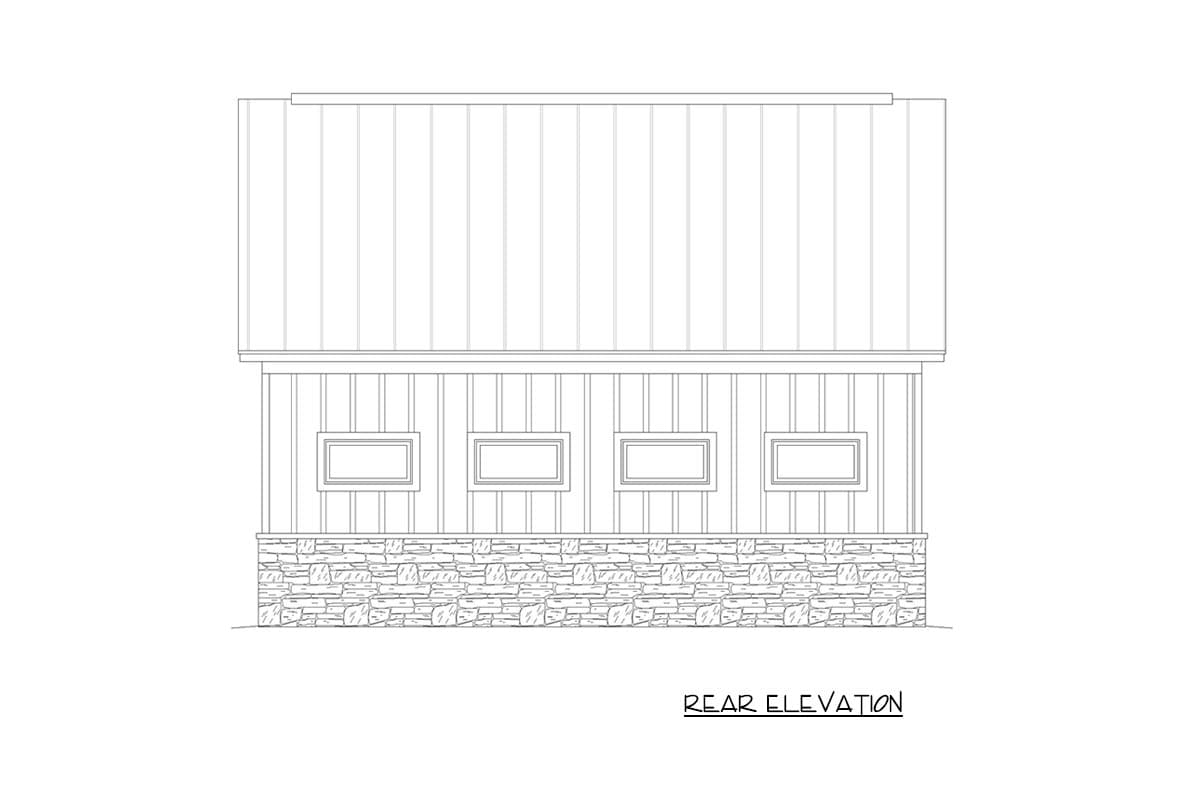

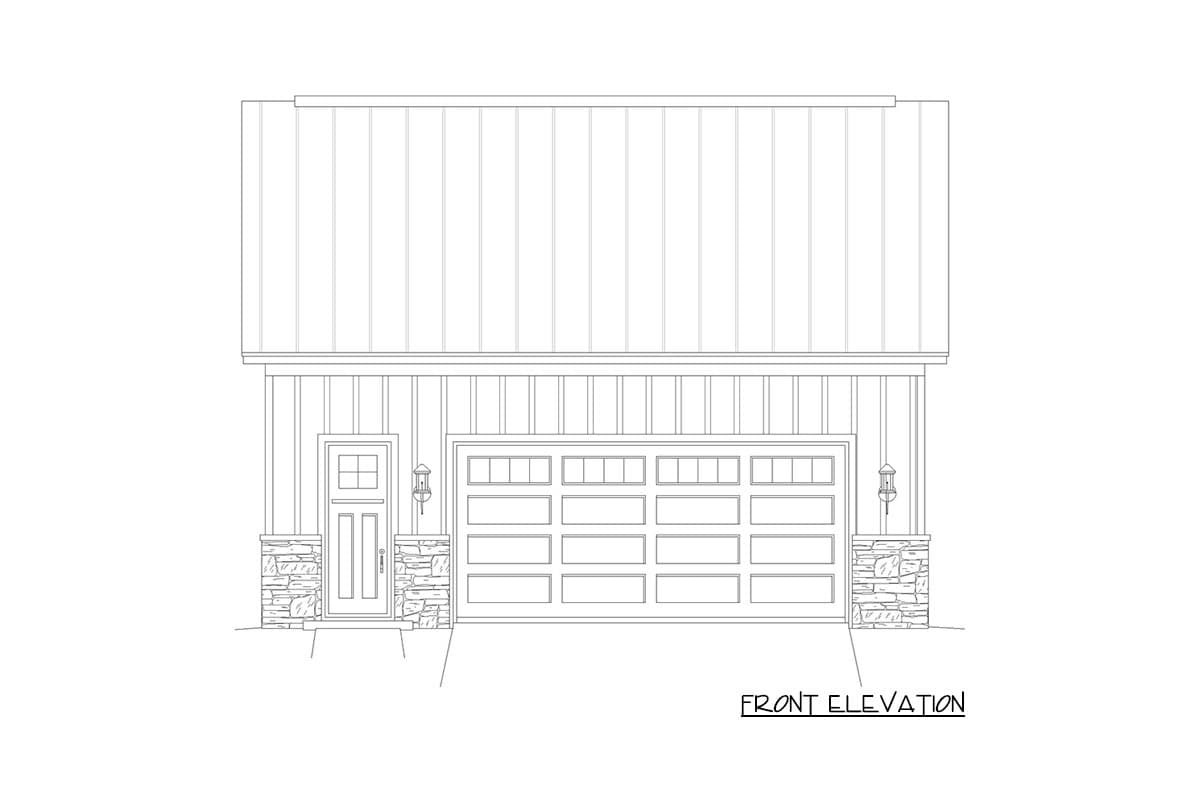

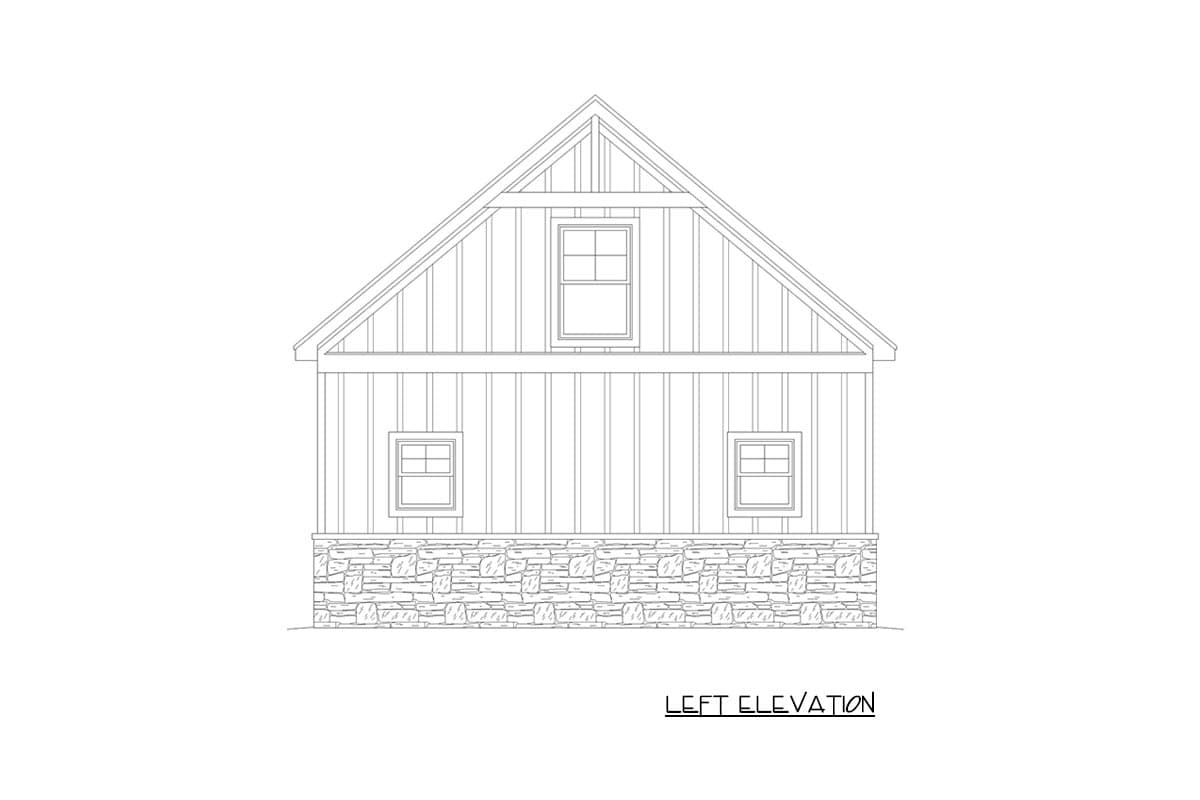

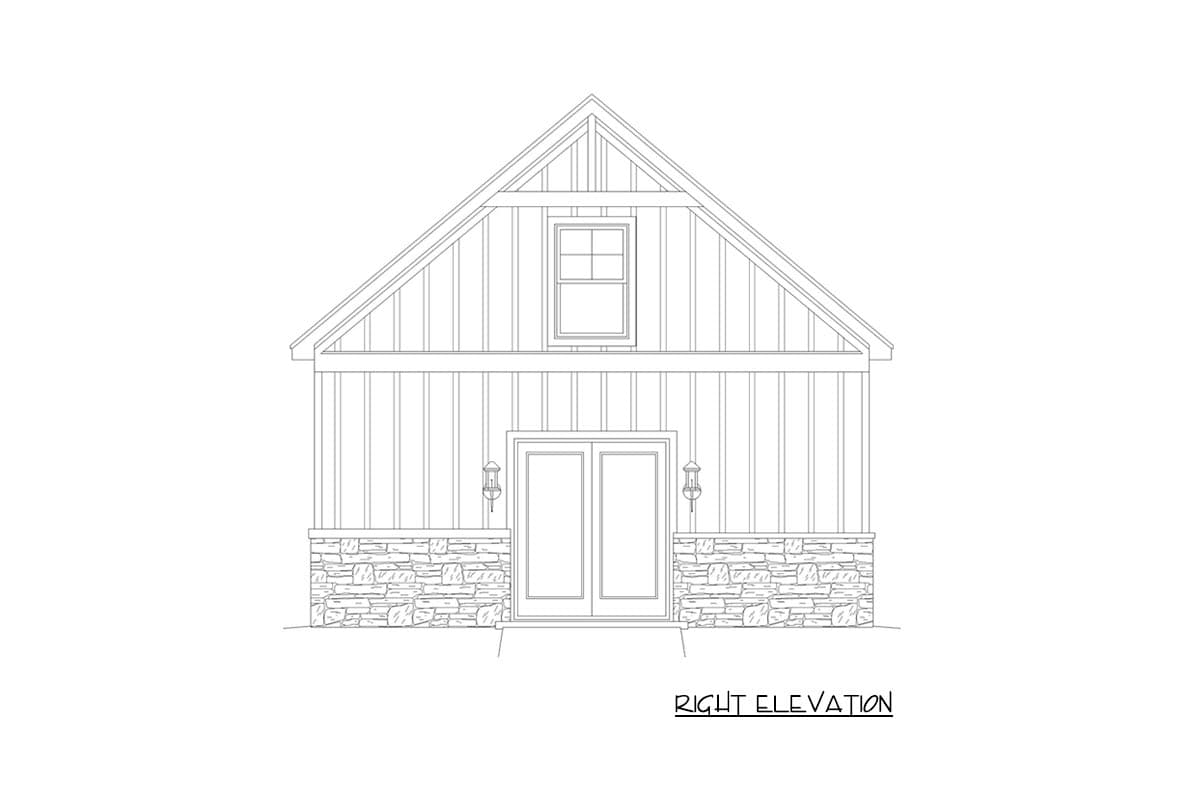

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

2nd Floor

527 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

25' 0"

Max Ridge Height

23' 6"

Garage

Type

Detached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

New American

Traditional

Special Features

Game/Rec Room

Square Footage Breakdown

Total Heated Area

0 sq. ft.

2nd Floor

527 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

25' 0"

Max Ridge Height

23' 6"

Garage

Type

Detached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Modern Farmhouse

New American

Traditional

Special Features

Game/Rec Room
