Plan 330004WLE
New American Home Plan with Open Main Level - 3828 Sq Ft
Heated S.F.
3,828
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 330004WLE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 330004WLE

1-800-854-7852

1-262-521-4596

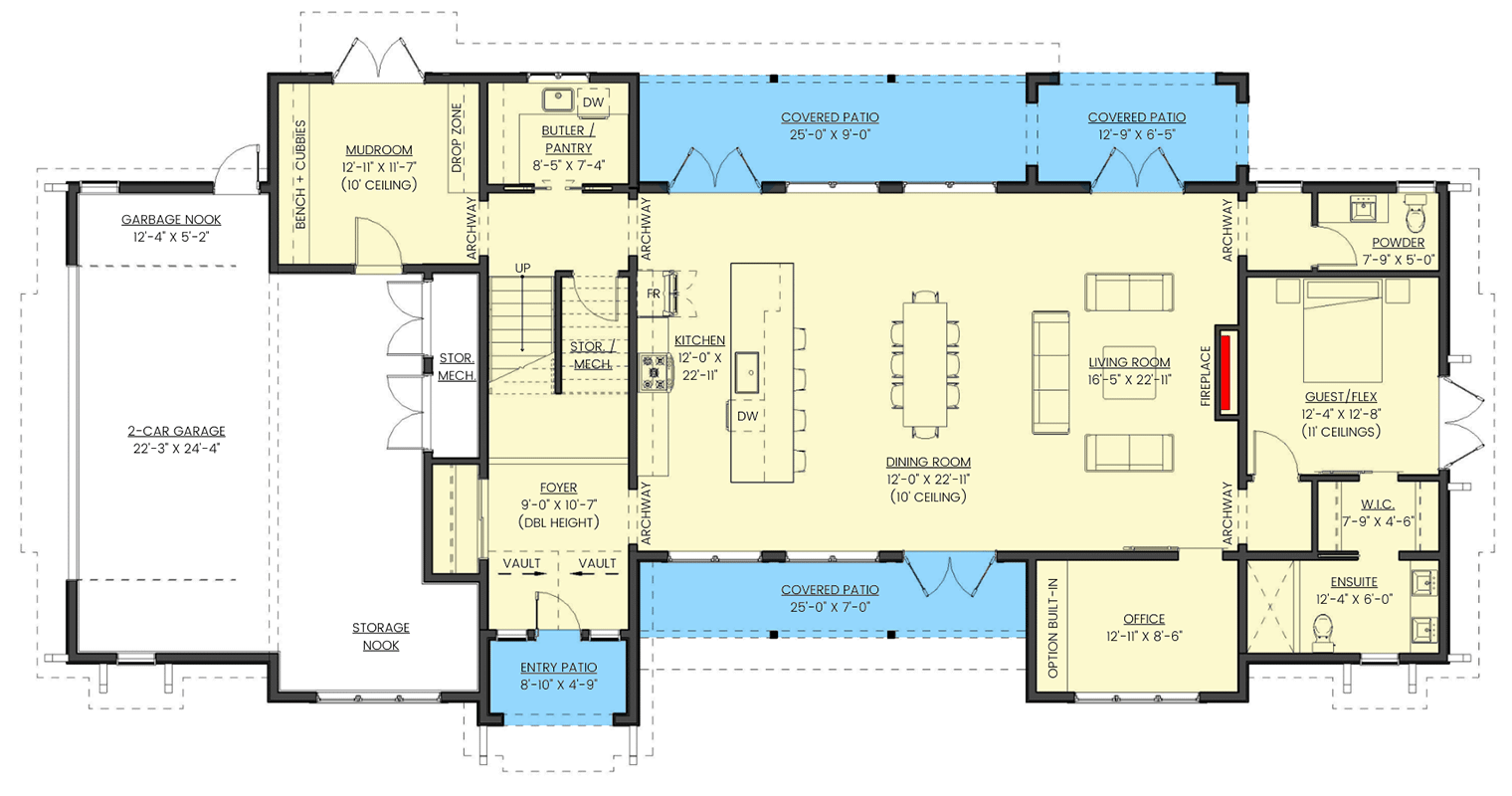

Main Level
floor plan image Main Level

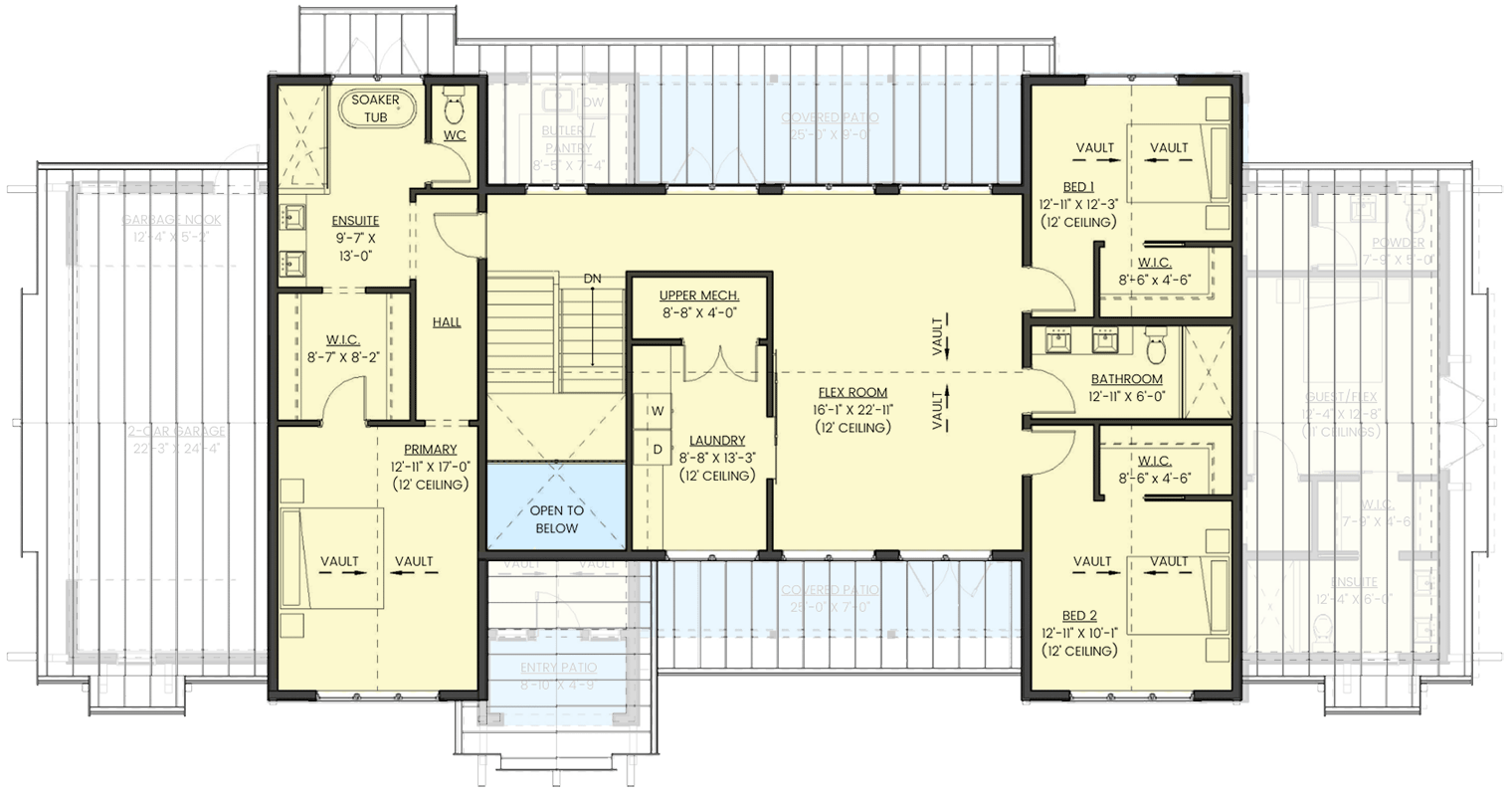

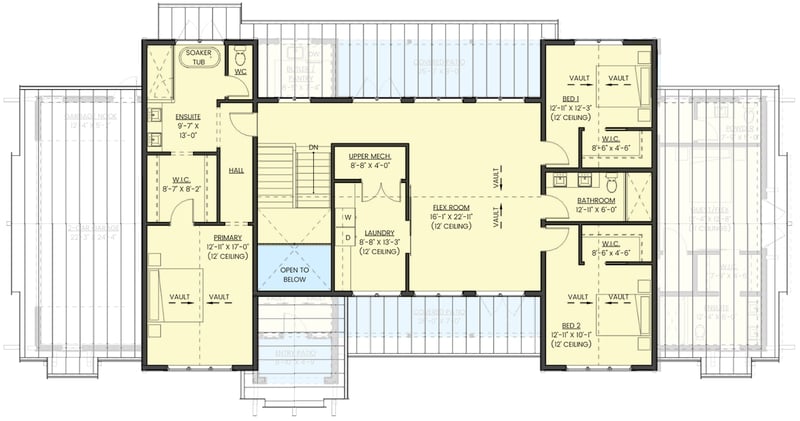

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The stunning exterior of this New American home plan pairs perfectly with its open-concept interior to create a family-friendly environment.
  • Three sets of french doors sprinkled throughout the open living space lead to the front and rear porches, while a barn door reveals a home office with frontal views.
  • An elongated island in the heart of the home includes casual seating for quick meals and pocket doors in the nearby hallway encloses a walk-in pantry. The spacious mudroom sits next door with access to the double garage.
  • A guest suite rounds out the main level, while the remaining bedrooms can be found upstairs, along with a vaulted flex room and laundry room.
  • The primary bedroom is privately situated along one side of the second level and boasts a vaulted ceiling and pass-thru closet that connects to the 5-fixture bathroom with a soaker tub.
What's Included
  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

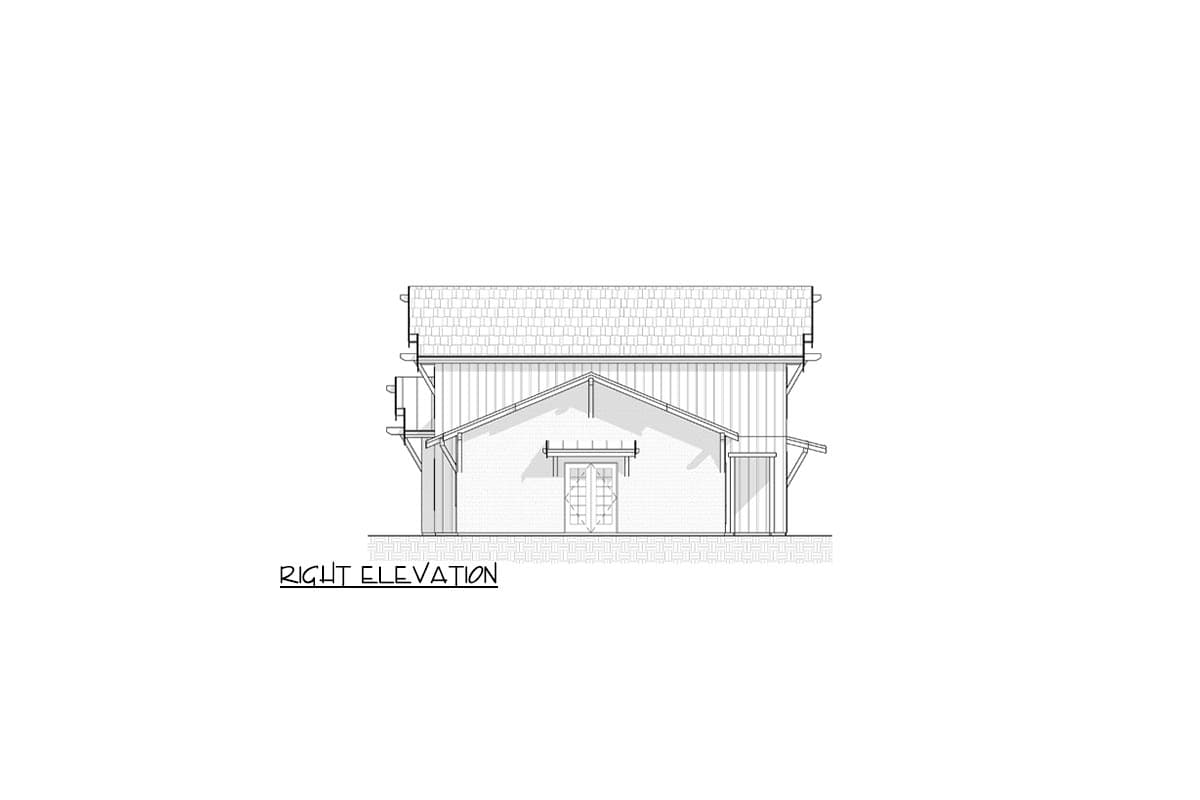

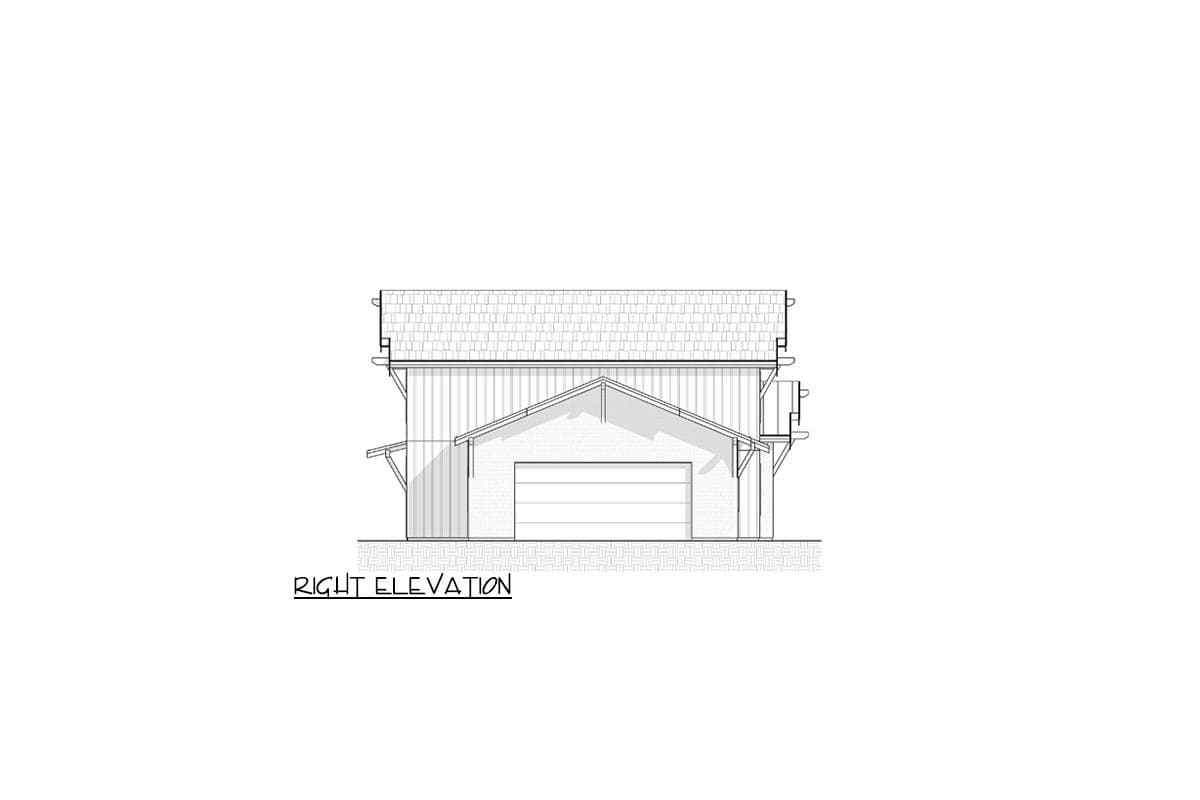

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,828 sq. ft.

1st Floor

2,043 sq. ft.

2nd Floor

1,785 sq. ft.

Entry

42 sq. ft.

Covered Patio

442 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 2"

Depth

40' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

705 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 11"

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Special Features

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,828 sq. ft.

1st Floor

2,043 sq. ft.

2nd Floor

1,785 sq. ft.

Entry

42 sq. ft.

Covered Patio

442 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 2"

Depth

40' 0"

Max Ridge Height

28' 2"

Garage

Type

Attached

Area

705 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 11"

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Special Features

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom

Plan Collections

Canadian House Plans
