Plan 710433BTZ

New American House Plan with 5 Beds and 3-Car Garage - 3173 Sq Ft

Heated S.F.

3,173

Beds

Baths

3.5

Stories

Cars

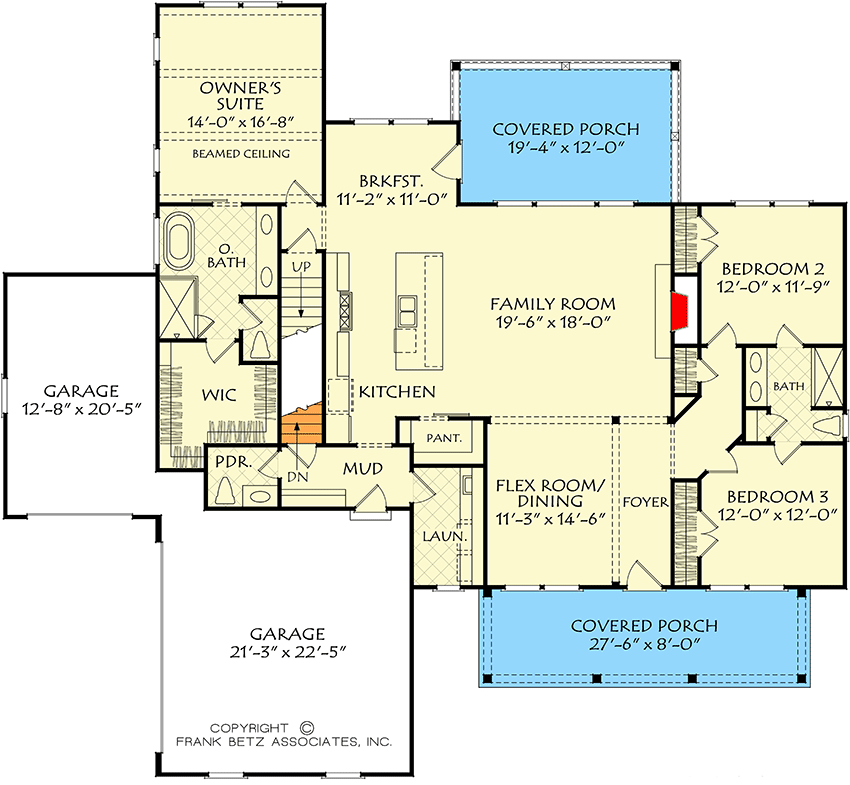

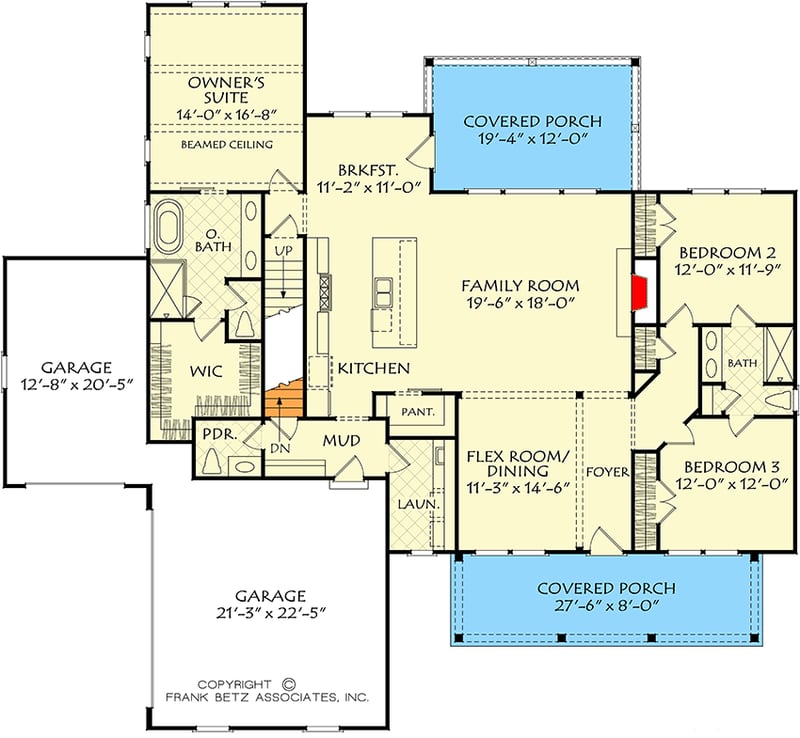

Floor Plan

Main Level

2nd Floor

Plan Details

This 5 bed, 3.5 bath New American house plan gives you 3,173 square feet of heated living and a 3-car 784 square foot garage.
Inside, you'll find open concept common spaces and 10' ceilings with flexibility anchored by the kitchen and family room.
The owner's suite is secluded and private and separated from two additional bedrooms on the main floor. The upper level has two more bedrooms.
The mudroom, laundry and pantry are sized for a large family with the need for storage and organization.
There is also a large media room for a home theater, recreation room or a den.
The multi-purpose bonus space can be finished for more square footage and uses.
We can modify any house plan you see on our site. Learn more about modifications.
Related Plan: Get an alternate version with house plan 710006BTZ (2295 sq. ft.).

What's Included

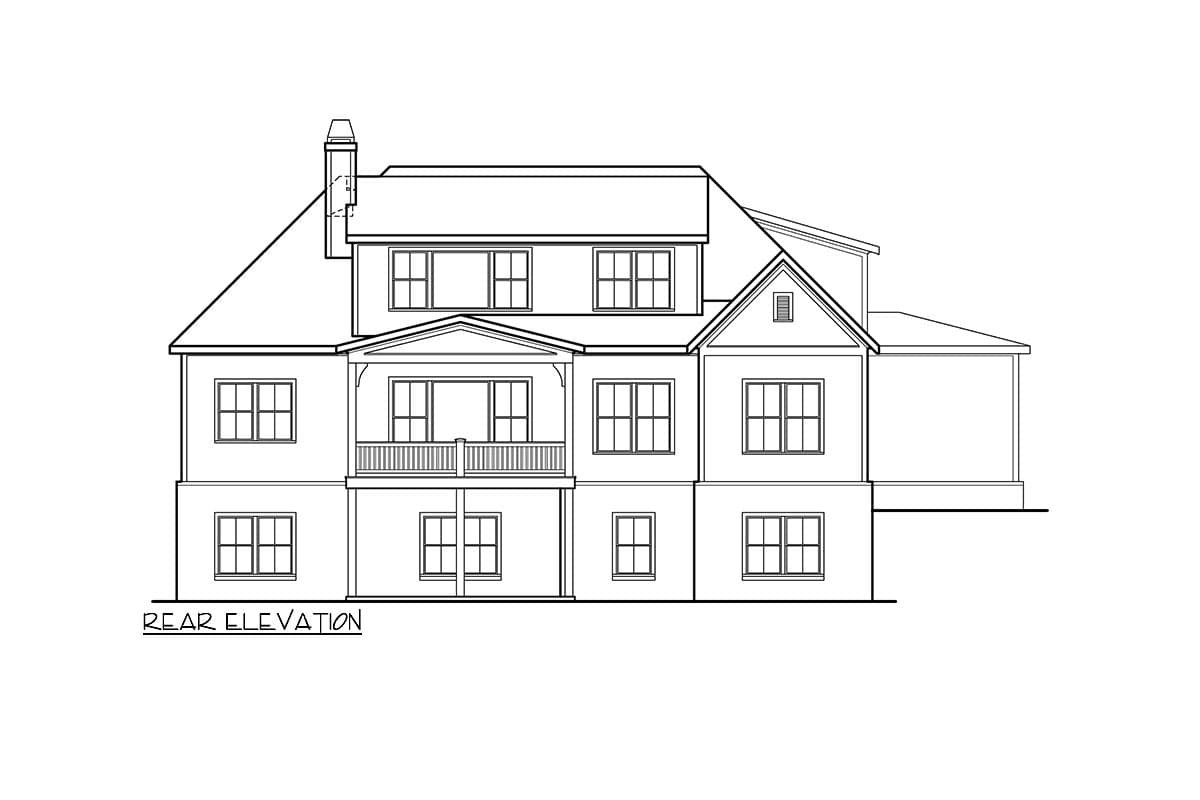

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.

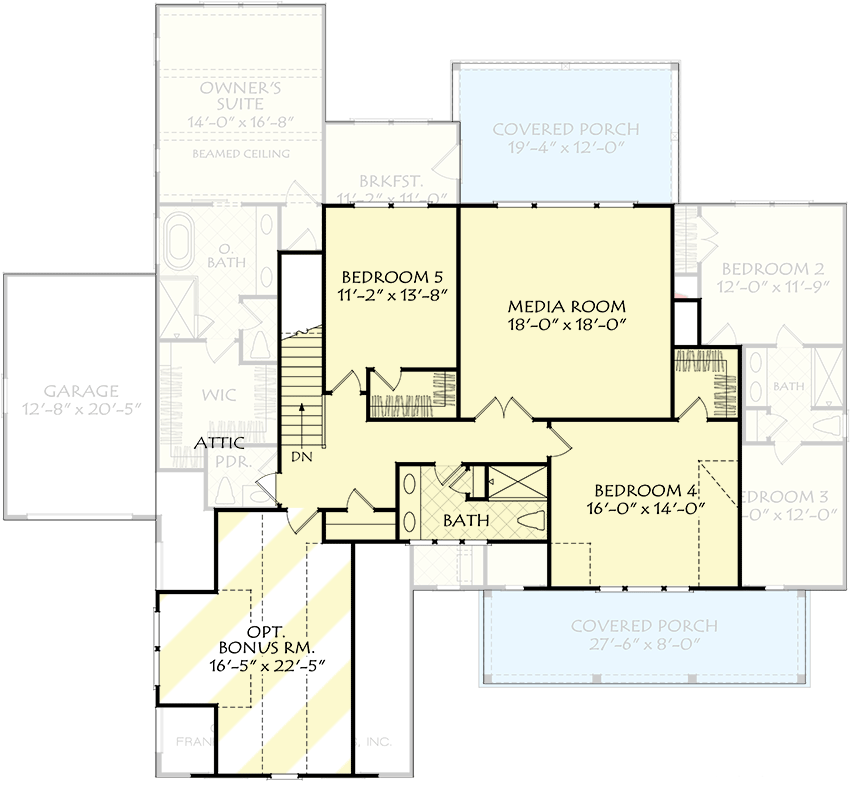

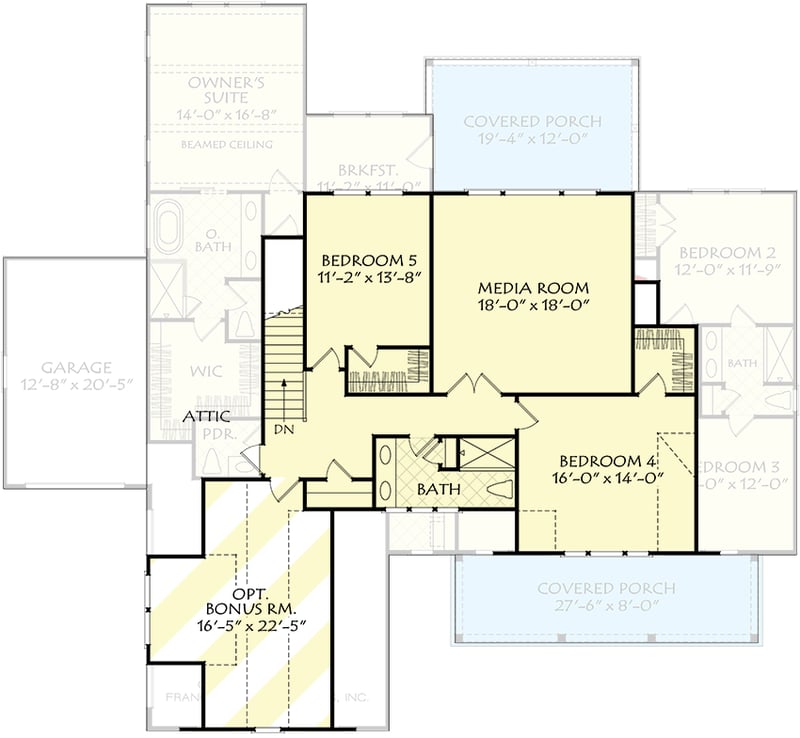

Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
