Plan 710051BTZ
New American House Plan with Alternate Exterior Options
Heated S.F.
2,065
Beds
3 - 4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 710051BTZ

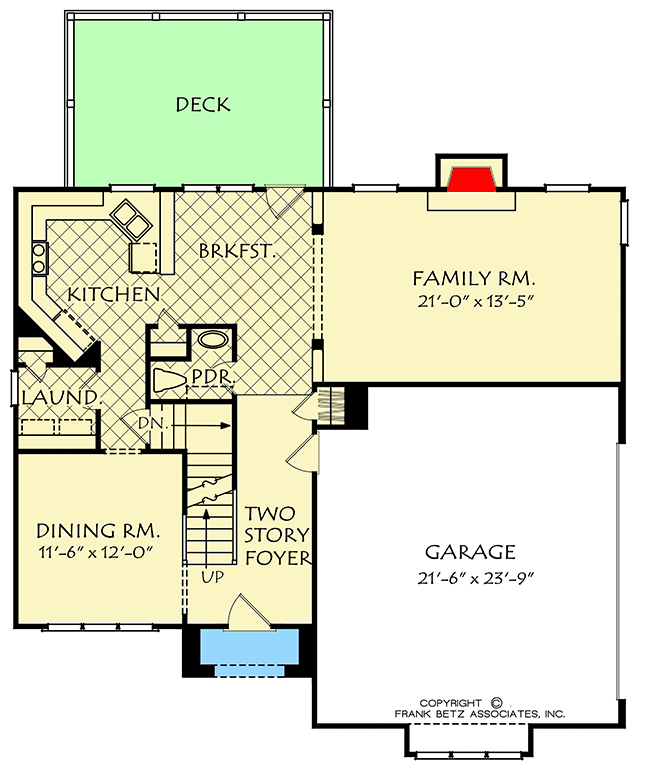

Main Level
slide image 0

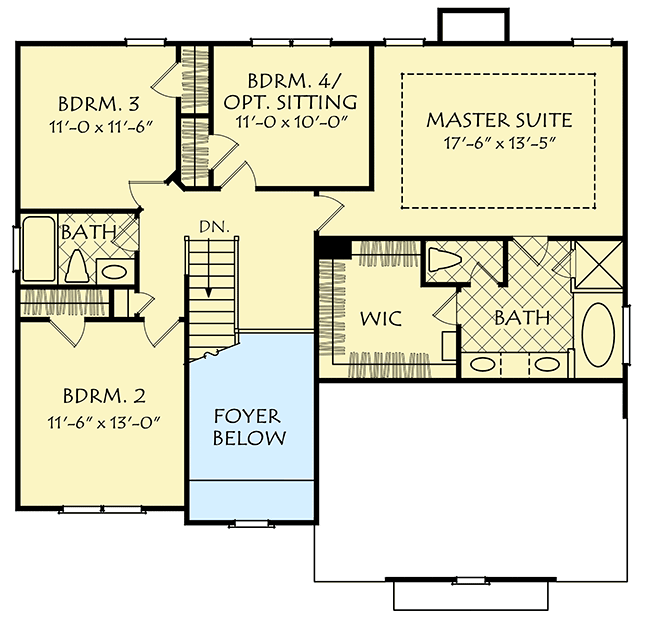

2nd Floor
slide image 1

Plan 710051BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • From the cozy brick exterior to Craftsman details including board-and-batten shutters and flower boxes, every square foot of this attractive house plan was thoughtfully crafted. An arched entryway framed by beautiful stone is a finishing touch and beckons visitors to come inside. Be sure to check out the related plans that give you an alternate exterior.
  • Inside, the open floor plan creates optimal space for entertaining and has plenty of room for family gatherings. Through the two-story foyer and past the formal dining room, the kitchen and attached breakfast can be found.
  • The family room comes with views onto the back deck and a large fireplace, giving occupants a comfortable space to relax on the main floor.
  • The second floor houses the sleeping quarters, which includes the master suite and three additional bedrooms with a shared bath. The luxurious master has an attached bathroom that comes with his-and-her sinks, a roomy soaking tub and a large walk-in closet giving homeowners a comfortable, private escape.
  • Related Plans: Get an alternate exterior with house plans 710052BTZ and 710053BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

975 sq. ft.

2nd Floor

1,090 sq. ft.

Basement Unfinished

975 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

43' 0"

Depth

40' 0"

Max Ridge Height

49' 6"

Garage

Type

Attached

Area

530 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

975 sq. ft.

2nd Floor

1,090 sq. ft.

Basement Unfinished

975 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

43' 0"

Depth

40' 0"

Max Ridge Height

49' 6"

Garage

Type

Attached

Area

530 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area
