Plan 500046VV

Exclusive

New American House Plan with Crafts Room and Third Floor Expansion - 3638 Sq Ft

Heated S.F.

3,638

Beds

4

Baths

3.5

Stories

2

Cars

2

Floor Plan

Main Floor

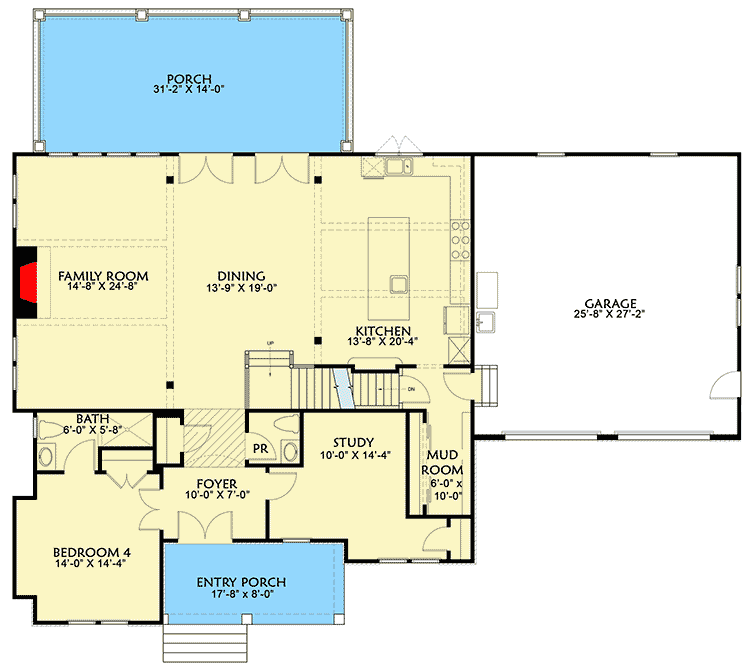

floor plan image Main Floor

Second Floor

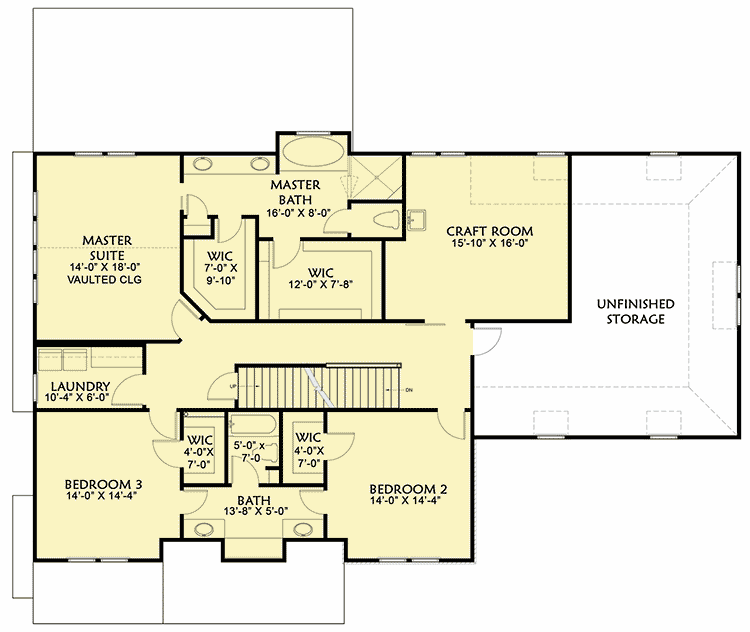

floor plan image Second Floor

Attic

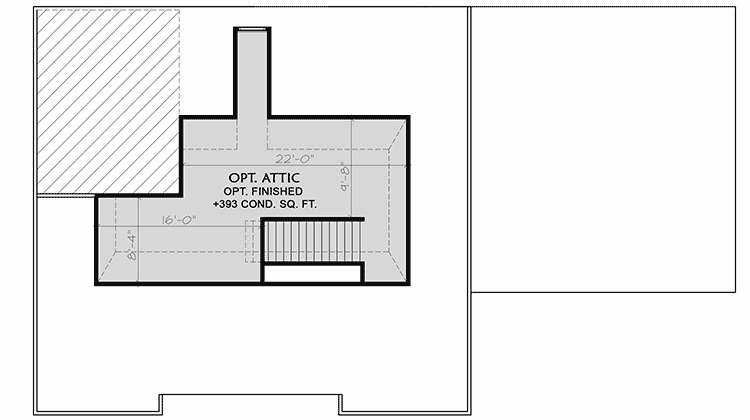

floor plan image Attic

Basement Unfinished

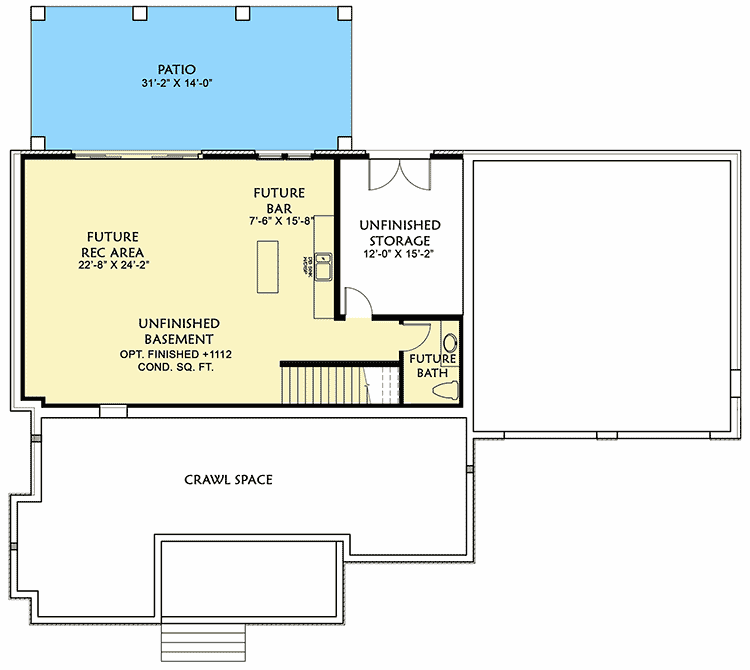

floor plan image Basement Unfinished

Plan Details

Four bedrooms, a large open floor plan and a detailed exterior add up to a gorgeous New American house plan for your family.
A first floor guest suite and a quiet study are additional perks.
Beams top the ceiling in the kitchen that has loads of counter space and storage.
Two sets of double doors swing open to take you out to the giant covered porch in back.
Amenities on the second floor include a luxurious vaulted master bedroom, a second floor laundry and a connected bathroom for bedrooms 2 and 3.
Love to do craft projects? This home has the ideal setup complete with a sink and three windows to better see your projects.
Unfinished storage gives you room for suitcases and holiday decorations.
Related Plan: Get more room with house plan 500011VV (4,164 sq. ft.).
NOTE: This plan cannot be built within a 50-mile radius of Richmond, Virginia.

What's Included

Cover sheet with notes
Foundation
Floor plans

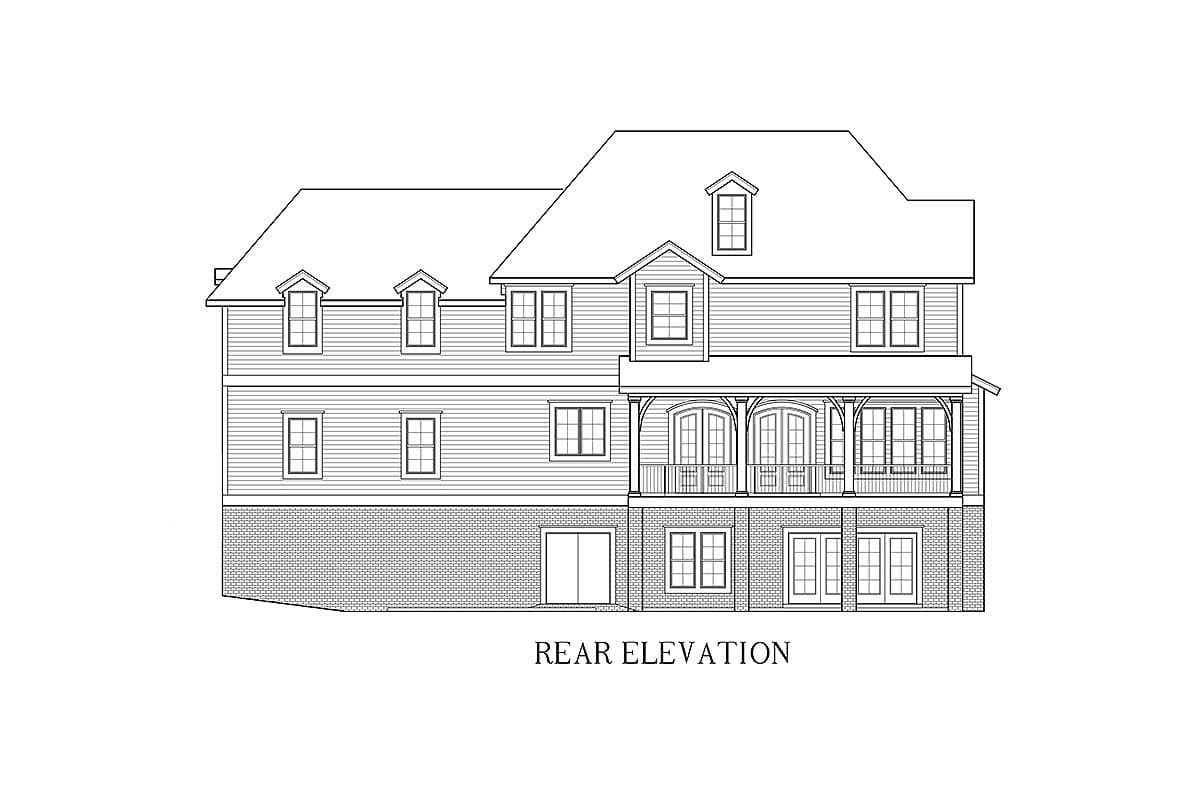

Elevations
Sections
Framing plans
Electrical plans

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,638 sq. ft.

1st Floor

1,831 sq. ft.

2nd Floor

1,807 sq. ft.

Basement Unfinished

1,112 sq. ft.

Porch, Front

141 sq. ft.

Porch, Rear

436 sq. ft.

Covered Patio

436 sq. ft.

Attic

393 sq. ft.

Storage

570 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 0"

Depth

60' 0"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

728 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Attic

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Square Footage Breakdown

Total Heated Area

3,638 sq. ft.

1st Floor

1,831 sq. ft.

2nd Floor

1,807 sq. ft.

Basement Unfinished

1,112 sq. ft.

Porch, Front

141 sq. ft.

Porch, Rear

436 sq. ft.

Covered Patio

436 sq. ft.

Attic

393 sq. ft.

Storage

570 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 0"

Depth

60' 0"

Max Ridge Height

33' 9"

Garage

Type

Attached

Area

728 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Attic

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick And Truss

Architectural Style

Special Features

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections
