Plan 33257ZR
New American House Plan with In-Law Suite - 3653 Sq Ft
Heated S.F.
3,653
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 33257ZR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 33257ZR

1-800-854-7852

1-262-521-4596

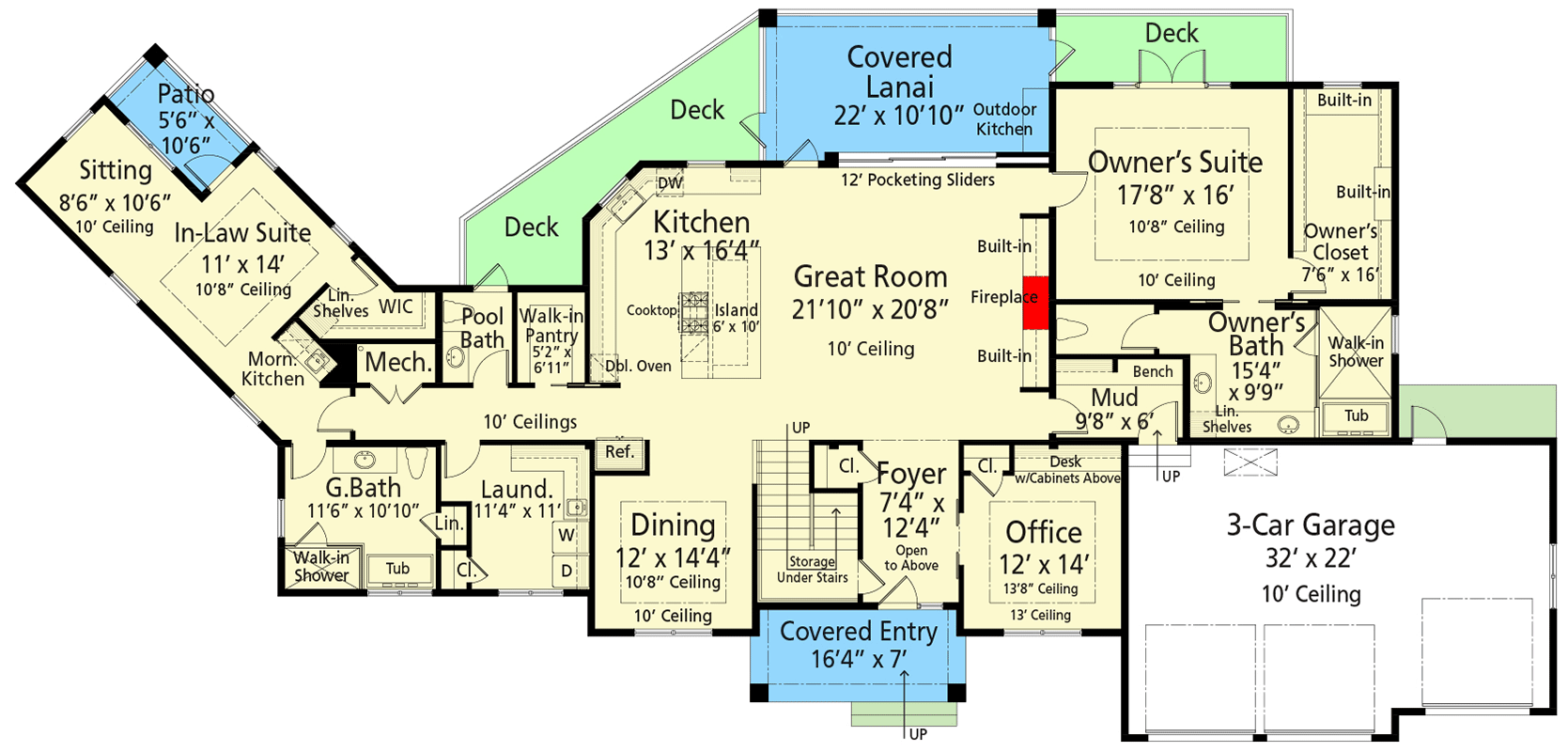

Main Level
floor plan image Main Level

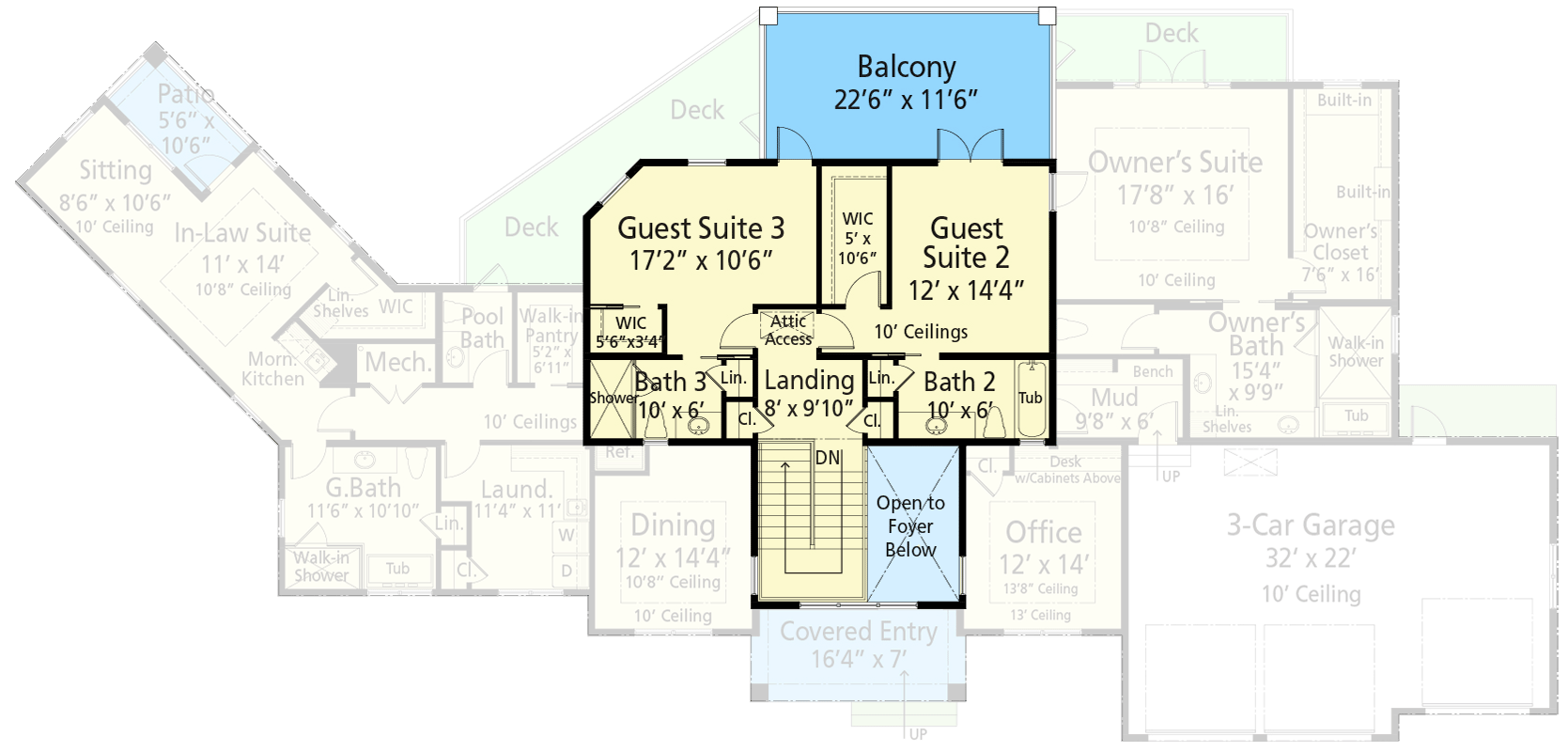

2nd Floor
floor plan image 2nd Floor
Plan Details

  • This New American house plan with in-law suite gives you 4 beds, 4.5 baths and 3,653 square feet of heated living space. takes full advantage of a wide lot. A triple set of gables accent the front entrance and are braced with curved brackets. The two-story foyer makes for a grand entrance. The office is concealed by a barn door opening on the right hand side of the foyer.
  • Expansive views are everywhere you look from the spacious great room to the gourmet kitchen. Pocketing glass sliders open up the indoor/outdoor spaces, perfect for entertaining.
  • The kitchen offers plenty of storage space with a large central island and cook-top. The walk-in pantry is just around the corner and the private dining room is directly across from the kitchen with a view of the front courtyard.
  • The in-law suite is secluded just past the laundry room and pool bath. It has its own private patio and full bath with shower and spa tub. Plenty of space for a sitting area and a morning kitchen.
  • The owner’s suite is secluded to the opposite side of the house. The large bedroom offers French doors that open to the rear deck. The owner’s spacious closet and bath offers all the amenities one could possibly need.
  • Stairs to the second story guest suites are open to the dramatic view of the foyer below. Each suite has its own private bath and walk-in closets. Both have access to a rear balcony.
  • The 3-car garage offers plenty of space for sport vehicles and more. Steps up to the mud room with a 9’8” wall for organizing shoes, coats and handbags.

What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

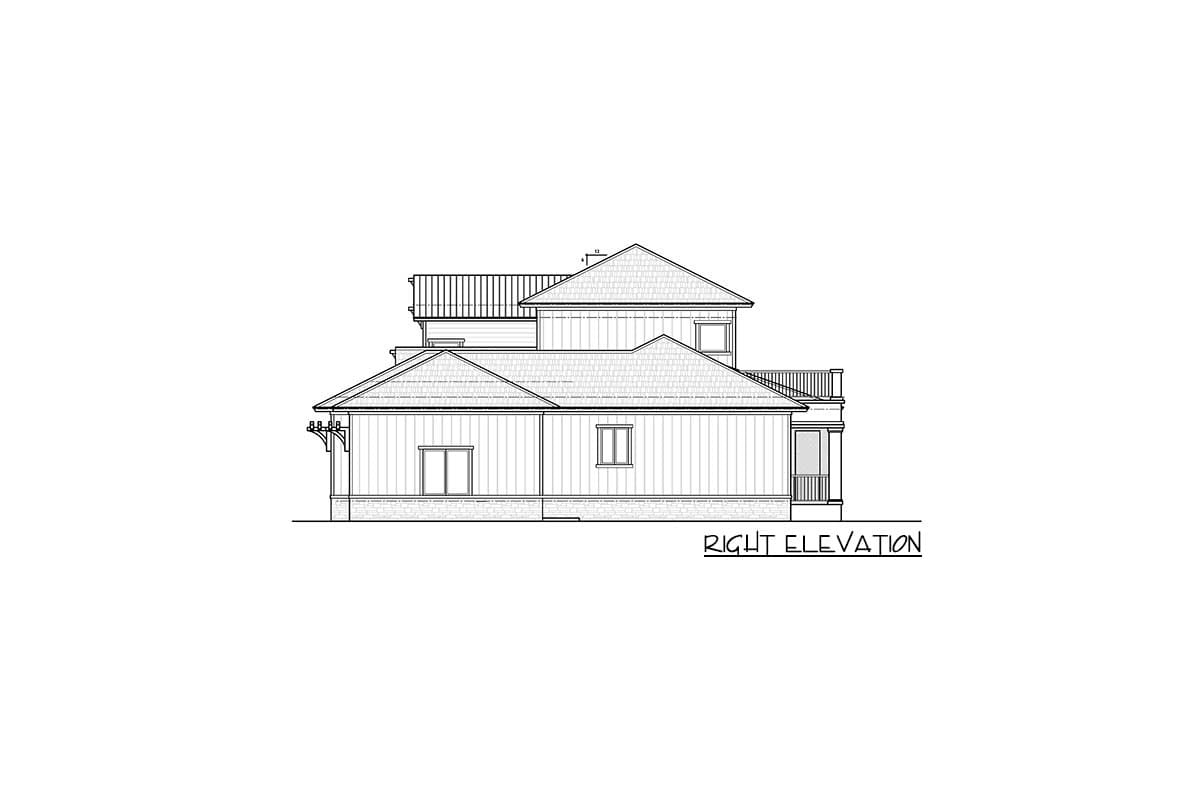

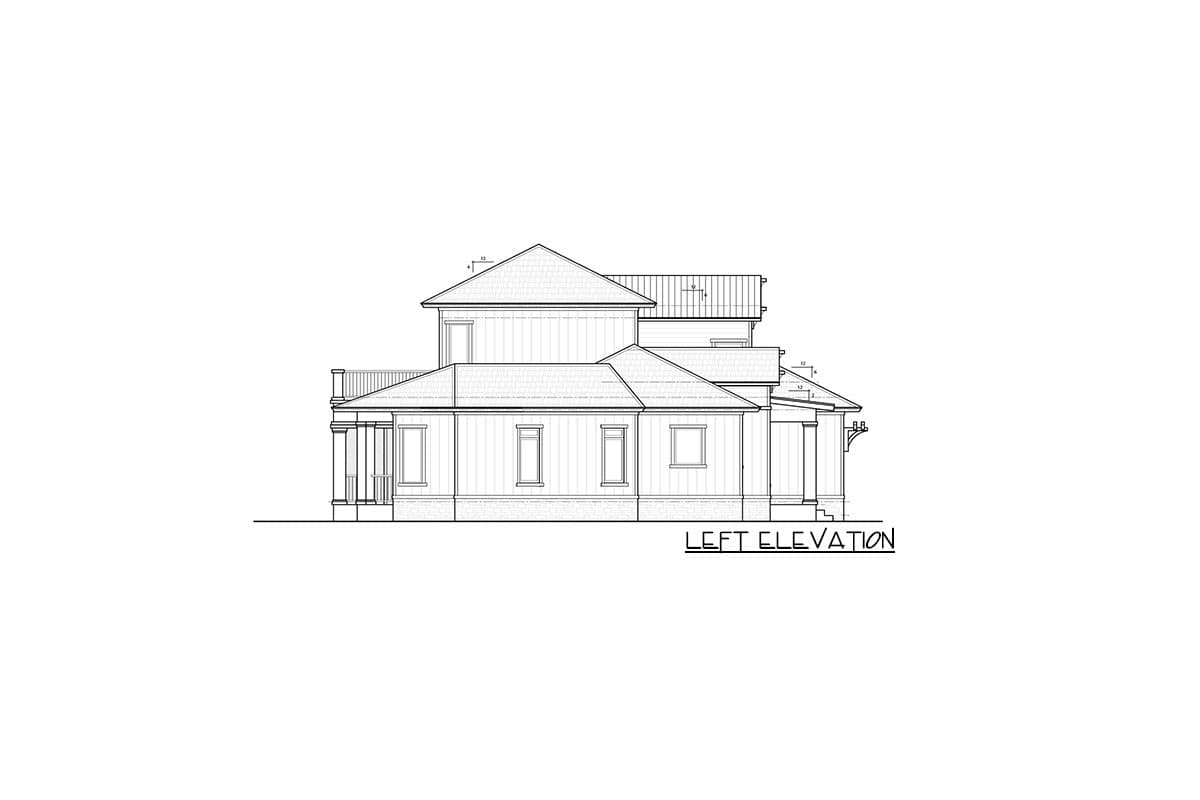

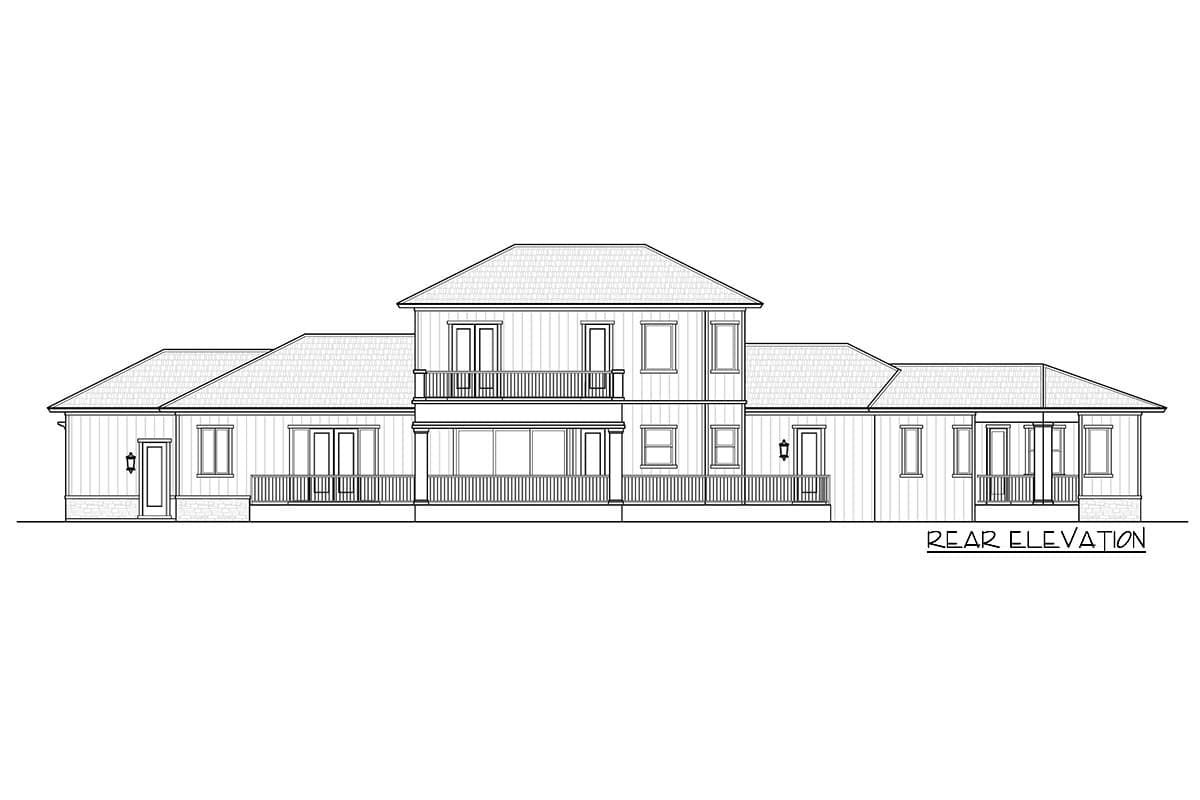

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,653 sq. ft.

1st Floor

2,886 sq. ft.

2nd Floor

767 sq. ft.

Porch, Front

111 sq. ft.

Porch, Rear

255 sq. ft.

Porch, Combined

312 sq. ft.

Entry

111 sq. ft.

Balcony / Veranda

255 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 11"

Depth

55' 6"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

717 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Country

Modern Farmhouse

New American

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Courtyard

Formal Dining

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Multi-Generational
