Plan 16915WG
New American House Plan with Industrial Metal-Clad Turret - 2425 Sq Ft
Heated S.F.
2,425
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2- 3
Floor Plan

Plan 16915WG

Main Level
slide image 0
2nd Floor
slide image 1
3-Car Garage Option (+$195)
slide image 2
slide image 3
slide image 4

Plan 16915WG

1-800-854-7852

1-262-521-4596

Main Level

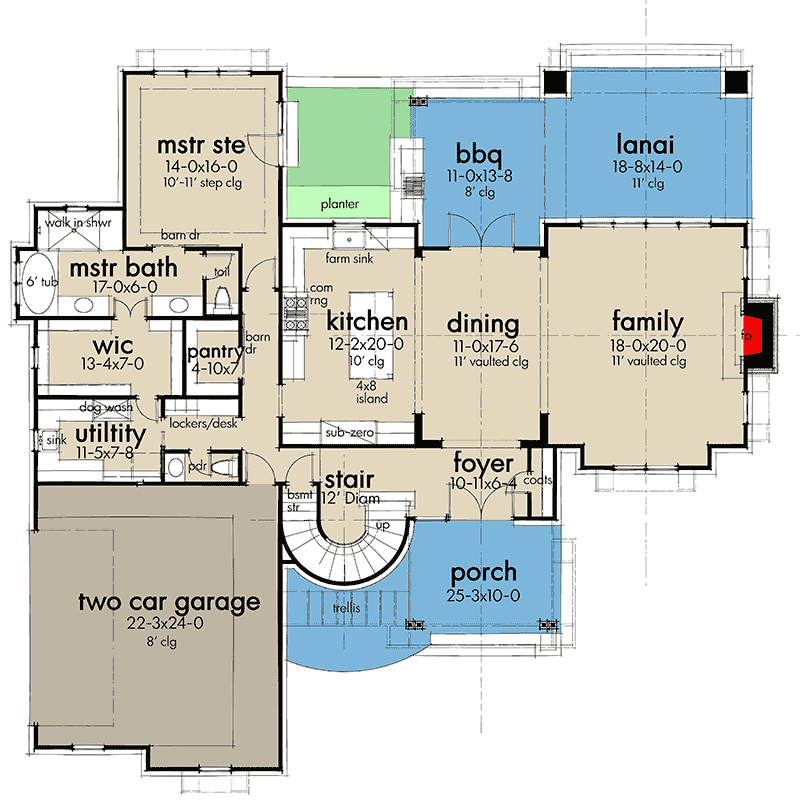

floor plan image Main Level

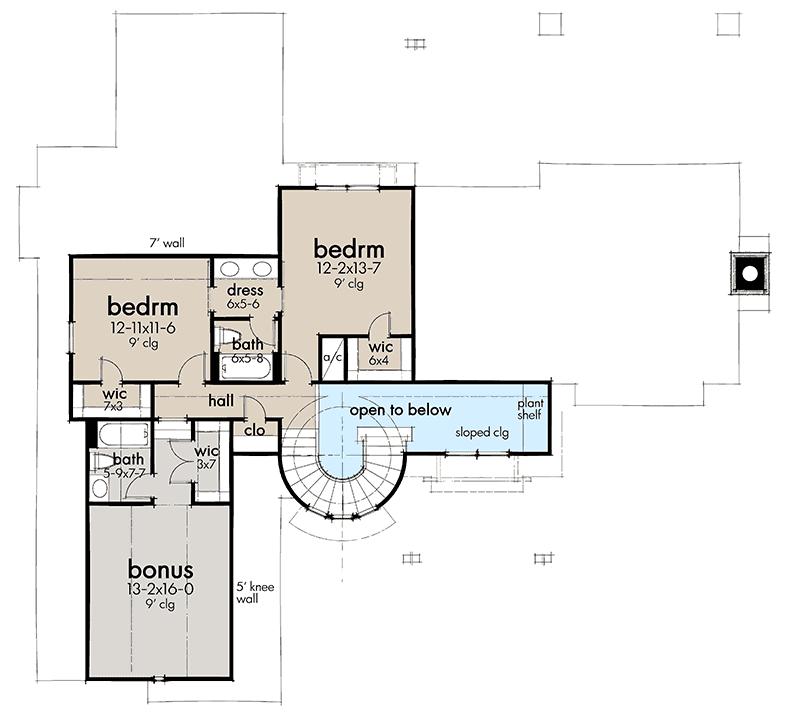

2nd Floor
floor plan image 2nd Floor

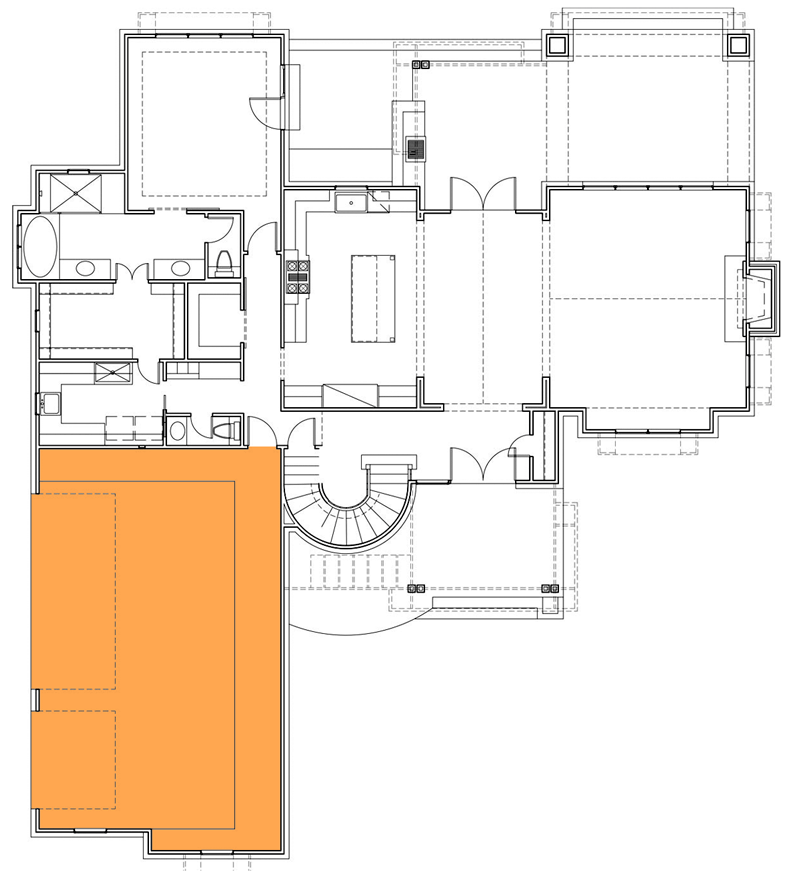

3-Car Garage Option (+$195)
floor plan image 3-Car Garage Option (+$195)
floor plan image null
floor plan image null
Plan Details
  • This stunning, New American house plan boasts industrial-style accents, such as the metal-clad turret, which houses the curved staircase. Nested gables rest above the 2-car garage that offers access from the side of the home.
  • Step inside, and discover a coat closet in the foyer, and an open concept floor plan straight ahead, which extends outdoors onto the lanai with a BBQ station. A central fireplace serves as the focal point.
  • The chef's kitchen boasts space for a sub-zero refrigerator, massive island, and a farm sink. A barn door in the adjacent hallway conceals the walk-in pantry, and a built-in desk in the nearby mudroom offers a communal office area.
  • Privately situated on the main level, the master suite offers a true retreat for the homeowner. The en suite features 5 fixtures and a pass-through closet that leads to the laundry room for added convenience.
  • Wind up the staircase to find two additional bedrooms that share a Jack-and-Jill bath, along with a bonus room above the garage, which could serve as a media room or fourth bedroom.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,425 sq. ft.

1st Floor

1,865 sq. ft.

2nd Floor

560 sq. ft.

Bonus

333 sq. ft.

Porch, Front

195 sq. ft.

Lanai

429 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 7"

Depth

65' 4"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

579 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Dining Room

Vaulted

11' 0''

Family Room

Vaulted

11' 0''

Master Bedroom

Step

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Farmhouse

Modern Farmhouse

New American

Southern

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Square Footage Breakdown

Total Heated Area

2,425 sq. ft.

1st Floor

1,865 sq. ft.

2nd Floor

560 sq. ft.

Bonus

333 sq. ft.

Porch, Front

195 sq. ft.

Lanai

429 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 7"

Depth

65' 4"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

579 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Dining Room

Vaulted

11' 0''

Family Room

Vaulted

11' 0''

Master Bedroom

Step

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Farmhouse

Modern Farmhouse

New American

Southern

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom
