Plan 849022PGE
New American House Plan with Lower Level Expansion - 3107 Sq Ft
Heated S.F.
3,107
Beds
3 - 5
Baths
2.5 - 4.5
Stories
1
Cars
3
Floor Plan

Plan 849022PGE

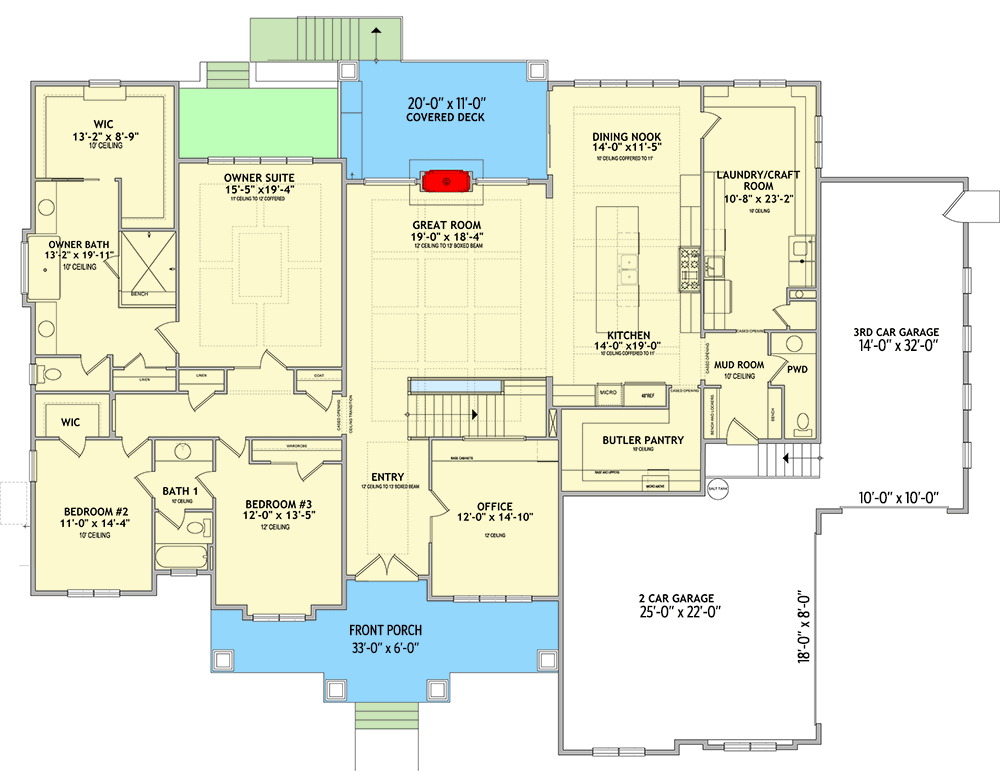

Main Level
slide image 0

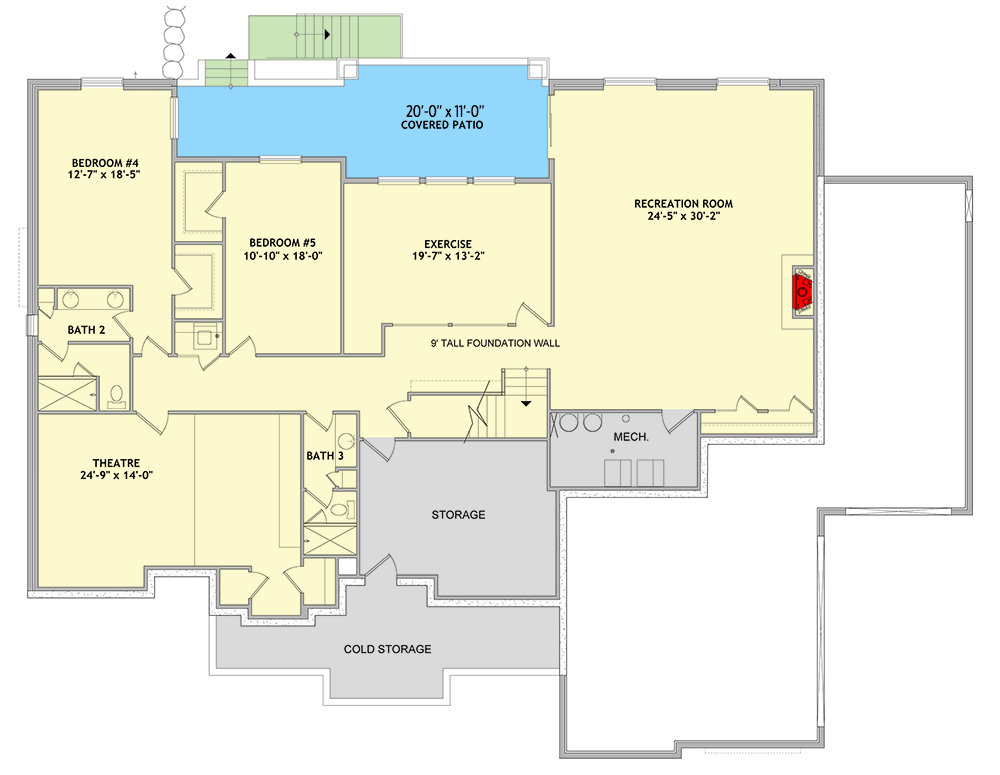

Lower Level
slide image 1

Plan 849022PGE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details
  • This 3 bed, 2.5 bath New American house plan gives you 3107 square feet of heated living space and has an additional 3155 square feet of expansion in the optional finished lower level.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,107 sq. ft.

1st Floor

3,107 sq. ft.

Optional Lower Level

3,155 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 0"

Depth

66' 2"

Max Ridge Height

35' 7"

Garage

Type

Attached

Area

1046 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Boxed

11' 0''

Master Bath

Flat

10' 0''

Master WIC

Flat

10' 0''

Kitchen

Beamed

10' 0''

Dining Room

Boxed

10' 0''

Great Room

Boxed

12' 0''

Bedroom 2

Flat

10' 0''

Bedroom 3

Flat

12' 0''

Office

Flat

12' 0''

Laundry Room

Flat

10' 0''

Garage

Flat

0' 0''

RV Garage

Flat

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Modern Farmhouse

New American

Special Features

Breakfast Nook

Butler Walk-in Pantry

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown
